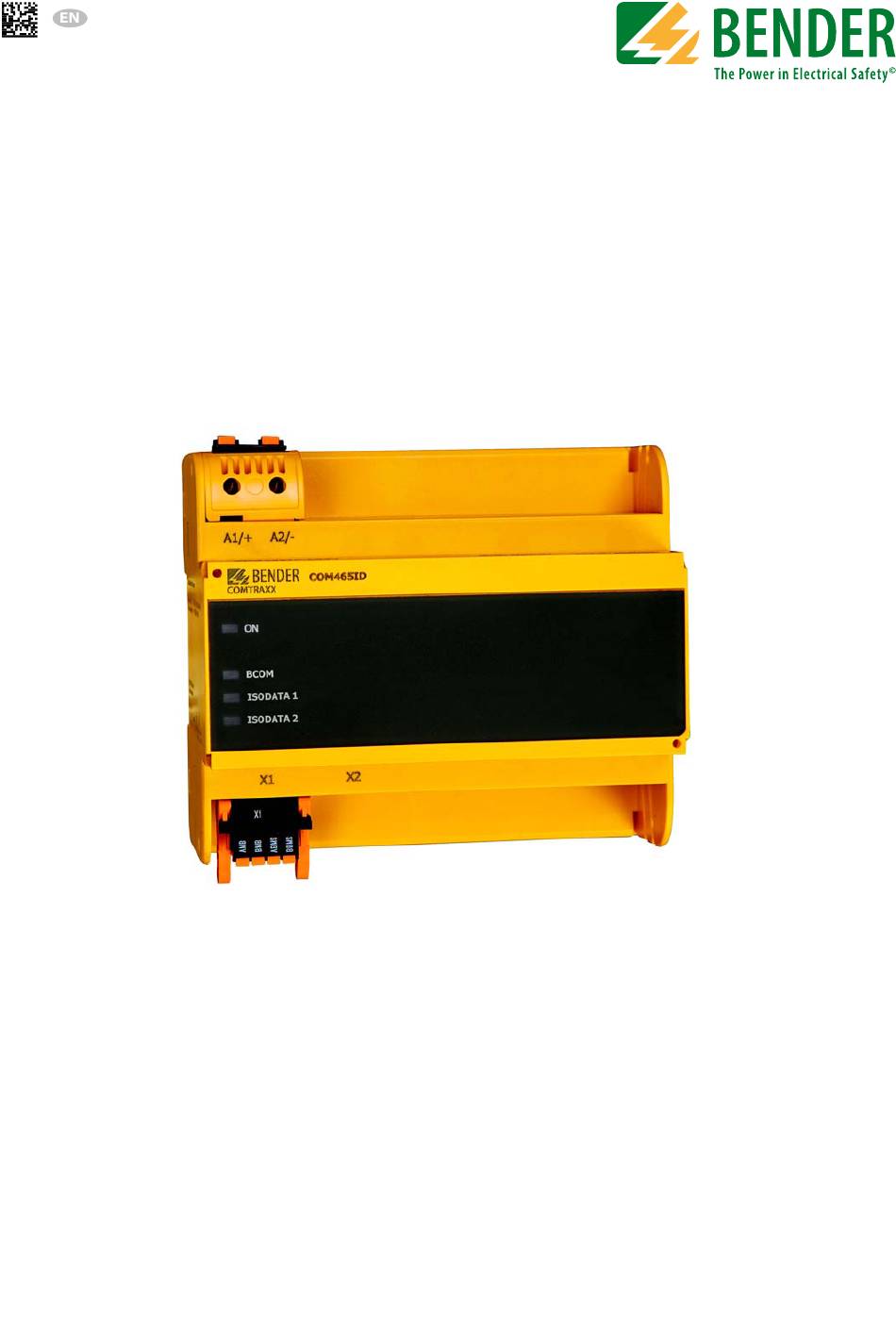

- Page 1 Manual COMTRAXX® COM465ID Condition Monitor with integrated gateway for the connection of Bender isoData devices with Ethernet TCP/IP networks Software version: D472 V3.xx COM465ID_D00368_01_M_XXEN/05.2019...
- Page 2 © Bender GmbH & Co. KG Bender GmbH & Co. KG P.O. Box 1161 • 35301 Gruenberg • Germany All rights reserved. Reprinting only with permission Londorfer Strasse 65 • 35305 Gruenberg • Germany Tel.: +49 6401 807-0 • Fax: +49 6401 807-259 of the publisher.
-
Page 3: Table Of Contents
Table of Contents 1. General instructions ....................5 How to use this manual ......................5 Technical support: service and support ................6 1.2.1 Consultation ........................6 1.2.2 Repair ............................. 6 1.2.3 Customer service ....................... 6 Training courses ........................6 Delivery conditions ......................... 7 Inspection, transport and storage .................. - Page 4 Table of Contents 5. COM465ID connection ..................14 Connections ........................... 14 5.1.1 Wiring diagrams ......................15 5.1.2 Termination of the isoData interface ..............16 Display and operating elements ..................16 COMTRAXX® user interface of the COM465… ............17 Changing parameters ......................18 6.
-
Page 5: General Instructions
COMTRAXX® COM465ID is also referred to in this manual as "COM465ID" for short. COMTRAXX® is a registered trademark of Bender GmbH & Co. KG. Always keep this manual within easy reach for future reference. We have used symbols to identify important instructions and information: This signal word indicates that there is a high risk of danger, that will result in death or serious injury if not avoided. -
Page 6: Technical Support: Service And Support
**Mo-Thu 7.00 a.m. - 4.00 p.m., Fr 7.00 a.m. - 1.00 p.m. 1.3 Training courses Bender is happy to provide training regarding the use of test equipment. The dates of training courses and workshops can be found on the Internet at www.bender.de -> Know-how -> Seminars. -
Page 7: Delivery Conditions
(Zentralverband Elektrotechnik- und Elektronikindustrie e.V., (German Electrical and Electronic Manufacturers' Association) also applies. Conditions of sale and delivery can be obtained from Bender in printed or electronic format. 1.5 Inspection, transport and storage Inspect the dispatch and equipment packaging for damage, and compare the contents of the package with the delivery documents. -
Page 8: Safety Instructions
2. Safety instructions 2.1 General safety instructions Part of the device documentation in addition to this manual is the enclosed "Safety instructions for Bender products". 2.2 Work activities on electrical installations Only qualified personnel are permitted to carry out the work necessary to in- stall, commission and run a device or system. -
Page 9: Product Description
Support of devices that are connected via isoData, BCOM or Modbus TCP. 3.2.1 Range of functions COM465ID (basic device without function modules) Condition monitor with a web interface for use with Bender isoData and BCOM devices as well as uni- versal measuring devices. -
Page 10: Function Module A
Product description 3.2.2 Function module A Allocating individual texts for devices, channels (measuring points) and alarms Device failure monitoring E-mail notification in the event of alarms or system faults to different users Configuring e-mail notifications Documenting the device: A PDF file to document the settings of any device in the system can be ... -
Page 11: Applications
COM465… devices are integrated in a network system like a PC. After connection to the network and other compatible Bender products, all system devices can be accessed from any PC using a standard web browser. The COM465ID is an extension based on the Bender COM465IP serial device. Among other things, it enables the integration of 2 isoData devices into the system. -
Page 12: Com465Id Installation
4. COM465ID installation The gateway can usually be integrated into existing LAN structures, but can also be operated via a single PC on the Ethernet side. Preparing configuration If you are familiar with the configuration of computer networks, you can carry out the connection of the COM465ID yourself. -
Page 13: Installation
COM465ID installation 4.2 Installation Only qualified personnel are permitted to carry out the work necessary to in- stall, commission and run a device or system. Risk of electrocution due to electric shock! Touching live parts of the system carries the risk of: An electric shock ... -
Page 14: Com465Id Connection
5. COM465ID connection 5.1 Connections A1/+ A2/- COM465ID COMTRAXX BCOM ISODATA 1 ISODATA 2 Voltage supply: see nameplate and Kapitel „8.3 Ordering details" 1. isoData interface: Terminals A-ID1 and B-ID1 X1 plug 2. isoData interface: Terminals A-ID2 and B-ID2 Ethernet port (RJ45) for connection to the PC network as well as to BCOM X2 plug isoData channel 1 terminating resistor switch isoData channel 2 terminating resistor switch... -
Page 15: Wiring Diagrams
COM465ID connection 5.1.1 Wiring diagrams Wiring diagram COM465ID to IRDH265 U s = AC/DC 24...240 V COM465ID A1/+ A2/- COM465ID COMTRAXX IRDH265 ETHERNET/IP ISODATA 1 ISODATA 2 IRDH265 Wiring diagram COM465ID to isoDB685... U s = AC/DC 24...240 V COM465ID A1/+ A2/- COM465ID... -
Page 16: Termination Of The Isodata Interface
COM465ID connection 5.1.2 Termination of the isoData interface For an error-free data transmission from the isoData device to the COM465ID, a terminating resistor of 120 Ω is to be connected to both ends of the bus cable for each channel. This terminating resistor is either switched on OR connected externally. -
Page 17: Comtraxx® User Interface Of The Com465
1207990020-Bxxxxxxxx WE R K ZE U GE BENDER System OK LOGO Bender logo with device description Device address Date and time of the accessing browser system. The web user interface does not display the current device SYSTEM INFORMATION time. The current device time can be determined in the menu at Device >... -
Page 18: Changing Parameters
COM465ID connection 5.4 Changing parameters Changes can be made via drop-down menu, value input or text input. The following figure shows application examples. Changed values are highlighted in YELLOW in the input field until final storage (green button). Drop-down menu Value input Text input Text input incorrect... -
Page 19: Commissioning Of The Com465Id
6. Commissioning of the COM465ID 1. Determine the address space of the system network before commissioning the COM465ID. Contact your network administrator for the following required information: – IP address of the COM465ID – Subnet mask of the network system –... - Page 20 – Save the settings. Double address assignment The default system name on all Bender BCOM devices is "SYSTEM". If several sys- tems are set up in the same network, there is a risk that addresses will be as- signed twice. This may lead to serious malfunctions. Therefore always assign a new BCOM system name.
- Page 21 Commissioning of the COM465ID – Navigate to the menu "TOOLS" > "Device management" > "isoData devices". – During initial commissioning, generally no devices are connected via the interfaces. – Click on the button "New element". – The following input window will appear: Fig.
- Page 22 Commissioning of the COM465ID – Navigate to the menu OPC UA ["Menu" > "Settings" > "Interface" > "OPC UA"]. Fig. 6.5: Input menu OPC UA – Activate OPC UA transfer – Set the port number of the address – Select whether the communication of the devices should be encrypted via OPC UA. –...
-
Page 23: Troubleshooting
COMTRAXX® manual). Frequently asked questions on the Internet You will find FAQs on many Bender devices at: http://www.bender.de > Service & support > Rapid assistance > FAQ 7.2 Maintenance The device does not contain any parts that must be maintained. -
Page 24: Technical Data
8. Technical data 8.1 Tabular data ( )* = Factory setting Insulation coordination in acc. with IEC 60664-1/IEC 60664-3 (For 230 V variants B95061060) Rated voltage ................................ AC 250 V Rated impulse voltage/overvoltage category ......................4 kV/III Pollution degree..................................3 Safe separation (reinforced insulation) between ...................... - Page 25 Technical data SNMP Versionen...................................1, 2c, 3 Devices supported ............Queries to all devices (channels) possible (no trap functionality) isoData Interface/protocol............................RS-485/isoData Operating mode ................................Master Baud rate ............................. 9.6…115.2 kBit/s Cable length ..............................≤ 1200 m Cable: twisted pair, shielded, one end of shield connected to PE ......recommended: J-Y(St)Y min. 2x0.8 Connection........................X1 (A-ID1, B-ID1, A-ID2, B-ID2) Connection type....................
-
Page 26: Standards, Approvals And Certifications
Parameter setting for BMS devices as well as BCOM and univer- Function module C B75061013 sal measuring devices, generating and importing backup files Function module D Visualisation of Bender systems, system visualisation B75061014 Function module E Virtual devices B75061015 Function module F... -
Page 27: Index
INDEX Safety instructions 8 Service 6 Standards 26 Applications 11 Storage 7 Support 6 Certifications 26 Commissioning 19 Technical data 24 COMTRAXX® user interface of COM465… Training courses 6 Troubleshooting 23 Connection 14 Warranty and liability 7 Delivery conditions 7 Wiring diagrams 15 Device features 9 Work activities on electrical installations 8... - Page 28 Bender GmbH & Co. KG P.O. Box 1161 • 35301 Gruenberg • Germany Londorfer Strasse 65 • 35305 Gruenberg • Germany Tel.: +49 6401 807-0 • Fax: +49 6401 807-259 E-mail: info@bender.de • www.bender.de Photos: Bender archive.
