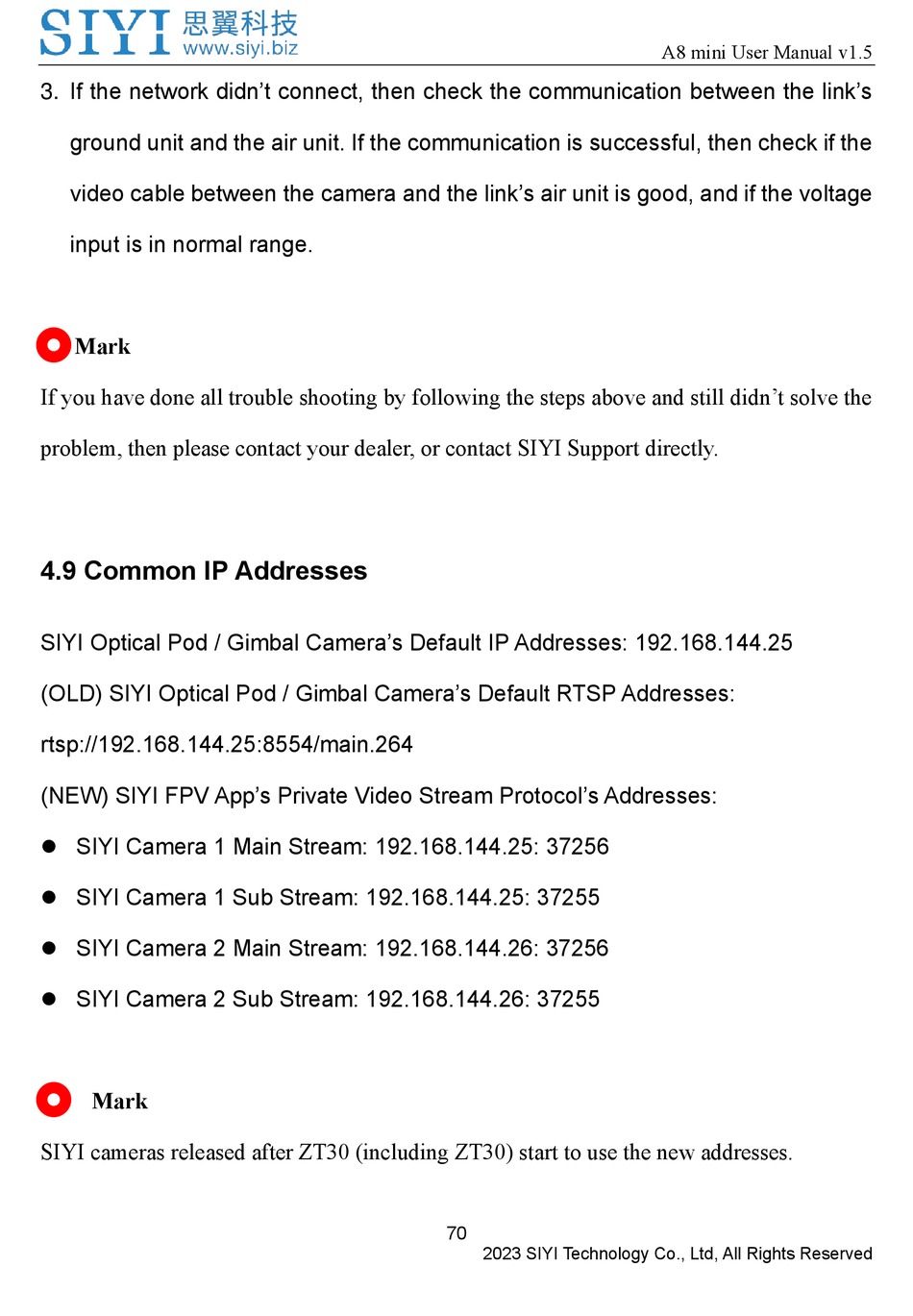

Common Ip Addresses - SIYI A8 mini User Manual

3. If the network didn't connect, then check the communication between the link's
ground unit and the air unit. If the communication is successful, then check if the
video cable between the camera and the link's air unit is good, and if the voltage
input is in normal range.
Mark
If you have done all trouble shooting by following the steps above and still didn't solve the
problem, then please contact your dealer, or contact SIYI Support directly.

4.9 Common IP Addresses

SIYI Optical Pod / Gimbal Camera's Default IP Addresses: 192.168.144.25
(OLD) SIYI Optical Pod / Gimbal Camera's Default RTSP Addresses:
rtsp://192.168.144.25:8554/main.264
(NEW) SIYI FPV App's Private Video Stream Protocol's Addresses:
⚫ SIYI Camera 1 Main Stream: 192.168.144.25: 37256
⚫ SIYI Camera 1 Sub Stream: 192.168.144.25: 37255
⚫ SIYI Camera 2 Main Stream: 192.168.144.26: 37256
⚫ SIYI Camera 2 Sub Stream: 192.168.144.26: 37255
Mark
SIYI cameras released after ZT30 (including ZT30) start to use the new addresses.
70
2023 SIYI Technology Co., Ltd, All Rights Reserved
A8 mini User Manual v1.5
