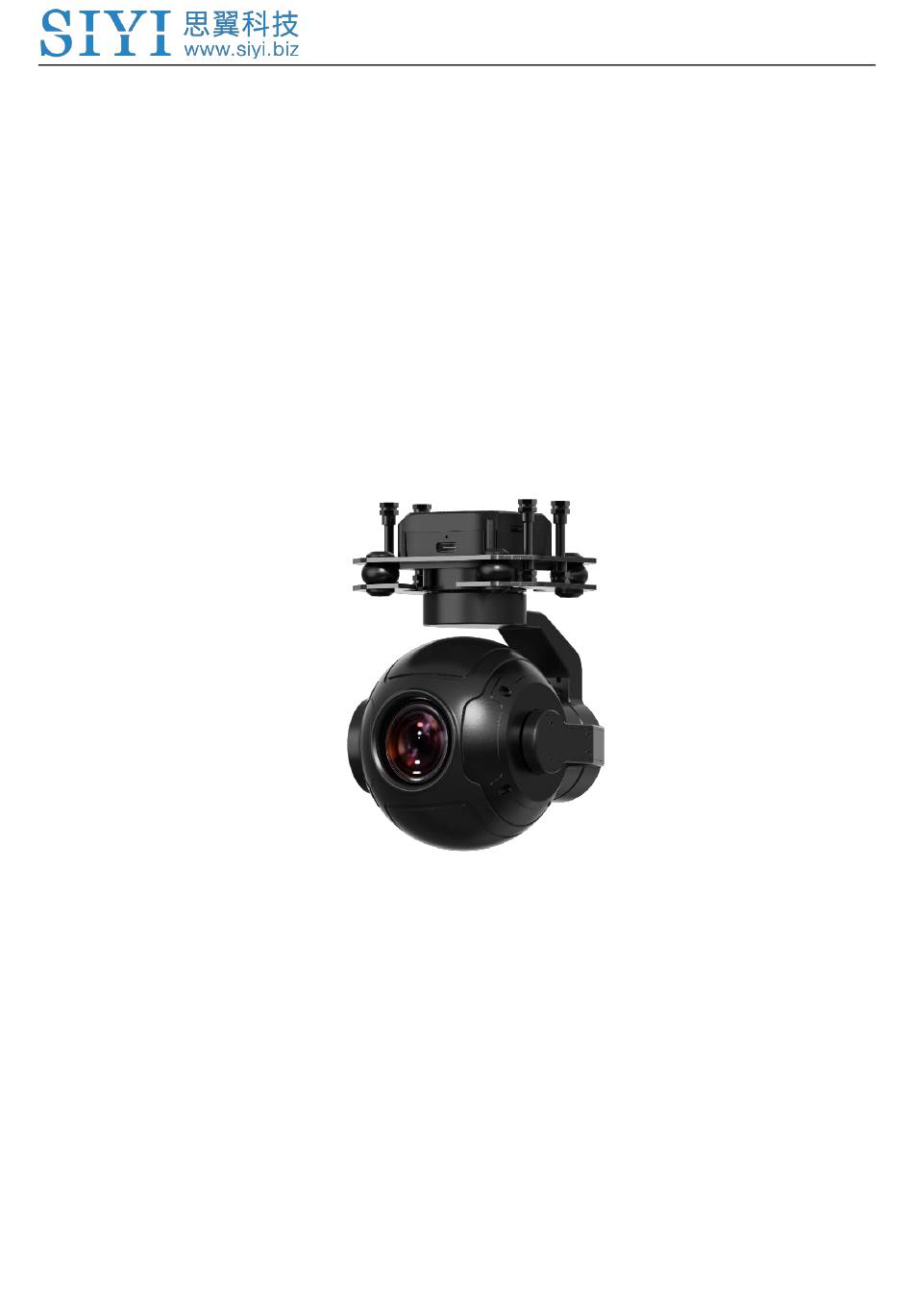

ZR10 User Manual V1.0

ZR10

2K QHD 30X HYBRID ZOOM

GIMBAL CAMERA

USER MANUAL

V1.0

July 2022

2022 SIYI Technology Copyright

Table of Contents

Need help?

Do you have a question about the ZR10 and is the answer not in the manual?

Questions and answers

Summary of Contents for SIYI ZR10

Page 1 ZR10 User Manual V1.0 ZR10 2K QHD 30X HYBRID ZOOM GIMBAL CAMERA USER MANUAL V1.0 July 2022 2022 SIYI Technology Copyright...
Page 2 Technology, featuring 4 mega pixels of resolution, 10X optical zoom and up to 30X hybrid zoom, can record video at 2K resolution by TF card. ZR10’s 3-axis stabilizing technology with FOC control help maintain an absolutely stable image during flight.
Page 3 ZR10 User Manual V1.0 SIYI User Group - Facebook SIYI Official Store (https://shop.siyi.biz) SIYI Official AliExpress Store (https://siyi.aliexpress.com) SIYI YouTube Channel (https://www.youtube.com/c/SIYITech) 2022 SIYI Technology Copyright...
Page 4: Table Of Contents
3.1.2 Gimbal Pitch and Yaw Rotation ......................15 3.1.3 Zoom and Focus ............................ 15 3.1.4 Photography and Video Recording ..................... 15 3.2 Control ZR10 Gimbal Camera through S.Bus / PPM Signal (Taking an Example of MK15 Smart Controller) ................................16 3.2.1 Preparation .............................. 16 3.2.2 Gimbal Pitch and Yaw Rotation (Taking an Example of MK15 Dials) ...........
Page 5 4.4.1 Video Output to An Android Device ....................26 4.4.2 Video Output to A Windows Device ....................27 4.5 Common IP Addresses ..........................29 5 SIYI FPV APP ............................... 30 5.1 Settings ................................32 5.2 Link Status ..............................33 5.3 Gimbal Camera.............................. 33 5.4 About SIYI FPV..............................
Page 6: Read Tips
And don’t add more payload to ZR10’s gimbal other than its own camera. Gimbal camera is designed with very precise structure, users who approach to the equipment should have at least the basic knowledge to operate it.
Page 7: Storage/Carrying/Recycling
Disassembling or modification to the system is prohibited without permission from its manufacturer, SIYI Technology. Storage/Carrying/Recycling When your SIYI products are stand idle, or you are bringing it outdoors, or the system reached service life, then please do read the precautions below. CAUTION Always place your SIYI products at places where babies or kids do not reach.
Page 8: Introduction
4MP CMOS 2K Recording ZR10 comes with a CMOS of 400 megabits of effective pixels. Video resolution is up to 2560x1440. Recording supports Class 10 high-speed MicroSD card to present to customers videos with full of elegant details.
Page 9 In emergent situations such rescue in fire control scenes, firefighters need to see the full picture as fast as possible. ZR10 is zoom feature can help firefighters quickly see what is happening and transfer important real-time images to the command center, so they can deploy or adjust rescue force in time.
Page 10: Parts
To see the full scene, and to check a specific spot, traffic coordinators just need to hover their drones equipped with ZR10 gimbal camera in safe space over the target position, then they can monitor the road traffic in real-time. The monitoring images can be zoomed in when they check details or zoomed out when they stream images of the whole scene.
Page 14: Technical Specification
-45° ~ +45° Mechanical Yaw Angle -90° ~ +90° Camera 10X Optical Zoom Lens (30X Hybrid Zoom) Focal Length 5.15±5% ~ 47.38±5% mm Minimum Focus Distance 200 mm Image Sensor 1/2.7-inch, 4 MP effective resolution 2022 SIYI Technology, All Rights Reserved...
Page 15: Packing List
1 x ZR10 Control Signal Cable 1 x ZR10 Power Cable 1 x ZR10 SIYI Video Cable 1 x ZR10 Video Cable 1 x ZR10 Ethernet to RJ45 Cable 6 x Hex Socket Cap Screw M2.5*5 2022 SIYI Technology, All Rights Reserved...
Page 16: Indicator Definition
10 x Cross Recessed Flat Head Screw M2.5*10 8 x M2.5 Nut Black 1.5 Indicator Definition The status indicators on ZR10 gimbal camera use three different colors and different blinking frequencies to indicate the system’s working or abnormal status. Solid Green: Normally working.
Page 17: Get Ready To Use Zr10
ZR10 User Manual V1.0 2 GET READY TO USE ZR10 2.1 Installation Screw Holes’ Position and Distance Mark The specs of the screws for fixing the four tube screws are M.25*8 mm. Quantity: 4. 2022 SIYI Technology, All Rights Reserved...
Page 18: Gimbal Control
3.1 Control ZR10 Gimbal Camera from SIYI FPV App on MK15 Smart Controller ZR10 gimbal camera can connect to MK15 air unit directly, then you can control gimbal rotation, gimbal functions, and display video in SIYI FPV app on MK15 remote controller after binding it with the air unit.
Page 19 Steps 1. Power MK15 air unit and bind it with MK15 remote controller. 2. Use the ZR10 SIYI Video Cable to connect MK15 air unit’s video port with ZR10 gimbal camera’s video port. 3. Update the SIYI FPV app on MK15 to v2.5.393 or newer version.
Page 20: Gimbal Pitch And Yaw Rotation
ZR10 User Manual V1.0 3.1.2 Gimbal Pitch and Yaw Rotation While SIYI FPV App is running, slide on MK15 touchscreen can control ZR10 gimbal rotation. Sliding left and right are gimbal yaw rotation, up and down are gimbal pitch rotation. Gimbal rotation direction is the same with finger sliding direction.
Page 21: Control Zr10 Gimbal Camera Through S.bus / Ppm Signal (Taking An Example Of Mk15 Smart Controller)
Go to “Settings – Gimbal Camera” page, then you can use the “Record” icon to turn on / off video recording. Mark Before taking a picture or recording video with ZR10 gimbal camera, it is necessary to insert TF card into ZR10. 3.2 Control ZR10 Gimbal Camera through S.Bus / PPM Signal...
Page 22 Above software can be downloaded from ZR10 product page on SIYI official website. Steps 1. Power MK15 air unit and bind it with MK15 remote controller. 2. Use the ZR10 SIYI Video Cable to connect MK15 air unit’s video port with ZR10 2022 SIYI Technology, All Rights Reserved...
Page 23 ZR10 User Manual V1.0 gimbal camera’s video port. 3. Use the ZR10 Control Signal cable to connect MK15 air unit’s RC port and ZR10 gimbal camera’s control signal port. 4. Install and run SIYI PC Assistant on Windows computer. 5. Use the USB-C to USB-A cable to connect ZR10 gimbal camera with the Windows computer, then run SIYI PC Assistant and go to “Gimbal Config”...
Page 24: Gimbal Pitch And Yaw Rotation (Taking An Example Of Mk15 Dials)
Press button D and gimbal will center automatically. Mark Hold the dial from its center position, ZR10 gimbal will rotate till reaching its max or min position. Longer it is away from its center position, faster the gimbal rotates.
Page 25: Photography And Video Recording (Taking An Example Of Mk15 Buttons)
1X to 10X, digital zoom from 10X to 30X. If you operate the SB switch, ZR10 camera will focus from 5 mm to 47 mm. Press button C and ZR10 camera will focus automatically.
Page 26: Uart / Udp Control
If you operate button B, ZR10 camera will start or stop video recording. Mark Before taking a picture or recording video with ZR10 gimbal camera, it is necessary to insert TF card into ZR10. 3.3 UART / UDP Control ZR10 gimbal camera opens control and function protocol for all customers, welcome to contact SIYI Technology directly for SDK files.
Page 27: Video Output
Ethernet video port. 4.1 Output and Display Video Stream on MK15 Smart Controller ZR10 gimbal camera can connect to MK15 air unit directly, then the video will be displayed in SIYI FPV app after binding MK15 air unit to MK15 remote controller.
Page 28 Steps 1. Power HM30 air unit and bind it with HM30 ground unit. 2. Use the ZR10 SIYI Video Cable to connect HM30 air unit’s video port with ZR10 gimbal camera’s video port. 3. Update SIYI FPV App on your Android device to v2.5.393 or newer version.
Page 29: Output Video Stream To Third-Party Image Transmission Systems
“RX-” pinout, and “RX+” pinout to “RX+” pinout. Do not cross the pinouts, otherwise it will cause damage to the device. ZR10 gimbal camera’s working temperature is from 11 to 25.2 V, please make sure that the power voltage input is in the range before wiring.
Page 30: Solutions To No Image
2. Open “SIYI FPV” app and check if the Camera IP is “SIYI Camera 1” (when ZR10 IP addresses are 192.168.144.25) or “SIYI Camera 2” (when ZR10 IP addresses are 192.168.144.26).
Page 31: Video Output To An Android Device
ZR10 User Manual V1.0 Mark In SIYI FPV App’s Camera IP menu, customers can also input the full RTSP addresses of ZR10 gimbal camera to display video stream. If the video stream still does not display, please follow the steps below and make a deep investigation according to the video output mode and the video display device you use.
Page 32: Video Output To A Windows Device
If it is, then please check if the video cable between ZR10 camera and the image transmission system’s air unit is good, and if the voltage input is in normal range.
Page 33 Successful Network Communication Network Communication Failed 2. Input the ZR10 gimbal camera’s default IP addresses “192.168.144.25” and press the “Enter” key to check if communication is successful. If it is successful, please check if the RTSP addresses in the RTSP player is correct or try to switch to other video players.
Page 34: Common Ip Addresses
If it is, then please check if the video cable between ZR10 camera and the image transmission system’s air unit is good, and if the voltage input is in normal range.
Page 35: Siyi Fpv App
Mark The manual is edited based on SIYI FPV App v2.5.393. SIYI FPV App can be download from the ZR10 product page on SIYI official website. SIYI FPV App compatible SIYI devices. ⚫ MK15 Mini HD Handheld Smart Controller ⚫...
Page 37: Settings
About Settings Camera IP: Select SIYI Camera 1 and SIYI Camera 2, or input camera RTSP addresses manually, or disable image. The “Rotate” buttons can rotate the image in 180 degrees. Cross Sight: Display a cross sight in the center of the image.
Page 38: Link Status
Mavlink OSD: Enable / disable Mavlink OSD information. Speed Unit: Switch speed unit between meter per seconds and kilometer per hour. Longitude and Latitude: Enable / disable information. 5.3 Gimbal Camera Configure the basic functions for ZR10 gimbal camera. 2022 SIYI Technology, All Rights Reserved...
Page 39 Under Follow mode, gimbal will follow the aircraft to turn around yaw axis. Camera Firmware Version: Display the current camera firmware version. Gimbal Firmware Version: Display the current gimbal firmware version. Zoom Firmware Version: Display the current gimbal firmware version. 2022 SIYI Technology, All Rights Reserved...
Page 40: About Siyi Fpv
ZR10 User Manual V1.0 Mark After switching camera resolution, the gimbal camera should be restarted to implement the change. 5.4 About SIYI FPV Displays the software version of SIYI FPV and common contact information of SIYI Technology. 2022 SIYI Technology, All Rights Reserved...
Page 41: Firmware Upgrade And Configuration
ZR10 User Manual V1.0 6 Firmware Upgrade and Configuration SIYI PC Assistant is a Windows software developed by SIYI to configure almost all SIYI devices for remote controller channels settings, firmware update, and gimbal camera configuration. Mark The manual is edited based on SIYI PC Assistant v1.2.8.
Page 42 ZR10 User Manual V1.0 Mark Above software and firmware can be downloaded from the ZR10 product page on SIYI Official website (http://siyi.biz/) or from the ZR10 product page in SIYI Official Store (https://shop.siyi.biz/products/zr10) from ZR10 Google Drive Link (https://drive.google.com/drive/folders/1Vl2ow8xj42vGH4rgEncbDSgGWji8Jkpy?usp=sh aring) or got from your dealer.
Page 43 4. If the gimbal or zoom firmware is not the latest, then click the “Select File” button in the “Gimbal” or “Zoom” line to import the latest firmware. Then click “Upgrade” and wait till it is “100%” finished. Mark Before updating any firmware, the gimbal camera should be powered. 2022 SIYI Technology, All Rights Reserved...
Page 44: Camera Firmware Update
Customers should prepare the above tools. ⚫ ZR10 camera firmware Mark Above software and firmware can be downloaded from the ZR10 product page on SIYI Official website (http://siyi.biz/) or from the ZR10 product page in SIYI Official Store (https://shop.siyi.biz/products/zr10) from...
Page 45: Gimbal Camera Configuration
ZR10 User Manual V1.0 Firmware Upgrade Steps 1. Save ZR10 camera firmware’s “.bin” file to the TF card’s root directory and do not change the file name. 2. Restart ZR10 gimbal camera and the camera firmware will be flashed automatically.
Page 46: Gimbal Camera Control Channels
16 channels and an idle channel (disabled). ⚫ Auto Focus ⚫ Zoom ⚫ Focus ⚫ Yaw ⚫ Pitch ⚫ Center ⚫ Color Mode ⚫ Photography ⚫ Video Record ⚫ HDR ⚫ Gimbal Motion Mode 2022 SIYI Technology, All Rights Reserved...
Page 47: Camera Specs
ZR10 User Manual V1.0 6.3.2 Camera Specs The “Gimbal Config” menu also supports checking gimbal camera’s current camera firmware, switching camera resolution, and configuring camera IP addresses. 2022 SIYI Technology, All Rights Reserved...
Page 48: After-Sale Service
⚫ Product Defect ⚫ Product Damage SIYI products under the two situations can be sent back to SIYI for repairing. Defect products with valid warranty can be repaired for free. Defect products without valid warranty or damaged products should be charged of repair fees after repairing.
Page 49: Warranty
It is requested beyond seven (7) calendar days of receiving a product. A product sent to SIYI for Return & Refund Service does not include all original accessories, attachments or packaging, or any item is not in new or like-new condition, i.e., with cracks, dents, or scratches.
Page 50: 15-Day Replacement
Damage is caused to the product by uncontrollable external factors, including fire, floods, high winds, or lightning strikes. A product is not delivered to SIYI within seven (7) calendar days after Return & Refund Service confirmation is sent from SIYI.
Page 51 Damage is caused by uncontrollable external factors, including fires, floods, high winds, or lightning strikes. Received product has not been sent back to SIYI seven (7) calendar days after replacement confirmation from SIYI. Proof of damage during transit issued by the carrier cannot be provided.
Page 52: 1-Year Warranty Repair
Charges may apply for services not covered by this Limited Warranty. Please contact SIYI for information specific to your location. Please note that the warranty service is only available in the respective SIYI service regions where you purchased your SIYI product.
Page 53 Damage caused by reliability or compatibility issues when using unauthorized third- party parts. Damage caused by operating the unit with a low-charged or defective battery. Products or parts with an altered identification label or from which the identification label has been removed. 2022 SIYI Technology, All Rights Reserved...
