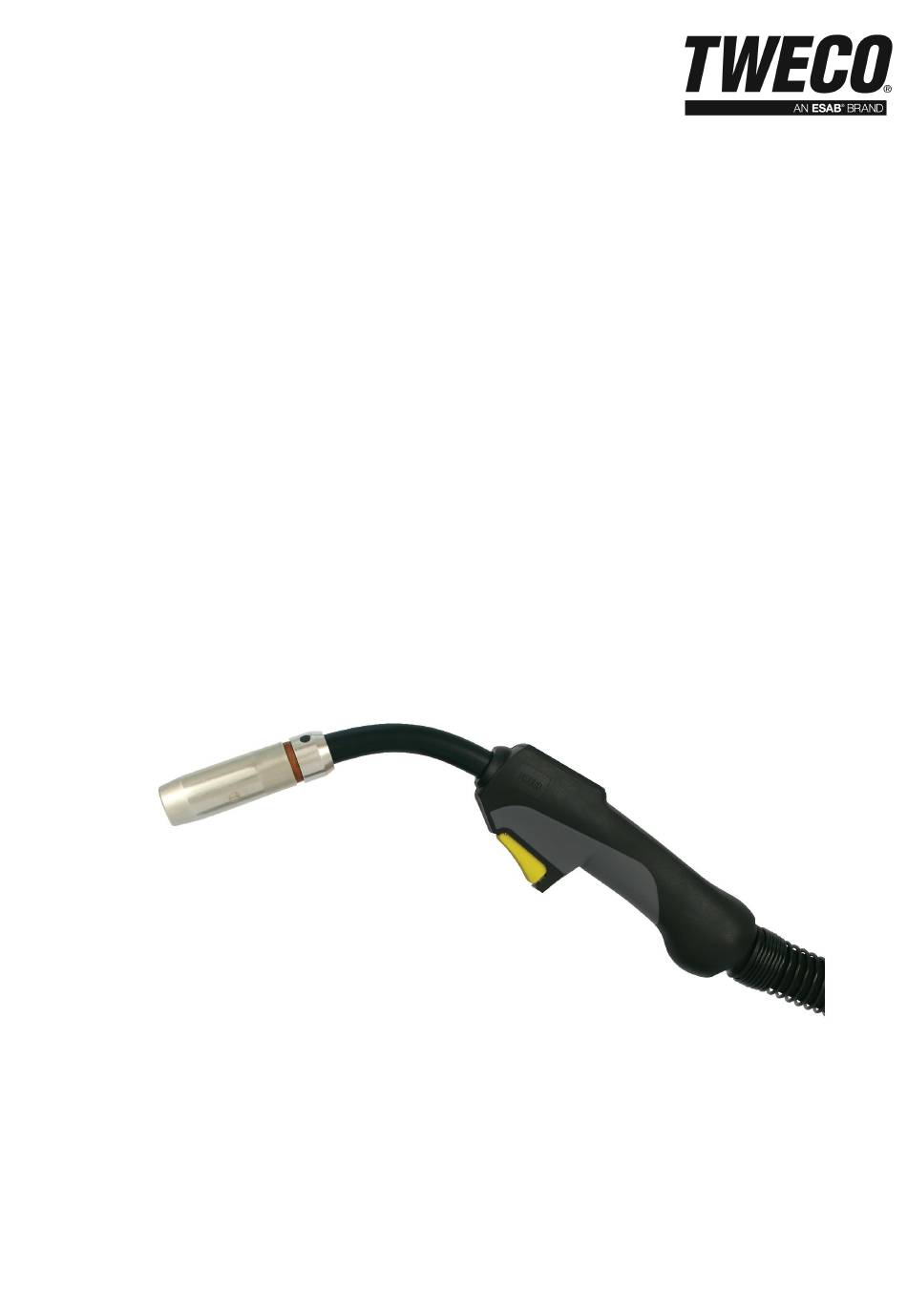

- Page 1 OCIM RB25T OCIM RB28T OCIM RB36T OCIM RB40T OCIM RH302T OCIM RH502T OCIM RM552T Instruction manual 0463 607 001 GB 20180427...
-
Page 3: Table Of Contents
Cleaning the wire feed ................Steel liner / Plastic liner ................. Cleaning the swan neck................. Checking the cooling system..............TROUBLESHOOTING ................. ORDERING SPARE PARTS ................ ORDERING NUMBERS ..................18 Rights reserved to alter specifications without notice. 0463 607 001 © ESAB AB 2018... -
Page 4: Safety
Data Sheets (SDSs). Safety precautions Users of ESAB equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of equipment. The following recommendations should be observed in addition to the standard regulations that apply to the workplace. - Page 5 • Protect your eyes and body. Use the correct welding screen and filter lens and wear protective clothing. • Protect bystanders with suitable screens or curtains. NOISE - Excessive noise can damage hearing Protect your ears. Use earmuffs or other hearing protection. 0463 607 001 - 5 - © ESAB AB 2018...
- Page 6 For further information contact the nearest ESAB dealer. ESAB has an assortment of welding accessories and personal protection equipment for purchase. For ordering information contact your local ESAB dealer or visit us on our website. 0463 607 001 - 6 -...
-
Page 7: Introduction
The MIG / MAG welding torches of this series are exclusively intended for shielded- arc welding using inert gas (MIG) or active gas (MAG) for industrial and commercial use by suitably trained employees. The torches are only available in manual versions. 0463 607 001 - 7 - © ESAB AB 2018... -
Page 8: Shipment And Packaging
Keep the packaging (for possible inspection by the carrier or supplier, or for returning the goods). Storage in an enclosed space Ambient temperature for shipment and storage: -20 °C to +55 °C Relative air humidity: up to 90% at a temperature of 20 °C 0463 607 001 - 8 - © ESAB AB 2018... -
Page 9: Technical Data
In case of a high thermal load on the torch, use a cooler with sufficient capacity. Use only special cooling fluid containing 0463 607 001 - 9 - © ESAB AB 2018... - Page 10 4 TECHNICAL DATA corrosion inhibitors for welding torches. For suitable products, contact your nearest ESAB dealer. The ratings are valid for cable lengths from 3.0 to 5.0 m. The rated loads refer to a standardized case of use. Under special conditions, e.g. in case of high heat reflection on the torch, the torch could overheat even when operated below the rated load.
-
Page 11: Operation
Before using a water cooled torch, the air has to be removed from the cooling circulation by running the cooler for a few minutes. 0463 607 001 - 11 - © ESAB AB 2018... -
Page 12: Setting The Level Of Shielding Gas
When leaving the workplace the system must be secured against unintended operation, preferably by switching off the power source. 0463 607 001 - 12 - © ESAB AB 2018... -
Page 13: Maintenance
If a wire feeding problem cannot be solved by exchanging the contact tip and cleaning the wire guide channel, the liner should be replaced. Liner and welding wire should be inserted while the cable assembly is laid out straight. 0463 607 001 - 13 - © ESAB AB 2018... - Page 14 NOTE! Make sure the liner is completely inserted by rotating it and slightly pushing it forward, until you can feel it has reached its stop. 0463 607 001 - 14 - © ESAB AB 2018...
-
Page 15: Cleaning The Swan Neck
Make sure that the cooling liquid is clean, change it if required. Impurities in the cooling liquid can obstruct the water channels of the torch. Always use suitable cooling fluid for torches with corrosion inhibitors. 0463 607 001 - 15 - © ESAB AB 2018... -
Page 16: Troubleshooting
Welding process does not • Control cable is broken or • Check and repair the start the trigger is defective trigger connections, clean the trigger switch or exchange it 0463 607 001 - 16 - © ESAB AB 2018... -
Page 17: Ordering Spare Parts
Spare parts and wear parts can be ordered through your nearest ESAB dealer, see esab.com. When ordering, please state product type, serial number, designation and spare part number in accordance with the spare parts list. -
Page 18: Ordering Numbers
160100507TW OCIM RH502T Welding torch, 5m, Euro connection 159080307TW OCIM RM552T Welding torch, 3m, Euro connection 159080407TW OCIM RM552T Welding torch, 4m, Euro connection 0463 621 001 Spare parts manual 0463 607 001 - 18 - © ESAB AB 2018... - Page 19 ORDERING NUMBERS 0463 607 001 - 19 - © ESAB AB 2018...
