ESAB MechTrac 2500 Instruction Manual
Hide thumbs Also See for MechTrac 2500:

Advertisement

Quick Links

MechTrac 1730/
2100/ 2500/ 3000
101103105107109111102021110025108024042106023061104022041100020040060001
Bruksanvisning
Brugsanvisning
Bruksanvisning
Käyttöohjeet
Instruction manual
Betriebsanweisung
0807 230 101 2004- -01- -27
Manuel d'instructions
Gebruiksaanwijzing
Instrucciones de uso
Istruzioni per l'uso
Manual de instruções
Ïäçãßåò ÷ñÞóåùò
Valid for serial no. 0243- -xxx- -xxxx

Advertisement

loading
Need help?

Need help?

Do you have a question about the MechTrac 2500 and is the answer not in the manual?

Questions and answers

Summary of Contents for ESAB MechTrac 2500

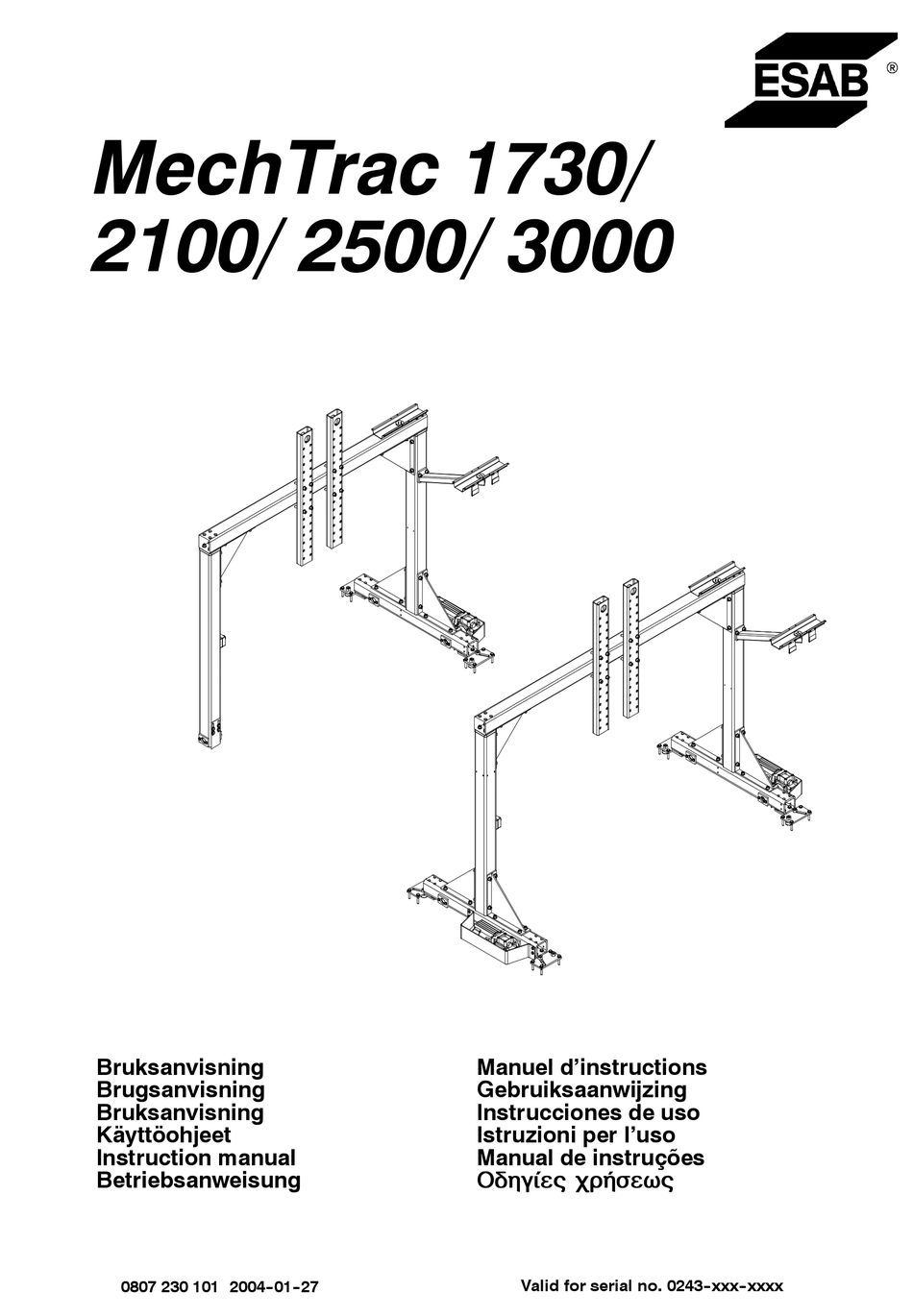

  • Page 1 MechTrac 1730/ 2100/ 2500/ 3000 101103105107109111102021110025108024042106023061104022041100020040060001 Bruksanvisning Manuel d’instructions Brugsanvisning Gebruiksaanwijzing Bruksanvisning Instrucciones de uso Käyttöohjeet Istruzioni per l’uso Instruction manual Manual de instruções Betriebsanweisung Ïäçãßåò ÷ñÞóåùò Valid for serial no. 0243- -xxx- -xxxx 0807 230 101 2004- -01- -27...
  • Page 2 SVENSKA ..........DANSK .
  • Page 3 -------------------------------------------------------------------------------------------------------------------------------------- OVERENSSTEMMELSEERKLÆRING ESAB AB Welding Automation, S-- 695 81 Laxå, Sverige, erklærer på eget ansvar, at svejseudstyr MechTrac 1730/ 2100/ 2500/ 3000 fra serienummer 0243 er i overens- stemmelse med standarden EN 60292 og EN 60204 ifølge betingelserne i direktiv (89/392/EØF) med tillæg (93/68/EØF).
  • Page 4 DICHIARAZIONE DI CONFORMITA ESAB AB Welding Automation, S--695 81 Laxå Svezia, dichiara sotto la propria re- sponsabilità che una apparecchio per saldatura MechTrac 1730/ 2100/ 2500/ 3000 con numero di serie a partire da 0243 è conforme alla norma EN 60292 e EN 60204 come previsto dalla direttiva (89/392/CEE) e successive integrazioni (93/68/CEE).
  • Page 5: Table Of Contents

    ENGLISH 1 SAFETY ............1.1 General .
  • Page 6: Safety

    SAFETY General Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of welding equipment. The following recommen- dations should be observed in addition to the standard regulations that apply to the workplace.
  • Page 7 WARNING ARC WELDING AND CUTTING CAN BE INJURIOUS TO YOURSELF AND OTHERS. TAKE PRECAU- TIONS WHEN WELDING. ASK FOR YOUR EMPLOYER’S SAFETY PRACTICES WHICH SHOULD BE BASED ON MANUFACTURERS’ HAZARD DATA. ELECTRIC SHOCK - - Can kill Install and earth the welding unit in accordance with applicable standards. Do not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.
  • Page 8: Markings On The Equipment

    Markings on the equipment Travel motion These markings are placed on the gantry. Indicate the travel direction. Risk of getting pinched This marking is placed on the support (1) of the gantry. - - 44 - - fob2safe...
  • Page 9: Introduction

    INTRODUCTION General MechTrac is a motor driven gantry for use together with ESAB’s A2 welding equipment and power sources (LAF/TAF). The control of the travel motor takes place over the PEH control unit where the de- sired speed can be set.
  • Page 10: Installation

    INSTALLATION General The installation must be executed by a professional. Read the separate instruction manuals supplied with the different modules that are to be fitted on the gantry. For installation of : welding head A2SFE1/ A2 SGE1 see instruction manual 0456 552 xxx welding head A2SGF1 see instruction manual 0449 002 xxx welding power source LAF 635 see instruction manual 0457 795 xxx welding power source LAF 800 see instruction manual 0449 014 xxx...
  • Page 11: External Emergency Stop

    External emergency stop For connection of the emergency stop placed on the gantry leg see the diagram on page 115. Emergency stop circuit For connection of the emergency stop circuit between the A2--A6 Process Controller and the welding power source (LAF/TAF) see diagram on page 115. - - 47 - - fob2i1ea...
  • Page 12: Operation And Maintenance

    OPERATION AND MAINTENANCE General Caution: Have you read and understood the safety information ? You must not operate the machine beforehand ! General safety regulations for the handling of the equipment can be found on page 42. Read through before you start using the equipment! Note: All warranty undertakings given by the supplier cease to apply if the customer attempts to rectify any faults on the machine during the warranty period.
  • Page 13: Ordering Of Spare Parts

    ORDERING OF SPARE PARTS Spare parts are ordered through your nearest ESAB representative, see back cover. When ordering spare parts, please state machine type and number as well as desig- nation and spare part number as shown in the spare parts list on page 117.
  • Page 14 ESAB subsidiaries and representative offices Europe NORWAY Asia/Pacific Representative offices AS ESAB AUSTRIA BULGARIA CHINA Larvik ESAB Ges.m.b.H ESAB Representative Office Shanghai ESAB A/P Tel: +47 33 12 10 00 Vienna- -Liesing Sofia Shanghai Fax: +47 33 11 52 03...
