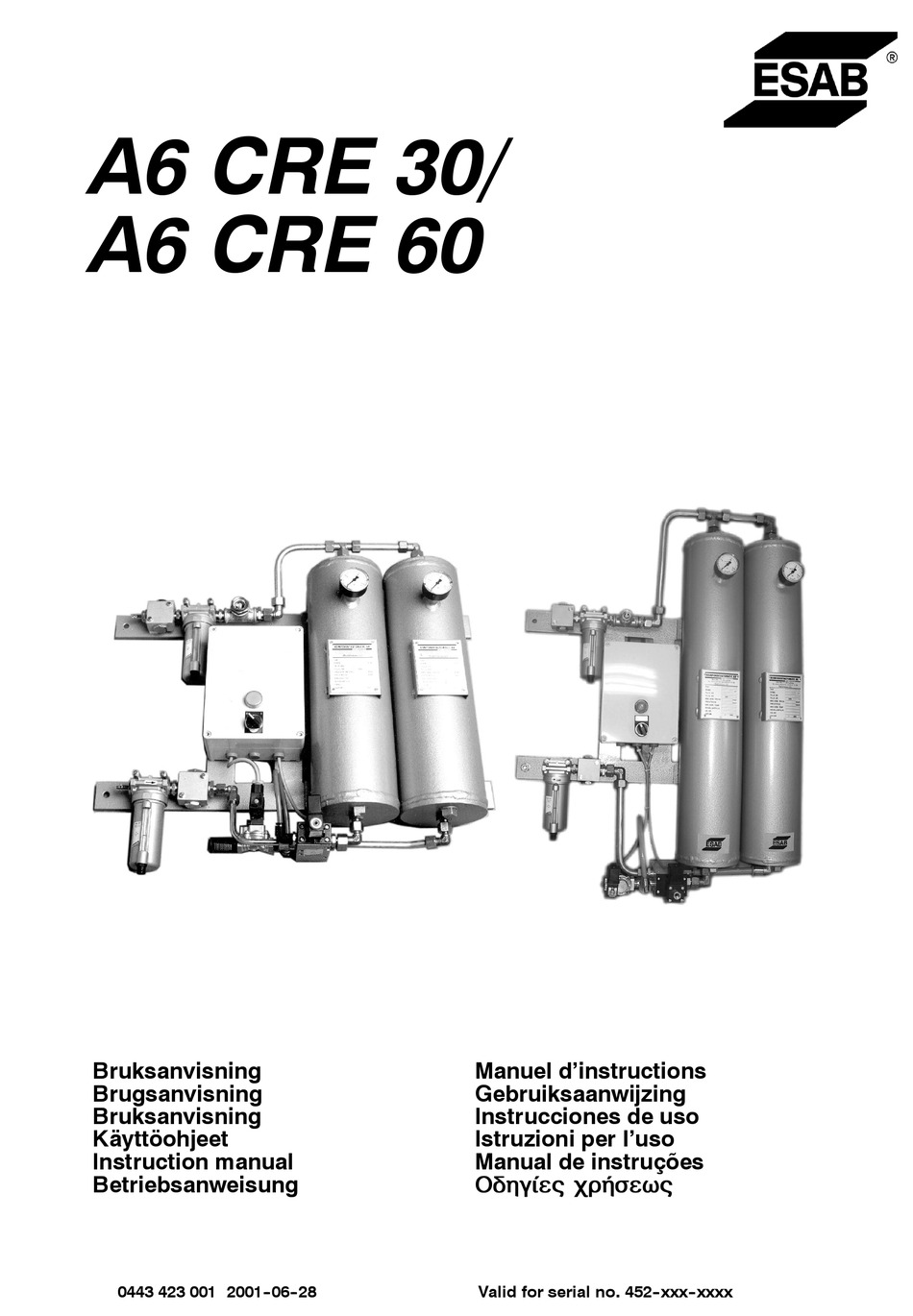

A6 CRE 30/
A6 CRE 60
101103105107109111102021110025108024042106023061104022041100020040060001
Bruksanvisning
Brugsanvisning
Bruksanvisning
Käyttöohjeet
Instruction manual
Betriebsanweisung
0443 423 001 2001- -06- -28
Manuel d'instructions
Gebruiksaanwijzing
Instrucciones de uso
Istruzioni per l'uso
Manual de instruções
Ïäçãßåò ÷ñÞóåùò
Valid for serial no. 452- -xxx- -xxxx

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A6 CRE 30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ESAB A6 CRE 30

Summary of Contents for ESAB A6 CRE 30

  • Page 1 A6 CRE 30/ A6 CRE 60 101103105107109111102021110025108024042106023061104022041100020040060001 Bruksanvisning Manuel d’instructions Brugsanvisning Gebruiksaanwijzing Bruksanvisning Instrucciones de uso Käyttöohjeet Istruzioni per l’uso Instruction manual Manual de instruções Betriebsanweisung Ïäçãßåò ÷ñÞóåùò 0443 423 001 2001- -06- -28 Valid for serial no. 452- -xxx- -xxxx...
  • Page 2 SVENSKA ..........DANSK .

  • Page 3: Table Of Contents

    ENGLISH 1 SAFETY ............2 INTRODUCTION .

  • Page 4: Safety

    SAFETY Users of ESAB welding equipment have the ultimate responsibility for ensuring that anyone who works on or near the equipment observes all the relevant safety precautions. Safety precautions must meet the requirements that apply to this type of welding equipment. The following recommen- dations should be observed in addition to the standard regulations that apply to the work place.
  • Page 5 WARNING ARC WELDING AND CUTTING CAN BE INJURIOUS TO YOURSELF AND OTHERS. TAKE PRECAU- TIONS WHEN WELDING. ASK FOR YOUR EMPLOYER’S SAFETY PRACTICES WHICH SHOULD BE BASED ON MANUFACTURERS’ HAZARD DATA. ELECTRIC SHOCK - - Can kill Install and earth the welding unit in accordance with applicable standards. Do not touch live electrical parts or electrodes with bare skin, wet gloves or wet clothing.

  • Page 6: Introduction

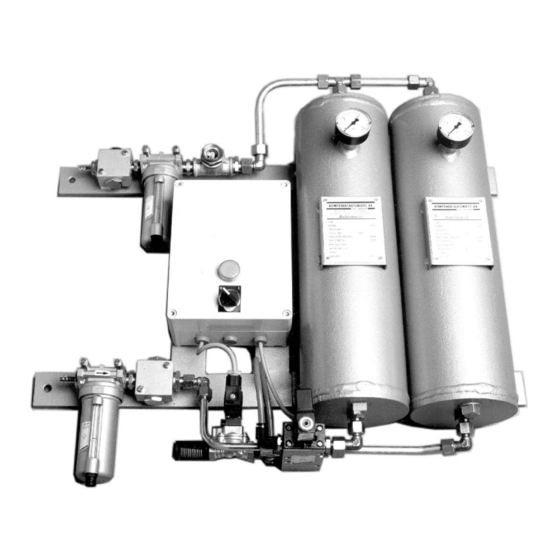

    INTRODUCTION General The air drying units A6 CRE 30/ A6 CRE 60 are designed for drying air for use with ESAB welding equipment. Humid air will moisten the flux which in turn will produce porosity in the weld. The air drying units works on the adsorption principle and can be reactivated cold.

  • Page 7: Function

    Function The air drying units work on the cold regeneration principle and use two air con- tainers (1) alternately. 1. When the left container is in use damp air passes through solenoid valve Y1 up through the desiccant container and out into the supply system through non--return valve BV1 and the dust filter (3).

  • Page 8: Installation

    Install the air drying unit vertical (wall mounting). Installation dimensions as shown in drawing on page 147 (A6 CRE 30) and on page 148 (A6 CRE 60). If lifting equipment is used during installation this should be attached to the frame of the drying unit.

  • Page 9: Inlet/ Outlet For Air

    Inlet/ outlet for air 1. Inlet for the damp air Check that air entering the air drying unit does not exceed the maximum temperature for the drying unit in question. This is important since the performance of the air drying unit depends on the temperature of the inlet air.

  • Page 10: Operation

    OPERATION General General safety regulations for the handling of the equipment appear from page 52. Read through before you start using the equipment! Starting the air drying unit Once the air drying unit has been installed as described, start as follows. 1.

  • Page 11: Functional Assessment Of Air Drying Unit

    Functional assessment of air drying unit The air drying unit is an important part of the compressed air system and requires just as much attention as a compressor, for example. The air drying unit is fitted with a dew point indicator (1) that shows yellow if the dew point is above --26_C and green if it is below --26_C.

  • Page 12: Maintenance

    MAINTENANCE General Note: All warranty undertakings given by the supplier cease to apply if the customer attempts to rectify any faults on the machine during the warranty period. Regularly check the air drying unit to make sure it switches correctly between desiccant containers and that the dew point indicator is working correctly.

  • Page 13: Fault Tracing

    FAULT TRACING Possible faults See diagram on page 149. 1. Symptom Rising dew point Cause 1.1 Air flow too high. Action Adjust inlet flow. Cause 1.2 Inlet temperature too high. Action Cool incoming air. Cause 1.3 Pressure too high. Action Adjust inlet pressure.

  • Page 14: Ordering Of Spare Parts

    Open valves ORDERING OF SPARE PARTS Spare parts are ordered through your nearest ESAB representative, see back cover. When ordering spare parts, please state machine type and number as well as desig- nation and spare part number as shown in the spare parts list on page 151.
  • Page 16 ESAB subsidiaries and representative offices Europe NORWAY Asia/Pacific ROMANIA AS ESAB ESAB Representative Office AUSTRIA AUSTRALIA Larvik Bucharest ESAB Ges.m.b.H ESAB Australia Pty Ltd Tel: +47 33 12 10 00 Tel/Fax: +40 1 322 36 74 Vienna- -Liesing Ermington Fax: +47 33 11 52 03...
