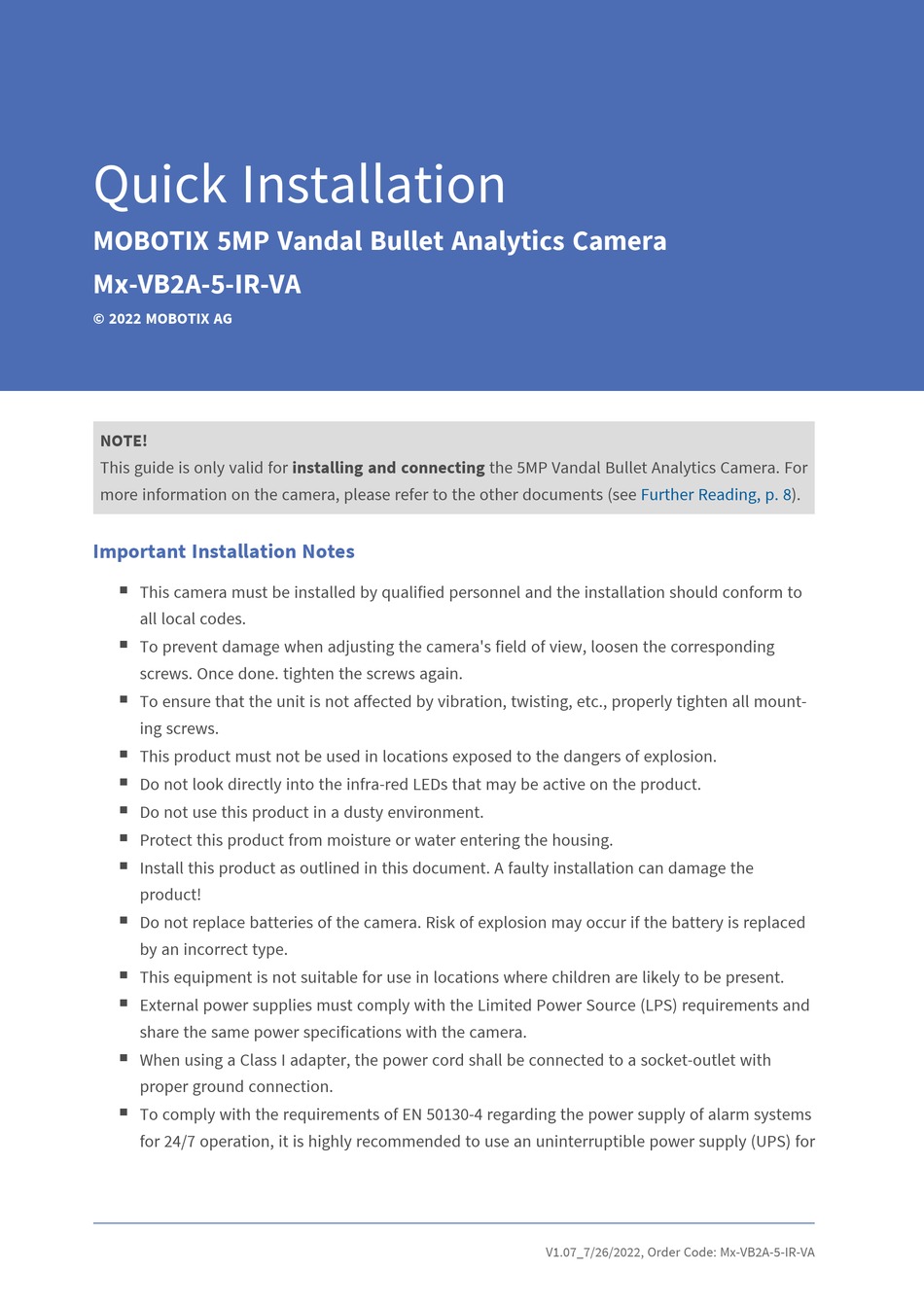

Quick Installation
MOBOTIX 5MP Vandal Bullet Analytics Camera
Mx-VB2A-5-IR-VA
© 2022 MOBOTIX AG
NOTE!
This guide is only valid for installing and connecting the 5MP Vandal Bullet Analytics Camera. For
more information on the camera, please refer to the other documents (see
Important Installation Notes
This camera must be installed by qualified personnel and the installation should conform to
n
all local codes.
n To prevent damage when adjusting the camera's field of view, loosen the corresponding
screws. Once done. tighten the screws again.
n To ensure that the unit is not affected by vibration, twisting, etc., properly tighten all mount-
ing screws.
n This product must not be used in locations exposed to the dangers of explosion.
n Do not look directly into the infra-red LEDs that may be active on the product.
n Do not use this product in a dusty environment.
Protect this product from moisture or water entering the housing.
n
n Install this product as outlined in this document. A faulty installation can damage the
product!
n Do not replace batteries of the camera. Risk of explosion may occur if the battery is replaced
by an incorrect type.
n This equipment is not suitable for use in locations where children are likely to be present.
n External power supplies must comply with the Limited Power Source (LPS) requirements and
share the same power specifications with the camera.
n When using a Class I adapter, the power cord shall be connected to a socket-outlet with
proper ground connection.
n To comply with the requirements of EN 50130-4 regarding the power supply of alarm systems
for 24/7 operation, it is highly recommended to use an uninterruptible power supply (UPS) for
Further Reading, p.
V1.07_7/26/2022, Order Code: Mx-VB2A-5-IR-VA
8).
