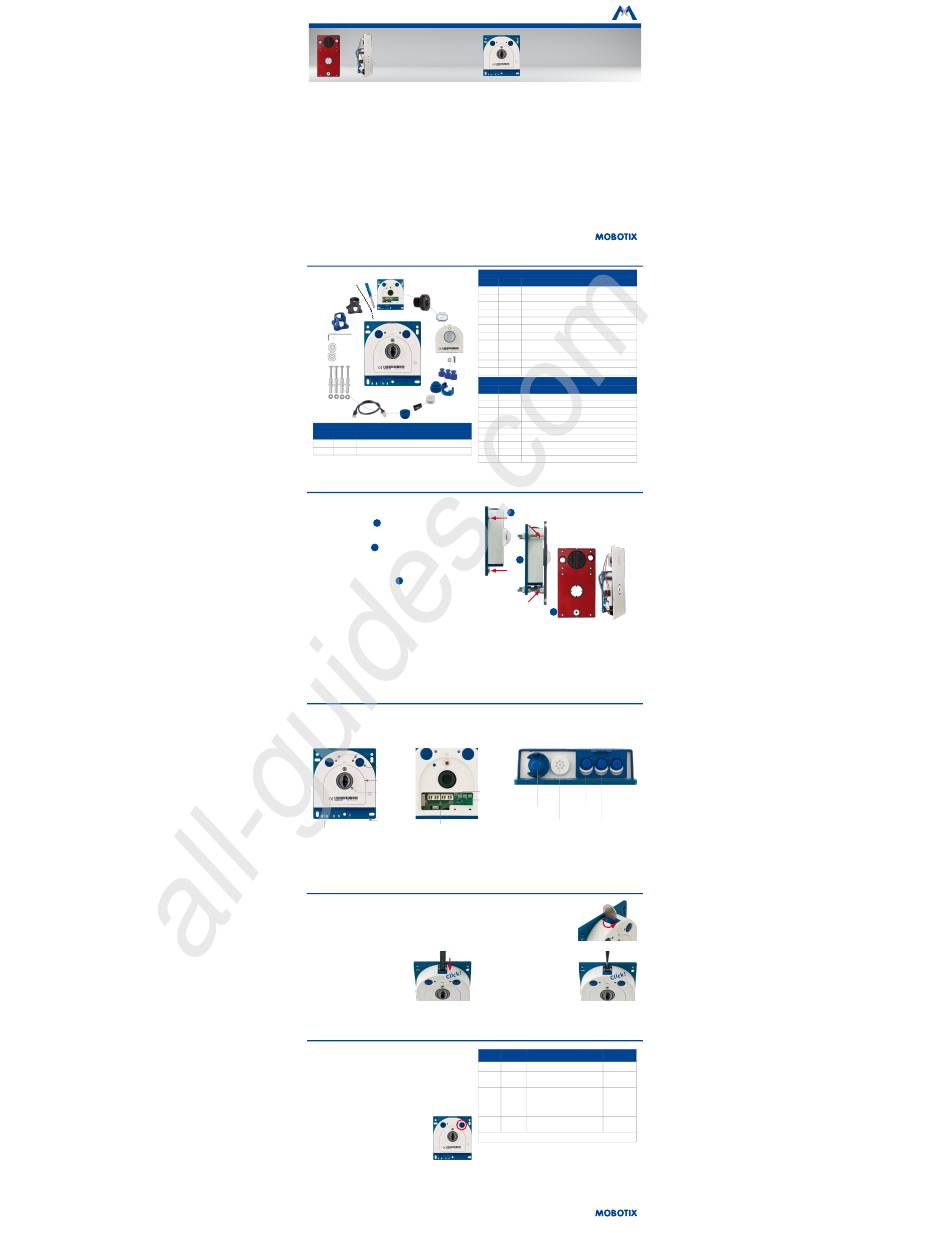

Mobotix S26 Flex Quick Install

Mobotix S26 Flex Quick Install

Hemispheric 6mp camera with day or night image sensor for concealed installation
Hide thumbs Also See for S26 Flex:

Advertisement

Quick Links

Accessories
Quick Install
S26
S26 Flex
All manuals and user guides at all-guides.com
AudioMount with integrated microphone and
Hemispheric 6MP Camera with Day
speaker
(can, e.g., be used as an intercom solution)
or Night Image Sensor for Concealed
Installation
• Mx6 system platform with H.264 support
MOBOTIX 6MP camera for concealed installation in indoor
• Includes MxAnalytics video analysis tools out-of-the-box
and outdoor applications, available as S26 Flex with lens
• Recording on internal MicroSD card (SDXC, SDHC installed)
B016 and Day or Night image sensor.
• Audio connectors for microphone and speaker integrated
• Sensor for temperature integrated
• Weatherproof and robust camera housing (IP66, IK07)
More information:
www.mobotix.com > Products > Outdoor Cameras > Flex S26
Mx-S26
32.839-002_EN_09/2017

S26 Standard Delivery

1.1
M.10
Item
M.9
1.3
1.4
1.2
1.5
M.8
1.6
1.3
1.7
M.7
1.8
1.9
M.6
1.4
1.10
M.5
M.4
1.11
1.6
1.5
1.12
1.13
M.3
1.7
M.2
1.8
1.9
Item
M.1
M.1
1.10
M.2
1.11
1.13
M.3
1.12
M.4
M.5
Standard Delivery
M.6
Item
Count
Part Name
M.7
1.1
1
Camera housing (with base plate)
M.8
1.2
1
Lens B016 (installed)
M.9
M.10

Mounting the Camera

1. Installation Using the Base Plate
Attach the camera using the supplied or other screws by affixing the base
plate to a suitable material
1
(see «Drilling Template» on page 2 ).
Note that you can also install the S26 behind faceplates of up to 6.4 mm/0.25 in
thickness using stud bolts
(see «Drilling Template» on page 2 ).
2

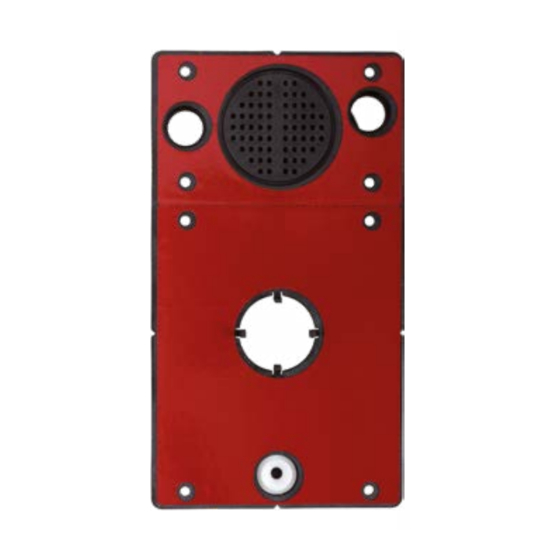

2. Installation With AudioMount (Accessory)
Using the self-adhesive AudioMount
3
, you can install the S26 as an
intercom solution. This is explained in the product documentation «Quick
Install AudioMount» (suitable drilling template is supplied).
Notes:
• Due to the missing MxBus connection, this camera model cannot be installed as a fully-fledged door station with connected MxBus modules and
corresponding remote stations.
• For the realization of an intercom solution, switching inputs and outputs can be used via a USB-connected MX-232-IO-Box. In this case, the process-
ing of the switching input signals (e. g., from a bell) and the switching outputs (e. g., for a door release) is carried out internally via the available
standard mechanisms (e. g., events and network messages). Autoconfiguration and other door station functions are not available.

Connections and Initial Operation of the S26

You can find detailed information on the installation and connections of the S26 in the S15 Camera Manual for the S15M (PDF, available on
www.mobotix.com > Support > Manuals).
Please note that the boot options of this camera have changed compared to its predecessor (see «Boot Options of the S26» ) and the camera only has
one key ("L"). Regarding the rest of the initial operation of the S26, please see the S15 Camera Manual in Chapter 3, «Initial Operation» .
LEDs
L
Key L
Housing cover
Lens
Microphone
B016
Speaker
Base plate
USB
Ethernet installation cable,
Ethernet patch cable
LSA terminal block
In special situations, you can attach an external sensor module to the S26. In this case, you need to attach the external sensor module to the "Cam1"
connector of the camera; then follow the instructions for attaching sensor modules to the S16. After configuring the external sensor module, the inte-
grated image sensor of the S26 will be deactivated.

Inserting/Exchanging the SD Card

All camera models can use the integrated MicroSD card (SDHC) to record video data. In order to exchange the MicroSD
card, please proceed as outlined in the following instruction. For information on reliable SD cards, please see the MOBOTIX
website www.mobotix.com > Support > MxMedia Library > Planning in the document MicroSD Card Whitelist for
MOBOTIX Cameras .
When replacing the SD card, make sure that recording has been deactivated in the browser ( Admin Menu > Storage >
Storage on External File Server / Flash Device ; activate recording again in the same dialog).
1. Remove the SD card
2. Insert the SD card
Loosen the threaded plug at the top of the
Again using tweezers, insert the SD card as
housing (using a suitable coin, for example)
shown (contacts facing forward) into the card
and remove the plug. Using tweezers, gently
slot. Make sure that you hear a click again when
press the SD card into the slot (as indicated by
pushing the card into the slot. The card is now
the arrow) until you hear a click . The card is
locked and can be used. Insert the threaded
protruding slightly and can be easily removed
plug again and tighten it using the coin.
with the tweezers.

Boot Options of the S26

By default, the camera starts as DHCP client and automatically tries to get
LED
an IP address from a DHCP server. To start the camera in a mode different
flashes
from the default mode, you can activate the boot menu of the camera.
1 x
1. Preparing the Camera
2 x
• Disconnect the camera's power supply.
• Reconnect the power supply of the camera.
3 x
2. Activating the Boot Menu
The red LED lights up 5 to 10 seconds after establishing
4 x
L
the power supply and will stay on for 10 seconds. Briefly
press the key L indicated by the red circle in the figure.
*Only on cameras with audio option and installed speaker.
The camera enters the boot menu, ready for selecting
one of the boot options.
3. Selecting a Boot Option
The LED now flashes once and repeats the flash signal
Press the key longer (> 2 sec) into the hole. The camera confirms the selec-
after pausing for one second (the number of flashes indicates the current
tion by flashing rapidly three times. After 20 sec, the camera will confirm
boot option). To go to the next boot option, briefly press the key again
the selection by playing a sound according to the table above.
(< 1 sec). After the last boot option, the camera returns to the first option
(LED flashes once).
If nothing is selected, the camera will resume its normal boot process
after a certain time.
Standard Delivery
Count
Part Name
1
Dome (installed)
1
Housing cover for S26 (installed)
3
Stainless steel Allen screw with flat head M4x8 mm (installed)
1
Sealing ring (installed)
1
Sealing plug blue, small (sensor modules, USB, mounted)
1
Sealing plug blue, large (Ethernet patch cable, mounted)
1
Cable lock with bayonet catch (Ethernet patch cable, mounted)
1
Eight-wire plug, white (Ethernet installation cable, microphone,
speaker)
1
MicroSD card pre-installed (SDXC)
1
Threaded plug for SD card, blue (mounted)
1
Ethernet patch cable, 50 cm/19.7 in with sealing
Mounting Supplies
Count
Part Name
4
Stainless steel washers dia. 4.3 mm
4
Dowels 6 mm
4
Stainless steel wood screws with hex head 4x40 mm
2
Cable plug 5 to 7 mm, white (Ethernet installation cable)
1
Cable plug 3 to 5 mm, white (Ethernet installation cable)
1
Allen wrench 2.5 mm
1
Lens wrench (lens, dome)
1
Module wrench (sensor module, glass cover/filter insert)
1
Cable tie (Ethernet installation cable, microphone, speaker)
1
Screwdriver (terminals)
1
2
3
MOBOTIX patch cable or
MiniUSB
additional cable
Additional cable or net-
Cam1
work installation cable
Boot
Audio
Meaning
Option
Confirmation*
Not used
Not available on this camera model.
Starts the camera with factory defaults
Factory
(factory default IP address, users and
Boing
Defaults
passwords will not be reset).
Starts the camera as DHCP client and
tries to obtain an IP address from a
Automatic
DHCP server. If a DHCP server cannot
Boing Boing
IP Address
be found or no IP address can be
obtained, the camera starts with its
factory default address.
Starts the camera with the recovery
Recovery
system, e.g., in order to recover from a
Alarm Sound
System
failed update of the camera software.
