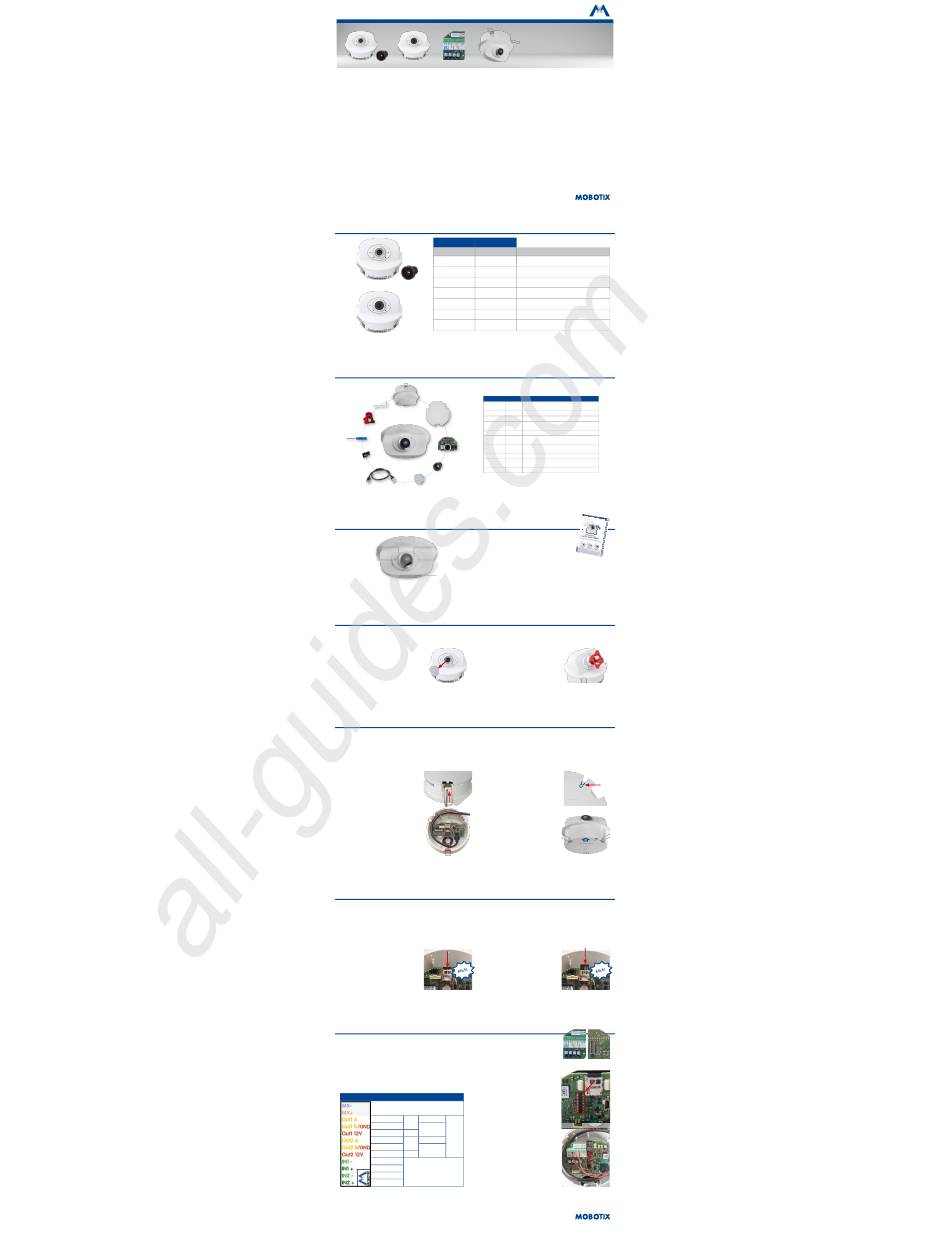

Mobotix p26 Quick Install

Variants/Accessories Quick Install
p26 p26 Indoor Camera
All manuals and user guides at all-guides.com
+
MxIOBoard-IC

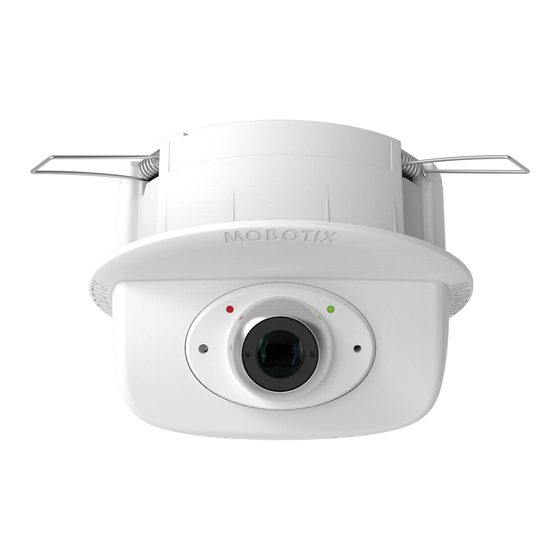

Compact and Flexible Indoor Camera
p26 camera,
p26 camera body und lenses
for signal input/output
lens B016-B237
B036 to B237 for self-mounting
(accessories) for Ceilings
MOBOTIX 6MP camera for flexible use in indoor
applications, install as complete Indoor Camera p26 (Day
• Mx6 system platform with H.264 and ONVIF compatibility
or Night) with selected lenses or as camera module p26
• Includes MxAnalytics video analysis tools out-of-the-box
(Day or Night) with separate lens (MX-B036 to MX-B237).
• Recording on internal MicroSD card (SDXC, SDHC pre-installed)
• Signal Input/Output via optional MxIOBoard-IC
• Audio package variant (with microphone and speaker) available
• Sensor for temperature integrated
• Installation is as simple as installing a ceiling spotlight
More information:
www.mobotix.com > Products > Indoor Cameras > p26
32.857-001_EN_05/2017
Variants of the p26
Mx-p26A-6Day Mx-p26A-6Night
+
(3072x2048) (3072x2048)
Color Black&White
Mx-p26A-6D Mx-p26A-6N
Mx-p26A-AU-6D Mx-p26A-AU-6N
Mx-p26A-6D016 Mx-p26A-6N016
Mx-p26A-AU-6D016 Mx-p26A-AU-6N016
Mx-p26A-6D036 Mx-p26A-6N036
p26 camera body and lenses B036-B237
Mx-p26A-AU-6D036 Mx-p26A-AU-6N036
for self-mounting
Mx-p26A-6D061 self-mounting only
Mx-p26A-6D079 self-mounting only
Mx-p26A-6D119 self-mounting only
Mx-p26A-6D237 self-mounting only
p26 camera,
lens B016 to B237
Standard Delivery
1.1
Item
1.10
1.1
1.2
1.2
1.9 1.3
1.4
1.5
1.8
1.6
1.3
1.7
1.7
1.8
1.9
1.4
1.10
1.5
1.6
Connecting the p26
For information on connecting the p26, please see
the M25 Camera Manual , section «Network and Power
Power/Status Recording
Connection, Additional Cables» .
Regarding the initial operation of the p26, please
Receptacle for
Microphone adjusting the
see the M25 Camera Manual in Chapter 3, «Initial
camera tilt
Operation» .
Screw for
locking the
camera tilt
Installing the Lens (Not for Hemispheric Variants with Lens B016)
The steps listed below are only required if the p26 has been ordered with separate lens for self-mounting (see «Variants of the p26» ).
1. Remove the blind cover 2. Install the lens
Remove the blind cover that protects the image Screw the lens into the lens mount. Depend-
sensor during shipping from the lens mount. ing on the physical length of the lens, you can
This should be done in a relatively dust-free use your hand and then the red lens wrench
environment. (item 1.9). After initial operation of the camera,
remember to adjust the focus of the lens (see
«Initial Operation of the p26» ).
Removing/Installing the Back Cover
The steps listed below are only required if you need to access the inside of the camera housing.
connected before opening the housing!
Caution: In order to avoid damage from electrostatic discharge, you should touch a grounded device before opening the housing of the camera (e.g.,
the blank metal at the back of a computer). This will remove any static electricity that may have built up.
1. Remove the cover 3. If required, enlarge the cable guide
Insert a small screwdriver into one of the holes If the cable guide is not large enough for addi-
at the side as shown in the figure and gently tional cables, enlarge the guide accordingly.
press inward to release the lock. Repeat the Depending on the size required, break out either
process for the two other locks and lift the back one or two elements of the cable guide using
cover from the housing. pliers (see blue markings in the figure).
2. Follow the procedures 4. Attach back cover
Follow the procedures for the work inside the Insert the back cover, so that the large arrow
housing as described in the sections listed below: (highlighted blue in the figure) is positioned
in the viewing direction of the camera. Make
• ➔ Inserting/Exchanging the SD Card
sure the cables and wires are guided properly
• ➔ Installing the MxIOBoard-IC
thought the cable guide, then carefully press
the back cover into the housing until it clicks
into place.
Inserting/Exchanging the SD Card
All camera models can use the integrated microSD card to record video data. In order to exchange the microSD card, please proceed as outlined in the
following instruction. For information on reliable SD cards, please see the MOBOTIX website www.mobotix.com > Support > MX Media Library >
Planning in the document MicroSD Card Whitelist for MOBOTIX Cameras .
When replacing the SD card, make sure that recording has been deactivated in the browser ( Admin Menu > Storage > Storage on External File
Server / Flash Device ; activate recording again in the same dialog). Follow the instructions in section «Removing/Installing the Back Cover» to access
the inside of the camera and to close it again after inserting the SD card.
1. Remove the SD card 2. Insert the SD card
If a microSD card has been installed, gently press Insert the microSD card and gently press with
with your finger as indicated by the arrow until your finger as indicated by the arrow until you
you hear a click . Then release the SD card. The hear another click .
card is protruding slightly and can be easily
Make sure that the SD card is fully inserted.
removed.
Installing the MxIOBoard-IC
For the p26, you can use the optionally available MxIOBoard-IC to attach external sensors using the signal inputs and to
switch other devices via the signal outputs. To facilitate the installation of the module, you should attach the connection
wires before inserting the module.
Follow the instructions in section «Removing/Installing the Back Cover» to access the inside of the camera and to close it
again after inserting the module.
1. Attach the connection cables 2. Insert the MxIOBoard-IC
Attach the connection cables as shown in the terminal connector overview. Hold the MxIOBoard-IC with attached connection
wires over the receptacle on the main board
Terminal Connectors
(red arrow in figure).
The MxBus functionality can only be used with a later Use one finger to carefully press the board of
hardware version of the camera.
the module onto the receptacle. Make sure
Output 1 A Relay – that the green terminal connector block is
pot.-
pointing upward (towards the SD card, see red
Output 1 B/GND free
Output 1
arrow in figure below).
12 V
Output 1 12 V –
Outputs
Make sure that the MxIOBoard-IC is fully inserted.
Output 2 A Relay –
pot.-
Please also make sure that the connection wires
Output 2 B/GND free
Output 2
are guided through the housing without tension
12 V
Output 2 12 V –
and in a loop so that the cables do not lift the
Input 1 –
module out of its receptacle when adjusting
the camera tilt (see figure).
Input 1 +
Inputs
Input 2 –
Input 2 +
Variant
p26 camera module with/without audio package, for lenses
MX-B036 to MX-B237 (f/1.8, 103° bis 15°)
p26 with/without audio package with Fisheye lens MX-B016
(f/2.0, 180° horiz. angle of view )
p26 with/without audio package with ultra-wide-angle lens
MX-B036 (f/1.8, 103° horiz. angle of view )
p26without audio package with wide-angle lens MX-B061 (f/1.8,
60° horiz. angle of view )
p26 without audio package with standard lens MX-B079 (f/1.8,
45° horiz. angle of view )
p26 without audio package with tele lens MX-B119
(f/1.8, 31° horiz. angle of view )
p26 without audio package with distance tele lens MX-B237
(f/1.8, 15° horiz. angle of view )
Count Part Name
1 Housing with spring clips and tiltable camera
receptacle (installed)
1 Back cover (installed)
1 Main board with lens mount (installed)
1 Lens (only installed in camera models listed in
«Variants of the p26» )
1 Blind cover (only when self-mounting the lens)
1 Ethernet patch cable, 50 cm/19.7 in, black
(installed)
1 MicroSD card pre-installed (SDHC installed, SDXC
supported)
1 Flat-head screwdriver, blue
1 Lens wrench red (not with hemispheric variants
with lens B016)
1 Allen wrench 1.5 mm
Make sure the power supply to the camera is dis-
