Q25 Camera Manual
Allround Easy. Allround Secure.

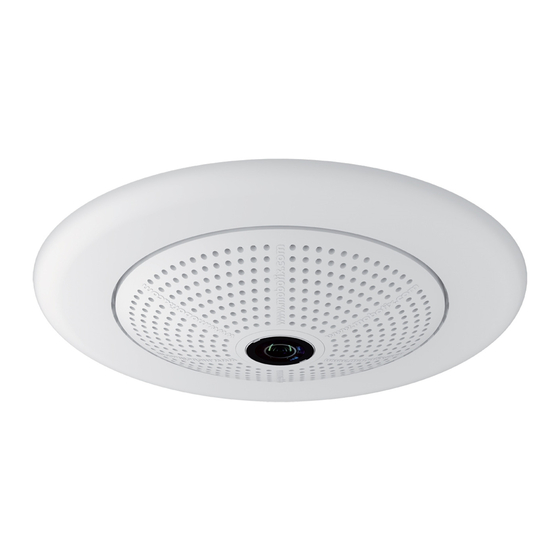

Elegant, ultra-compact and weatherproof 6MP dome camera. Its 360° allround view allows moni-
toring and recording an entire room, while the panorama image and image analysis tools of the
Q25 Hemispheric provide an unparalleled range of application scenarios.
Innovations – Made in Germany
The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its
decentralized concept has made high-resolution video systems cost efficient.
MOBOTIX AG • D-67722 Langmeil • Tel: +49-6302-9816-103 • Fax: +49-6302-9816-190 • sales@mobotix.com
Security-Vision-Systems

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q25 and is the answer not in the manual?

Questions and answers

Related Manuals for Mobotix Q25

Summary of Contents for Mobotix Q25

  • Page 1 Q25 Hemispheric provide an unparalleled range of application scenarios. Innovations – Made in Germany The German company MOBOTIX AG is known as the leading pioneer in network camera technology and its decentralized concept has made high-resolution video systems cost efficient.
  • Page 2 Copyright Information All rights reserved. MOBOTIX , the MX logo, MxManagementCenter and MxPEG are trademarks of MOBOTIX AG registered in the European Union, the U.S.A., and other countries. Microsoft , Windows and Windows Server are registered trademarks of Microsoft Corporation. Apple , the Apple logo, Macintosh , OS X , iOS , Bonjour , the Bonjour logo, the Bonjour icon, iPod and iTunes are trademarks of Apple Inc.

  • Page 3: Table Of Contents

    1.4.14 MX-NPA-Box 1.4.15 MX-GPS-Box 1.4.16 MX-232-IO-Box 1.4.17 ExtIO Expansion Module 1.4.18 Mx2wire+ Media Converter 1.4.19 Other Accessories MOBOTIX Software 1.5.1 Integrated Camera Software (Firmware) 1.5.2 MxManagementCenter 1.5.3 MOBOTIX App © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 4 Network And Power Connection 2.9.1 Notes on Cable Lengths and Power Supply 2.9.2 Connecting the Q25 to the Network Using a Patch Cable 2.9.3 Power Supply Using a Switch 2.9.4 Power Supply When Connected Directly to a Computer 2.9.5 Power Supply with Power-Over-Ethernet Products 2.9.6 Connecting a USB Cable...
  • Page 5 3.4.3 Activating MicroSD Card Recording 3.4.4 Accessing Data on the MicroSD Card 3.4.5 Deactivating Card Recording 3.4.6 Using a MicroSD Card in a Different MOBOTIX Camera 3.4.7 Limitations on Warranty When Using Flash Storage Media Configuration in the Browser 3.5.1 Overview 3.5.2 General Browser Settings...
  • Page 6 MOBOTIX products. § Depending on national laws and the installation location of the Q25, the recording of video and sound data may be subject to special documentation or it may be prohibited.
  • Page 7 1 W! Never touch the lens: Due to the high performance of the Q25, the area of the image sensor can get quite hot, especially when the ambient temperature is also high. This does not affect the proper functioning of the camera in any way. For this reason, the product must not be installed within the reach of persons without the dome.
  • Page 8 If you have any questions, our support and international sales staff are available at intl-support@mobotix.com from Monday to Friday, 8 am to 6 pm (German time). We would like to thank you for your trust and wish you all the best with your new MOBOTIX camera Q25 Hemispheric! ©...
  • Page 9 /152 © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 10: Product Overview

    360° allround view or a 180° wides- creen panorama when mounted on a wall. The first of its kind in the world, this camera is evidence of the MOBOTIX commitment to innovation as the global leader in megapixel video security cameras.
  • Page 11 Q25 Hemispheric Panorama Focus – One Camera, Three Views (Wall-Mounted) Maximum room overview while simultaneously viewing detail in a single image: the Q25 is capable of providing two more views at the same time with the 180° panorama, allow- ing you to focus on two scenes in parallel ("Panorama Focus" display mode).
  • Page 12 The overview image provided by a single Q25, which may be tailored in a number of ways according to specific user require- ments, not only reduces the number of required cameras, but also minimizes the system costs by reducing the wiring complexity, emergency power requirements and number of recording devices required.
  • Page 13 Q25 Hemispheric Surround View (Quad View), Based on the Correct Full Image The Q25 “Surround” display mode replaces (when ceiling mounted) four cameras, and shows four directions simultaneously on the monitor in a quad view. The preset North position can be moved to any direction in the image; the camera generates the other three directions (East, South, West) automatically and stores them as separate views.
  • Page 14 Low Light Conditions – No Problem The maximum resolution of the color and black&white image sensors is 6 megapixels. The higher light sensitivity of the new color image sensors now allow using MOBOTIX color cameras around the clock even when the illumination is low.
  • Page 15 Q25 Hemispheric Virtual PTZ (vPTZ) – No Motor Required The Q25 can zoom in on detail as well. These vPTZ functions are a standard feature in the integrated Q25 camera software. The image from the hemispheric camera can be enlarged using e.g. the mouse wheel, a joystick or a software- controlled PTZ panel, and you can "move"...
  • Page 16 "visible" portion of the image; the rest is lost and cannot be examined later on. For this reason, MOBOTIX has added the new full image recording feature to the Q25. This will not store the currently viewed image that reflects the pan/tilt position and the zoom setting chosen by the user, but the full sensor image - without vPTZ settings or image correction.
  • Page 17 While other camera systems must transport the full 6MP image over the network for further processing, a MOBOTIX camera will only transmit the desired image sections. This means that a Q25 panorama image will only require a small part of the usual data and Corrected image after bandwidth.
  • Page 18 Some application scenarios benefit from a surveillance camera that is present, but without attracting attention. The low-key, elegant appearance of the camera, especially when installed with the In-Ceiling set, makes the Q25 an optimum solution where discreet design and an inconspicuous look are important. Hotels and restaurants present an ideal example, but installations in public buildings, waiting rooms and showrooms are also highly suitable.
  • Page 19 Q25 in the In-Ceiling Set (local public transport bus) Q25 in the In-Ceiling Set with stainless steel ring (elevator) © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 20 /152 Q25 Camera Manual: Product Overview Q25 with 10° On-Wall Set Q25 with In-Ceiling Set © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 21: Hemispheric Technology

    Q25 Hemispheric 1.1.2 Hemispheric Technology The Q25 Hemispheric offers all the image views known from MOBOTIX‘ other hemispheric cameras, including Panorama , Panorama Focus , Double Panorama , Full Image , Normal and Surround . The primary components of a hemispheric camera include a fisheye lens, a high-resolution image sensor, and image correction software that is integrated into the camera.
  • Page 22 Traditional optical PTZ cameras can only record what is being viewed live. The virtual PTZ feature from MOBOTIX allows users to pan to other areas at a later stage in the recording because the entire room can be recorded as a hemispheric image.
  • Page 23 This is a superb overview for the user – provided by a single sensor module. Original full image © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 24: Advantages And New Features

    The more light-sensitive an image sensor is, the better the image quality, especially when the ambient light level is low, such as at dusk and in heavy rainfall. The Q25 offers the best MOBOTIX image quality that is currently available thanks to the light sensitivity provided by the six-megapixel color sensor that is many times over than that of the previously used color sensors and the new MxLEO exposure control.
  • Page 25 Q25 Hemispheric Black&White Image Sensor with Six Megapixels You can now order the Q25 with a six-megapixel night sensor that can deliver black and white images with up to 6MP resolution. This results in larger images than those delivered by a 1.3-megapixel sensor with a perceptibly higher degree of details.

  • Page 26: Decentralized Video System

    The Q25 is equipped with a shock detector as standard. For example, if the camera receives a blow to the housing, it can simultaneously take a video of the offender, trigger a sound alarm and notify the security company by a SIP call.
  • Page 27 Recording soft- ware MOBOTIX System Decentralized and secure MicroSD integrated PC as storage device © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 28: Green Ip Video

    Due to the special product and system properties, the decision to install MOBOTIX video systems is also a decision for Green IP Video: low power consump- tion and environmental friendly because of long life expectancy and minimal amount of materials involved.
  • Page 29 /152 Q25 Hemispheric Notes © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 30: Technical Specifications

    1.2.1 Lens Options MOBOTIX Q25 cameras come with a standard B016 fisheye lens with a 180° horizontal angle of view. The camera is also available with an B041 Super Wide-Angle lens with a horizontal angle of view of 90°, respectively. The integrated virtual PTZ features of the camera software or MxManagementCenter properly correct the lens distortion that is specific to each of the lenses.
  • Page 31 MOBOTIX camera lenses refer to stan- The name of the MOBOTIX lenses reflects the actual focal length of the lenses as well dard 35 mm cameras as the focal length converted to 35 mm camera format. For example, the MOBOTIX B041 Super Wide-Angle lens has a nominal focal length of 4,1 mm.

  • Page 32: Lenses, Hardware, Image Formats

    CIF images with 4 GB MicroSD DVR 250.000 VGA images with 4 GB MicroSD DVR 125.000 MEGA images with 4 GB MicroSD DVR 40.000 QXGA images with 4 GB MicroSD DVR 20.000 © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 33: Software Features

    IEEE 802.1X network authen- • tication) Video Analysis Video Motion detector • MxAnalytics • MxActivitySensor • Video Management Software Free-of-charge download from MxManagementCenter • www.mobotix.com or App Store MOBOTIX App • © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 34: Technical Data

    Directly on NAS and computer/server without additio- video ring buffer nal recording software Software (included) MxManagementCenter MOBOTIX App for iOS devices with iOS 5.0 and higher Image processing Backlight compensation, automatic white balance, image distortion correction, panorama correction, Video Motion detection, MxActivitySensor, MxAnalytics...
  • Page 35 Diameter x H: 160 x 48 mm (on-wall installation); weight: without mounting options approx. 450 g/1 lb (including lens) Delivered parts Housing (high-resistance composite, PBT), white, mounting parts, Allen wrench, 50 cm patch cable, manual, software, MicroSD card © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 36: Delivered Parts And Dimensions

    Stainless steel wood screws with hex head 4.5x60 mm 1.14 Stainless steel Allen screws M4x16 mm 1.15 Stainless steel washers Ø 4.3 mm 1.16 Cable retainer with bayonet catch (patch cable, MiniUSB) © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 37 /152 Delivered Parts and Dimensions Camera Housing and Connectors The MOBOTIX Q25 consists of the camera housing (motherboard and lens), the outer shell and the mounting ring. Connections • NET (Ethernet network incl. PoE power supply) • MiniUSB (e.g. for ExtIO) •...
  • Page 38 Find the folded drilling template at the end of the manual. Make sure that the drilling template is not scaled or adjusted to the paper size when printing the PDF file (enlarged or reduced). © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 39: Mounting Kits And Mounts

    On-Wall set housing Stainless steel Allen screws M4x35 mm Stainless steel washers Ø 4.3 mm Foam rubber washers Lock screws with counter nuts Cable fitting with counter nut and O-ring cord © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 40 Make sure that the drilling template is not scaled or adjusted to the paper size when printing the PDF file (enlarged or reduced). The maximum torque for all screws is 1 to 1.2 Nm. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 41 The In-Ceiling Set must be ordered separately from the MOBOTIX camera. Item Quantity Part Name Ceiling mounting ring incl. 4 flat headed screws Decoration ring Wrench for In-Ceiling mount Clamps © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 42 Find the folded drilling template at the end of the manual. Make sure that the drilling template is not scaled or adjusted to the paper size when printing the PDF file (enlarged or reduced). © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 43 Stainless steel cover 2 mm stainless steel Spacers for Vandalism set Security screws M4x16 mm Two-hole driver bit for security screws Polycarbonate dome incl. washer Lens wrench ø 160 mm/6.3 in © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 44 /152 Q25 Camera Manual: Product Overview Available Variants of Vandalism Set: Stainless steel, polished Stainless steel, matt © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 45 Stainless steel washers Ø 6.4 mm Stainless steel wood screws with hex head 6x50 mm Wall sealing Stainless steel Allen screws M4x16 mm Stainless steel washers Ø 4.3 mm Bottom plate © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 46 Find the folded drilling template at the end of the manual. Make sure that the drilling template is not scaled or adjusted to the paper size when printing the PDF file (enlarged or reduced). © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 47 Stainless steel lock nuts M6 Stainless steel straps Cable fitting with counter nut and O-ring cord Wood screws 6x80mm incl. screw anchors and washers Width: 218 mm/8.58 in Depth: 92 mm/3.62 in © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 48: Available Accessories

    Ideally suited for surveil- lance at critical locations. Order no.: MX-Q25-Sec-Vandal-ESMA Alternative design featuring matt stain- less steel housing 1.5  mm strong. As above incl. lens protector and security screws. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 49: In-Ceiling Set

    The set also includes an Allen wrench as well as a Torx screw with dowel and the corresponding Torx wrench for installing as alternative wall mount for testing. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 50: Miniusb Cable To Miniusb (Angled/Straight)

    Order no.: MX-CBL-MU-EN-EN-PG-05/2/5 (angled/angled) The MOBOTIX ExtIO can be connected directly to the Q25 with this cable, which is up to five meters long. 1.4.10 MiniUSB Cable to USB-A Socket Order no.: MX-CBL-MU-EN-AB-05/2/5 USB-based storage media (for example, USB hard drives) can be connected directly to the Q25 with this cable, which is up to five meters long.

  • Page 51: Npa-Poe-Set

    The NPA-PoE-Set connects and remotely supplies a Q25 with power via an Ethernet cable up to 100 m in length. The blue adapter can also be connected to mobile voltage sources from 12 to 57 V DC by means of an additionally available battery cable.

  • Page 52: Mx-Gps-Box

    D-Sub 15-HD connector. The MX-232-IO-Box (protection class IP65, –30 to +60°C/–22 to +140°F) can be attached to all MOBOTIX cameras with an MxBus or USB interface. The maximum length of the MxBus wiring (0.8 mm diameter wires) is 50 m/55 yd. If the MiniUSB connector is used, the maximum cable length is 5 m/16 ft.

  • Page 53: Mx2Wire+ Media Converter

    1.4.19 Other Accessories Since the range of accessories for the MOBOTIX system keeps growing, you should visit the MOBOTIX website www.mobotix.com in the Products > Accessories section to see the entire list of available accessories.

  • Page 54: Mobotix Software

    MOBOTIX MxManagementCenter remote station and MOBOTIX App. The Q25 models therefore also feature a variety of functions that are integrated in the firmware: from motion detection and long-term storage right through to alarm notification via video IP telephony. The virtual PTZ functions allow you to continuously zoom into or out of a MOBOTIX camera image using either the mouse wheel or a joystick.

  • Page 55: Mxmanagementcenter

    MxManagementCenter is perfectly designed in combination with MOBOTIX cameras rep- resenting the decentralized concept at its best. MxMC allows controlled recording access via the camera or later directly to the NAS.

  • Page 56: Mobotix App

    Q25 Camera Manual: Product Overview 1.5.3 MOBOTIX App Premium solution: There for you whenever and wherever you need it, the MOBOTIX App serves as the perfect remote mobile station that uses intelligent detailed solutions to increase security and convenience for users on a daily basis. The controls are optimized for use with...
  • Page 57 /152 MOBOTIX Software Notes © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 58: Installation

    Q25 Camera Manual: Installation INSTALLATION The Q25 is primarily designed for installation on walls or ceilings. The supplied B016 180° lens captures the entire room, practically from wall to wall and from floor to the ceiling. See Section 2.2, «Mounting the Camera Without Accessories» and the following sections for information on the different installation options;...

  • Page 59: Wall-Mounted

    2.1.1 Wall-Mounted To make optimal use of the high-resolution 180° panorama functionality of the Q25, the camera must be mounted on an internal or external wall. The entire hemisphere of the room directly in front of the camera is then effectively monitored, from the wall on the left of the camera to the wall on the right.
  • Page 60 Hint: The Q25 should always be installed on a wall such that the arrow on the camera housing marked OBEN / TOP points towards the ceiling of the room. © MOBOTIX AG • Security-Vision-Systems • Made in Germany...
  • Page 61 However, due to elevation of the rear casing of the camera caused by connections and holders, a wall outlet should be installed prior to camera installation (see drilling template Q25). This provides perfect protection to the cabling, ensuring that it cannot be seen or damaged from outside.

  • Page 62: Ceiling-Mounted

    In-Ceiling Set Thanks to its hemispherical lens, a single Q25 can monitor an entire room right into each of the four corners (360° Panorama View). The camera's should ideally be positioned on the ceiling in the center of the room. Due to its inherent physical and optical properties, the precision of the lens decreases as the distance from the lens grows.
  • Page 63 Bearing this in mind, it is advisable to install the Q25 in rectangular room ceilings so that the arrow marked OBEN / TOP points towards one of the longer walls of the room as shown in the figure.
  • Page 64 Installation on Building Corners with the For the installation on building corners, Corner and Pole Mount the Corner and Pole This is a special method of Q25 installation, Mount and a Wall Mount will be needed offering substantial advantages for the outdoor surveillance of buildings.

  • Page 65: Mounting Options

    In-Ceiling Installation (MX-OPT-IC) The In-Ceiling Set allows the Q25 camera to be installed in suspended Discreet in-ceiling installation; decorative ceilings, for example. This type of installation provides optimum pro-...
  • Page 66 Stand/Wall Mount. Note: The print on the camera back is legible. Installation hint: The print on the camera back is legible. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 67 The Stand/Wall Mount has been only designed used for testing purposes. Make sure that you replace this mount by a proper wall mount before bringing the system into service. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 68: Network Connection And Power Supply, Ups

    Power Over Ethernet (PoE Conforming to IEEE 802.3af) The Q25 supports the Power over All Q25 models are supplied with power using the PoE standard. The Network Power Ethernet standard Adapter (MX-NPA-PoE-Set) may be used for smaller installations. For larger installations, IEEE 802.3af (PoE)

  • Page 69: Preparing The Camera Connections, Mx-Overvoltage-Protection-Box

    3.5 watts is very low. This, in turn, means that you can centralize the UPS-protected power supply by injecting power into the Ethernet cables (max. 100  m). This kind of protected power supply can be used either with MOBOTIX PoE products (MX-NPA-PoE + Universal Power Supply) or with PoE-compliant switches according to IEEE 802.3af.

  • Page 70: Wiring, Fire Prevention, Lightning And Surge Protection

    When installing the wiring inside or outside of buildings, make sure you always adhere to the relevant regulations on wiring, fire prevention and protection against lightning. MOBOTIX cameras are protected against the effects of small electrical surges by a range of measures. These measures, however, cannot prevent the camera from being damaged when stronger electrical surges occur.
  • Page 71 Preparing the Installation Lightning and Surge Protection In order to avoid damage to MOBOTIX cameras from overvoltages, you should always install the MX-Overvoltage-Protection-Box . This competitively priced and weatherproof network connector provides reliable protection against overvoltages of up to 4 kV; the box is easily installed in the Outdoor Wall Mount, for example (see Section 1.4.13, «MX-Overvoltage-...

  • Page 72: Mounting The Camera Without Accessories

    To guarantee maximum coverage of the room by the camera, the Q25 should be positioned on the wall or ceiling as close to the middle of the room as possible.
  • Page 73 • Scissors to cut out the template • Pen to mark the drill holes • Materials and any tools needed to connect the pre-installed MOBOTIX network cable in the camera with the on-site network cable. • Wall outlet and tools to install the outlet in the wall/ceiling (keyhole saw) •...

  • Page 74: Procedure

    5. Connect the cable: Connect the on-site network cable to the camera patch cable using a standard connector. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 75 1 to 1.2 for all screws is Only use the factory pre-installed network cable supplied with the MOBOTIX camera. Always ensure that the cable retainer with bayonet catch is closed properly around the network cable. All openings at the back of the camera housing except the pres- sure equalization element need to be sealed properly with the rubber plugs.
  • Page 76 The cable can now be pulled out of the camera. Open the cable retainer by rotating the bayonet catch to the marked position Bayonet catch open © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 77 (opening points to the right). Rotate the bayonet catch clockwise to the "filled circle" symbol (see image). The cable is now properly retained. Close the cable retainer by rotating the bayonet catch to the marked position Bayonet catch closed © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 78: Mounting The Camera With The On-Wall Set

    It is not possible to install the on-wall set directly above an on-wall or flush-mounted outlet. Installation using the 10° On-Wall Set is often the right choice if a Q25 is to be used as a panorama camera installed at a greater than usual height (3 m or higher). Tilting the lens in the direction of the center of activity in the room maximizes image quality.
  • Page 79 (IP65). Drilling Template On-Wall Set Find the drilling templates (scale 1:1) at the end of the manual as a fold-out ø 160 mm/6.3 in ø 166 mm/6.54 in © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 80 • Scissors to cut out the template • Pen to mark the drill holes • Materials and tools needed to connect the pre-installed MOBOTIX network cable in the camera with the on-site network cable. • Soft cotton cloth to clean the front of the lens ©...

  • Page 81: Procedure

    3. Mount the On-Wall Set: Mount the On-Wall Set (with- out the camera) at the intended position using e.g. the wood screws (included with Q25 camera, Pos. 1.13). Make sure the OBEN / TOP arrow points in the correct direction.
  • Page 82 Section 3.1 and the following sections. The live image from the camera should be visible on the computer monitor. Check image sections on the computer monitor as well. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 83: Mounting The Camera With The In-Ceiling Set

    For these reasons, the Q25 installed with the In-Ceiling Set is the preferred option for most indoor spaces frequented by customers or the general public (e.g. hotels, restaurants, banks, retail stores, public buildings, etc.).
  • Page 84 Find the folded drilling template at the end of the manual. Make sure that the drilling template is not scaled or adjusted to the paper size when printing the PDF file (enlarged or reduced). © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 85 • Pen to mark the hole positions • Two blue In-Ceiling wrenches from the In-Ceiling Set • Materials and tools needed to connect the pre-installed MOBOTIX network cable in the camera with the on-site network cable. • Soft cotton cloth to clean the front of the lens ©...

  • Page 86: Procedure

    In-Ceiling mounting ring. 6. Connect the cable: Connect the on-site network cable to the camera network cable using a standard connector. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 87 Section 3.1 and the following sections. The live image from the camera should be visible on the computer monitor. Check image sections on the computer monitor as well. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 88: Installing The Vandalism Set

    Installing the Vandalism Set 2.5.1 Mounting Instructions The Vandalism Set serves to provide additional security and protection for Q25 cameras. It may be installed with little effort and at low cost. This set is recommended for use under particularly demanding conditions (such as prisons, trouble areas, train stations, etc.). The set consists of a robust stainless steel cover for the camera housing (matt or polished) and an impact-resistant dome cover made of reinforced plastic.

  • Page 89: Procedure

    Installing the Vandalism Set 2.5.2 Procedure In order to install the Vandalism Set, replace the white plastic outer shell of the Q25, including the Allen screws, with the stainless steel cover, the security screws and the four spacers of the Vandalism set.
  • Page 90 Stainless steel cover must be positioned correctly to line up with the LED openings © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 91: Installing The Wall Mount

    Maximum width x height of the outlet: 88 mm x 80 mm. • Only use the Q25 factory installed patch cable (50 cm cable length) or a MOBOTIX cable of different length available from the range of accessories. • All openings of the camera housing need to be closed off properly. This is the only way to guarantee that the camera remains weatherproof.
  • Page 92 Find the folded drilling template at the end of the manual. Make sure that the drilling template is not scaled or adjusted to the paper size when printing the PDF file (enlarged or reduced). © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 93 • Scissors to cut out the template • Pen to mark the hole positions • Materials and tools needed to connect the pre-installed MOBOTIX network cable in the camera with the on-site network cable • Clean and soft cotton cloth ©...

  • Page 94: Procedure

    Mount. Pay attention to the direction of the camera (OBEN / TOP arrow pointing in the direction of the lon- ger wall for ceiling installation in rectangular rooms). © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 95 Section 3.1 and the following sections. The live image from the camera should be visible on the computer monitor. Check image sections on the computer monitor as well. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 96: Installing The Corner And Pole Mount

    It is used in combination with the Wall Mount described in Section 2.6 , in the case that a Q25 is to be installed on a pole or building corner. The Wall Mount required for complete installation must be ordered separately.
  • Page 97 The following additional tools are required for installation as a pole mount: • Screwdriver • Materials and tools needed to connect the pre-installed MOBOTIX network cable in the camera with the on-site network cable. The following additional tools are required for installation of the corner mount: •...

  • Page 98: Mounting To A Pole

    80 cm! • Tighten the stainless steel straps on the Pole Mount with a screwdriver. If necessary, the ends of the straps can be cut off. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 99: Mounting To A Wall Or Building Corner

    • Next, install the Wall Mount on the Corner and Pole Mount (see next section). © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 100: Mounting The Wall Mount To The Corner And Pole Mount

    M6 nuts included with the Corner and Pole Mount and attach the Wall Mount to the Corner and Pole Mount. • Then continue with the remaining work steps described in Section 2.6.2 ! © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 101: Replacing The Microsd Card

    Gently push on the MicroSD card in the card slot of the camera. The card will be released from the slot and can then be removed from the camera. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 102: Inserting A Microsd Card

    6. If you have inserted a new MicroSD card, it must first be formatted as described in Section 3.4, «MicroSD Card Recording» . © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 103: Network And Power Connection

    • If you are using IEEE 802.3af or IEEE 802.3at (PoE+) Power-over-Ethernet network components to supply power to MOBOTIX cameras, make sure, if possible, that these components do not have a fan. Since the power consumption of MOBOTIX cameras is very low compared to other products, the reliability of the entire system is increased, thus extending the life of these components.

  • Page 104: Power Supply Using A Switch

    Products  > Accessories  > Interface Boxes section on www.mobotix.com. When using a standard network outlet (only for indoor installations), insert the MOBOTIX patch cable of the Q25 directly into the network outlet. If additional cables are required inside the housing, they must be connected as described in Section 2.9.6, «Connecting a USB Cable»...

  • Page 105: Power Supply When Connected Directly To A Computer

    The switch/router must support the PoE standards IEEE 802.3af or IEEE 802.3at. PoE/PoE+ switch/ LAN/www router (10.8.0.11/255.0.0.0) IP addresses in the figure are shown only as an example! Camera (10.8.0.99) © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 106: Connecting A Usb Cable

    2. Remove bayonet catch and USB plug: Turn the bayonet catch to the left (red arrow in figure), take it off and remove the blue USB plug. 3. Connect USB cable: Push the MOBOTIX cable with the angled MiniUSB plug into the connector (red circle in figure).

  • Page 107: Connecting A Two-Wire Mxbus Cable

    /152 Network And Power Connection 2.9.7 Connecting a Two-Wire MxBus Cable You can use such a cable to connect additional MOBOTIX modules (e.g., the MX-GPS-Box or the MX-232-IO-Box) to the Q25. Note that you can attach two MxBus cables (each having...

  • Page 108: Variable Poe

    4. Next, restart the camera: Disconnect the camera from the power supply. Then reconnect it, for example, by disconnecting and then reconnect- ing the Ethernet cable at the PoE switch. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 109: Camera Startup Sequence

    (using a browser, MxManagementCenter, MOBOTIX App, etc.). Note During the startup sequence of the camera, the LEDs will always light up, even if they have been deactivated in Admin Menu > LED Setup. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 110: Operating The Camera

    Q25 Camera Manual: Operating the Camera OPERATING THE CAMERA Manual and Automatic Operation – Overview MOBOTIX cameras do not require any extra software. Thus, you can set up and operate Download the free-of-charge the MOBOTIX camera using a JavaScript-enabled browser on all common operating MxManagementCenter systems (such as Windows, Linux, Macintosh, etc.).
  • Page 111 (see Section 3.2.3, «First Images and Network Parameter Configuration in MxMC» ). 3. Configure the camera. Using the web-based user interface or MxManagementCenter. Camera software in the browser © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 112: First Images And The Most Important Settings

    Q25 Camera Manual: Operating the Camera First Images and the Most Important Settings Once the MOBOTIX camera has been connected to the network, you need to set up the camera’s network interface accordingly. This step involves setting up and checking the network parameters of the camera.
  • Page 113 2. Set Up the Target Network Parameters of the MOBOTIX Camera: 1. Open a web browser on the computer and enter the default IP address of the MOBOTIX camera in the address bar of the browser (for example, 10.8.0.99). Pressing Enter displays the user interface of the MOBOTIX camera (see also Section 3.2.2, «First...
  • Page 114 4. Once you have completed the Quick Installation and rebooted the camera, the new network parameters will be activated. The camera can now be connected to the target network and, if required, further configured. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 115: First Images And The Most Important Settings In The Browser

    3.2.2 First Images and the Most Important Settings in the Browser Once the MOBOTIX camera has been connected to the power supply and to the network, you can access the user interface with the live camera image in the web browser. Internet Explorer, Firefox, Safari or any other graphical browser with activated JavaScript is suitable.
  • Page 116 For more information on camera screens, see Section «Camera Screens In The Browser» Guest screen: in the Camera Software Manual Part 2 or the online help of the camera’s user interface. http://<camera IP>/ cgi-bin/guestimage.html © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 117: First Images And Network Parameter Configuration In Mxmc

    Finding Cameras When starting MxManagementCenter for the first time, the configuration wizard opens and automatically starts searching for MOBOTIX cameras. The number of found cameras is shown next to the Add button. This number is updated automatically if the number of MOBOTIX cameras on the network has changed (i.e., by connecting new/disconnecting...
  • Page 118 Reconfiguring Network Addresses of Cameras Using Bonjour*, MxManagementCenter finds not only cameras on the same network as your computer, but also MOBOTIX cameras located in other subnets (status: ). In such a case, you would not be able to establish any connection to cameras in a different network or subnet.
  • Page 119 . Move to the next page and click on Finish. For more information, see the MxManagementCenter Tutorial, which can be downloaded as a PDF file from the MOBOTIX website: www.mobotix.com > Support > Tutorials. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 120: Starting The Camera With Factory (Network) Settings

    As opposed to resetting the camera using Admin Menu  > Reset configuration to factory defaults, the user information will not be reset if the camera is booted using the factory settings. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 121: Starting The Camera With An Automatic Ip Address (Dhcp)

    You should also make sure that the cameras always obtain the same IP addresses by permanently assigning the MAC addresses of the cameras to the desired IP addresses. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 122: Virtual Ptz And Full Image Recording

    Operation Using the Mouse and Scroll Wheel The vPTZ function of the Q25 can be controlled in the browser using the mouse. This posi- tion becomes the new image center by clicking on any position on the image displayed on the monitor.
  • Page 123 You will find more information and details on vPTZ in the Camera Software Manual Part 2 , Section 4.3.6, «Virtual PTZ» . Current versions of all manuals can be downloaded anytime from the MOBOTIX website www.mobotix.com under Support > Manuals). © MOBOTIX AG • Security-Vision-Systems • Made in Germany...

  • Page 124: Full Image Recording

    Full image recording off: The event that triggered a video motion (VideoMotion VM) window may not be in the recorded sequences while the window was not displayed at the time. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 125 Activate/Deactivate Full Image Recording in the Browser To configure this feature, open the Setup Menu > Event Control > Recording dialog box and activate or deactivate the Full Image Recording option. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 126: Special Q25 Configuration In The Browser

    Q25 is first installed. A corresponding adjustment of the image setting is strongly recommended if the on-wall set is mounted with an inclination of 10 degrees (available as a Q25 accessory).
  • Page 127 These tilted lines are primarily caused if the camera or sensor module is tilted (for example, due to mounting with 15° wedges) or if the image tilt is modified. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 128 6. Click on the lock icon again to close it (lock clasp is down). The panorama image setting is then locked until the camera is next restarted. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 129 Virtual PTZ and Full Image Recording Caution To permanently save the standard image setting defined for the Q25, go to the Store Complete Configuration option in the Manage Settings Quick Control. The settings will then remain in effect, even after rebooting.
  • Page 130 Ceiling-Mounted: Set North (User-Defined North Direction) Once the Q25 has been mounted on a ceiling, you need to specify its North direction. This is not the ”true” direction of North but rather the main line of sight or the focus of the lens. It serves as a reference for the North direction in the Surround and Double Panorama display modes (the Ceiling option was already selected in the Installation Type Quick Control).
  • Page 131 In the next step, you can set these views as the standard view for the camera live image. North East Caution: No OnScreen Control is available in ”Double Panorama” mode West South © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 132 For each of the subviews ( North , East , etc.), the OnScreen Control on the side can be used to adapt it (open lock, click on subview, adapt view, click on next subview, adapt view and close lock again). © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 133: Microsd Card Recording

    Admin Menu > Camera Status dialog box. Conservative Memory Usage Thanks to MOBOTIX MxFFS File System MxFFS formatting of the MicroSD card means that MOBOTIX camera software will use the flash device as evenly as possible, thus allowing for the maximum possible number of write/delete cycles.
  • Page 134 SD card (Admin Menu > Error Notification Function.). The MicroSD card can then be replaced to ensure that any existing data is not lost. © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...

  • Page 135: Formatting The Microsd Card

    MxFFS-formatted). The following steps are necessary to format a storage device (Admin / Flash Device Menu > Storage on External File Server / Flash Device): 1. Make sure that there is a MicroSD card in the card slot of the MOBOTIX camera. 2. Click Format in the SD Memory Card line.

  • Page 136: Activating Microsd Card Recording

    Storage on External File Server / Flash Device 1. Make sure that there is a MicroSD card in the card slot of the MOBOTIX camera. 2. Make sure that the MicroSD card is formatted in MxFFS format. 3. Activate the SD Flash Card option.

  • Page 137: Accessing Data On The Microsd Card

    • In MxManagementCenter: Play back the recorded video sequences with audio by accessing the MicroSD card in the MOBOTIX camera via the camera or with a direct access to the MicroSD card via a card reader connected to the computer (coming soon).

  • Page 138: Using A Microsd Card In A Different Mobotix Camera

    Q25 Camera Manual: Operating the Camera 3.4.6 Using a MicroSD Card in a Different MOBOTIX Camera A MicroSD card containing recorded video data from a MOBOTIX camera can be inserted into any MicroSD card-enabled MOBOTIXMOBOTIX camera. Once a MicroSD card record- ing has been activated (requires a reboot), the ”new”...

  • Page 139: Configuration In The Browser

    HTTP commands using programs and scripts of the embedded software. The settings are stored in the camera’s flash memory. This section contains an overview of the basic browser settings of the MOBOTIX camera as well as further configuration options. Detailed information on the software functions is provided in the camera’s online help.
  • Page 140 MOBOTIX camera. The camera can use either NTP time servers or Time Protocol servers. For more information on this topic, refer to the online help for the specific dialog boxes.

  • Page 141: General Browser Settings

    (Image Programs Quick Control). • Set the resolution of the live image: By default, all MOBOTIX cameras are factory- set to an image resolution of 640x480 pixels. You can select the desired resolution using the Resolution Quick Control.
  • Page 142 Action Group Overview dialog box. • Activate shock detector: The Q25 is also equipped with a shock detector as standard. If, for example, the camera’s housing receives a blow, it automatically registers it and sends a notification via a network message or telephone call.

  • Page 143: Additional Notes

    Additional Notes Additional Notes 3.6.1 Weatherproofness The MOBOTIX Q25 has been certified according to protection class IP65 (absolutely dust- proof and resistant against water jets) and can also be wall-mounted outdoors using the corresponding wall mount. 3.6.2 Password for the Admin Menu Accessing the Administration Menu of the camera (Admin Menu softbutton) is only pos- sible after entering a user name and password.

  • Page 144: Resetting The Camera To Factory Settings

    Text and logos can be also deactivated or and the MOBOTIX logo at the top of the image. Once the camera arming has been acti- individually configured vated, the text at the bottom of the live image (event, action, messaging and recording symbols) will also appear.

  • Page 145: Browser

    MOBOTIX products. Depending § on national laws and the installation location of the Q25, the recording of video and sound data may be subject to special documentation or it may be prohibited. All users of MOBOTIX products are therefore required to familiarize themselves with all valid regulations and comply with these laws.

  • Page 146: Online Help In The Browser

    1 W! used, Never touch the lens: Due to the high performance of the Q25, the area of the image sensor can get quite hot, especially when the ambient temperature is also high. This does not affect the proper functioning of the camera in any way.

  • Page 147: Declaration Of Conformity

    Electrical and electronic products contain many reusable materials. For this reason, we would ask that you dispose of MOBOTIX products at the end of their service life in accor- dance with all legal requirements and regulations (or deposit these products at a munic- ipal collection center).
  • Page 148 /152 Q25 Camera Manual Notes Notes © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 149 /152 Notes Notes © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 150 /152 Q25 Camera Manual Notes Notes © MOBOTIX AG • Security-Vision-Systems • Made in Germany www.mobotix.com • sales@mobotix.com...
  • Page 151 /152 /152 Manufacturer To demonstrate our confi dence in the quality of our products, MOBOTIX cameras have been used to capture all images that appear in this manual. Manufacturer MOBOTIX AG Kaiserstrasse 67722 Langmeil Germany Phone: +49 6302 9816-103 Fax: +49 6302 9816-190 www.mobotix.com...
