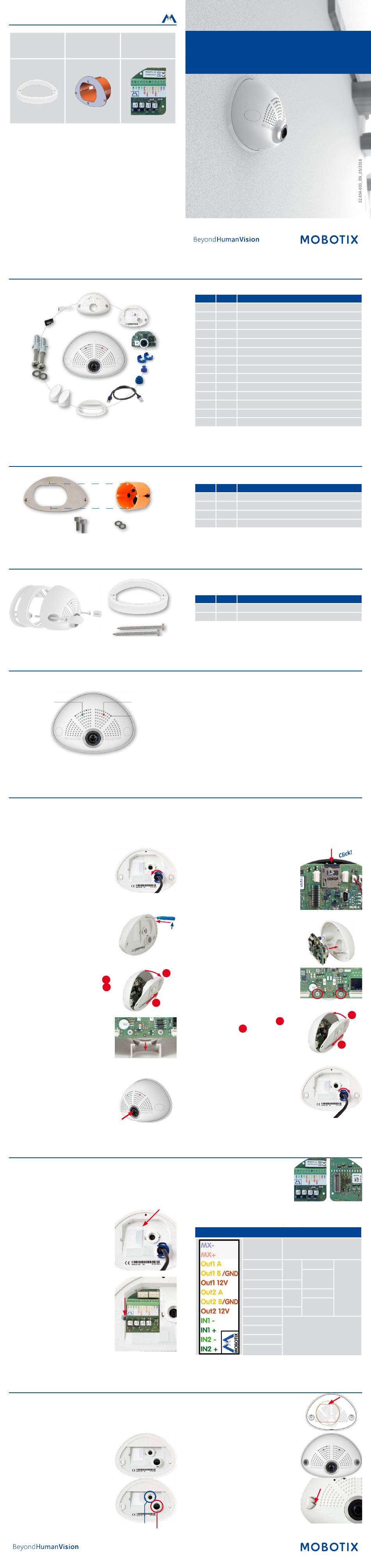

Mobotix i26 Indoor 180 Quick Install

Accessories
MX-OPT-AP2
On-Wall Installation Set In-Wall Installation Set
*Variant Mx-i26B supports MOBOTIX MxBus modules

i26 Standard Delivery

1.14
1.13
1.12
1.11
1.10
1.9

Standard Delivery i26 In-Wall Installation Set (Accessory)

Standard Delivery i26 On-Wall Installation Set (Accessory)

Connection and Initial Operation of the i26
Power/Status

Inserting/Exchanging the SD Card

All camera models can use the integrated MicroSD card (SDXC) to record video data. In order to exchange the MicroSD card, please proceed as outlined
in the following instruction. For information on reliable SD cards, please see the MOBOTIX website www.mobotix.com > Support > Download Center >
Documentation > White Lists in the document MicroSD Card Whitelist for MOBOTIX Cameras.
Caution:
In order to avoid damage from electrostatic discharge, you should touch a grounded device before opening the housing of the camera (e.g., the
blank metal at the back of a computer). This will remove any static electricity that may have built up.
1. Remove the cables on the back
Release the blue bayonet catch, then remove
the patch cable.
If a USB cable is attached, remove this cable
in the same way.
Lay aside the wall sealing of the camera.
2. Remove the back cover
Insert a suitable device into the hole at the
top of the back cover as shown until you feel
resistance.
In order to release the back cover, cautiously
press upward as indicated by the blue arrow.
If you are using a flat-head screwdriver, simply
turn the screwdriver.
Gently pull the back cover a bit backward
then lift the back cover upward to remove it
3. Remove the main board
Release the main board by gently pressing
the snap-fit hook beneath the main board as
indicated by the red arrow.
Push the main board out of the housing by
gently applying pressure onto the lens holder
(push upward, since the main board is tilted
downward 15 degrees).
Take care that the lens holder does not catch
in the tunnel or the snap-fit hook.

Installing the Mx-A-IOA-IC

For the Mx-i26A/B, you can use the optionally available Mx-A-IOA-IC to attach external sensors using the signal inputs and
to switch other devices via the signal outputs. When used with the the Mx-i26B, you can also attach MxBus devices (e.g.,
an MX-GPS-Box).
1. Insert the Mx-A-IOA-IC
On the back of the camera, remove the sticker
that protects the receptacle and the camera's
interior from collecting dirt (see red arrow in
figure to the right).
Carefully push the module board onto the
receptacle. Secure the module board using
the supplied Phillips screw (see red arrow in
figure).
When attaching the connection wires to the
Mx-A-IOA-IC, make sure the wires are guided to
the module without tension (you could apply
a cable tie and tie the wires to the network
cable, for example).

Installation Without In-Wall Installation Set

Use the drilling template on the back for this step. Mark the holes for dowels or screws (blue) and the cut-out for the cables
(red). If required, drill the holes for the dowels, push them in and cut the cut-out for the cables. Guide the Ethernet cable and
any other cables that are to be connected through the cut-out.
1. Press wall sealing on i26
Press the wall sealing on the back of the i26
and make sure that it lies flat all around the
rim. Note that the labels of the sealing are
pointing toward the back of the camera.
2. Connect the cables
Insert the cables into the appropriate connec-
tors and fasten them using the blue bayonet
catches.
Mx-A-IOA-IC
MX-OPT-UP1
for MxBus modules* and
signal inputs/outputs
1.1
1.5
1.6
1.7
1.8
2.1
2.3 2.4
Recording
Key
1
,
2
.
USB
Ethernet
i26 Indoor 180°
Quick Install
Item Count
1.1
1.2
1.2
1.3
1.4
1.3
1.5
1.6
1.4
1.7
1.8
1.9
1.10
1.11
1.12
1.13
1.14
Item Count
2.2
2.1
2.2
2.3
2.4
3.1
Item Count
3.1
3.2
3.2
You can find detailed information on the installation and connections of
the i26 in the Q25 Camera Manual (PDF, available on www.mobotix.com >
Support > Download Center > Documentation > Manuals).
Please note that the boot options of this camera have changed compared
to its predecessor (see «Boot Options of the i26» on page 2) and the
camera only has one key. Regarding the rest of the initial operation of the
i26, please see the Q25 Camera Manual in Chapter 3, «Initial Operation».
Use a suitable device for operating the camera key (e.g., an opened paper
clip).
4. Remove/insert SD card
If a MicroSD card has been installed, gently
press with your finger as indicated by the arrow
until you hear a click. Then release the SD
card. The card is protruding slightly and can
be easily removed.
Insert the new MicroSD card and gently press
with your finger as indicated by the arrow until
you hear the click.
5. Insert the main board
Insert the lens into the tunnel of the housing
as shown.
Caution:
If the audio package has been
installed, make sure that you do not damage
the speaker cable.
1
Put your thumbs onto the two lower screws
of the main board (red circles) and cautiously
press on the screws until the main board clicks
into place.
2
6. Insert the back cover
Insert the back cover at the bottom
push shut at the top
into place.
7. Re-connect the cables
Press the wall sealing onto the back of the
i26 and make sure that it lies flat all around
the rim. Note that the labels of the sealing
are pointing toward the back of the camera.
Insert the Ethernet cable and – if installed – the
USB cable into the corresponding sockets and
secure the connectors using the blue bayonet
catches.
2. Attach the connection cables
Attach the connection wires as shown in the terminal connector overview.
Terminal Connectors
3. Install the i26
Press the camera and the wall sealing against
the wall and align the holes with the holes for
the dowels or screws. Insert the screws with
washers and tighten them cautiously.
4. Apply screw plugs
Push in the screw plugs to close off the holes
with the screws. When doing so, make sure
that the notches in the plugs follow the guides.
Part Name
1 Housing (installed)
1 Back cover (installed)
1 Main board with lens MX-B016 or MX-B036 (installed)
2 Bayonet catch, blue (installed)
1 USB plug, blue (installed)
1 Ethernet plug, blue (installed)
1 Ethernet patch cable, 50 cm/19.7 in, black
1 Wall sealing
2 Screw plug, white
2 Washer Ø 4.3 mm, stainless steel
2 Wood screw 4x40 mm, stainless steel
2 Screw anchor S6
1 MicroSD card pre-installed (SDHC installed, SDXC supported)
1 Allen wrench 2.5 mm
Part Name
1 Mounting plate, stainless steel
1 Cavity wall socket
2 Allen screw M4x8 mm, stainless steel
2 Washer Ø 4.3 mm, stainless steel
Part Name
1 On-Wall Installation Set
2 Wood screw 4x70 mm, stainless steel
1
, then
2
and press until it clicks
MxBus functionality is only supported
MxBus connectors
by the camera variant Mx-i26B.
Output 1 A
Relay
pot.-
free
Output 1 B/GND
Output 1 12 V –
Output 2 A Relay
pot.-
free
Output 2 B/GND
Output 2 12 V –
Input 1 –
Input 1 +
Input 2 –
Input 2 +
2
1
–
Output 1
12 V
Outputs
–
Output 2
12 V
Inputs
