Summary of Contents for MAJORITY QUADRIGA
- Page 1 Q U A D RI GA Internet Radio CD Player M usic System Instructions Guide...
-
Page 2: Table Of Contents
Content Package contents ................3 Overview ..................3 Getting Started ................6 Menu Operation ................9 Internet Radio, Podcasts ..............10 Spotify Connect .................10 USB Music Player ................11 DAB+ Radio ..................12 FM Radio ...................13 CD Player ...................14 Bluetooth ..................15 AUX in ....................16 RCA in ....................16 Optical in ...................16 Sleep ....................16... -
Page 3: Package Contents

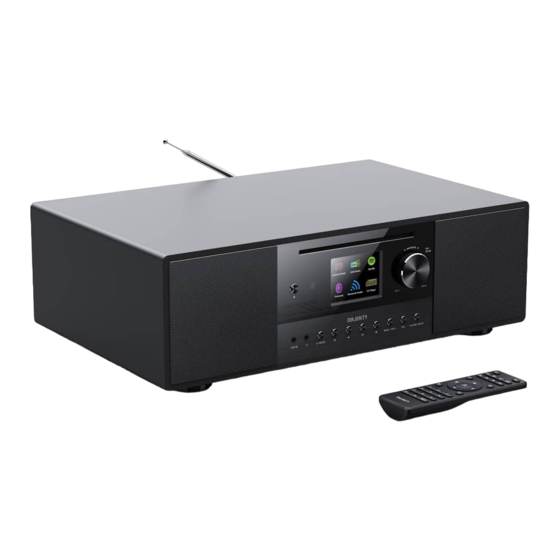

Package Contents The items enclosed in the packaging box are as follows: Quadriga Music System Power adaptor Remote control 3.5mm audio cable Telescope antenna User manual Overview Front 2.8” screen Colour TFT display CD slot CD playback Remote control Receive remote control signal... - Page 4 ON/Standby / MODE Switch on/Standby the device; Enter the button mode menu REWIND / PREVIOUS Rewind or play previous track button NEXT / FAST Fast forward or play next track FORWARD button PLAY / PAUSE Play or resume track playback button Volume knob / OK / Rotate to adjust volume or move along the...
- Page 5 Remote Control Device power on/off; alarm off MODE Open, close mode selection MENU/INFO Press and hold to open menu; close menu Display FM mode info (Name, PTY, RT, frequency) Display DAB mode info (Station, track, artist etc.) Display CD/USB mode info (Track, artist, etc.) Select previous track, hold down to seek...
-
Page 6: Getting Started
Press and hold to BT discoverable Operating your remote control Press and slide the back cover to open the battery compartment of the remote control. Insert two AAA size batteries. Make sure the (+) and (-) ends of the batteries match the (+) and (-) ends indicated in the battery compartment. - Page 7 Antenna Plug the antenna to the F-connector. To get good reception for DAB/FM broadcasting, always extend the antenna with its full length. First Time Setup When powering the device on for the first time, first you need to set language. Selecting the menu language Rotate the knob to select the menu language you want from the list and press OK button to confirm.
- Page 8 o Pin: The device generates an 8-digit code number which you enter into the wireless router, access point, or an external registrar. o Skip WPS: Enter key as for a standard encrypted network. To enter the network’s key, use the reel or direction buttons on the remote control to move the cursor through the characters and press OK to confirm.
-
Page 9: Menu Operation
For Android system For iOS system (Google Play) (Apple Store) Before using the UNDOK app, make sure the device and the smartphone / tablet are in the same WiFi network. Launch the app. The app initializes and scans for Internet Radio in the network. Tap the device to make the connection. -
Page 10: Internet Radio, Podcasts
Press it to display a list of the devices available on the network. Now select “Majority Quadriga” and the playback will take place on the radio. A successful connection is indicated by the name of the device in green text. You... -
Page 11: Usb Music Player
can use to play the previous or next track, press and hold to rewind or fast forward. Press to play or pause. USB Music Player When this menu is selected, menus are generated from the folders on the USB device. Browse the folders with the navigation knob and BACK button, or direction buttons on the remote control. -
Page 12: Dab Radio
indicates USB depending on the source. To view further information, press INFO. Each time you press INFO, another set of information is displayed, cycling through the information: artist, album, codec/sampling rate, playback buffer and today’s date. Album cover from USB is unsupported. DAB Radio DAB mode receives DAB/DAB+ digital radio and displays information about the station, stream and track playing. -
Page 13: Fm Radio
Each time you press INFO , another set of information is displayed, cycling through DLS text, programme type, ensemble name/frequency, signal strength/error rate, bite rate/codec/channels and today’s date. Press OK to view the station album in full screen. Presets – 40 presets available, see section 3 (Presets). Settings Dynamic range compression (DRC) If you are listening to music with a high dynamic range in a noisy environment,... -
Page 14: Cd Player
to-noise ratio (hiss) from weak stations. To change the scan settings to stop only at stations with good signal strength, select Yes after choosing Strong station only? Audio settings All stereo stations are reproduced in stereo. For weak stations, this may result in a poor signal-to-noise ratio (hiss). -
Page 15: Bluetooth
You can turn on the Bluetooth of your Bluetooth device and search the radio Majority Quadriga to pairing. When it is waiting for pairing, there is a blinking Bluetooth icon at the bottom. If the pairing is successful, the Bluetooth icon becomes steady. -
Page 16: Aux In
Aux in Aux in mode plays audio from an external source such as an MP3 player. To play audio with Aux in mode. Turn the volume low on both the radio and, if adjustable, the audio source device. Connect the external audio source to the Aux in 3.5mm stereo socket. Adjust the volume of the radio (and, if necessary, the audio source device) as required. -
Page 17: Alarm
Alarm There are two versatile wake-up alarms with snooze facility, and a sleep function to turn the system off after a set period. Each alarm can be set to start in a particular mode. Select Alarms under Main menu to set or change an alarm. Select the alarm number (1 or 2) then configure the following parameters: Enable: on/off, Frequency: Daily, Once, Weekends or Weekdays,... -
Page 18: Equaliser
Equaliser Several preset EQ modes are available: Normal, Flat, Jazz, Rock, Movie, Classic, Pop and News. Also a user-defined setting is available; create your own EQ with custom bass, treble settings. Network Network wizard - Enter to search AP SSID, then input the WEP / WPA key or choose Push Button/Pin/Skip WPS to connect to the wireless network. -
Page 19: Time/Date
Time/Date Set the time manually or auto update, time format, time zone and daylight. Details can be referred to Setting date and time under to Section 3 (First Time Setup). Language The default language is English. Change it as your preference. There are 13 languages available - English, Dansk, Deutsch, Español, Français, Italiano, Nederlands, Norsk, Polski, Português, Suomi, Svenska, Türkçe Factory Reset... -
Page 20: Privacy Policy
Privacy Policy View the information of Privacy Policy. Please read the data protection regulations listed there or go to this website: www.frontiersmart.com/privacy Backlight You may change the backlight of each environment (power on or standby) to High, Medium or Low. And adjust the timeout duration which the radio turns to standby backlight level when it has not been controlled. - Page 21 3. The link of the station is changed or the station no longer transmits – ask the provider for information. 4. The link of manual added station may not be correct, check and change it. No signal or hiss in 1.Check the antenna installation properly/move the DAB/FM mode.
-
Page 22: Technical Specification
Technical Specification Model number Majority Quadriga Description Internet Radio & CD Player Music System Speaker output power 120W Display 2.8", 320 x 240, colour TFT display 87.5 – 108.0 MHz, RDS supported 174 – 240 MHz (Band III) DAB/DAB+ Power adaptor 21.0V... - Page 23 Power Adaptor Manufacturer’s name Dongguan Guanjin Electronics Technology Co., Ltd. Address Block 16 Qiantou New Industrial Park, Niushan, Dongcheng District, Guangdong Province, Chin Model no. K48V210210G, K48V210210B 100 – 240V ~ AC, 50/60Hz, 1.2A Input voltage Output voltage DC 21.0V Output current 2.1 A Output power...
-
Page 24: Disposal
Disposal • If have to dispose the device in the future, note that all electrical and electronic device must be disposed of separately from household waste at official disposal centres. • Avoid damage to the environment and risks to your personal health by disposing of device properly. - Page 25 • No naked flame sources, such as lighted candles, should be placed on the apparatus. Compact discs • Use only Digital Audio CDs which have the symbol . • DO NOT USE THESE TYPES OF DISC: - Mini (8cm) CDs. Use only full-size 12cm discs. Mini CDs will jam the feed mechanism.
- Page 26 • To prevent possible hearing damage, do not listen at high volume for long periods. Maintenance / Cleaning • Always power off the unit when cleaning it. • Never use any harsh or strong solvents to clean the device since these may damage the surface of the device.
