MAJORITY Castle CB3A-CDAB-BLK Instruction Manual

MAJORITY Castle CB3A-CDAB-BLK Instruction Manual

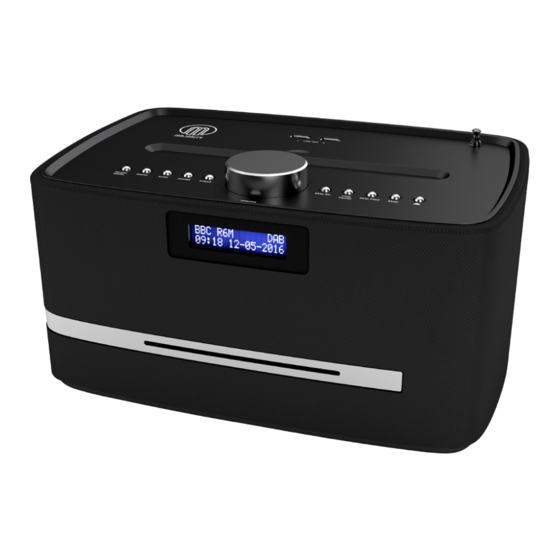

Compact music system
Hide thumbs Also See for Castle CB3A-CDAB-BLK:
Table of Contents

Advertisement

Quick Links

See also: User Manual
CASTLE
Compact Music System
CB3A-CDAB-BLK
Instructions Guide

Advertisement

Table of Contents
loading

Related Manuals for MAJORITY Castle CB3A-CDAB-BLK

Summary of Contents for MAJORITY Castle CB3A-CDAB-BLK

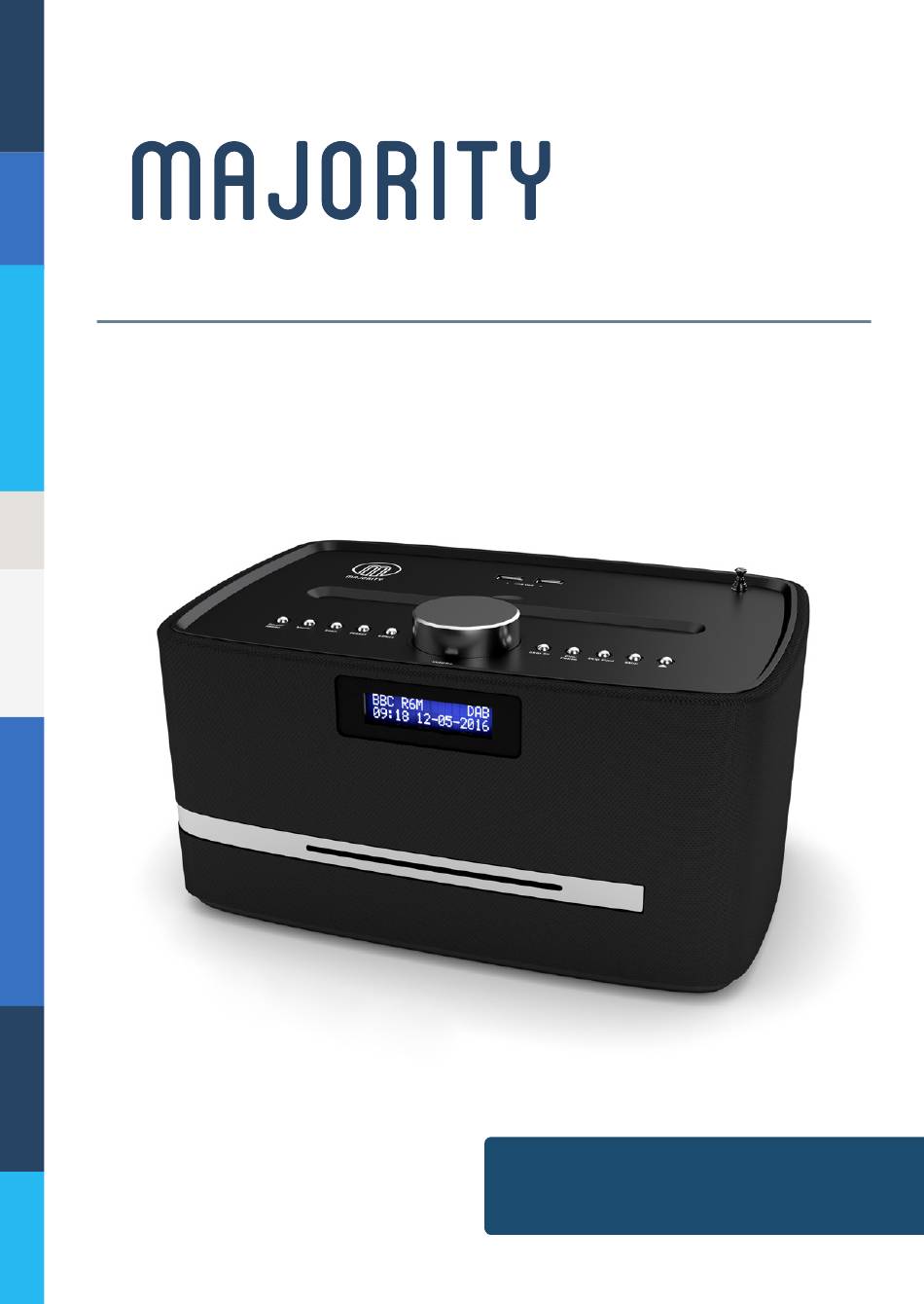

  • Page 1 CASTLE Compact Music System CB3A-CDAB-BLK Instructions Guide...

  • Page 2: Table Of Contents

    Contents What’s in the Box? Controls And Functions  Support  Instructions Guide  Navigation Settings ��������������������������������������������������� Basic Operation �������������������������������������������������������� DAB/DAB+ Radio ������������������������������������������������������� FM Radio ������������������������������������������������������������������� CD player ����������������������������������������������������������������� Bluetooth and AUX-In ���������������������������������������������� USB Charging and Phone Stand ������������������������������� Dual Alarm Setting ��������������������������������������������������� Sleep Setting ������������������������������������������������������������...

  • Page 3: What's In The Box

    What’s in the Box? Box Contents 1. Majority Castle Music System 2. Remote Control 3. Phone Stand 4. Power Adapter 5. Instructions Guide...

  • Page 4: Controls And Functions

    Controls And Functions Top View USB Out 1 Volume/Select dial & Snooze USB Out 2 10. Display (on front of music Antenna system) Power/Mode 11. Skip Back Menu 12. Play/Pause Scan 13. Skip Forward Preset 14. Stop Effect 15. Eject CD...
  • Page 5 Controls And Functions Rear View 16. Aux-In Jack 16. Headphone jack 16. DC 9v in jack - wall plug 16. On/Off switch 16. Phone stand...
  • Page 6 Controls And Functions Remote Control Volume Control Reduce Bass Mute Power/Standby Reduce Treble Switch Mode Play/Pause 10. Increase Treble Previous Track 11. Next Track Bass+ Loudness 12. Increase Bass Compensation* 13. Reset Treble & Bass Levels * Bass Loud Compensation increases the level of low frequencies. Audio at low frequencies can lose bass and treble.

  • Page 7: Support

    Support Support Thank you for your purchase of the Majority Castle radio. Please follow the guidance of the manual to set up your new purchase and begin enjoying its features. If you require further assistance with your new radio, please contact our support team on the Majority website:...

  • Page 8: Instructions Guide

    Instructions Guide Navigation Settings Standby/Mode button: Press this button to turn the radio on and take off of standby. To turn the radio to standby, simply press and hold this button. To switch the radio off entirely, use the ON/OFF switch at the back.

  • Page 9: Basic Operation

    Instructions Guide Basic Operation Please note that the instructions within this manual will refer to the radio button number e.g (Ref.*number*) in accordance to the diagrams on pages 2-3. Starting up your radio Plug the adaptor connector into the back of the system labelled ‘DC 9V’...
  • Page 10 Instructions Guide Standby To place the music system back on standby, press and hold the ‘Power/Mode’ Button (Ref.4). The front display will show “Goodbye” and then go into standby, showing the time and date. To turn off fully, press the button on rear of the unit (Ref.19) and switch off at the mains.

  • Page 11: Dab/Dab+ Radio

    Instructions Guide DAB/DAB+ Radio Press the ‘Power/Mode’ button (Ref.4) to switch to DAB/DAB+ Radio. In DAB/DAB+ mode, the radio will synchronize with the time and date of the station. Ensure that the antenna is fully extended so that the best signal is being received for the radio scan (Ref.3).
  • Page 12 Instructions Guide DAB/DAB+ Preset Stations How to store a preset radio station Up to 10 DAB/DAB+ stations can be preset for easy navigation and listening. To store a station that you are currently playing, it is best to be listening to the station. To preset your chosen station, press and hold the ‘Preset’...

  • Page 13: Fm Radio

    Instructions Guide FM Radio Press the ‘Power/Mode’ button (Ref.4) to switch to FM Radio. The first time you do this, FM frequency “87.50MHz” will be displayed on the screen. Ensure that the antenna is fully extended so that the best signal is being received for the radio scan (Ref.3).
  • Page 14 Instructions Guide FM Radio Preset Stations How to store a preset radio station Up to 10 FM stations can be preset for easy navigation and listening. To store a station that you are currently playing, it is best to be listening to the station. To preset your chosen station, press and hold the ‘Preset’...

  • Page 15: Cd Player

    Instructions Guide CD player To select CD mode, press the ‘Power/Mode’ button (Ref.4) until “CD MODE” is displayed on the front screen (Ref.10). The display screen for the CD function will now show “Reading... ” followed by “No Disc”. Select the Open/Close CD function on the radio (Ref.15). Insert your CD slightly and the drive will take the CD into the system to play.

  • Page 16: Bluetooth And Aux-In

    “BT Mode” is displayed on the front screen (Ref.10). Once on Bluetooth mode, go to your settings on your phone/ tablet that you wish to connect to the Majority Castle. Select the ‘Majority Castle’ to begin connecting via Bluetooth.

  • Page 17: Usb Charging And Phone Stand

    Instructions Guide USB Charging and Phone Stand Dual USB Ports – Charging your phone Both USB Ports have an output of 5V/2A (Ref.1/ ). When connected via a USB lead into the USB port, the system will charge your device. Please note that you can not play your music via the USB connection - it is purely a charging facility.

  • Page 18: Dual Alarm Setting

    Instructions Guide Dual Alarm Setting Press and hold the ‘Menu’ button (Ref.5) for 1 second to open Menu Settings. Browse to “Alarm1 Setting/Alarm 2 Setting” with the ‘Skip Back’ (Ref.11) and ‘Skip Forward’ (Ref.13) buttons. Select this option by pressing down the ‘Volume/Select’ dial (Ref.9) on top of the system once.
  • Page 19 Instructions Guide Alarm Functions Cancelling and Deleting Alarms To turn the alarm on or off, or delete the alarm set, go back to the ‘Alarm 1 Setting/Alarm 2 Setting’ from the Menu screen and select ‘Alarm On/Off’ or ‘Alarm Del’ . By selecting ‘Alarm On/Off’...

  • Page 20: Sleep Setting

    Instructions Guide Sleep Setting Sleep setting enables you to programme the music system to switch off after a set time. This option can be made for a range of times up to 120 minutes. To set the sleep setting, press and hold the ‘Menu’ button (Ref.5) for 1 second to display the menu setting options.

  • Page 21: Settings: Clock And Date

    Instructions Guide Settings: Clock and Date The date and time will automatically set after using DAB radio and will show when system is in Standby. If you wish to manually set the time and date, select this option. The below options will then display: Manually Setting the Time Press and hold the ‘Menu’...
  • Page 22 Instructions Guide Settings: Clock and Date Manually Setting the Date Press and hold the ‘Menu’ button (Ref. 5) for 1 second to open the menu settings options. Scroll through to “Date Setting” by using the ‘Skip Back’ (Ref.11) and ‘Skip Forward’ (Ref.13) buttons. Select “Date Setting” by pressing down the ‘Volume/Select’...

  • Page 23: Settings Menu

    Instructions Guide Settings Menu Press and hold the ‘Menu’ button (Ref.5) to display menu setting options. Use the ‘Skip Back’ and ‘Skip Forward’ buttons (Ref.11 to browse through the following options. Select your menu setting with the ‘Volume/Select’ dial (Ref.9): System Reset Select the ‘System Reset’...

  • Page 24: Additional Features

    Instructions Guide Additional Features Erp Power Saving Feature If the unit can not receive signal after 10 minutes it will enter into Erp management mode and the unit will go into standby. NOTE: The unit won’t go into the Erp power saving mode if in FM. Headphones Function Connect your earphones via the 3.5mm headphone jack (Ref.17) to listen to the music system through your earphones rather...

  • Page 25: Troubleshooting

    Troubleshooting Troubleshooting Malfunction Possible causes/measures Check the adaptor lead has been correctly plugged into the mains and the DC input jack The unit does not work at the rear of the unit. Switch on the radio at the back via the ‘On/Off swtich. Check the power cable is functioning, if able to.

  • Page 26: Specifications

    Specifications Specifications DC 9V/3A input Power Supply DAB/DAB+ Digital Mode: CD Player Bluetooth AUX In FM 87.5MHz - 108MHz Radio Frequencies DAB / DAB+ 174-240MHz Power Consumption Dimension (WxHxD) 29 x 15 x 20 cm Net Weight 2.75 Kg Warranty All products come with a standard 12 month warranty.

  • Page 27: Safety Information

    Safety Information ADDITIONAL WARNINGS 1. Read these instructions. 2. Keep these instructions. Instructions are also The apparatus shall not be exposed to dripping or available for download at www.majorityradios.co.uk splashing and no objects filled with liquid, such as 3. Heed all Warnings vases, shall be places on the apparatus.
  • Page 29 www.majorityradios.co.uk...
