Summary of Contents for MAJORITY HNT-CDAB-BLK

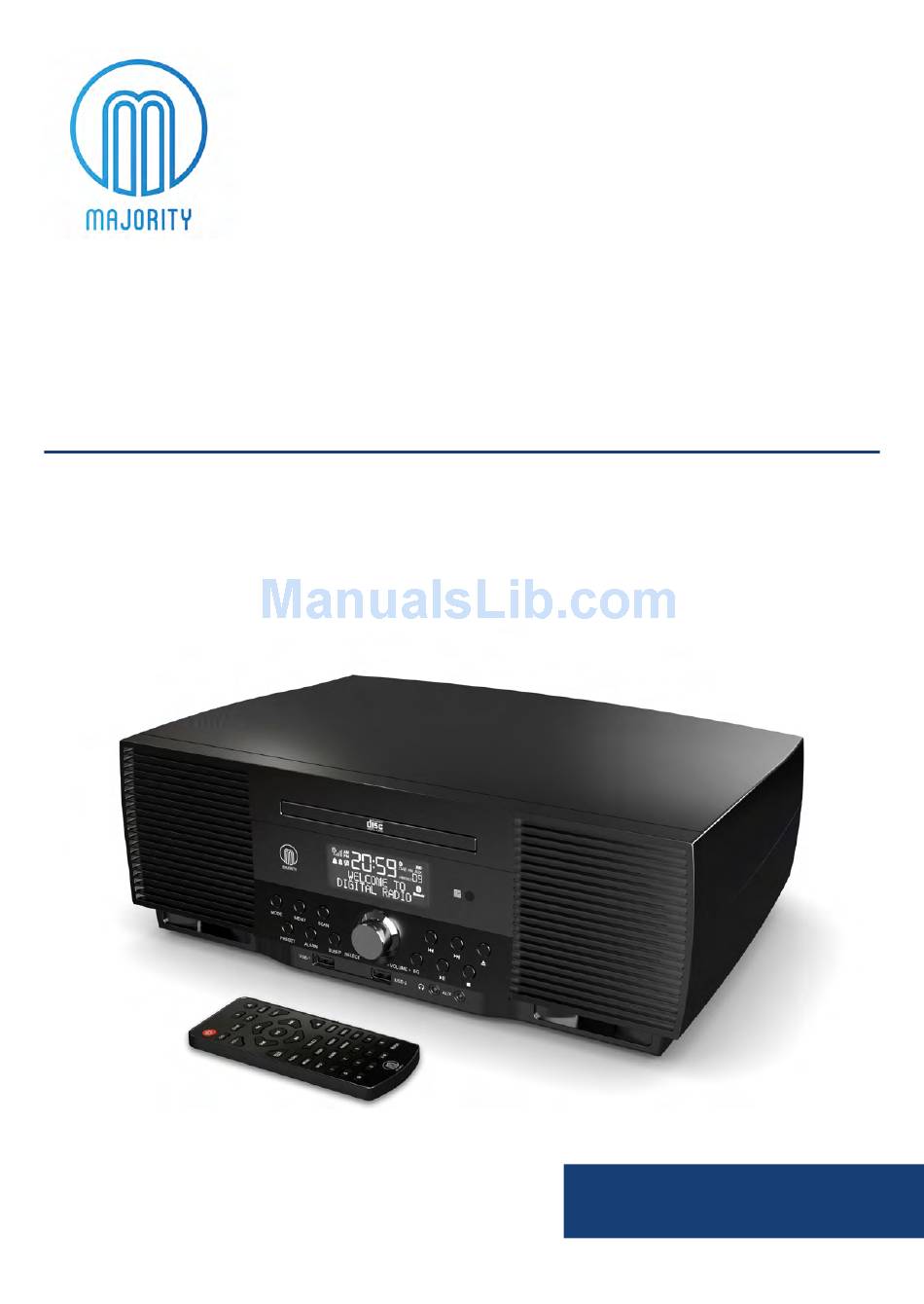

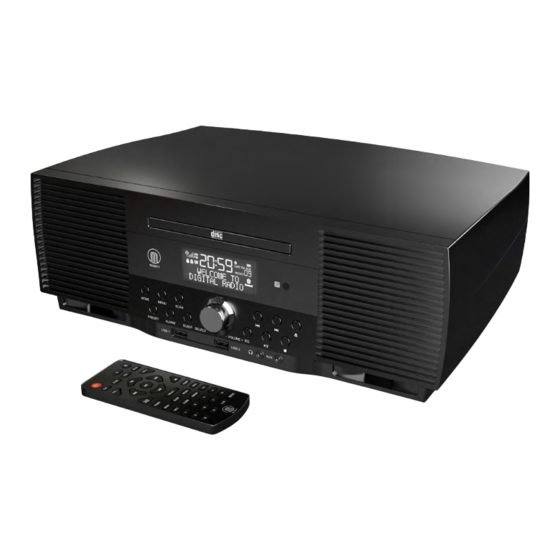

- Page 1 Majority Huntingdon Music System HNT-CDAB-BLK User Guide...
-
Page 2: Table Of Contents
Contents Controls And Functions ���������������������������������������������� What’s In The Box? ��������������������������������������������������� Instructions Guide ����������������������������������������������������� Basic Operation �������������������������������������������������������� DAB/DAB+ Radio ������������������������������������������������������� Store a preset DAB/DAB+ station ����������������������������� FM Radio ������������������������������������������������������������������ Store a preset FM radio station ������������������������������� CD Player ����������������������������������������������������������������� Bluetooth Phone Connection, Aux-In & USB ����������� Station Information for DAB Radio ��������������������������... -
Page 3: Controls And Functions
Controls And Functions Front View Disc Port Next 15. Play/Pause Display Screen Eject 16. Stop Remote Sensor 10. Preset 17. USB Port 1 Mode 11. Alarm 18. USB Port 2 Menu 12. Sleep 19. Earphone Jack Scan 13. Select/Volume 20. Aux In Previous 14. - Page 4 Controls And Functions Top View 21. 9V DC 22. On/Off 23. Antenna...
-
Page 5: Remote Control
Controls And Functions Remote Control On/Standby Bluetooth Eject Press to insert or remove disc Volume (-) Volume (+) 10. Rewind 11. Previous 12. Play/Pause 13. Next 14. Fast Forward 15. Scan/Pair Scan radio Stations/Press and hold to activate the Bluetooth pairing function or to disconnect 16. -
Page 6: What's In The Box
What’s In The Box? 1. Majority Huntingdon Music System 2. UK Standard Plug AC Power Cord 3. Instructions Guide 4. Remote Control... -
Page 7: Instructions Guide
Instructions Guide Instructions Guide Basic Operation Please note all (Ref.) refer to Page 1 Controls and Functions mapping guide. Plug the connector into the back of the system labelled 9V DC (Ref.21) and the power supply into the mains. Ensure the antenna (Ref.23) is extended as far as possible so that you can rotate it which will enable you to get the best signal you can. -
Page 8: Dab/Dab+ Radio
Instructions Guide DAB/DAB+ Radio Press the ‘Mode’ button (Ref.4) multiple times on the unit to switch to DAB Radio. On first use it will automatically scan all stations and save them. To select the mode from the remote, press the ‘DAB’ button (Ref.5). - Page 9 Instructions Guide Prune Remove stations that are listed but unavailable. When in DAB mode, press and hold the ‘Stop’ button (Ref.16) on the remote and use the ‘Next’ (Ref.13) and ‘Previous’ (Ref.11) buttons to scroll through options. Highlight “Prune” and press the ‘Select’...
-
Page 10: Manual Tuning
Instructions Guide Manual tuning Instead of using the auto tune function, you can manually tune the receiver. This can help you when aligning your aerial or when adding stations that were missed while auto tuning. Press and hold the ‘Stop’ button (Ref.16) on the remote and use the ‘Next’... -
Page 11: Store A Preset Dab/Dab+ Station
Instructions Guide Store a preset DAB/DAB+ station Up to 20 stations can be set. To store a station that you are currently playing: Press the ‘Preset’ button (Ref.22) on the remote for 3 to 5 seconds. “<1: (Empty)” will show on the display. Press the ‘Previous’... -
Page 12: Fm Radio
Instructions Guide FM Radio Press the ‘Mode’ button (Ref.4) multiple times on the unit and choose “FM” or press the ‘FM’ button (Ref.6) on the remote. The first time you do this, the FM frequency “87.5 MHz” will be displayed on the screen. Fully extend the antenna (Ref.22). - Page 13 Instructions Guide FM Scan Setting Choose between scanning strong and weak signals (All) or only the stations with strong signal (Only). Press and hold the ‘Stop’ button (Ref.16) on the remote. To make your choice, use the previous/next buttons (Ref.11/13) to choose your option.
-
Page 14: Store A Preset Fm Radio Station
Instructions Guide Store a preset FM radio station Up to 20 stations can be set. To store a station that you are currently playing: Press the ‘Preset’ button (Ref.22) on the remote for 3 to 5 seconds. “<1: (Empty)” will show on the display. Press the ‘Previous’... -
Page 15: Cd Player
Instructions Guide CD Player To choose CD Mode, press through your choices using the ‘Mode’ button (Ref.4). The choices will be displayed on the front screen (Ref.2) – select “CD”. Alternatively press the ‘CD’ button on the remote (Ref.4). Insert the CD into the CD drive in the front of the unit. The CD will read automatically and start playing. -
Page 16: Random Play
Instructions Guide Random Play For CDs, Random Play can be set by pressing the ‘Random’ button (Ref.26) on the remote control. Program tracks into a preselected order Press the ‘Stop’ button (Ref.16) on the remote, then press the ‘Prog’ button (Ref.23) . The track number will flash on the front display (Ref.2). - Page 17 Instructions Guide A-B Playback Function This function will allow the user to repeat a desired portion of playback. To choose the part of the CD track you would like to playback press the ‘A-B’ button (Ref.29) to mark point A (“REP_A” will show in the display).
-
Page 18: Bluetooth Phone Connection, Aux-In & Usb
(Ref.2). The choices will be displayed on the front screen, (Ref.2) select ‘BT Mode’ . Turn on Bluetooth on your phone and “Majority Huntingdon” will appear. Click on this to connect. When the unit makes a short sound, it has successfully connected. -
Page 19: Usb Connection
Instructions Guide Aux-In You can connect your phone or tablet with an Aux 3.5mm cable that connects to the Aux-in jack on the front of the unit (Ref.20). Insert the aux cable. To choose your mode, press the ‘Mode’ button (Ref.4) on the unit. Scroll through your choices which will be displayed on the front screen (Ref.2) –... -
Page 20: Station Information For Dab Radio
Instructions Guide Station Information for DAB Radio Press the ‘Info’ button (Ref.24) repeatedly to show the different programme information. DAB indication: Indicates DAB mode. Channel and Frequency: Displays the station’s transmission channel number and frequency. Bit Rate: The data rate which the signal is being transmitted. Bit Error Rate (BER): Provide details of the signal error rate. -
Page 21: Station Information For Fm Radio
Instructions Guide Station Information for FM Radio Press the ‘Info/Menu’ button (Ref.24) repeatedly to show the different programme information. Programme Type: Displays a description of the type of programme provided by the broadcaster. Radio Text: Displays scrolling text information supplied by the broadcaster. -
Page 22: Date & Time Settings
Instructions Guide Date & Time Settings The time will automatically update after the first use of DAB Radio. However, you can still set the time manually as follows: Ensure the unit is in standby. Press and hold the ‘Menu’ button (Ref.5) on the unit for a few seconds. -
Page 23: Alarm & Timer Settings
Instructions Guide Alarm & Timer Settings Press the ‘Alarm’ button (Ref.11) on the remote. The hour digits for the alarm will flash. Use the previous/next buttons (Ref.11/13) on the remote to change the hour and press the ‘Select’ button (Ref.18) to confirm. Use the previous/next buttons (Ref.11/13) on the remote to change the duration of the alarm (15/30/45/60 or 90 mins) and press the ‘Select’... - Page 24 Instructions Guide To turn off the alarm To turn the alarm off fully, follow the alarm set up instructions and select “Alarm Off”. To turn off Alarm when sounding To Snooze, press the ‘Select/Volume’ (Ref.13) dial on the unit. This will snooze for 9 minutes.
-
Page 25: Other Functions
Instructions Guide Other Functions Sleep Setting This enables you to programme the radio to switch off at a specific time, up to 120 minutes from activation. In working mode, press the ‘’Sleep’ button (Ref.21) on the remote control. Choose from: Off, 15 mins, 30 mins, 45mins, 60 mins or 90 mins by using the previous/next buttons (Ref.11/13) to scroll through the options. -
Page 26: Software Version Display
Instructions Guide Equaliser To change the Base or Treble levels press the “EQ” button (Ref.27) multiple times to switch between the two. Once on your selected choice use the “Vol - “ button (Ref.8) or “Vol +” button (Ref.9) to adjust the levels up or down. Software Version Display Press the ‘Menu’... - Page 27 Instructions Guide Brightness To change the brightness and dim levels when the display is on: Press the ‘Menu’ button (Ref.20) on the remote control. Use the ‘Previous’ or ‘Next’ buttons (Ref.11/13) to scroll to “Brightness” and press the ‘Select’ button (Ref.18) on the remote control. Use the ‘Previous’...
-
Page 28: Technical Specifications
Instructions Guide Technical Specifications AC 100-240V 50/60Hz Power Supply: Output: 9V 3A Mode FM(87. 5MHz - 108MHz) DAB/DAB+ BAND III 5A-13F Output Connector: Earphone jack Aerial: Integral telescopic aerial Warranty All products come with a standard 12 month warranty. All items www.majorityradios.co.uk must be registered on for the... -
Page 29: Troubleshooting Guide
Troubleshooting Guide Observation Potential Cause/Solution No sound The station is not tuned in. Fine tune the station. The volume is set to a low position. Increase the volume. Headphones may be connected. Disconnect the headphones. Buttons are not Turn off the unit and turn on after a few seconds. working FM: Static sound Signal reception is low. -
Page 30: Safety Information
Safety Information ADDITIONAL WARNINGS 1. Read these instructions. 2. Keep these instructions. Instructions are also The apparatus shall not be exposed to dripping or available for download at www.majorityradios.co.uk splashing and no objects filled with liquid, such as 3. Heed all Warnings vases, shall be places on the apparatus. - Page 32 www.majorityradios.co.uk...
