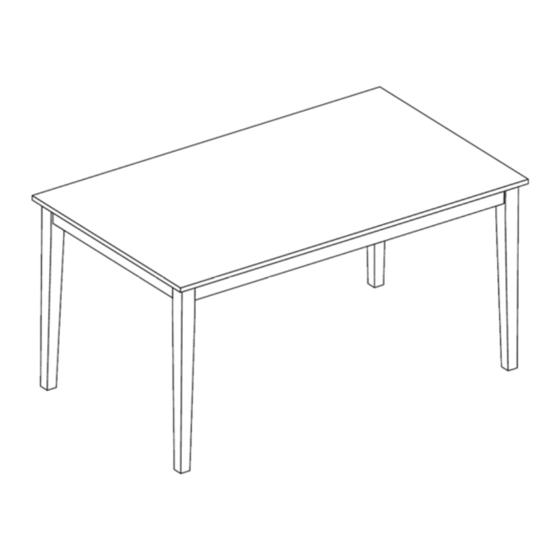

CM3318T
ASSEMBLY RATING
Tools Required for Assembly:
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
Allen Wrench
(Included)
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
DIFFICULT
EASY
2 PERSONS RECOMMENDED
Page 1 of 5
Rev.14-03-05
Advertisement
Table of Contents
Related Manuals for Furniture of America CM3318T
Summary of Contents for Furniture of America CM3318T
- Page 1 Assembly Instructions CM3318T ASSEMBLY RATING Tools Required for Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench (Included) assembling a specific product (with 1 being easy and 5 being difficult). For some products, two persons are recommended.
- Page 2 Page 2 of 5...
- Page 3 Before you begin, please read Page 2 of “Assembly and Care Advice”. And remember, do not tighten until each step is completed or instructed. Parts List Hardware List #1 x 1 pc #A x 8 pcs Table Top Flat Washer 5/16” #B x 8 pcs #2 x 4 pcs Lock Washer 5/16”...
- Page 4 With the help of another person, carefully place the table top (#1) facing down on a protected surface. Align the leg (#2) with the bottom corner of the table (#1) as shown Step 1 below. III. Prepare two bolt assemblies by inserting FIRST the lock washer (#B) onto the bolt (#C) and then the flat washer (#A) onto the SAME bolt (#D), in that order.
- Page 5 With the help of another person, carefully turn the completed Step 2 table upright. Make sure the table is rested on a flat surface and it does not feel loose or wobbly. If it does, double check that the bolts are secured and properly tighten. ASSEMBLY IS COMPLETED Page 5 of 5...
