- Page 1 Outdoor Mini Dome Hardware Manual E99M Ver. 2017/06/23...
-
Page 2: Table Of Contents
How to Insert the Memory Card ........... 18 How to Remove the Memory Card ..........18 How to Connect Audio In Device ........... 19 Accessing the Camera Configure the IP Addresses ............20 Using DHCP Server to Assign IP Addresses ........ 20 www.acti.com... - Page 3 Hardware Manual Using the Default Camera IP Address .......... 22 Access the Camera ................. 24 www.acti.com...
-
Page 4: Precautions
Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. ACTi will not be held responsible for any typographical or technical errors and reserves the right to make changes to the product and manuals without prior notice. - Page 5 This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022 and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures. www.acti.com...
-
Page 6: Safety Instructions
Safety Check Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine if the product is in proper operating condition. www.acti.com... -
Page 7: Introduction

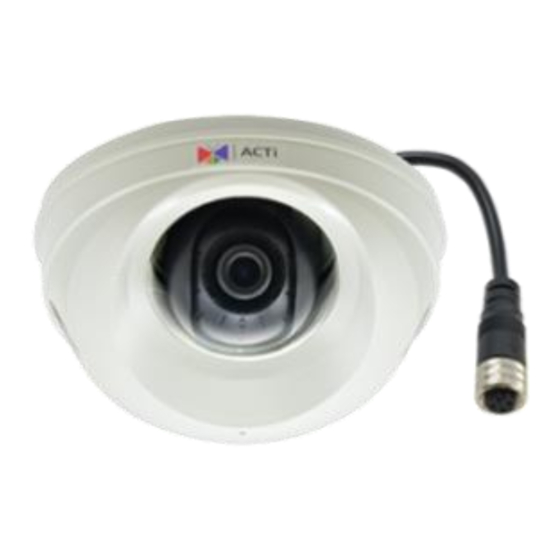

Hardware Manual Introduction List of Models This hardware manual contains the following models: 3MP Video Analytics Outdoor Mini Dome with Extreme WDR, E99M SLLS, M12 connector, Fixed lens www.acti.com... -
Page 8: Package Contents
When the camera is taken out from the box, the lens cover is covered by a thin film. DO NOT remove this film. It is used to protect the lens cover from scratches or fingerprint marks which may happen during installation. Remove this film only after the camera is securely installed and all connections are complete. www.acti.com... -
Page 9: Physical Description
Reset Button for at least 5 seconds or until the Blue LED lights up. Built-in Used for audio surveillance and sound detection functions of the Microphone camera. See camera firmware manual for more details on sound detection. www.acti.com... -
Page 10: Mounting Options
11 for more information. NOTE: For more information about the mounting solutions and accessories, please check the Mounting Accessory Selector in our website (http://www.acti.com/mountingselector). The above mounting accessories are not included in the package. Contact your sales agents to purchase. www.acti.com... -
Page 11: Installation Procedures
2. Depending on the material of the surface where the camera will be installed, it may be necessary to drill the four (4) screw holes and use the supplied screw tox. In this case, attach the bundled drill template on the surface and drill the screw holes. www.acti.com... -
Page 12: Step 2: Open The Dome Cover
2. Lift to remove the dome cover. NOTE: A desiccant bag is attached underneath the dome cover. DO NOT remove the desiccant bag to keep the camera interior parts dry. An extra desiccant is supplied in the camera package, replace the bag, as needed. www.acti.com... -
Page 13: Step 3: Route The Cables
2. Route the cable from the network side through the hole and connect it to the Ethernet port of the camera. NOTE: If the camera will be installed outdoors or in places wherein environmental factors change drastically, make sure to waterproof the cable connection. 3. Push the cable through the hole on the surface. www.acti.com... -
Page 14: Step 4: Install The Camera
See How to Insert the Memory Card on page 18 for more information. 2. Install the camera to the surface using the four (4) bundled screws. NOTE: Please make sure the screws are flat on the plate. www.acti.com... -
Page 15: Step 5: Waterproof The Cable Connection
Typical M12 Ethernet cable has waterproof connection. Simply connect and screw the cable connectors to make the connection waterproof. Make sure the connectors are secured tightly. DISCLAIMER: ACTi will not be responsible for camera damage caused by water entering the cable connections. www.acti.com... -
Page 16: Step 6: Connect To Network
Power Cable PoE Switch Ethernet Cable AC Power (Data + Power) Source Camera Step 7: Access the Camera Live View Accessing the Camera on page 20 for more information on how to access the Live View of the camera. www.acti.com... -
Page 17: Step 8: Adjust The Viewing Angle
The lens position will lock once you stop pressing the lens module. The marker indicates the upright orientation of the camera. Step 9: Close the Dome Cover 1. Tighten the two (2) screws using the supplied hex screwdriver to attach the dome cover. www.acti.com... -
Page 18: Other Installation And Accessories
In case there is a need to remove the card, make sure to access the camera Web Configurator to safely “unmount” the card first (see the camera Firmware User’s Manual for more information). Once unmounted from the firmware, pull the card out of the slot. www.acti.com... -
Page 19: How To Connect Audio In Device
3. If the camera is installed outdoors, be sure to wrap the audio connectors with Waterproof Tape (can be purchased in hardware stores). DISCLAIMER: ACTi will not be responsible for camera damage due by water leakage caused by improper waterproofing of cables. www.acti.com... -
Page 20: Accessing The Camera
Windows system – just by pressing the “Network” icon, all the cameras of the local area network will be discovered by Windows thanks to the UPnP function support of our cameras. In the example below, we successfully found the camera that we had just connected to the network. www.acti.com... - Page 21 The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility With just one click, you can launch the IP Utility and there will be an instant report as follows: You can quickly see the camera model in the list. Click on the IP address to automatically launch the default browser of the PC with the IP address of the target camera filled in the address bar of the browser already.
- Page 22 PC has to be configured to match the network segment of the camera. Manually adjust the IP address of the PC: In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below: www.acti.com...
- Page 23 In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time. www.acti.com...
- Page 24 When using Internet Explorer browser, the ActiveX control for video stream management will be downloaded from the camera directly – the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case. www.acti.com...
- Page 25 HTTP port of the camera is 80, which can be omitted from the address for convenience. Before logging in, you need to know the factory default Account and Password of the camera. Account: Admin Password: 123456 www.acti.com...
- Page 26 Copyright © 2017, ACTi Corporation All Rights Reserved 7F, No. 1, Alley 20, Lane 407, Sec. 2, Ti-Ding Blvd., Neihu District, Taipei, Taiwan 114, R.O.C. TEL : +886-2-2656-2588 FAX : +886-2-2656-2599 Email: sales@acti.com...
