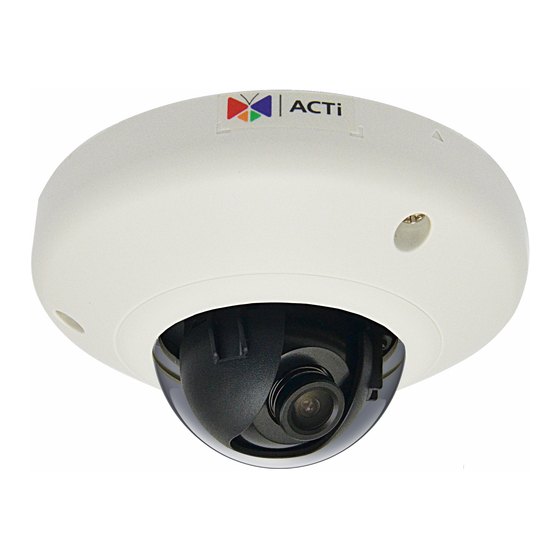

3mp indoor mini dome with basic wdr, fixed lens
Hide thumbs
Also See for E92:
- Hardware manual (36 pages) ,
- Hardware manual (35 pages) ,
- Hardware manual (36 pages)
Subscribe to Our Youtube Channel
Related Manuals for ACTi E92
Summary of Contents for ACTi E92
- Page 1 3MP Indoor Mini Dome with Basic WDR, Fixed lens Hardware User’s Manual (PoE) Ver. 2013/02/04...
-
Page 2: Table Of Contents
E92 Hardware User’s Manual Table of Contents Precautions Introduction Package Contents ................4 Features and Benefits ..............5 Safety Instructions ................6 Physical description ................ 7 Installation Procedure ..............8 Surface Mount ................8 Gang Box Mount ................10 Adjust Viewing Angle and Focus ..........12 Basic Connections ................. -
Page 3: Precautions
E92 Hardware User’s Manual 0. Precautions Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment. -
Page 4: Introduction
E92 Hardware User’s Manual 1. Introduction Package Contents Accessories Lens Focus Tuner Warranty Card Quick Installation Guide Drill Template www.acti.com... -
Page 5: Features And Benefits
E92 Hardware User’s Manual Features and Benefits This is a cutting-edge digital video surveillance camera. It can compress and transmit real time images with outstanding image quality through a standard TCP/IP network. This camera is your best choice to build an intelligent IP surveillance system. -
Page 6: Safety Instructions
E92 Hardware User’s Manual Safety Instructions Cleaning Disconnect this video product from the power supply before cleaning. Attachments Do not use attachments not recommended by the video product manufacturer as they may cause hazards. Water and Moisture Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool and the like. -
Page 7: Physical Description
E92 Hardware User’s Manual Physical description 1) Power LED LED light will light up while the power is on. LED light will light off after the unit has successfully completed the boot process. 2) Ethernet Port The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this IP device can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet). -
Page 8: Installation Procedure
E92 Hardware User’s Manual Installation Procedure Remove the cover of the camera by loosen the 3 screws holding it. Surface Mount Drill three holes with φ3.5 on the ceiling according to the marks provided on the template. Route cables through the ceiling, taking as a reference the Conduit Hole on the drilling template. - Page 9 E92 Hardware User’s Manual Use the camera body and locate the correct three screw holes. Tighten the camera body to the ceiling using the 3 screws included. Please make sure the screw is flat on the plate, protruding is incorrect.
-
Page 10: Gang Box Mount
E92 Hardware User’s Manual Gang Box Adapter Mount This camera can also be mounted using the Gang Box Converter accessory PMAX-0803 used for 3” and 4” indoor domes. However please note that if used in combination with this accessory, a part of the plate of PMAX-0803 will remain visible after installation as shown in the picture below. - Page 11 E92 Hardware User’s Manual Tighten the camera body to the PMAX-0803 with the 3 screws included in the camera box. Finally, put the cover back on, and tighten with the 3 screw holes on the camera body. www.acti.com...
-
Page 12: Adjust Viewing Angle And Focus
E92 Hardware User’s Manual Adjust Viewing Angle and Focus Remove each screw to take away the front cover of the camera. Based on the live view from the camera, adjust the viewing angle with pan and tilt direction. www.acti.com... - Page 13 E92 Hardware User’s Manual Attach the focus tuner on lens to adjust the focus of lens. Remove the lens focus tuner. Attach the dome cover to the camera and tighten using the 3 screws. www.acti.com...
-
Page 14: Basic Connections
E92 Hardware User’s Manual Basic Connections Follow the procedures below to connect the IP device to the respective apparatuses. Please use a PoE (Power over Ethernet) supported switch or injector: 1) Connect your IP Camera to the PoE Switch / Injector by CAT5 or CAT6 cables with RJ45 connector. -
Page 15: Product Specification
E92 Hardware User’s Manual Product Specification www.acti.com... -
Page 16: Accessing Camera
E92 Hardware User’s Manual 2. Accessing Camera If you have DHCP server / router in your network: Many network server / routers are able to automatically provide IP addresses through DHCP. If you are using such a network, just plug in your computer and IP Camera into the network and your IP device will acquire network address by itself. - Page 17 E92 Hardware User’s Manual Please set the settings as below. IP address: 192.168. 0.xxx Subnet mask: 255.255.255. (NOTE: xxx should be a number from 1 to 254 except 100, which is used by the IP device. Please also...
- Page 18 E92 Hardware User’s Manual 6. After logging in, you will see the video from camera. To go to the main menu, click the “Setup” button on the top left. If you are using a single camera, this is enough to access the device.
- Page 19 E92 Hardware User’s Manual 10. Click “Apply” 11. Please go to System -> Save & Reboot, and click “Apply”. Internet Explorer will close after a few seconds. This is normal. 12. Wait for 30 seconds, and open IE again to connect to the IP.
