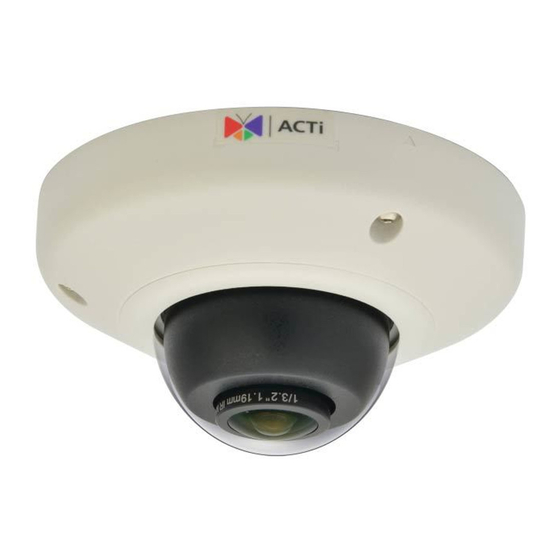

- Page 1 Hardware Manual Indoor Mini Dome & Indoor Mini Fisheye Dome Hardware Manual D91, D92, E91, E92, E93, E94, E95, E96, E97, E98 Ver. 2014/06/27 www.acti.com...
-
Page 2: Table Of Contents
Other Adjustments and Accessories How to Adjust the Viewing Angle and Focus ....... 21 How to Rotate the Viewing Orientation (E96 / E98) ...... 23 How to Replace the Dome Cover ........... 24 How to Replace the Lens (D91 / D92 only) ........26 Accessing the Camera Configure the IP Addresses ............ - Page 3 Hardware Manual Using DHCP Server to Assign IP Addresses ........ 29 Using the Default Camera IP Address .......... 31 Access the Camera ................. 33 www.acti.com...
-
Page 4: Precautions
Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. We cannot be held responsible for any typographical or technical errors and reserve the right to make changes to the product and manuals without prior notice. www.acti.com... - Page 5 This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022 and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures. www.acti.com...
-
Page 6: Safety Instructions
Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition. www.acti.com... -
Page 7: Introduction
2MP Indoor Mini Dome with Basic WDR, SLLS, Fixed lens 5MP Indoor Mini Fisheye Dome with Basic WDR, Fixed lens 10MP Indoor Mini Dome with Basic WDR, Fixed lens 10MP Indoor Mini Fisheye Dome with Basic WDR, Fixed lens www.acti.com... -
Page 8: Package Contents
Hardware Manual Package Contents Camera Camera (Mini Dome) (Mini Fisheye Dome) Drill Template Screw Kit Drill Template Lens Focus Tuner Hexagon Screwdriver (Not available in E93, E96, and E97 models) Quick Installation Guide Warranty Card www.acti.com... -
Page 9: Physical Description
Hardware Manual Physical Description Mini Dome Mini Fisheye Dome www.acti.com... - Page 10 How to remove the memory card? Access the Web Configurator to “safely unmount” the card (see the camera Firmware Manual for details). Once unmounted from the firmware, push the card to eject it from the slot. www.acti.com...
-
Page 11: Installation Procedures
Gang Box Mount: If the camera will be mounted on a gang box (applicable in some areas in the US), a gang box converter (not included in the camera package) is needed. See Installing the Camera on a Gang Box on page 15. www.acti.com... -
Page 12: Installing The Camera On A Surface
(3) holes with φ 3.5 on the ceiling and use the supplied screw tox. 2. Route the cables through the ceiling, taking the Conduit Hole on the drilling template as a reference. Or, slide off the cable exit tab on the dome cover to route the cable through that hole later. www.acti.com... - Page 13 3. Use the camera body and locate the three (3) screw holes. 4. Install the camera body to the ceiling using the three (3) screws included in the camera package. NOTE: Please make sure the screw is flat on the plate. www.acti.com...
- Page 14 6. Adjust the camera viewing angle and focus. See How to Adjust the Viewing Angle Focus on page 21. NOTE: Not applicable to E96 model. 7. Attach the cover to the camera body and tighten the three (3) screws to secure it. www.acti.com...
-
Page 15: Installing The Camera On A Gang Box
The camera can then be installed onto the gang box converter. NOTE: The gang box and the gang box converter are not included in the camera package. www.acti.com... -
Page 16: Step 1: Install The Gang Box
1. Remove a knockout on the gang box to route the network cable. 2. Route the network cable along the surface or inside the surface and into the gang box. 3. Attach the gang box on the surface or inside the surface according to the recommended orientation above. www.acti.com... -
Page 17: Step 2: Install The Gang Box Converter
Note which screw holes to attach to secure the converter to the gang box. Screw Holes from Left to Right Screw Holes from Right to Left Same screw holes apply when using the 4” octagon gang boxes. NOTE: www.acti.com... -
Page 18: Step 3: Connect The Cable
Step 4: Install the Camera 1. Align the camera screw holes to the screw holes of the gang box converter. 2. Attach the three (3) screws (included in the gang box converter package) to secure the camera to the converter. www.acti.com... -
Page 19: Step 5: Connect To Network
Based on the Live View, adjust the viewing angle, focus, and orientation of the camera. Adjustments vary depending on model, see How to Adjust the Viewing Angle and Focus page 21 or How to Rotate the Viewing Orientation (E96 / E98) on page 23 for more information. Step 8: Close the Dome Cover 1. -
Page 20: Basic Connections
Please use a PoE (Power over Ethernet) supported switch or injector: 1) Connect your IP Camera to the PoE Switch / Injector using an Ethernet cable. 2) Connect your PoE Switch / Injector to a PC / network using another Ethernet cable. www.acti.com... -
Page 21: Other Adjustments And Accessories
The following procedures are not applicable to E96 (Mini Fisheye Dome) cameras. 1. Loosen the three (3) screws to remove the dome cover. 2. Based on the live view from the camera, adjust the viewing angle with pan and tilt direction (for Mini Dome models only). www.acti.com... - Page 22 Attach the focus tuner (included in the camera package) on the lens and adjust the focus of the lens. b. Remove the lens focus tuner. 4. Attach the dome cover to the camera and tighten the three (3) screws. www.acti.com...
-
Page 23: How To Rotate The Viewing Orientation (E96 / E98)
Hardware Manual How to Rotate the Viewing Orientation (E96 / E98) This section describes the procedures in rotating the viewing orientation of Mini Fisheye Dome cameras. 1. Open the dome cover. 2. Loosen the screw as marked below. 3. Turn the lens holder to rotate the viewing orientation. Note that the arrow indicates the viewing direction. -
Page 24: How To Replace The Dome Cover
Optional Accessories PDCX-1106 To replace the dome cover, follow the procedures below: 1. Loosen the three (3) screws to remove the dome cover. 2. Push the clips outwards to release the dome cover latches. www.acti.com... - Page 25 Hardware Manual 3. Remove the ring from the cover. 4. Insert ring to the new dome cover and latch it to the cover body. www.acti.com...
-
Page 26: How To Replace The Lens (D91 / D92 Only)
1. Using the bundled hex screwdriver, loosen the three (3) screws to open the dome cover. 2. Attach the lens focus tuner to the lens and continuously rotate until the lens comes off. 3. When the lens comes off, remove the spring and remove the bundled lens from the lens focus tuner. www.acti.com... - Page 27 Hardware Manual 4. Remove the transparent plastic from the replacement lens. 5. Attach the spring to the replacement lens. 6. Continuously rotate the replacement lens to attach it to the camera. www.acti.com...
- Page 28 7. Attach the lens focus tuner when the tip of the lens is difficult to hold then turn it clockwise or counter-clockwise to adjust the camera focus. See How to Adjust the Viewing Angle and Focus on page 21 for more information. 8. Close the dome cover. www.acti.com...
-
Page 29: Accessing The Camera
Windows system – just by pressing the “Network” icon, all the cameras of the local area network will be discovered by Windows thanks to the UPnP function support of our cameras. In the example below, we successfully found the camera that we had just connected to the network. www.acti.com... - Page 30 The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility With just one click, you can launch the IP Utility and there will be an instant report as follows: You can quickly see the camera model in the list. Click on the IP address to automatically launch the default browser of the PC with the IP address of the target camera filled in the address bar of the browser already.
-
Page 31: Using The Default Camera Ip Address
PC has to be configured to match the network segment of the camera. Manually adjust the IP address of the PC: In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below: www.acti.com... - Page 32 In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time. www.acti.com...
-
Page 33: Access The Camera
When using Internet Explorer browser, the ActiveX control for video stream management will be downloaded from the camera directly – the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case. www.acti.com... - Page 34 HTTP port of the camera is 80, which can be omitted from the address for convenience. Before logging in, you need to know the factory default Account and Password of the camera. Account: Admin Password: 123456 For further operations, please refer to the Firmware User Manual. www.acti.com...
- Page 35 Copyright © 2014, ACTi Corporation, All Rights Reserved 7F, No. 1, Alley 20, Lane 407, Sec. 2, Ti-Ding Blvd., Neihu District, Taipei, Taiwan 114, R.O.C. TEL : +886-2-2656-2588 FAX : +886-2-2656-2599 Email: sales@acti.com...
