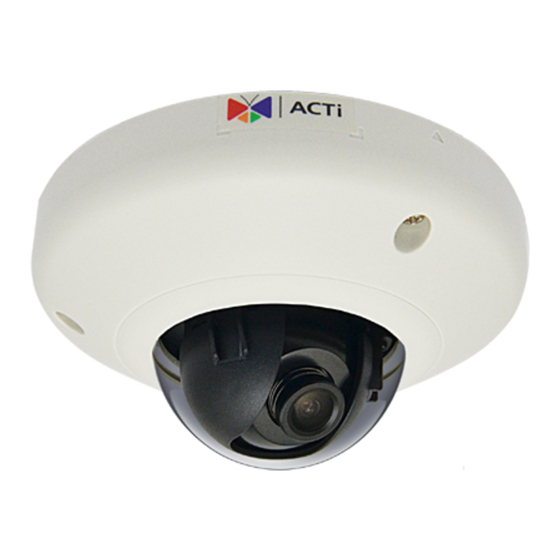

Indoor mini dome & indoor mini fisheye dome
Hide thumbs Also See for D91:

Advertisement

Quick Links

Indoor Mini Dome &
Indoor Mini Fisheye Dome
Hardware Manual
D91, D92, E91, E92, E93, E94, E95, E96,
E97
Ver. 2013/09/12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D91 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ACTi D91

  • Page 1 Indoor Mini Dome & Indoor Mini Fisheye Dome Hardware Manual D91, D92, E91, E92, E93, E94, E95, E96, Ver. 2013/09/12...
  • Page 2: Table Of Contents

    Using DHCP Server to Assign IP Addresses ........ 17 Using the Default Camera IP Address .......... 19 Access the Camera ................. 21 Other Adjustments and Accessories Adjust the Viewing Angle and Focus ..........23 Replace the Dome Cover..............25 www.acti.com...
  • Page 3: Precautions

    Every reasonable care has been taken during the writing of this manual. Please inform your local office if you find any inaccuracies or omissions. We cannot be held responsible for any typographical or technical errors and reserve the right to make changes to the product and manuals without prior notice. www.acti.com...
  • Page 4 This product has been tested and found to comply with the limits for Class B Information Technology Equipment according to European Standard EN 55022 and EN 55024. In a domestic environment, this product may cause radio interference in which cause the user may be required to take adequate measures. www.acti.com...
  • Page 5: Safety Instructions

    Safety Check Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks to determine if the video product is in proper operating condition. www.acti.com...
  • Page 6: Introduction

    1.3MP Indoor Mini Dome with Basic WDR, SLLS, Fixed lens 2MP Indoor Mini Dome with Basic WDR, SLLS, Fixed lens 5MP Indoor Mini Fisheye Dome with Basic WDR, Fixed lens 10MP Indoor Mini Dome with Basic WDR, Fixed lens www.acti.com...
  • Page 7: Package Contents

    Hardware Manual Package Contents Camera Camera E96 (Mini Fisheye Dome) Drill Template Screw Kit Drill Template Hexagon Screwdriver Lens Focus Tuner (Available in select models only) (Not available in E93 and E96 models) Quick Installation Guide Warranty Card www.acti.com...
  • Page 8: Physical Description

    While the power is on, press and hold the1 Reset Button for 5 seconds to reset the camera. 3) Power LED The Power LED lights up when the power is on. 4) MicroSDHC Card Slot Insert a microSDHC card into the slot for local recording. www.acti.com...
  • Page 9: Installation Procedures

    Gang Box Mount: If the camera will be mounted on a gang box (applicable in some areas in the US), a gang box converter (not included in the camera package) is needed. See Gang Box Mount on page 13. www.acti.com...
  • Page 10: Surface Mount

    (3) holes with φ 3.5 on the ceiling and use the supplied screw tox. 2. Route the cables through the ceiling, taking the Conduit Hole on the drilling template as a reference. Or, slide off the cable exit tab on the dome cover to route the cable through that hole later. www.acti.com...
  • Page 11 3. Use the camera body and locate the three (3) screw holes. 4. Install the camera body to the ceiling using the three (3) screws included in the camera package. NOTE: Please make sure the screw is flat on the plate. www.acti.com...
  • Page 12 5. Connect the Ethernet cable to the Ethernet port of the camera. 6. Adjust the camera viewing angle and focus. See Adjust the Viewing Angle and Focus on page 23. 7. Attach the cover to the camera body and tighten the three (3) screws to secure it. www.acti.com...
  • Page 13: Gang Box Mount

    1. Attach the Gang Box Converter to the gang box using the screws that came with your gang box or you may need to purchase them separately. Below is an example of a Gang Box Converter attached to a standard 4” gang box. www.acti.com...
  • Page 14 2. Locate and mark the three (3) screw holes on the Gang Box Converter that will be used to attach the camera. 3. Route the Ethernet cable through the hole on the Gang Box Converter and connect it to the camera. www.acti.com...
  • Page 15 5. Adjust the camera viewing angle and focus (not applicable for E96 models). See Adjust the Viewing Angle and Focus on page 23. 6. Install the dome cover and tighten the three (3) screws to secure the dome cover to the camera body. www.acti.com...
  • Page 16: Basic Connections

    Please use a PoE (Power over Ethernet) supported switch or injector: 1) Connect your IP Camera to the PoE Switch / Injector by CAT5 or CAT6 cables with RJ45 connector. 2) Connect your PoE Switch / Injector to a PC using another CAT5 / CAT6 network cable. www.acti.com...
  • Page 17: Accessing The Camera

    Windows system – just by pressing the “Network” icon, all the cameras of the local area network will be discovered by Windows thanks to the UPnP function support of our cameras. In the example below, we successfully found the camera that we had just connected to the network. www.acti.com...
  • Page 18 The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility With just one click, you can launch the IP Utility and there will be an instant report as follows: You can quickly see the camera model in the list. Click on the IP address to automatically launch the default browser of the PC with the IP address of the target camera filled in the address bar of the browser already.
  • Page 19: Using The Default Camera Ip Address

    PC has to be configured to match the network segment of the camera. Manually adjust the IP address of the PC: In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99 and set Subnet Mask to 255.255.255.0 by using the steps below: www.acti.com...
  • Page 20 In such case, please plug in only one camera at a time, and change its IP address by using the Web browser before plugging in the next one. This way, the Web browser will not be confused about two devices having the same IP address at the same time. www.acti.com...
  • Page 21: Access The Camera

    – the user just has to accept the use of such control when prompted so. No other third party utilities are required to be installed in such case. The following examples in this manual are based on Internet Explorer browser in order to cover all functions of the camera. www.acti.com...
  • Page 22 HTTP port of the camera is 80, which can be omitted from the address for convenience. Before logging in, you need to know the factory default Account and Password of the camera. Account: Admin Password: 123456 For further operations, please refer to the Firmware User Manual. www.acti.com...
  • Page 23: Other Adjustments And Accessories

    The following procedures are not applicable for E96 (Mini Fisheye Dome) cameras. 1. Loosen the three (3) screws to remove the dome cover. 2. Based on the live view from the camera, adjust the viewing angle with pan and tilt direction (for Mini Dome models only). www.acti.com...
  • Page 24 Attach the focus tuner (included in the camera package) on the lens and adjust the focus of the lens. b. Remove the lens focus tuner. 4. Attach the dome cover to the camera and tighten the three (3) screws. www.acti.com...
  • Page 25: Replace The Dome Cover

    Optional Accessories PDCX-1106 To replace the dome cover, follow the procedures below: 1. Loosen the three (3) screws to remove the dome cover. 2. Push the clips outwards to release the dome cover latches. www.acti.com...
  • Page 26 Hardware Manual 3. Remove the ring from the cover. 4. Insert ring to the new dome cover and latch it to the cover body. www.acti.com...
