USER MANUAL
Rev. 01/20
Model: DGFSKATCH32WH DGFSKATCH32BK

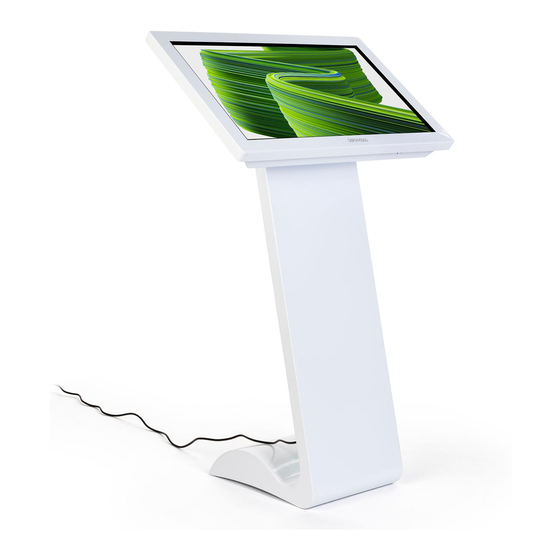

Description: 32" Touch Android LCD Kiosk
Scan QR code to visit the product page:
Note: Before using the product, please read the instructions carefully!
Do not attempt to disassemble this product. If the product does not work properly, please call our
Customer Service Department at 1-844-221-3393.
1
DISPLAYS2GO
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Displays2go DGFSKATCH32WH
Summary of Contents for Displays2go DGFSKATCH32WH
- Page 1 USER MANUAL Rev. 01/20 Model: DGFSKATCH32WH DGFSKATCH32BK Description: 32” Touch Android LCD Kiosk Scan QR code to visit the product page: Note: Before using the product, please read the instructions carefully! Do not attempt to disassemble this product. If the product does not work properly, please call our Customer Service Department at 1-844-221-3393.
-
Page 2: Table Of Contents
Slide Show APP Introduction……………………………………………………………………………………………………12 How to Upload Media Files ……………………………………………………………………………………………………12 How to Delete Media Files………………………………………………………………………………………………………17 Factory Reset……………………………………………………………………………………………………………………………18 Choose System Language…..…….………………………………………………………………………………………………19 Technical Specifications………………………………………………….…………………………………………………………20 Troubleshooting………………………….……………………………………………………………………………………………22 Cleaning and Maintenance………….………………….……..………………….……………………………….……………24 Names and Contents of Toxic and Hazardous Substances or Elements in the Product………….…..25 DISPLAYS2GO... -
Page 3: Features
◆ Combined with CMS Software, it could make video, Television images, pictures, animation, text, documents, web pages, streaming media, database data into one wonderful section program, which also could be launched to terminals in different places through network, show the great graphics and real-time information to people at different appointed places. DISPLAYS2GO... -
Page 4: Safety Warnings And Precautions
Safety Warnings and Precautions Thank you for purchasing the high-performance multi-functional Digital Signage from Displays2go. We have considered the factors to ensure personal safety in product design and have tested rigorously at the factory. However, improper installation and use may result in electric shock and fire. - Page 5 The unit is class-A product, which may cause radio interference in living environment. In this case, please take feasible measures, and use power plug as the disconnection device. DISPLAYS2GO...
- Page 6 ⚫ Insert the plug into the outlet properly, or else it may cause sparks and fire. ⚫ The technical specifications printed herein and on the packaging are subject to change without prior notice. The Manual may be slightly different from actual operation, and the latter is applicable. DISPLAYS2GO...
-
Page 7: Assembly And Connection
Carefully remove the digital panel from the package and align the holes at the back with the holes on the base. Hold the panel in place and secure it by tightening (4) M8X16mm screws from the back of the base. The assembly is finished. NOTE: Extra 8 screws are included in the bag as spare parts. DISPLAYS2GO... -
Page 8: Remote Control
Rightwards Arrow. Move selection to the right or move the cursor right. Confirm button, select the use menu or setup menu, press this button to confirm Turn volume up Turn volume down. Return to previous page or a level up in an app. NOTE: Only buttons shown above have functions. DISPLAYS2GO... -
Page 9: Description Of Basic Operation
Insert the power plug into the outlet. If the Digital Signage has the switch button “I”, turn it on. In power on state, press the “ ” button on the remote control, and the Digital Signage enters standby state. Interface and Home Screen After power on, the machine will launch home screen, as shown below: DISPLAYS2GO... -
Page 10: Description Of Wallpaper Switch
” in the Home screen to enter the “APPS” menu interface (Fig. 2); 2. Click the “Explorer” icon in the “APPS” menu interface (Fig. 2) and enter “Explorer” menu (Fig. 3); 3. Choose storage in the “Explorer” menu to read the files from different devices. Fig. 1 Fig. 2 Fig.3 DISPLAYS2GO... -
Page 11: Local Settings
Description of Settings Interface (shown on the right) Icon Function WIFI switch Data usage Bluetooth Sound & notification Battery saver Display Storage Apps Screenshot Setting Location Accounts Backup & reset Security Language & input Date & time Printing Accessibility About device DISPLAYS2GO... -
Page 12: Status Of Menu Bar
3. At the display setting menu unselect the display navigation check box Fig. 1 Fig. 2 Fig. 3 Slide Show APP Introduction How to Upload Media Files: Step 1: Open the Android launcher screen and click the explorer app DISPLAYS2GO... - Page 13 Step 2: Go to the USB storage menu click the USB storage button Step 3: At the USB storage menu select Multi and then highlight the media files which you want to copy to the media folder. Click the Editor button, the pop menu will show then click Copy DISPLAYS2GO...
- Page 14 Step 4: Click HOME button and go to the NAND FLASH menu. Select MediaFolder and then open the Images Folder. DISPLAYS2GO...
- Page 15 Step 5: At the images folder click the editor button at the top of the screen, the pop menu will show. Then click Paste. The files will be copied to the images folder. Step 6: Exit the Explorer app and go to the launcher screen. Run the Slide Show app to display the media files DISPLAYS2GO...
- Page 16 Step 7: Select the time you would like each picture to be on the screen for by dragging the bar to the desired time. Select how you would like the images to display. Select the desired transition effect between pictures. Step 8: Select Play and your slide show will begin playing DISPLAYS2GO...
-
Page 17: How To Delete Media Files
How to Delete the Media Files: Step 1: Open the Android launcher screen and click the explorer app Step 2: Click home button and go to the NAND FLASH menu you will see the MediaFolder open it DISPLAYS2GO... -
Page 18: Factory Reset
1. Get into Settings, then click “Backup & reset” (Fig. 1) 2. Click “Factory data reset” (Fig. 2) 3. Choose “Erase SD card”, then click “RESET DEVICE” to get the unit to Factory Reset (Fig. 3) Fig. 1 Fig. 2 Fig. 3 DISPLAYS2GO... -
Page 19: Choose System Language
Choose System Language: 1. Get into Settings, then click “Language & input” (Fig. 1) 2. Click “Language”, then you can choose the system language accordingly (Fig. 2) Fig. 1 Fig. 2 Fig. 3 DISPLAYS2GO... -
Page 20: Technical Specifications
Technical Specifications ITEM DGFSKATCH32BK DGFSKATCH32WH LCD size 32” Light source WLED Resolution 1920*1080 (pixels) Brightness (typ.)/(min) 450cd/m Contrast (typ.) 1400:1 Response (ms) Panel Pixel pitch 0.36375×0.36375mm Refresh rate 60Hz Viewing angle 89°/89°/89°/89° Color saturation Viewable area 698.4×392.85 mm Chromaticness 16.7M... - Page 21 Support download and installation Ethernet (RJ45) HDMI I/O interfaces Headset USB2.0 Net weight 20kg (Screen)/28Kg (Base) Gross weight 22kg (Screen)/30Kg (Base) Unit dimensions 127.9*77.2*46.6cm Structure Package dimensions 87*18*57cm (Screen) /131*59*56cm (Base) Shell material Metal Shell color Black White Language English DISPLAYS2GO...
-
Page 22: Troubleshooting
Stand within 1 foot of the front of the unit and point the remote directly at the sensor (green dot) ❖ If all of the above have been checked and the issue is not resolved, contact a customer service representative. DISPLAYS2GO... - Page 23 Having problems Did you purchase the □ If you purchased DisplayIt!Xpress software with installing DisplayIt!Xpress software from from Displays2go or from Best Wave directly, software or getting Displays2go? please contact Best Wave at ➢ content to play Did the customer purchase or support@bestwave.
-
Page 24: Cleaning And Maintenance
3. Don't place the product under direct sunlight which may shorten the service life of the screen. 4. Clean screen and product by using a glass cleaner. 5. If the product will not be used for a long time, pull out the power cord to prevent the internal short circuit or other potential dangers. DISPLAYS2GO... -
Page 25: Names And Contents Of Toxic And Hazardous Substances Or Elements In The Product
Electrical and Electronic Products Recycling and Disposal Regulations or send it to qualified local manufacture for recycling. This Manual is for reference only and is subject to change without prior notice. Visit Displays2go.com for the latest product information and User Manual updates. DISPLAYS2GO...
