User Manual
V21.01
Model: DGNTFSPS65

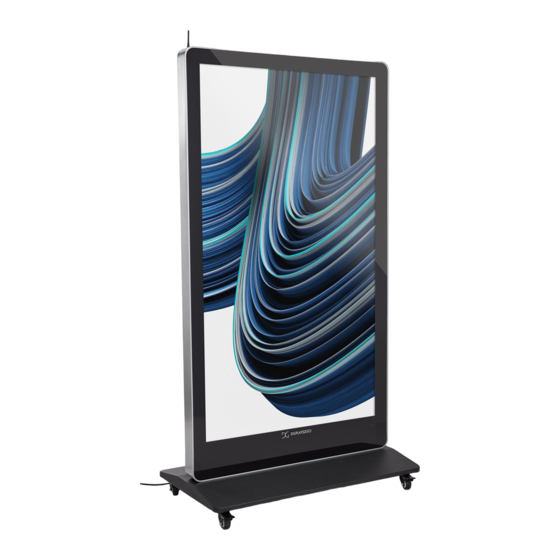

Description: 65-Inch Indoor Floor-Standing Digital Signage
Scan QR code to visit the product page:
Operating Instructions for Digital Signage
Note: Before using the product, please read the instructions carefully!
Do not attempt to disassemble this product. If the product does not work properly, please call
our Customer Service Department at 1-844-221-3393.
1 / 26
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Displays2go DGNTFSPS65
Summary of Contents for Displays2go DGNTFSPS65
- Page 1 User Manual V21.01 Model: DGNTFSPS65 Description: 65-Inch Indoor Floor-Standing Digital Signage Scan QR code to visit the product page: Operating Instructions for Digital Signage Note: Before using the product, please read the instructions carefully! Do not attempt to disassemble this product. If the product does not work properly, please call our Customer Service Department at 1-844-221-3393.
-
Page 2: Table Of Contents
Contents Features ..........................3 Safety Warnings and Precautions ................... 3 Assembly and Connection ...................... 5 Packing List ............................ 5 Interfaces ............................6 Steps for Assembly ........................6 Steps for Assembly with Casters ....................7 Remote Control ........................9 Description of Basic Operation ..................... 10 Power on/Standby ........................ -
Page 3: Features
Thank you for purchasing the high-performance multi-functional LED backlight Digital Signage from Displays2go. We have considered the factors to ensure personal safety in product design and have tested rigorously at the factory. However, improper installation and use may result in electric shock and fire. - Page 4 WARNING Do not use power supply other than AC 110V, 60Hz. Cut off the power supply before connecting or disconnecting any cables. Do not place the Digital Signage on any instable positions, or else it may be damaged or cause fire. ...
-
Page 5: Assembly And Connection
CAUTION Do not let children climb onto the Digital Signage. Keep the small parts away from children to prevent them from swallowing. If the Digital Signage won’t be used for a long time, please turn it off and pull out the power plug. ... -
Page 6: Interfaces
Contact Displays2Go if you have questions about the operation, debugging and connection of the unit, if the unit doesn’t work normally, please cut off the power immediately and consult the dealer. The unit is class-A product, which may cause radio interference in living environment. -
Page 7: Steps For Assembly With Casters
Fig. 5 Fig. 6 Steps for Assembly with Casters 1. Casters active state (Fig1), 2. Casters in stationary state：Push the brake down (Fig 2), Fig. 1 Fig. 2 3. Set the four casters to fixed state (Fig. 2) and screw them on the base (Fig. 3). 4. - Page 8 5. Install the base on the digital poster with provided screws. Tighten all screws with an Allen wrench. Fig. 5 Fig. 6 6. The assembly is finished: Fig. 7 Fig. 8 Note: After the installation of digital signage is completed, the casters shall be set to fixed state for. If the digital signage is to be moved, set the wheels to active state, 8 / 26...
-
Page 9: Remote Control
Remote Control Installing batteries for the remote control: Remove the battery cover and insert two AAA batteries (1.5V). Ensure that the battery polarity matches the “+”/“-” marks in the battery compartment of the remote control. Precautions for using the remote control: ... -
Page 10: Description Of Basic Operation
Description of Basic Operation Power on/Standby Insert the power plug into the outlet. If the Digital Signage has the switch button “I”, turn it on, if you press the switch button “O”, the Digital Signage enters standby state. In power on state, enter “System Assistant” and press the “ ”... -
Page 11: Description Of Wallpaper Switch
Description of Wallpaper Switch We suggest using a mouse to change the wallpaper. Connect a mouse with the digital panel through USB port, then follow the steps below: click “Setting” At the setting menu, click “Display” At the Display setting menu, click “Gallery”, or “Wallpaper” Then select an image you would like to set up as background. -
Page 12: Local Settings
Local Settings 1. Click the Main Apps button “ ” in the Home page to enter the “APPS” menu interface (Fig. 1) 2. Click the “Settings” icon in the “APPS” menu interface (Fig. 2) and enter “Wi-Fi” menu (Fig. 3), 3. -
Page 13: Status Of Menu Bar
Status of Menu Bar Click " " in the menu to hide the status bar(Fig. 1). ▽ Fig. 1 DiViEx APP Introduction System requirements: Step 1: Before using this application, make sure your machine meets or exceeds the following system requirements：... - Page 14 Format requirement: Image JPG/JPEG/BMP/PNG Video MPEG1/MPEG2/MPEG4/ MKV Music Step 3: Plug in the USB drive into the device and click the DiViEx App to open it. Step 4:When the screen shows “Copy finished” after “Usb Disk:”, 14 / 26...
-
Page 15: Setting
Setting: Step 1: Select the time you would like each picture to be on the screen for by dragging the bar to the desired time. Select how you would like the images to display. Select the desired transition effect between pictures. Auto Boot ... -
Page 16: Music
Image deletion Click " " to delete unwanted pictures Music: List all music files int Playlist library Add music to playing list music from Playlist library, you can click right arrow, music title will show the number of playlist music. 16 / 26... -
Page 17: Factory Reset
To remove background music from the playlist, click the left arrow in the playlist Factory Reset: 1. Get into Settings, then click “Backup & reset” (Fig. 1) 2. Click “Factory data reset” (Fig. 2) 3. Choose “Erase SD card”, then click “RESET DEVICE” to get the unit to Factory Reset (Fig. 3) Fig. -
Page 18: Screen Rotate
Screen Rotate: 1. Click the Main Apps button “ ” in the Home page to enter the “APPS” menu interface (Fig. 1) 2. Click “System aide” into Fig. 2 3. Choose the degree you would like to Rotate screen, then click “Confirm”, after the restart, the screen will be rotated (Fig. - Page 19 Fig. 4 Fig. 5 19 / 26...
-
Page 20: Technical Specifications
Technical Specifications ITEM SPECIFICATION LCD size 65” Light source LED backlight Resolution 3840*2160 (pixels) Brightness (typ.)/(min) 500cd/m (typ.) Contrast (typ.) 1200:1 (typ.) Response (ms) 10ms (typ.) Panel Pixel pitch 0.63 (H) mm * 0.63 (V) mm Refresh rate 60Hz Viewing angle 178°... - Page 21 Supported Video Files AVI, MPEG4, WMV, MKV Supported Photo Files JPG, JPEG, BMP, PNG, GIF Audio output, supported files Left and right audio channel, MP3 Functions RTC (real-time clock) Schedule power on/off System update USB compatible App installation Support download and installation Ethernet (RJ45) HDMI I/O interfaces...
-
Page 22: Troubleshooting
Troubleshooting the Digital Signs – 65AMVF16 Issue Probable Cause Solutions No picture or sound Unit not plugged into wall outlet □ Check that the unit is plugged into wall Power cord not properly outlet. connected to the terminal on the □... - Page 23 Did you purchase the □ If you purchased DisplayIt!Xpress software with installing DisplayIt!Xpress software from from Displays2go or from Best Wave directly, software or getting Displays2go? please contact Best Wave at content to play Did the customer purchase or ...
-
Page 24: Cleaning And Maintenance
App is defective Copy > Home > NAND > MediaFolder > Android board is defective. Images> Editor > Paste Open SlideShow app and select desired trasitions, slide time and looping > Play MX Player steps > Follow same steps as SlideShow App >... -
Page 25: Names And Contents Of Toxic And Hazardous Substances Or Elements In The Product
Names and Contents of Toxic and Hazardous Substances or Elements in the Product Toxic and hazardous substances or elements Part name PBDE Display О О О О О Shell О О О О × × Circuit board assembly * О О... - Page 26 FCC STATEMENT: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
