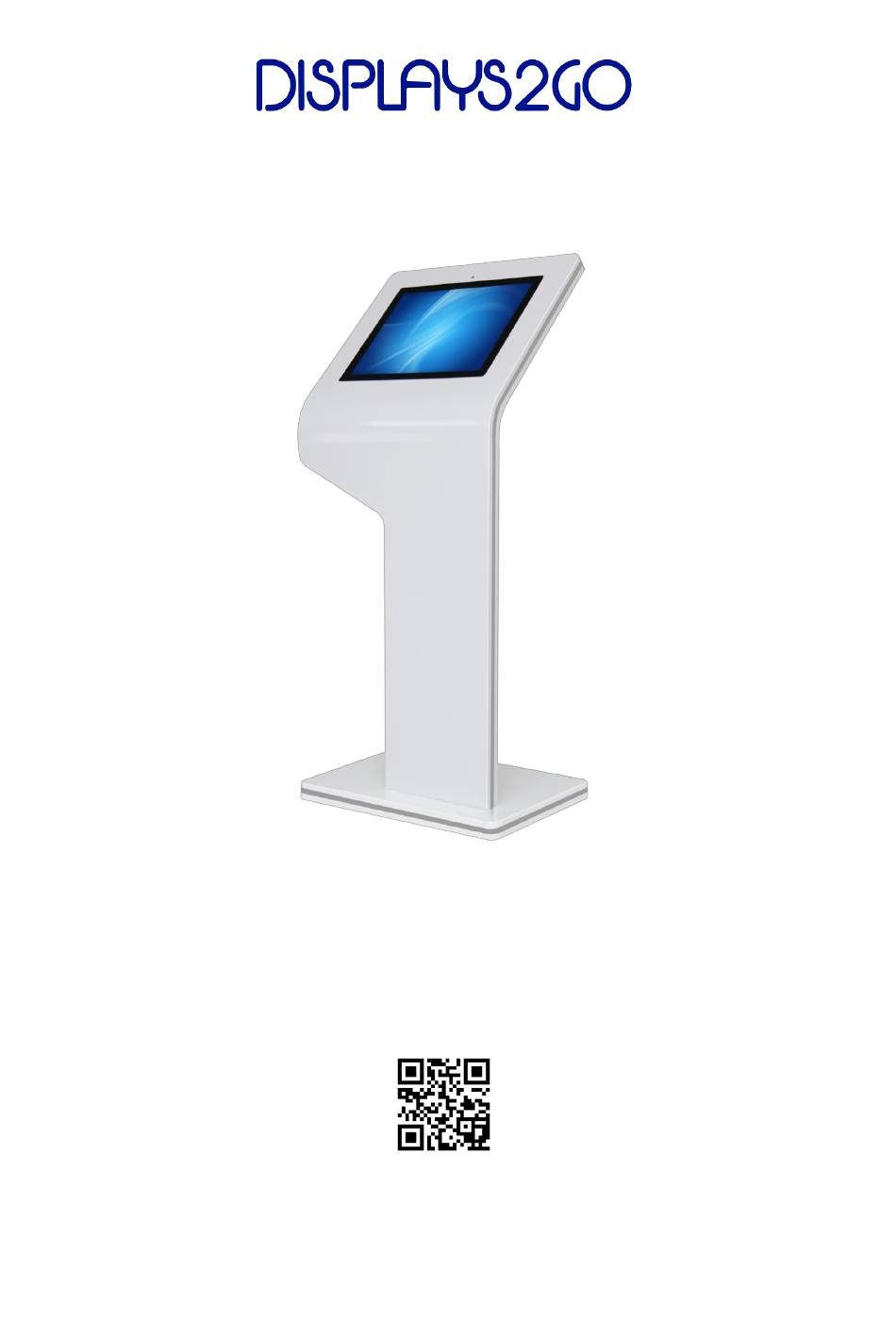

USER MANUAL
Rev. 07/20
Model: DGFSATCH15

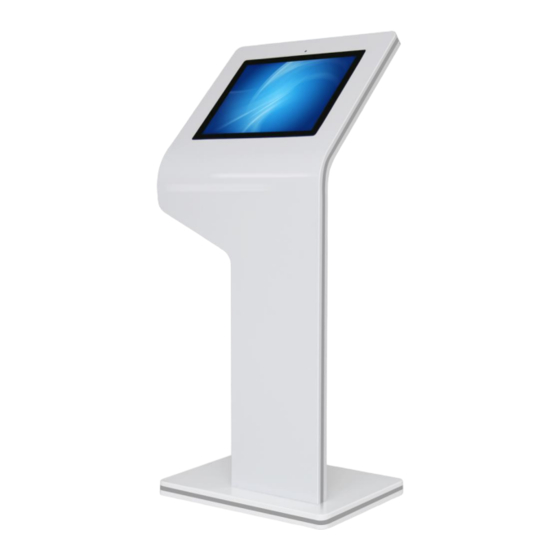

Description: 15'' Articulated Standing Digital Kiosk
Scan QR code to visit
the product page:
Note: Before using the product, please read the instructions carefully!
Do not attempt to disassemble this product. If the product does not work properly, please call
our Customer Service Department at 1-844-221-3393.
1
Displays2go
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Displays2go DGFSATCH15
Summary of Contents for Displays2go DGFSATCH15
- Page 1 USER MANUAL Rev. 07/20 Model: DGFSATCH15 Description: 15'' Articulated Standing Digital Kiosk Scan QR code to visit the product page: Note: Before using the product, please read the instructions carefully! Do not attempt to disassemble this product. If the product does not work properly, please call our Customer Service Department at 1-844-221-3393.
-
Page 2: Table Of Contents
Factory Reset: ..............................15 Choose System Language: ........................... 166 Technical Specifications .......................... 177 Troubleshooting the Digital Signage ......................19 Cleaning and Maintenance ........................211 Names and Contents of Toxic and Hazardous Substances or Elements in the Product ....... 222 Displays2go... -
Page 3: Features
◆ Combined with CMS Software. Import video, Television images, pictures, animation, text, documents, web pages, streaming media, database data into one wonderful section program, which also could be launched to terminals in different places through network, show the great graphics and real-time information to people at different places. Displays2go... -
Page 4: Safety Warnings And Precautions
Safety Warnings and Precautions Thank you for purchasing the high-performance multi-functional Digital Signage from Displays2go. We have considered the factors to ensure personal safety in product design and have tested rigorously at the factory. However, improper installation and use may result in electric shock and fire. - Page 5 Please ask qualified technician for repair. Note: Contact Displays2go if you have questions about the operation, debugging and connection of the unit; if the unit doesn’t work normally, please cut off the power immediately and consult the dealer. The unit is class-A product, which may cause radio interference in living environment.
-
Page 6: Part And Interface
Remote Control CD disk Power Cord Interfaces 1.SIM Port 2. SD Port 3. Rj45 Port 4. USB Port 5. HDMI Port 6. ON/OFF Switch 7. Power port Note: Please pull out the power plug before installing or disassembling the unit! Displays2go... -
Page 7: Remote Control
Rightwards Arrow. Move selection to the right or move the cursor right. Confirm button, select the use menu or setup menu, press this button to confirm Turn volume up Turn volume down. Return to previous page or a level up in an app. Displays2go... -
Page 8: Description Of Basic Operation
Insert the power plug into the outlet. If the Digital Signage has the switch button “I”, turn it on. In power on state, press the “ ” button on the remote control, and the Digital Signage enters standby state. Interface and Home Screen After power on, the machine will launch home screen, as shown below: Displays2go... -
Page 9: Description Of Wallpaper Switch
” in the Home screen to enter the “APPS” menu interface (Fig. 2); 2. Click the “Explorer” icon in the “APPS” menu interface (Fig. 2) and enter “Explorer” menu (Fig. 3); 3. Choose storage in the “Explorer” menu to read the files from different devices. Fig. 1 Fig. 2 Fig.3 Displays2go... -
Page 10: Local Settings
Description of Settings Interface (shown on the right) Icon Function WIFI switch Data usage Bluetooth Sound & notification Battery saver Display Storage Apps Screenshot Setting Location Accounts Backup & reset Security Language & input Date & time Printing Accessibility About device Displays2go... -
Page 11: Status Of Menu Bar
Step 2: Plug in your USB drive to the computer. Open the drive in Windows Explorer and create a new folder, rename it “MediaFolder”. As shown below: Open "MediaFolder", create 3 subfolders, and change their names to "Images", "Videos", "Music". Copy the media file to be displayed, image to "Images", video to "Videos", Music to "Music" Displays2go... - Page 12 Image JPG/JPEG/BMP/PNG Video MPEG1/MPEG2/MPEG4/H.264/H.265/WMV/MKV/TS/flv Music AAC/MP3/AMR/OGG/PCM Step 3: Plug the USB drive into the device and click the DiViEx APP. Step 4: When the screen shows “Copy finished” after “Usb Disk:”, the media files are ready to be displayed. Displays2go...
-
Page 13: Settings
NEGATIVE, PSTERIZE, ROTATE, SATURATE, SEPIA, SHARPEN, TEMPERATURE, TINT, VIGNETTE. ⚫ Reset Click “Reset” to remove all the editing you applied to the image. ⚫ Save “ ” Click the icon to save the edited image as a new image. Displays2go... - Page 14 ⚫ Image deletion Click " " to delete unwanted pictures Displays2go...
-
Page 15: Music
To remove the added music file from the playlist, click the “left arrow” in the playlist. Factory Reset: 1. Get into Settings, then click “Backup & reset” (Fig. 1) 2. Click “Factory data reset” (Fig. 2) 3. Choose “Erase SD card”, then click “RESET DEVICE” to get the unit to Factory Reset (Fig. 3) Displays2go... -
Page 16: Choose System Language
Fig. 1 Fig. 2 Fig. 3 Choose System Language: 1. Get into Settings, then click “Language & input” (Fig. 1) 2. Click “Language”, then you can choose the system language accordingly (Fig. 2) Fig. 1 Fig. 2 Fig. 3 Displays2go... -
Page 17: Technical Specifications
-4~140 °F (-20~60 °C) Environment Storage humidity 10~90% RH Non-condensing Operating humidity 10~90% RH Non-condensing Maximum operating time (hrs/day) 18 hours Operating system Android 7.1 Processor Quad-core ARM Cortex-A17, 1.8GHz Functions Internal Storage Decoding resolution 1080P FHD compatible Playback mode Touch support Displays2go... - Page 18 Schedule power on/off System update App installation Support download and installation Ethernet (RJ45) HDMI I/O interfaces Headset USB2.0 Net weight 4.5kg Gross weight Unit dimensions 1100x449x30/600x450x30 (base) mm Structure Package dimensions 1100x405x550mm Shell material Metal Shell color White Language English Displays2go...
-
Page 19: Troubleshooting The Digital Signage
Stand within 1 foot of the front of the unit and point the remote directly at the sensor (green dot) ❖ If all of the above have been checked and the issue is not resolved, contact a customer service representative. Displays2go... - Page 20 Having problems Did you purchase the □ If you purchased DisplayIt!Xpress software with installing DisplayIt!Xpress software from from Displays2go or from Best Wave directly, software or getting Displays2go? please contact Best Wave at ➢ content to play Did the customer purchase or support@bestwave.
-
Page 21: Cleaning And Maintenance
3. Don't place the product under direct sunlight which may shorten the service life of the screen. 4. Clean screen and product by using a glass cleaner. 5. If the product will not be used for a long time, pull out the power cord to prevent the internal short circuit or other potential dangers. Displays2go... - Page 22 Electrical and Electronic Products Recycling and Disposal Regulations or send it to qualified local manufacture for recycling. This Manual is for reference only and is subject to change without prior notice. Visit Displays2go.com for the latest product information and User Manual updates. Displays2go...
