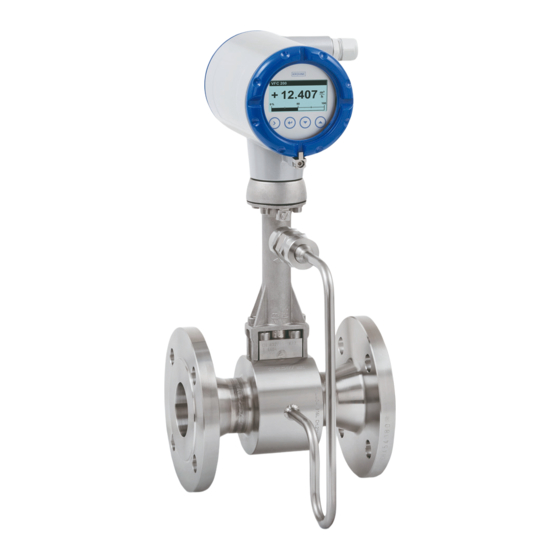

KROHNE OPTISWIRL 4200 Supplementary Instructions Manual

Vortex flowmeter
Hide thumbs Also See for OPTISWIRL 4200:
Table of Contents

Advertisement

Quick Links

Download this manual
OPTISWIRL 4200
OPTISWIRL 4200
OPTISWIRL 4200
OPTISWIRL 4200
Vortex flowmeter
Safety manual
Safety manual
Safety manual
Safety manual
© KROHNE 07/2017 - 4005006101 - AD OPTISWIRL4200 SIL R01 en
Supplementary Instructions
Supplementary Instructions
Supplementary Instructions
Supplementary Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPTISWIRL 4200 and is the answer not in the manual?

Questions and answers

Related Manuals for KROHNE OPTISWIRL 4200

Summary of Contents for KROHNE OPTISWIRL 4200

  • Page 1 OPTISWIRL 4200 OPTISWIRL 4200 OPTISWIRL 4200 OPTISWIRL 4200 Supplementary Instructions Supplementary Instructions Supplementary Instructions Supplementary Instructions Vortex flowmeter Safety manual Safety manual Safety manual Safety manual © KROHNE 07/2017 - 4005006101 - AD OPTISWIRL4200 SIL R01 en...

  • Page 2: Table Of Contents

    CONTENTS OPTISWIRL 4200 1 Introduction 1.1 Scope of the document..................... 4 1.2 Revision history ........................ 5 1.3 Device description ......................6 1.4 Related documentation ....................6 1.5 Terms and definitions....................... 7 2 Specification of the safety function 2.1 Preconditions........................8 2.2 Safety application conditions (SAC)..................
  • Page 3 CONTENTS OPTISWIRL 4200 5 Technical data 5.1 General notes ......................... 24 5.2 SIL certificate........................25 5.3 Declaration ........................26 5.4 Safety relevant key indicators ..................27 5.5 Measuring accuracy ....................... 28 5.6 Useful lifetime ........................ 29 5.7 Support for SIL-approved devices.................. 29 6 Appendix 6.1 Explanations to safety application conditions (SAC)............

  • Page 4: Introduction

    INTRODUCTION OPTISWIRL 4200 1.1 Scope of the document This document is the safety manual for the OPTISWIRL 4200. Its content applies if the measurement device is operated in SIL mode or prepared for SIL mode, respectively. General Hint This vortex flowmeter is a functionally safe flowmeter. It may be deployed within safety critical...

  • Page 5: Revision History

    Check in case a firmware is updated or any part of the device is replaced, whether a new safety manual is available on the manufacturer's internet site. Release date Electronic revision Changes and compatibility Documentation 2017-07-10 ER 2.0.0_ Initial version AD OPTISWIRL 4200 SIL R01 07/2017 - 4005006101 - AD OPTISWIRL4200 SIL R01 en www.krohne.com...

  • Page 6: Device Description

    From these data the device calculates normalised flow rate, mass flow rate, power flowrate, etc. In SIL mode the OPTISWIRL 4200 measures the volume flow rate and outputs the measurement via the safe 4…20 mA current output.

  • Page 7: Terms And Definitions

    INTRODUCTION OPTISWIRL 4200 1.5 Terms and definitions Term Description Diagnostic Coverage of dangerous failures Equipment Under Control Firmware Software embedded in the device Failure In Time (1x10 failures per hour) FMEDA Failure Modes, Effects and Diagnostics Analysis Fault Response Time (diagnostic test interval + Fault Reaction Time)

  • Page 8: Specification Of The Safety Function

    SPECIFICATION OF THE SAFETY FUNCTION OPTISWIRL 4200 2.1 Preconditions The device must be operated within the process and ambient conditions specified in the handbook ([N1]) of the device. The following chapter defines additional conditions, which have to be obeyed for safety applications.

  • Page 9: Operation

    SPECIFICATION OF THE SAFETY FUNCTION OPTISWIRL 4200 SAC8: Inspection intervals Operation modes and The definition of the maximum proof test intervals (for details refer to proof test on page 19) are calculated for operation under reference conditions. The operator is responsible for adjusting the proof test intervals if the deployment conditions deviate from the reference conditions.

  • Page 10: Operation Modes

    SPECIFICATION OF THE SAFETY FUNCTION OPTISWIRL 4200 2.3 Operation modes SIL mode In SIL mode, the device executes the safety function and will react safely if an error is detected which prevents the correct execution of the safety function. In this mode, the device is functionally safe and the safety relevant key figures like hazard rate, FRT etc.

  • Page 11: Definition

    SPECIFICATION OF THE SAFETY FUNCTION OPTISWIRL 4200 Homogeneous redundancy The degree of a functional safe device is determined by the accomplished qualitative safety integrity level and the quantitative hazard rate determined by the failure rate of the deployed hardware. If two or more identically constructed devices are used in parallel (device A is of the same type as device A’...

  • Page 12: Safety Reaction And Safe State

    SPECIFICATION OF THE SAFETY FUNCTION OPTISWIRL 4200 2.5 Safety reaction and safe state The vortex flowmeter reacts safely, as soon as a failure is detected by the output of the low or high failure current (safety reaction). As an additional feature, temporary and persistent failures can be distinguished: •...

  • Page 13: Operation

    OPERATION OPTISWIRL 4200 3.1 Preparation for SIL mode operation For execution of the safety function, the device must be unlocked for SIL mode operation and configured for SIL mode. Devices, which have been ordered as SIL devices, have been unlocked for SIL mode by factory setting.

  • Page 14: Parametrisation For Sil Mode Operation

    OPERATION OPTISWIRL 4200 3.1.2 Parametrisation for SIL mode operation Display indication To do Keys (0...3) x ↑ Go to SIL measurement page (After unlocking the SIL mode, a SIL measurement page will be available) 1 x → Press > button to enter SIL setup...

  • Page 15: Reconfiguration Of A Device Operated In Sil Mode

    OPERATION OPTISWIRL 4200 Setting of the SIL jumper • Remove the display while device is powered (for details refer to [N1], chapter "Turning the display"). • Set the jumper to SIL position as shown in the figures below. • Reattach the display.

  • Page 16: Switch To Non-Sil Mode

    OPERATION OPTISWIRL 4200 3.3 Switch to non-SIL mode In order to switch the device from SIL mode to non-SIL mode the following steps have to be performed. • Remove the display (for details refer to [N1], chapter "Turning the display").

  • Page 17: Parameter Types

    OPERATION OPTISWIRL 4200 3.5 Parameter types In SIL mode the device parameters are distinguished in three parameter types. Two types affect safety: • Safety critical data: Safety critical data: These parameters have a fixed setting and cannot be changed but read...
  • Page 18 OPERATION OPTISWIRL 4200 Parameter Fixed setting Description Distortion Reduction / 204011 Amplitude correction P-factor. Distortion Reduction / K_I 140737 Amplitude correction I-factor Distortion Reduction / 2141041197 Amplitude correction filter factor. Smoothing Factor Vortex Filter / Filter Type FILTER TYPE NONE Output filter type for vortex.

  • Page 19: Service

    SERVICE OPTISWIRL 4200 4.1 Maintenance You must follow the maintenance instructions given in the handbook [N1]. 4.2 Availability of services The manufacturer offers a range of services to support the customer after expiration of the warranty. These include repair, maintenance, technical support and training.
  • Page 20 SERVICE OPTISWIRL 4200 Proof test coverage Step Measure Proof Test Coverage Current output verification via OPTICHECK [N4] Current output check according to routine in chapter "Verification of configuration". Test with simulated vortex frequencies. Calibration verification (optional) A proof test coverage of > 97% can be reached with a calibration verification. If appropriate facilities are not available, please contact the manufacturer for calibration verification.
  • Page 21 SERVICE OPTISWIRL 4200 • Integrate a current meter into the current loop. • Disconnect the 3-pole plug and connect a frequency generator as illustrated below. The 2-pole and 5-pole plugs must remain connected! The 2-pole and 5-pole plugs must remain connected!
  • Page 22 SERVICE OPTISWIRL 4200 • Increase frequencies stepwise. The loop current must follow according to the following table: Frequency [Hz] Nominal current [mA] Acceptable current range [mA] 3.96...4.04 8.41...8.58 1229 12.5 12.38...12.63 1636 16.5 16.30...16.63 2000 20.0 19.81...20.21 • Continue only if test is successful. Stop if any current is out of the accepted limits! •...

  • Page 23: Resetting The Fail-Safe Flags

    SERVICE OPTISWIRL 4200 4.4 Resetting the fail-safe flags Rebooting of a device operated in SIL mode with a detected safety critical failure is inhibited. In this case, the following message is shown on the display: SIL locked! SIL locked! SIL locked!

  • Page 24: Technical Data

    TECHNICAL DATA OPTISWIRL 4200 5.1 General notes Safety relevant key indicators • The safety relevant key indicators (for details refer to on page Operation modes 27) are related to the safety function (for details refer to on page 10). • Commissioning and use of the device presupposes agreement with its design and performance characteristics.

  • Page 25: Sil Certificate

    TECHNICAL DATA OPTISWIRL 4200 5.2 SIL certificate 07/2017 - 4005006101 - AD OPTISWIRL4200 SIL R01 en www.krohne.com...

  • Page 26: Declaration

    TECHNICAL DATA OPTISWIRL 4200 5.3 Declaration www.krohne.com 07/2017 - 4005006101 - AD OPTISWIRL4200 SIL R01 en...

  • Page 27: Safety Relevant Key Indicators

    TECHNICAL DATA OPTISWIRL 4200 5.4 Safety relevant key indicators All values shown in the following table are related to reference conditions according to [N3]: • Temperature: +15...+25°C / +59...+77°F • Pressure: 1013 mbar ±50 mbar / 14.69 psi ±0.73 psi •...

  • Page 28: Measuring Accuracy

    TECHNICAL DATA OPTISWIRL 4200 5.5 Measuring accuracy The flowmeter measures with the same accuracy in both operation modes, in the non-SIL mode as well as in the SIL mode, as long as the device is intact. But diagnostic measures need a reasonable gap between the states intact and defect for availability reasons.

  • Page 29: Useful Lifetime

    TECHNICAL DATA OPTISWIRL 4200 5.6 Useful lifetime The established failure rates of electronic components apply within the useful lifetime according to IEC 61508-2, section 7.4.9.5 note 3. The useful lifetime can only be extended under responsibility of the plant operator regarding special operation conditions and the employment of suitable intervals for testing and maintenance.

  • Page 30: Appendix

    APPENDIX OPTISWIRL 4200 6.1 Explanations to safety application conditions (SAC) Safety application conditions (SAC) For some SACs (for details refer to on page 8) additional explanations are given below: SAC1: System changes Every state of the system which does not meet its specification might be hazardous, because those states were not completely analyzed.
  • Page 31 APPENDIX OPTISWIRL 4200 SAC7: Firmware update Firmware update requires special tooling and can be provided by the authorised personnel of the manufacturer only. SAC8: Inspection intervals Many external events, e.g. environment temperature, may cause the device to age faster than expected.
  • Page 32 • Process Analysis • Services Head Office KROHNE Messtechnik GmbH Ludwig-Krohne-Str. 5 47058 Duisburg (Germany) Tel.: +49 203 301 0 Fax: +49 203 301 10389 info@krohne.com The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...
