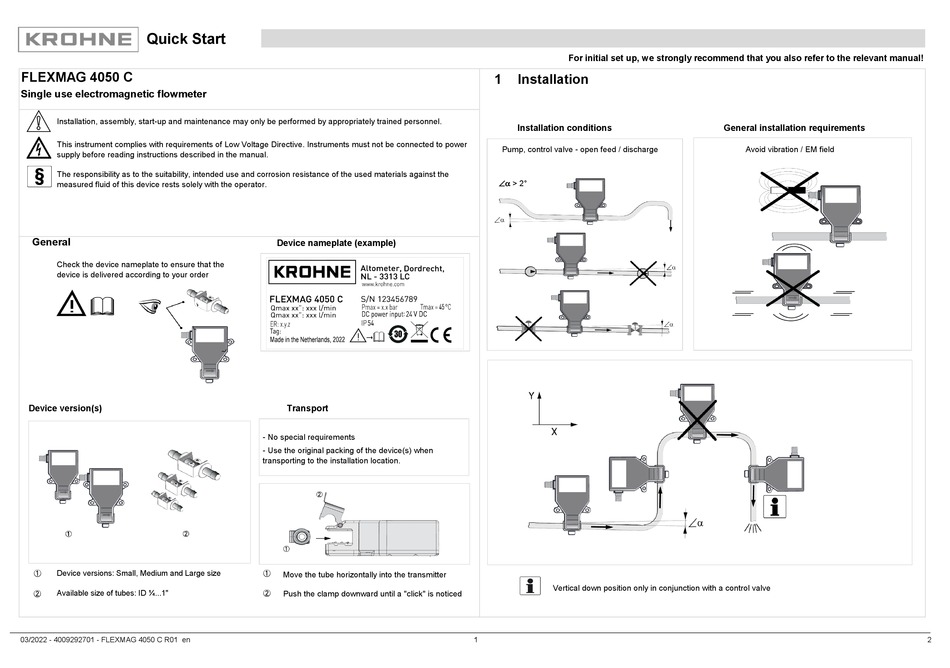

Quick Start
FLEXMAG 4050 C
Single use electromagnetic flowmeter
Installation, assembly, start-up and maintenance may only be performed by appropriately trained personnel.
This instrument complies with requirements of Low Voltage Directive. Instruments must not be connected to power
supply before reading instructions described in the manual.
The responsibility as to the suitability, intended use and corrosion resistance of the used materials against the
measured fluid of this device rests solely with the operator.
General
Check the device nameplate to ensure that the
device is delivered according to your order
Device version(s)
Device versions: Small, Medium and Large size
1
Available size of tubes: ID ¼...1"
2
03/2022 - 4009292701 - FLEXMAG 4050 C R01 en
Device nameplate (example)
Transport
- No special requirements
- Use the original packing of the device(s) when
transporting to the installation location.
1
Move the tube horizontally into the transmitter
Push the clamp downward until a "click" is noticed
2
For initial set up, we strongly recommend that you also refer to the relevant manual!
1
Installation
Installation conditions
Pump, control valve - open feed / discharge
∠α > 2°
Vertical down position only in conjunction with a control valve
1
General installation requirements
Avoid vibration / EM field
2
