VERSION
22-11-30
# 22-11-28
1 / 15

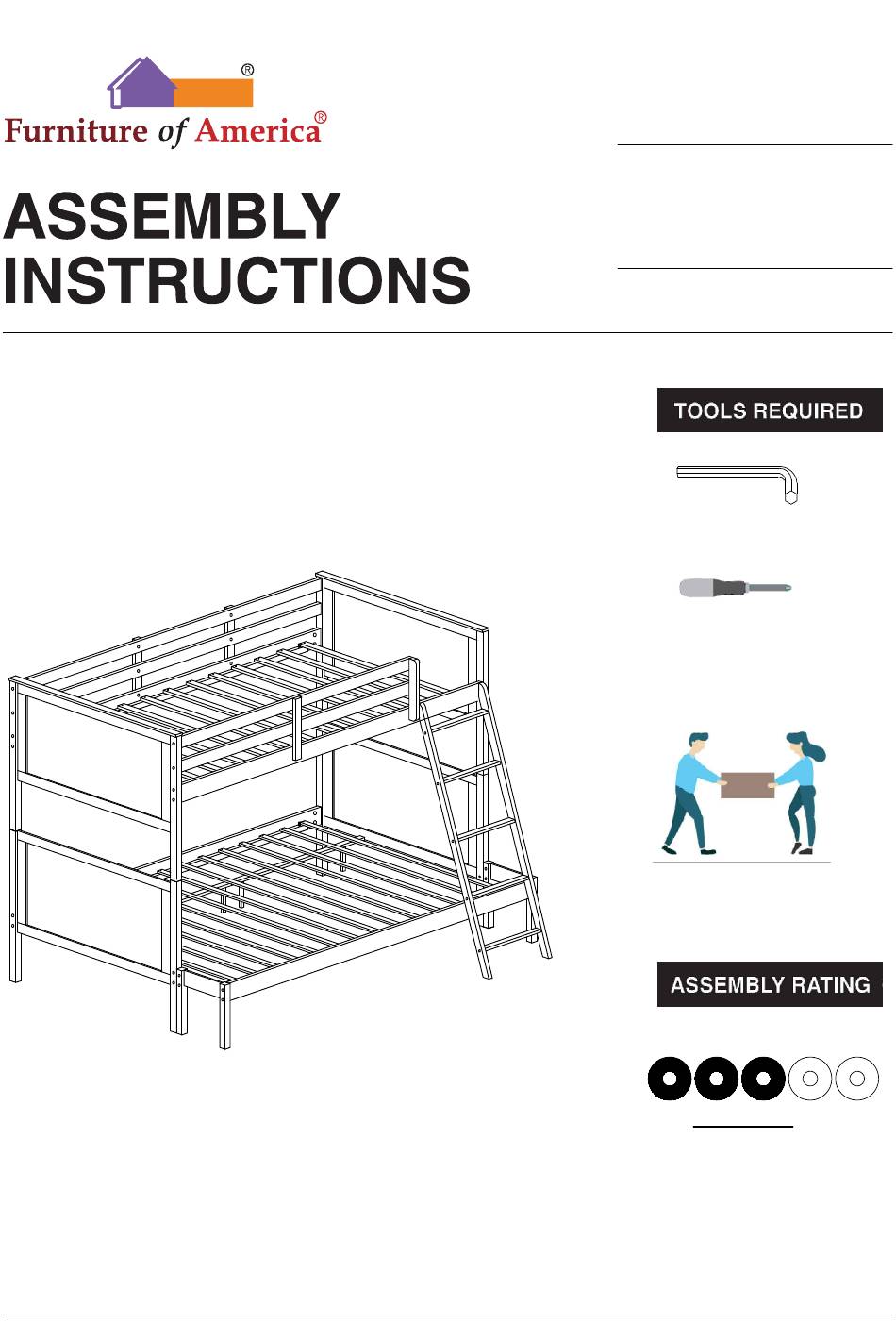

MODEL #
CM-BK658TF
Questions?
GIVE US A CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PT)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM-BK658TF
Summary of Contents for Furniture of America CM-BK658TF
- Page 1 MODEL # CM-BK658TF Questions? GIVE US A CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PT) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
-
Page 2: Safety Warning
53"-54" 2. Replacement parts, including additional guardrails, maybe obtained from any of our FURNITURE OF AMERICA CALIFORNIA INC. 19605 E., WALNUT DRIVE NORTH, CITY OF INDUSTRY, CA 91789, USA. 3. Follow the information on the warnings appearing on the upper bunk bed end structure and on the carton. - Page 3 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 4 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 5 5 / 15...
- Page 6 BUNK BED CM-BK658WN-TF #1 2pcs #2 1pc #3 1pc #4 2pcs Right upper bed end Lower bed end Left upper bed end Under the bed #5 1pc #6 1pc #7 2pcs #8 2pcs Top front side rail Top back side rail Long guardrail Short guardrail #9 3pcs...
- Page 7 #A 16pcs #B 16pcs #C 62pcs #D 13pcs Screw Bolt Bolt #4 x 30mm Hanger nuts Ø1/4'' x 4-3/8'' Ø1/4'' x 1-3/16'' #E 10pcs #F 4pcs #G 6pcs #H 1pc Self-tapping Self-tapping Connection nut Allen Wrench Ø9 x 3-1/2" #I 12pcs #J 2pcs #K 2pcs #L 8pcs...
- Page 8 CM-BK658TF is packed in 3 cases Carton Disignation Part Hardware Lower bed end (2pcs) Left upper bed end CM-BK658TF-1 Right upper bed end Under the bed #A x 16pcs (2pcs) #B x 16pcs #C x 62pcs Top front side rail...
-
Page 9: Exploded View
Exploded View #18.R #18.L 9 / 15... - Page 10 ASSEMBLY INSTRUCTIONS I. Align the Long Guadrails (#7) to the Left upper bed end (#2) and the Right upper bed end (#3) by using the Wood Dowel (#I). Then secure with Part #2 x1pc Self-tapping SCREW Part #3 x1pc (#G. ) Part #5 x1pc Part...
- Page 11 ASSEMBLY INSTRUCTIONS Use Dowels (#I) to align the short guardrail (#8) and secure using Self tapping screw (#G). Part #8 x2pcs Hardware #G x2pcs Hardware #I x4pcs I. Align the Guard rail long support (#9) and secure using Bolt (# D). Part #9 x3pcs Hardware...
- Page 12 ASSEMBLY INSTRUCTIONS Adjust Slats and secure down by using Part Screw (#C). #11 x1set Hardware #C x 28pcs Insert Hanger Nuts (#B) into holes of Under Bed tails (#4) .Then align rail to the lower bed ends (#1) and Part #1 x2pcs secure with Bolt (#A).
- Page 13 ASSEMBLY INSTRUCTIONS Hardware #F x4pcs Part #4 x1pc Part #18 x2pcs Insert Hanger nuts (#B) Hardware #A x4pcs to the under the bed Hardware #B x4pcs rail (#4) and secure to the Extension Kit L/R (#18) by using Bolt #A. #18.R #18.L 13 / 15...
- Page 14 ASSEMBLY INSTRUCTIONS Align the extension to the Lower bed ends Hardware #K x2pcs (#1) and secure using Hardware the Large metal plate #L x8pcs (#K) with Bolts (#M) Hardware #M x8pcs and Cylinder nut (#L). I. Attach the Lower support Legs (#16) to the lower middle horizontals (#15).
- Page 15 ASSEMBLY INSTRUCTIONS Part #12 x1pc Part #13 x1pc Part #14 x5pcs Hardware #E x 10pcs Use Screw (#J) to secure the ladder to Hardware #J x2pcs the bed. 15 / 15...
