VERSION
22-11-30
# 22-11-28
1 / 15

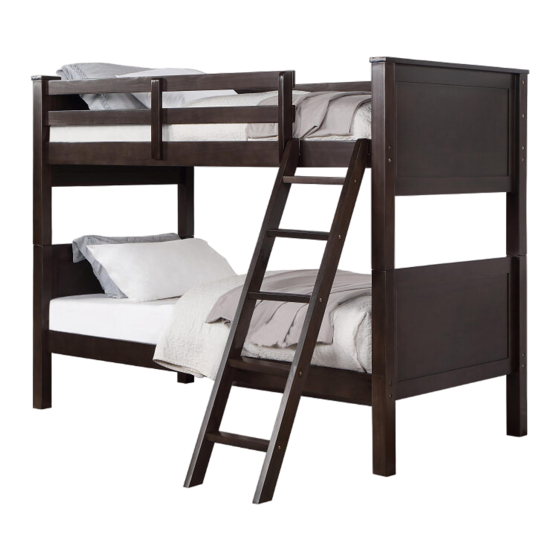

MODEL #
CM-BK658FF
Questions?
GIVE US A CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PT)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM-BK658FF
Summary of Contents for Furniture of America CM-BK658FF

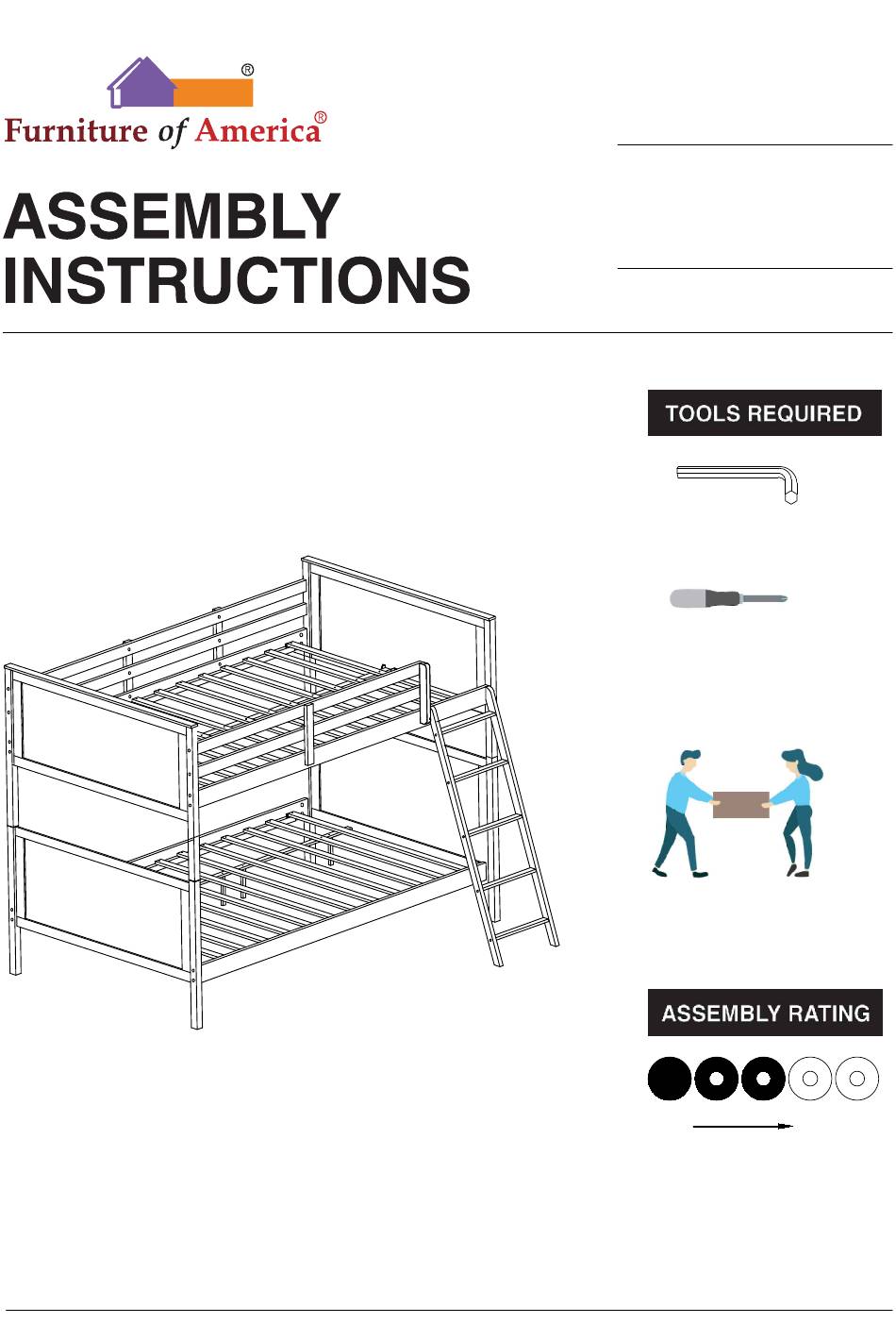

- Page 1 MODEL # CM-BK658FF Questions? GIVE US A CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PT) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
-
Page 2: Safety Warning
Twin Standard 2. Replacement parts, including additional guardrails, maybe obtained from any of our FURNITURE OF AMERICA CALIFORNIA INC. 19605 E., WALNUT DRIVE NORTH, CITY OF INDUSTRY, CA 91789, USA. 3. Follow the information on the warnings appearing on the upper bunk bed end structure and on the carton. - Page 3 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 4 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 5 5 / X 1 5 X X X X X...
- Page 6 BUNK BED CM-BK658FF #1 2pcs #2 1pc #3 1pc #4 2pcs Left upper Right upper bed end Under the bed bed end Lower bed end #5 1pc #6 1pc #7 2pcs #8 2pcs Top back Top front Long guardrail side rail...
- Page 7 #18 1pc #17 1set Top middle Bottom Slat horizontal #A 16pcs #B 16pcs #C 76pcs #D 13pcs Screw Bolt Bolt Hanger nuts #4 x 30mm Ø1/4'' x 4-3/8'' Ø1/4'' x 1-3/16'' #E 10pcs #F 4pcs #G 6pcs #H 1pc Self-tapping Self-tapping Connection nut Allen Wrench...
- Page 8 CM-BK658FF is packed in 3 cases Carton Disignation Part Hardware Lower bed end (2pcs) Left upper bed end CM-BK658FF-1 Right upper bed end Under the bed #A x 16pcs (2pcs) #B x 16pcs #C x 76pcs Top front side rail...
-
Page 9: Exploded View
Exploded View 9 / 15... - Page 10 ASSEMBLY INSTRUCTIONS I. Align the Long Guadrails (#7) to the Left upper bed end (#2) and the Right upper bed end (#3) by using the Wood Dowel (#I). Then secure with Self-tapping Part #2 x1pc SCREW (#G. ) Part #3 x1pc Part #5 x1pc Part...
- Page 11 ASSEMBLY INSTRUCTIONS Align the Guard rail Part support (#10) and #10 x1pc attach using Bolt (#D). Hardware #D x2pcs Part #8 x2pcs Hardware #G x2pcs Hardware #I x4pcs Use Dowels (#I) to align the short guardrail (#8) and secure using Self tapping screw (#G).
- Page 12 ASSEMBLY INSTRUCTIONS I. Align the Guard rail long support (#9) and secure using Bolt (# D). Part #9 x3pcs Hardware #D x11pcs II. Secure short rail support (#10) with Bolt (#D). Adjust Slats and Part #11 x1set secure down by using Screw (#C).
- Page 13 ASSEMBLY INSTRUCTIONS Insert Hanger Nuts (#B) into holes of Under Bed tails (#4) .Then align rail to Part #1 x2pcs the lower bed ends Part #4 x2pcs (#1) and secure with Bolt (#A). Hardware #A x8pcs Hardware #B x8pcs I. Attach the Lower support Legs (#16) Part #15 x2pcs to the lower middle horizontals (#15).
- Page 14 ASSEMBLY INSTRUCTIONS Hardware #F x4pcs Part #12 x1pc Part #13 x1pc Part #14 x5pcs Hardware #E x 10pcs 14 / 15...
- Page 15 ASSEMBLY INSTRUCTIONS Use Screw (#J) to Hardware #J x2pcs secure the ladder to the bed. 15 / 15...
