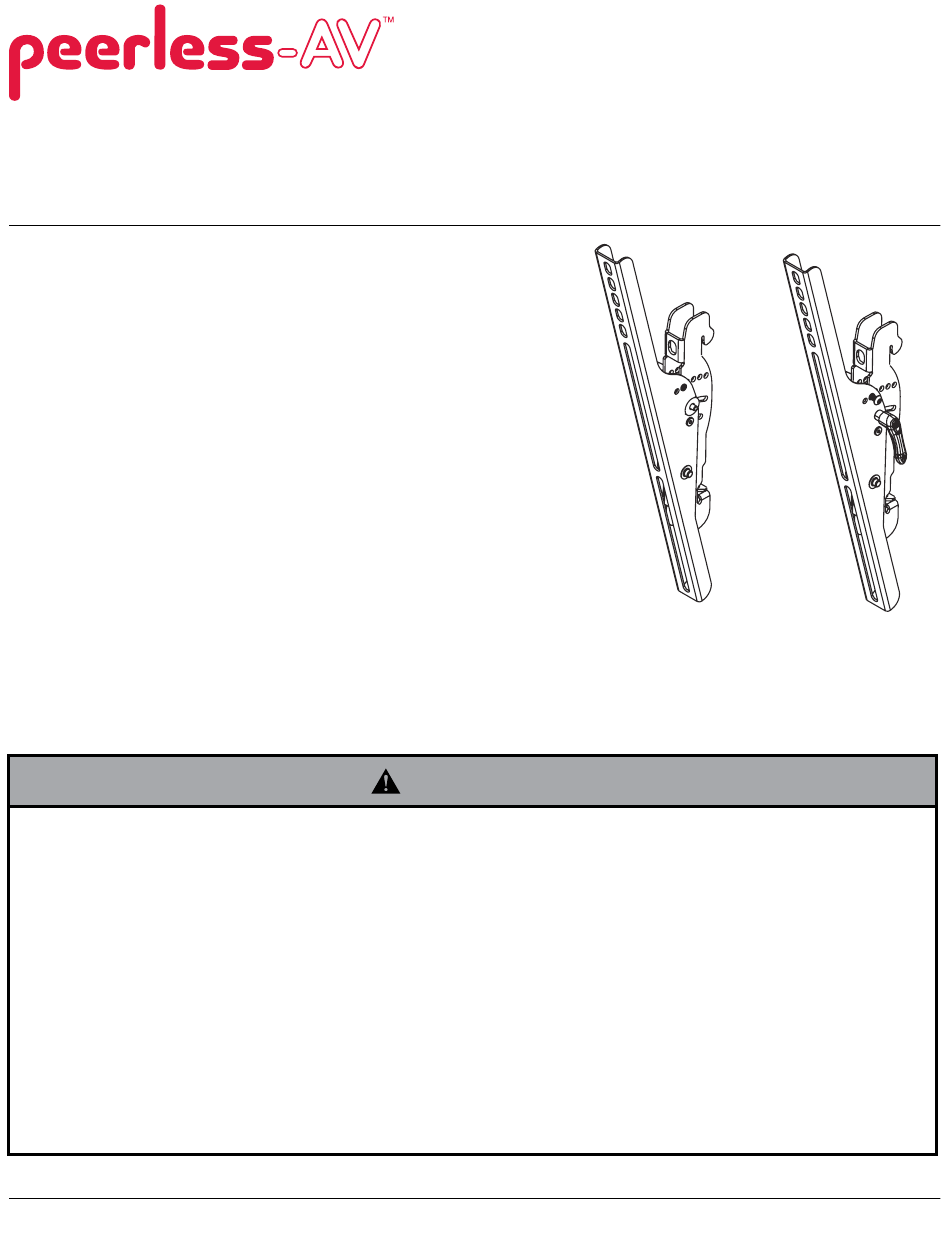

Installation and Assembly:
Universal Tilt Adapter Brackets for LCD and Plasma 32" - 56"
(81 - 142 cm) Flat Panel Screens
Models: ACC-DSV449, ACC-DSV449-P
Features:
• Universal screen mounting brackets hook onto the wall plate for
quick, easy, and safe installation
• Adjustable up to 15° of forward tilt and up to -5° backward tilt
• One-touch tilt for effortless adjustment
• Pre-tensioned universal tilt bracket allows for tilt angle adjustment
in one easy motion.
• Easy grip handle locks the screens position into place
• Optional IncreLok feature offers fixed tilts at -5°, 0°, 5°, 10° and
15° increments
Accessories:
• DS-ACC-LDCM
cable management accessory (optional)
• DS-VL-H024 24" wall plate (optional)
• DS-VL-H036 36" wall plate (optional)
• DS-VL-H048 48" wall plate (optional)
• DS-VL-H060 60" wall plate (optional)
• DS-VL-H072 72" wall plate (optional)
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US
customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact
your local distributor.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached
hardware and components.
• Never exceed the Maximum Load Capacity. See page one.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal
injury.
NoTe: Read entire instruction sheet before you start installation and assembly.
Maximum Load Capacity: 175 lb (79 kg)
WARNING
ISSUED: 06-04-10 SHEET #: 120-9080-1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for peerless-AV ACC-DSV449-P
Summary of Contents for peerless-AV ACC-DSV449-P
- Page 1 Installation and Assembly: Universal Tilt Adapter Brackets for LCD and Plasma 32" - 56" (81 - 142 cm) Flat Panel Screens Models: ACC-DSV449, ACC-DSV449-P Features: • Universal screen mounting brackets hook onto the wall plate for quick, easy, and safe installation • Adjustable up to 15° of forward tilt and up to -5° backward tilt •...
-
Page 2: Parts List
Before you begin, make sure all parts shown are included with your product. Parts List ACC-DSV449 ACC-DSV449-P Description Qty. Part Number Part Number 201-1470 201-1469 left tilt bracket 201-1472 201-1471 right tilt bracket 4 mm allen wrench 560-1131 Parts may appear slightly different than illustrated. - Page 3 Non-Security Tilt Bracket Fasteners M4 x 12mm (6) M5 x 12mm (4) M6 x 12mm (4) (504-9013) (520-1027) (520-1128) M5 x 25mm (4) M6 x 20mm (4) (520-9543) M4 x 25mm (4) (520-9402) M6 x 25mm (4) (504-1015) (520-1208) .75" spacer (4) (540-1059) M8 x 16mm (6) (520-9257) M8 x 25mm (4) M6 x 30mm (4) (520-1031) multi-washer (6) (510-9109) (580-1036) M8 x 40mm (4) .5" spacer (4) (520-1136) (540-1057) Security Tilt Bracket Fasteners M4 x 12mm (6) M5 x 12mm (4) M6 x 12mm (4) (510-1079) M8 x 15mm (6) (520-1064)
- Page 4 Installing Tilt Brackets WARNING • Tighten screws so adapter brackets are firmly attached. Do not tighten with excessive force. Overtightening can cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque. • If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly secured, damage may occur to screen or product may fail. To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place screen face side down. If screen has knobs on the back, remove them to allow the adapter brackets to be attached. Place adapter brackets (AA or BB) on back of screen, align to holes, and center on back of screen as shown below.
- Page 5 For Flat Back Screen begin with the shortest length screw, hand thread through multi-washer and tilt bracket into screen as shown below. Screw must make at least three full turns into the mounting hole and fit snug into place. Do not over tighten. If screw cannot make three full turns into the screen, select a longer length screw from the baffled fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws. NoTe: Spacers may not be used, depending upon the type of screen. fig. 1.1 SCreeN MULTI-wASHer SCrew TILT brACkeT (AA or BB) If you have any questions, please call Peerless customer care at 1-800-865-2112.
-
Page 6: Mounting And Removing Flat Panel Screen
Mounting and Removing Flat Panel Screen wALL PlATE WARNING • Always use an assistant or mechanical lifting equipment & to safely lift and position the flat panel screen. • Do not tighten screws with excessive force. Overtightening can cause damage to mount. Tighten screws to 40 in. • lb (4.5 N.M.) maximum torque. DeTAIL 1 • be careful not to pinch fingers when pushing screen from rATCHeT the bottom. HANDLe Tension Adjustment of Ratchet Handle: Adjust tension in tilt brackets (AA & BB) by rotating ratchet wALL handle. -
Page 7: Adjusting The Tilt Angle Of The Flat Panel Screen
Screen Adjustment: Screen can be adjusted horizontally by loosening safety/security screws on tilt brackets (AA & BB) three full turns. Adjust screen as shown in figure 2.2. Tighten safety/security screws on tilt brackets using 4 mm allen wrench (CC) till screw tip securely contacts wall plate as shown in cross section. Removing Screen: To remove screen from mount, loosen safety screws, swing screen away from mount, and lift screen off of mount. wALL PLATe MAy APPeAr fig 2.2 DIffereNT THAN ILLUSTrATeD...
