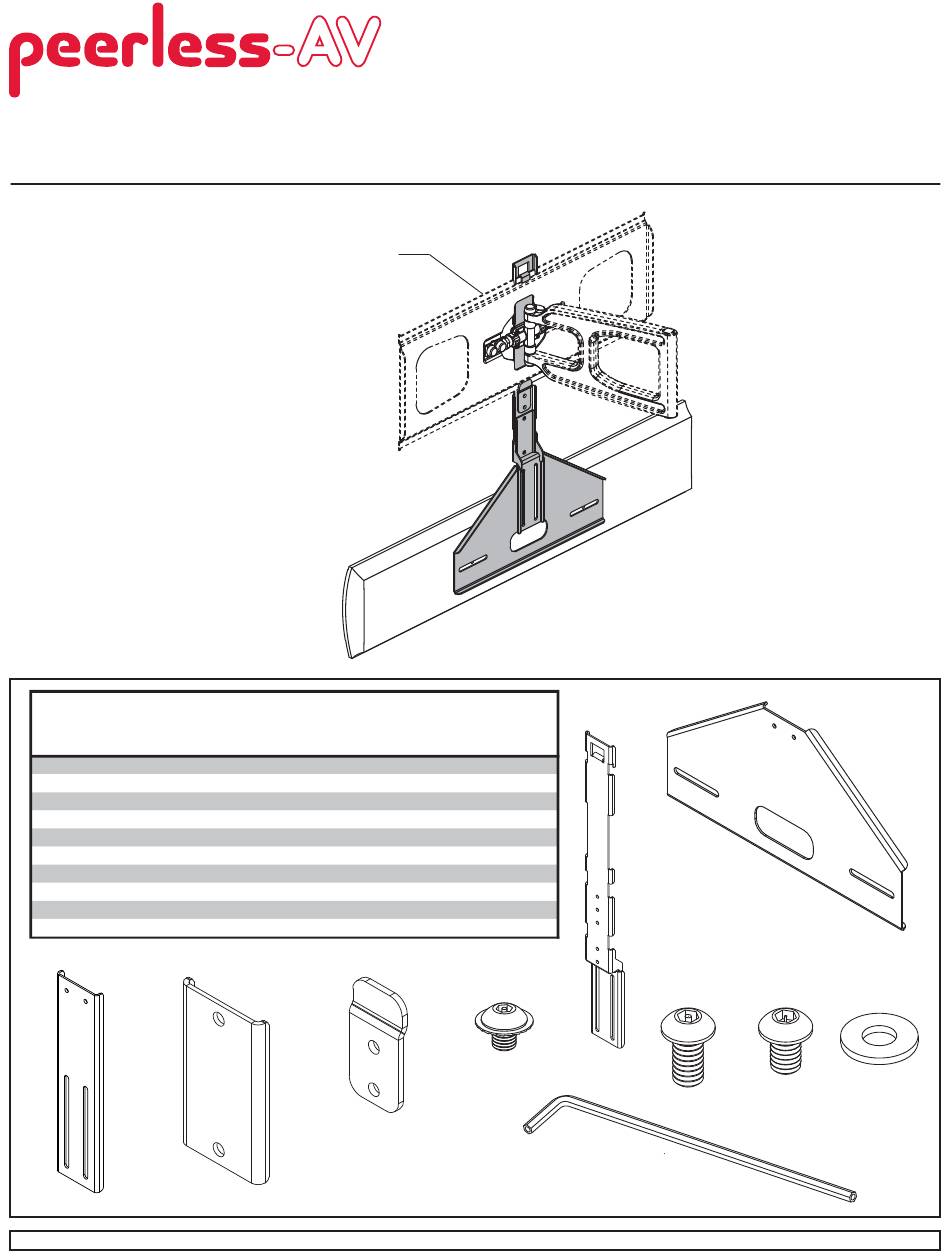

Installation and Assembly:

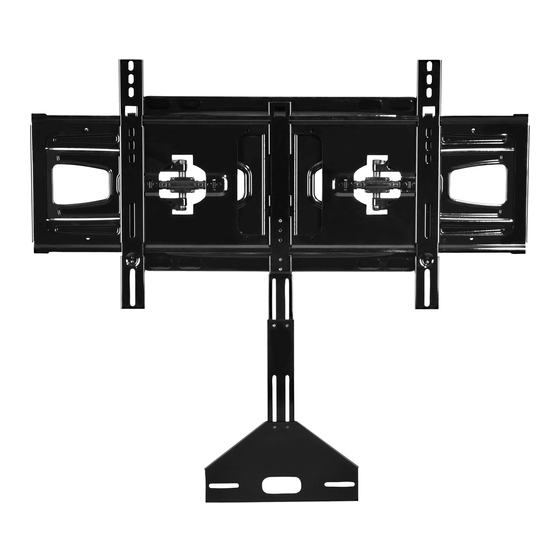

Speaker Bracket
Model: ACC-SB, ACC-SB-M
Parts List
Description
hook on bracket
A
speaker bracket
B
C
extension bracket
D
reinforcement bracket
lock bracket
E
M5 x 6 mm socket pin serrated washer head screw
F
G
1/4-20 x 1/2" socket pin screw
H
1/4-20 x 3/8" socket pin screw
I
1/4" flat washer
J
4 mm allen wrench
C
D
WALL ARM
(NOT INCLUDED)
Qty.
1
1
1
1
1
8
2
2
2
1
E
A
Part #
046-P1218
046-P1222
046-P1221
046-P1220
046-P1219
510-1114
520-1054
520-1109
540-9440
560-9646
F
J
1 of 5
ISSUED: 03-08-11 SHEET #: 125-9197-2 05-16-11
B
G
H
I
