Installation and Assembly:
Accessory Plate for VESA
Model: ACC450
Note: Read entire instruction sheet before you start installation and assembly.
For customer care call (800) 865-2112.
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please
call Peerless customer care at 1-800-865-2112.
• This product should only be installed by a qualifi ed professional.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached
hardware and components.
• Never exceed the Maximum Load Capacity of 150 lb (68 kg).
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws fi rmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.

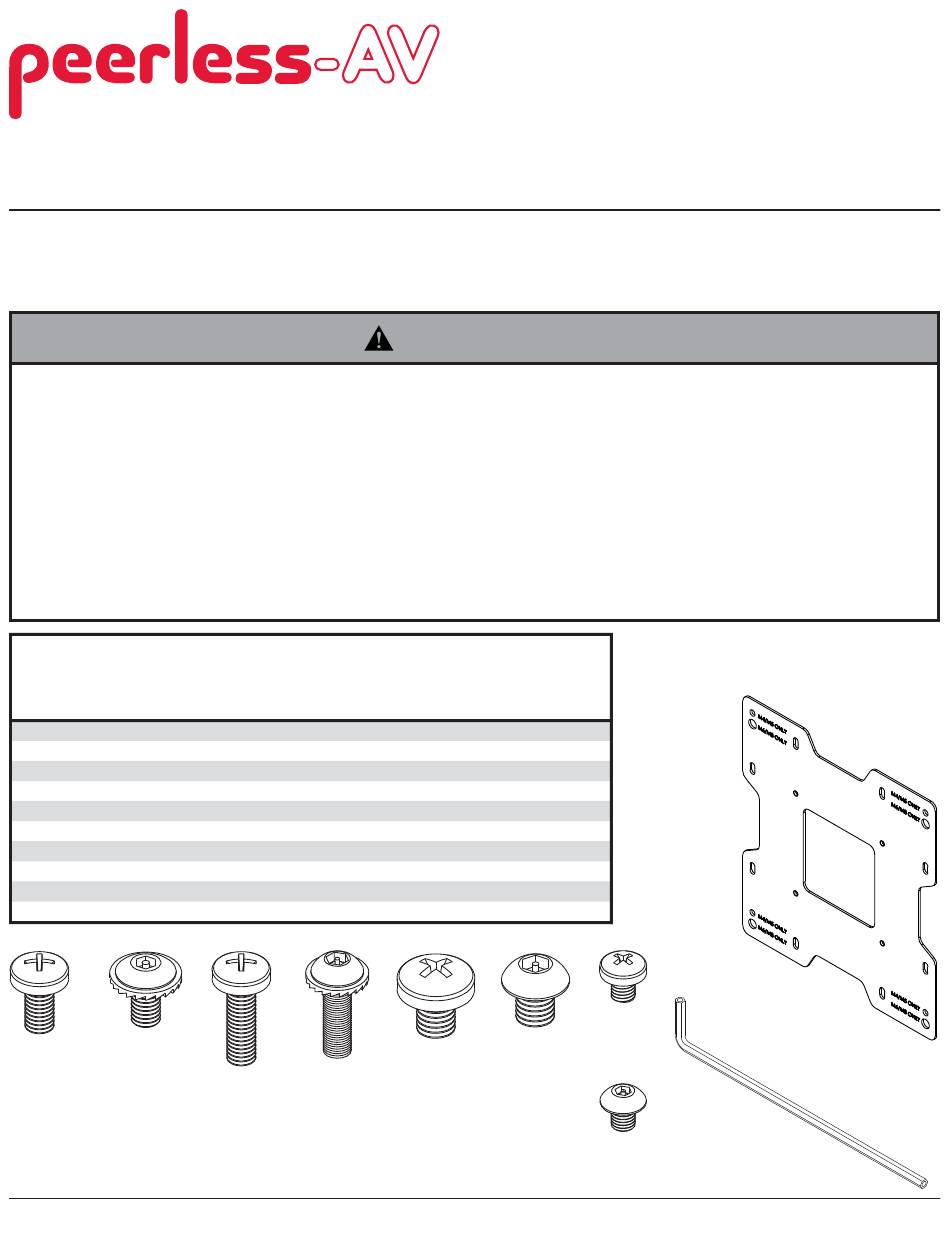

Before you begin, make sure all parts shown are included with your product.

Parts List

Description

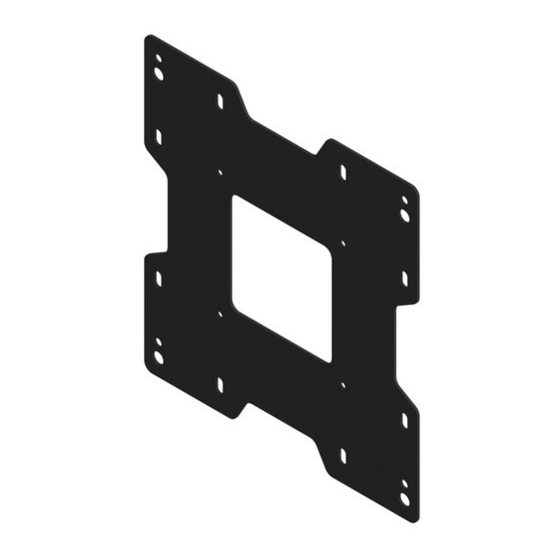

A adapter plate
B M6 x 12 mm phillips screw
C M6 x 12 mm serrated washer head socket pin screw
D M6 x 20 mm phillips screw
E M6 x 20 mm serrated washer head socket pin screw
F M8 x 10 mm phillips screw
G M8 x 10 mm serrated washer head socket pin screw
H M5 x 6 mm phillips screw
I M5 x 6 mm serrated washer head socket pin screw
J 4 mm security allen wrench
C
B
®
WARNING
E
D
200 mm x 200 mm Pattern
Qty Part #
1 095-1721
4 520-1128
4 510-1050
4 520-9402
4 510-9554
4 520-1605
4 520-1706
4 520-1023
4 520-1114
1 560-9646
G
F
1 of 2
A
H
J
I
ISSUED: 10-13-05 SHEET #: 202-9039-2 08-16-11
