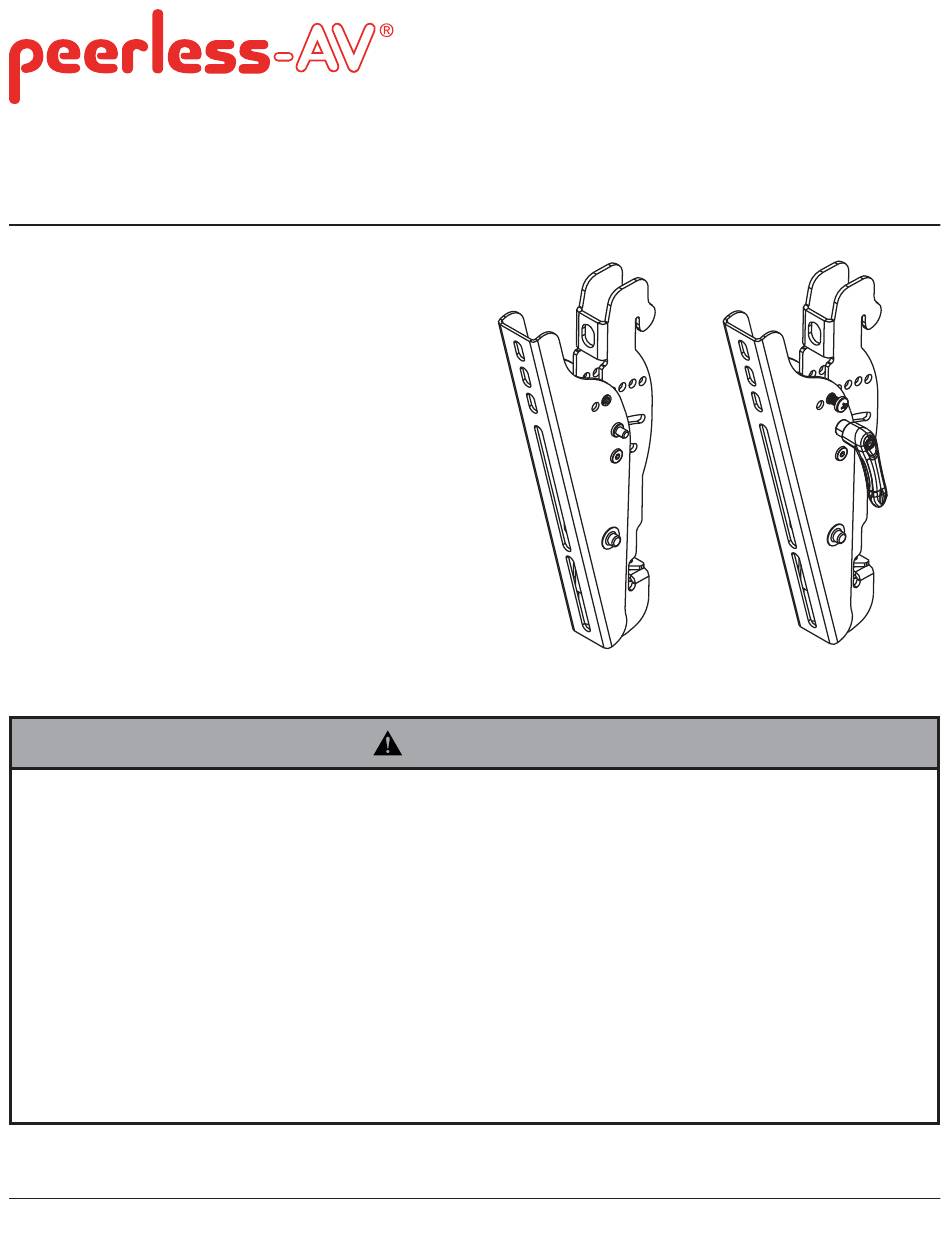

Installation and Assembly:
Universal Tilt Brackets for 13" - 37"
(33 - 94 cm) Flat Panel Screens
Models: ACC-DSV240, ACC-DSV240-P
Features:
• For virtually all 13" - 37" (33 - 94 cm) fl at panel screens
• Universal tilt brackets easily hook onto the wall plate
for fast installation
• Adjustable up to 15° of forward tilt and up to -5°
backward tilt for optimal viewing angle
• One-touch tilt for effortless adjustment
• Easy locking handle locks the screen position into
place without the use of tools
• Optional IncreLok feature offers fi xed tilts at -5°, 0°, 5°,
10° and 15° increments
Accessories:
• DS-ACC-LDCM
cable management accessory (optional)
• DS-VL-H024 24" wall plate (optional)
• DS-VL-H036 36" wall plate (optional)
• DS-VL-H048 48" wall plate (optional)
• DS-VL-H060 60" wall plate (optional)
• DS-VL-H072 72" wall plate (optional)
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US
customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact
your local distributor.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached
hardware and components.
• Never exceed the Maximum Load Capacity.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws fi rmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal
injury.
NOTE: Read entire instruction sheet before you start installation and assembly.
Maximum Load Capacity: 125 lb (57 kg)
WARNING
ISSUED: 05-04-10 SHEET #: 120-9078-3 06-10-13
