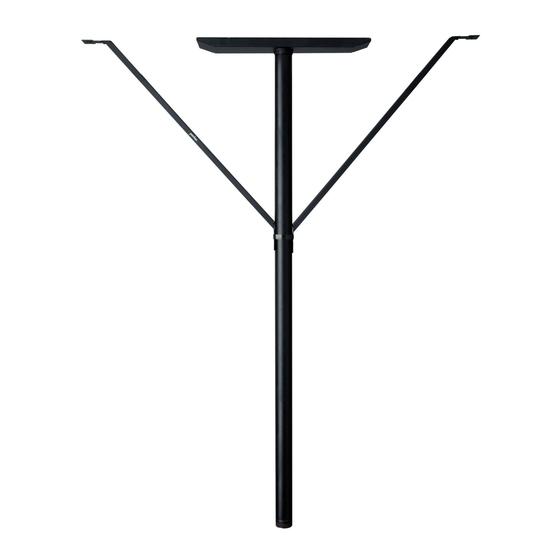

Installation and Assembly - Extension Column Stabilizer

IMPORTANT! Read entire
instruction sheet before
beginning installation and
assembly.

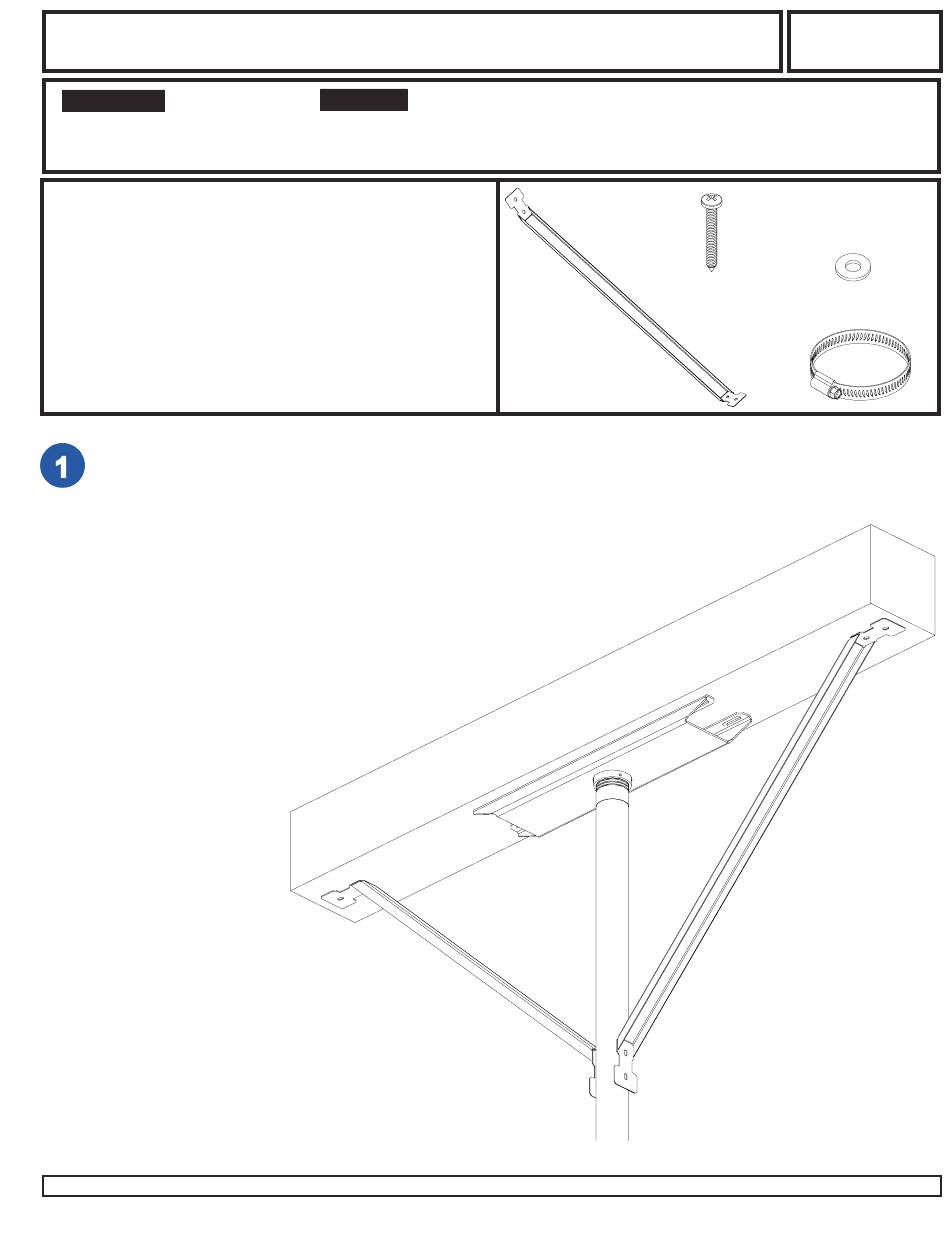

PARTS LIST

PART # QTY.
A 128-1029 2
B 510-9163 4
C 540-9440 4
D 560-0008 1
Note: Actual parts may appear slightly different than illustrated.
IMPORTANT: If using different bolts, the bolts must be A325 grade.
Before starting make sure that ceiling mount and extension column are
firmly in place.
For Wood Stud Only: Align the stabilizer bracket (A) with the side of the
extension column and wood stud as shown below. Using the stabilizer
bracket (A) as a template drill two 3/16" (5mm) dia. holes to a maximum
depth of 2" (51mm) into the wood stud. Repeat on other side.
IMPORTANT: Make sure stabilizer bracket (A) is flat on wood stud.
Note: Installer is responsible for supplying hardware for installations to
surfaces other than wood stud.
Visit the Peerless Web Site at www.peerlessindustries.com
WARNING!
the ceiling will safely support the
combined weight of all attached
equipment and hardware.
DESCRIPTION
extension column stabilizer bracket
#10 x 1 1/2 wood screw
1/4 SAE flat washer
hose clamp
Installer must verify that
A
1 of 2
For customer service call 1-800-729-0307 or 708-865-8870.
Model: ACC 050
B
C
ISSUED: 07-19-02 SHEET #: 128-9138-1
D
