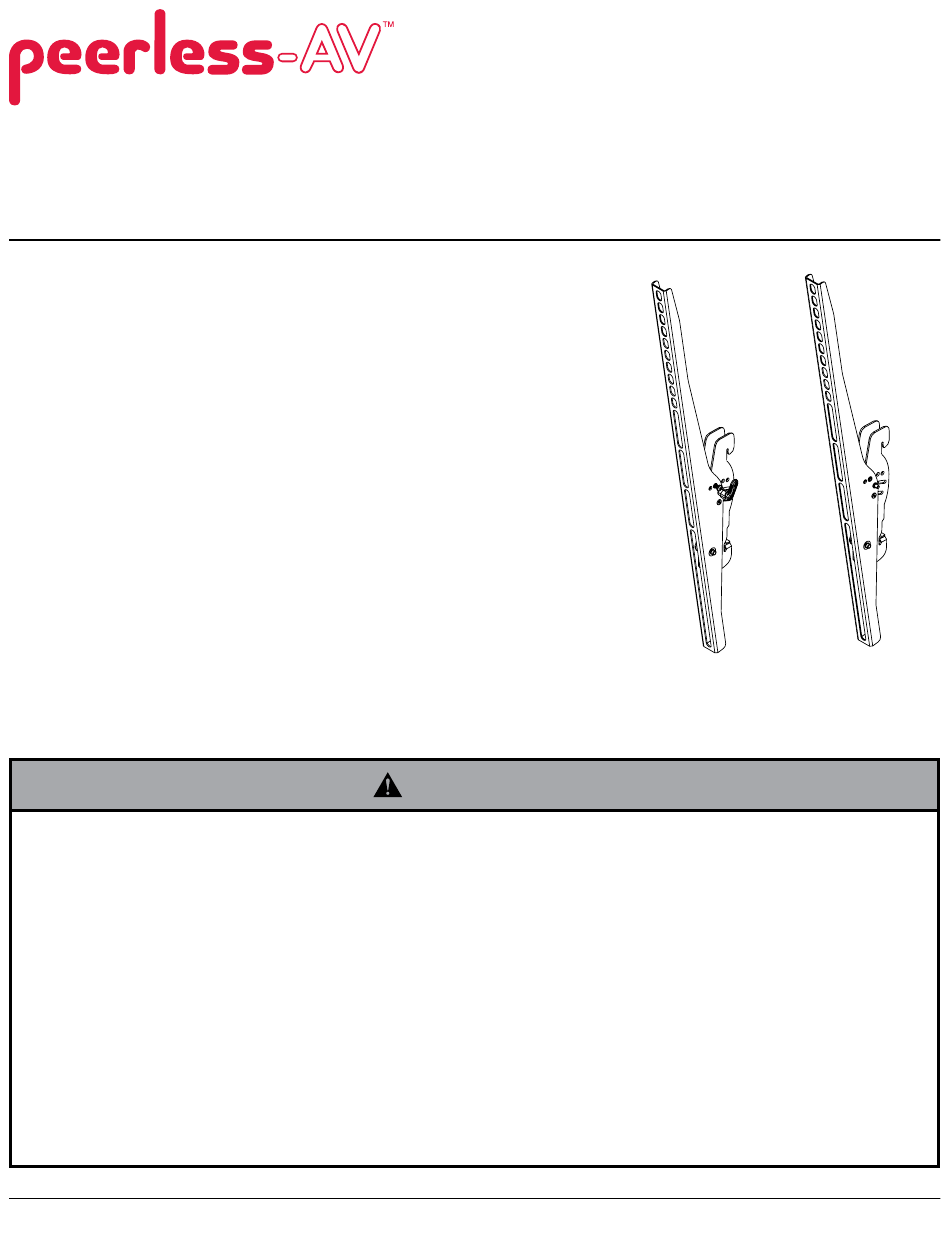

Installation and Assembly:
Universal Tilt Brackets for LCD and Plasma Flat Panel Screens
42''- 71'' (107 - 180 cm)
Models: ACC-DSV503, ACC-DSV503-P
Features:
• Universal tilt brackets easily hook onto wall plate for fast installation
• Adjustable up to 15° of forward tilt and up to -5° backward tilt for
optimal viewing angle
• One-touch tilt for effortless adjustment
• Pre-tensioned universal tilt bracket allows for tilt angle adjustment in
one easy motion.
• Easy grip handle locks the screen position into place
• Optional IncreLok feature offers fixed tilts at -5°, 0°, 5°, 10° and 15°
increments
• Includes Sorted-For-You™ fastener pack for installation to wood
studs, concrete, and cinder block
Accessories:
• DS-ACC-LDCM
cable management accessory (optional)
• DS-VL-H024 24" wall plate (optional)
• DS-VL-H036 36" wall plate (optional)
• DS-VL-H048 48" wall plate (optional)
• DS-VL-H060 60" wall plate (optional)
• DS-VL-H072 72" wall plate (optional)
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US
customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact
your local distributor.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached
hardware and components.
• Never exceed the Maximum Load Capacity. See page one.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal
injury.
NoTe: Read entire instruction sheet before you start installation and assembly.
Maximum Load Capacity: 250 lb (113 kg)
WARNING
ISSUED: 06-04-10 SHEET #: 120-9081-2 05-14-12
Advertisement
Related Manuals for peerless-AV ACC-DSV503
Summary of Contents for peerless-AV ACC-DSV503
- Page 1 Installation and Assembly: Universal Tilt Brackets for LCD and Plasma Flat Panel Screens 42''- 71'' (107 - 180 cm) Models: ACC-DSV503, ACC-DSV503-P Features: • Universal tilt brackets easily hook onto wall plate for fast installation • Adjustable up to 15° of forward tilt and up to -5° backward tilt for optimal viewing angle • One-touch tilt for effortless adjustment • Pre-tensioned universal tilt bracket allows for tilt angle adjustment in one easy motion. • Easy grip handle locks the screen position into place • Optional IncreLok feature offers fixed tilts at -5°, 0°, 5°, 10° and 15° increments • Includes Sorted-For-You™ fastener pack for installation to wood studs, concrete, and cinder block Accessories: • DS-ACC-LDCM...
-
Page 2: Parts List
Before you begin, be sure all parts shown are included with your product. Parts List ACC-DSV503 ACC-DSV503-P Part Number Part Number Description Qty. 201-1474 201-1473 left tilt bracket 201-1476 201-1475 right tilt bracket 560-1131 4 mm allen wrench Parts may appear slightly different than illustrated. 2 of 7 ISSUED: 06-04-10 SHEET #: 120-9081-2 05-14-12... - Page 3 Non-Security Tilt Bracket Fasteners M4 x 12mm (6) M5 x 12mm (4) (504-9013) (520-1027) M6 x 12mm (4) (520-1128) M4 x 25mm (4) M5 x 25mm (4) M6 x 20mm (4) (504-1015) (520-9543) M6 x 30mm (4) (520-9402) (510-9109) .5" spacer (4) (540-1057) M6 x 25mm (4) (520-1208) multi-washer (6) M8 x 25mm (4) .75" spacer (4) M8 x 40mm (4) (580-1036) (520-1031) M8 x 16mm (6) (540-1059) (520-1136) (520-9257) Security Tilt Bracket Fasteners M4 x 12mm (6) M5 x 12mm (4) M6 x 12mm (4) (510-1079) M8 x 15mm (6) (520-1064) (520-1050)
-
Page 4: Installing Tilt Brackets
Installing Tilt Brackets WARNING • Tighten screws so adapter brackets are firmly attached. Do not tighten with excessive force. Overtightening can cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque. • If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly secured, damage may occur to screen or product may fail. To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place screen face side down. Refer to screen manufacturers instructions or customer service, for removing any knobs, base, cover or screw(s) on the back of the screen to prepare mounting. These need to be removed to allow the tilt brackets to be attached. Select the small, medium, large or extra large screws from the baffled fastener pack then attach tilt brackets to screen following figure 1.1 or 1.2. NoTe: Top and bottom mounting holes on screen must be used for attaching brackets. NoTe: be sure to attach tilt brackets with handles facing outward as shown below. Verify that all holes are properly aligned, and then tighten screws using a phillips screwdriver. CENTER bRACkETS VERTICALLY ON bACk OF SCREEN HANDLE FACE Note: "X" dimensions should be equal. Notes: MULTI-wASHER • The number of fasteners used will vary, MEDIUM HOLE FOR M5 SCREwS depending upon the type of screen. - Page 5 For Flat Back Screen begin with the shortest length screw, hand thread through multi-washer and tilt bracket into screen as shown below. Screw must make at least three full turns into the mounting hole and fit snug into place. Do not over tighten. If screw cannot make three full turns into the screen, select a longer length screw from the baffled fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws. NoTe: Spacers may not be used, depending upon the type of screen. fig. 1.1 SCREEN MULTI-wASHER SCREw TILT bRACkET (AA or BB) If you have any questions, please call Peerless customer care at 1-800-865-2112. For Bump-out or Recessed Back Screen begin with longer length screw, hand thread through multi-washer, tilt bracket and spacer in that order into screen as shown below. Screw must make at least three full turns into the mounting hole and fit snug into place. Do not over tighten. If screw cannot make three full turns into the screen, select a longer length screw from the baffled fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws. fig. 1.2 SCREEN MULTI-wASHER SPACER SCREw TILT bRACkET (AA or BB) If you have any questions, please call Peerless customer care at 1-800-865-2112. 5 of 7 ISSUED: 06-04-10 SHEET #: 120-9081-2 05-14-12...
-
Page 6: Mounting And Removing Flat Panel Screen
Mounting and Removing Flat Panel Screen AA & WARNING • Always use an assistant or mechanical lifting equipment to safely lift and position the flat panel screen. • Do not tighten screws with excessive force. wALL Overtightening can cause damage to mount. Tighten PLATE screws to 40 in. • lb (4.5 N.M.) maximum torque. DeTAIL 1 • be careful not to pinch fingers when pushing screen from the bottom. RATCHET HANDLE Tension Adjustment of Ratchet Handle: Adjust wALL tension in tilt brackets (AA & BB) by rotating ratchet PLATE handle. NoTe: If obstruction prevents ratchet handle SAFETY/ AA & from rotating, pull handle out while turning will allow SECURITY handle to reposition without tightening. Release and... -
Page 7: Adjusting The Tilt Angle Of The Flat Panel Screen
Screen Adjustment: Screen can be adjusted horizontally by loosening safety/security screws on tilt brackets (AA & BB) three full turns. Adjust screen as shown in figure 2.2. Tighten safety/security screws on tilt brackets using 4 mm allen wrench (CC) till screw tip securely contacts wall plate as shown in cross section. Removing Screen: To remove screen from mount, loosen safety screws, swing screen away from mount, and lift screen off of mount. wALL PLATE MAY APPEAR fig. 2.2 DIFFERENT THAN ILLUSTRATED Adjusting the Tilt Angle of the Flat Panel Screen For preset tilt angles use Increlok™ and for custom tilt angle use ratchet handle. IncreLok™ TILT LOCkINg LOCATOR SCREw INCReLoK™: The screen can be locked into a HOLE pre-set tilt position of -5°, 0°, 5°, 10° or 15°. Use locator hole to find tilt position hole and tilt screen to align holes. Tighten IncreLok™ tilt locking screws on both tilt brackets to lock tilt as shown in detail 2. TILT Ratchet Handle: Loosen ratchet handle (refer to RATCHET POSITION HANDLE step 3 for tension adjustment of handle). Push or pull HOLES DeTAIL 2...
