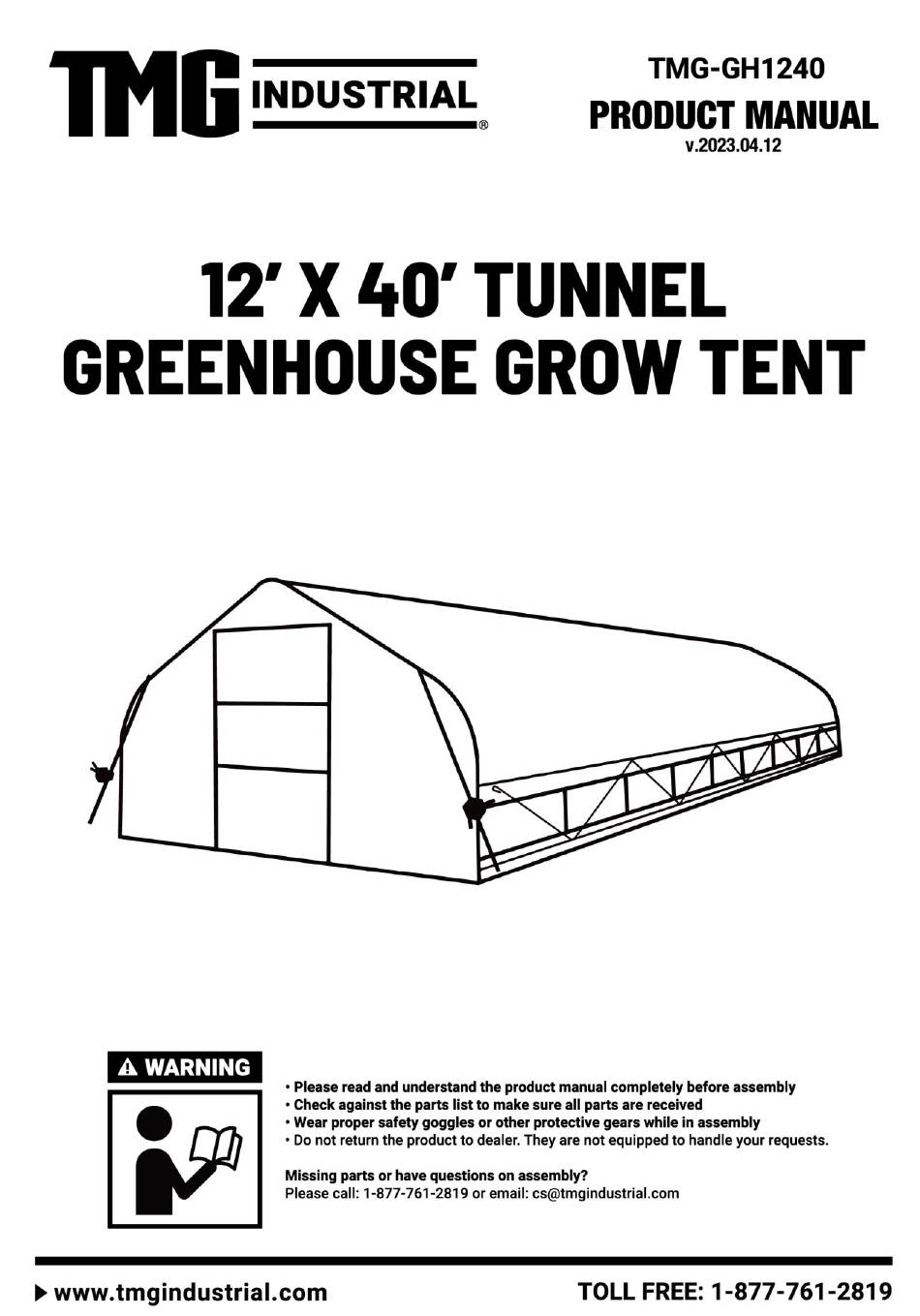

TMG -GH1240 Product Manual

12' x 40' tunnel greenhouse grow tent

Advertisement

Quick Links

www.tmgindustrial.com
0/18
Toll Free:1-877-761-2819

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMG-GH1240 and is the answer not in the manual?

Questions and answers

Summary of Contents for TMG TMG-GH1240

  • Page 1 www.tmgindustrial.com 0/18 Toll Free:1-877-761-2819...
  • Page 2: Main Specifications

    MAIN SPECIFICATIONS : Overall assembled size : L11.7 x W3.66 x H2.2 (m) / L38 x W12 x H7.2 (ft)  Shoulder height : H1.2 (m) / 4 ft  Door : W1.2 x H1.8 (m) / 4 x 6 (ft) ...
  • Page 3 TMG-GH1240 PART LIST PARTS GRAPHICAL DESCRIPTION CODE Peak arch tube Upper rafter tube Shoulder tube Sidewall tube Roof purlin (horizontal tube) Base plate Door column base plate Expansion boltφ14x100mm Front door cross tubes Rear door cross tubes Upper vertical tubes for rear truss...
  • Page 4 Door frame right tube (front truss) Door frame column left tube Door frame column right tube Door horizontal tube Film rolling machine guide tube Roll film tube Roll film tube Tube clamp Door buckle Film rolling machine Reed groove Clip spring Eight clip spring Pressure film carrier Half round head bolt M6x50...
  • Page 5 Hex bolt M6x45 Hex bolt M6x80 Self tapping screw #12x25 Self tapping screw #12x35 Self tapping screw #12x35 Socket wrench Hex wrench Square plug Round plug Braided rope bundle (30m) Adhesive tape Top cover film Front and rear film Board (not included) meters www.tmgindustrial.com...
  • Page 6 INSTALLATION STEPS STEP 1 : REVIEW THE WHOLE STRUCTURE AND CHOOSE THE PROPER INSTALLATION SITE. Choose a solid flar level ground area to set up the building. Do not install the building on soft ground, uneven  surfaces, sloped surfaces. We strongly recommend that you build the structure on a solid foundation such as cement and use anchor bolts ...
  • Page 7 STEP 2 : ASSEMBLE ALL TRUSSES. The building includes 10 trusses , Connect all pipes with hex bolt (#26).  PART PART www.tmgindustrial.com 6/18 Toll Free:1-877-761-2819...
  • Page 8 Lay down all (10) trusses on the ground when the assembly is all completed and before moving to next  step, and then wrap (#34) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage. PART www.tmgindustrial.com 7/18...
  • Page 9 STEP 3 : PUT UP ALL TRUSSES. Put up the truss, use hex bolt (#26) to secure the truss to the base plates.  Connect all purlins, and then wrap (#34) around the sharp points.  PART PART www.tmgindustrial.com 8/18 Toll Free:1-877-761-2819...
  • Page 10 STEP 4 : INSTALLATION OF FRONT AND REAR TRUSSES. Installation of the front truss.  PART PART www.tmgindustrial.com 9/18 Toll Free:1-877-761-2819...
  • Page 11 Installation of the rear truss.  PART PART www.tmgindustrial.com 10/18 Toll Free:1-877-761-2819...
  • Page 12 STEP 5 : INSTALL BOARDS (#36) AND REED GROOVE (#22) Fix the board (# 36) with self tapping screw (# 29).  Fix the reed groove (# 22) with the self tapping screw (# 28).  www.tmgindustrial.com 11/18 Toll Free:1-877-761-2819...
  • Page 13 PART PART www.tmgindustrial.com 12/18 Toll Free:1-877-761-2819...
  • Page 14 STEP 6 : INSTALL THE FILM. Install the front film.  PART PART www.tmgindustrial.com 13/18 Toll Free:1-877-761-2819...
  • Page 15 Install the rear film.  PART www.tmgindustrial.com 14/18 Toll Free:1-877-761-2819...
  • Page 16 When you are ready to install the roof cover, unpack the cover and position it parallel to the building frame on  one side. the cover must be pulled over the top of the truss frame without being snagged or stressed on any frame members.
  • Page 17 STEP 7 : INSTALL ROLL FILM SYSTEM. Install the roll film tube(#18), add a round plug(#32) at the end. the film (# 35) is wound on a roll film tube ,  and clamped with a pressure film carrier (# 24). PART PART www.tmgindustrial.com...
  • Page 18 Around plug (# 32) is put on both ends of the film rolling machine guide tube (# 17), and the guide tube is  mounted on the frame with a hex bolt (# 27), and it is required to swing freely. The film rolling machine (# 21) drives the roll film tube (# 18) to be raised and lowered horizontally and flexibly without jamming.
  • Page 19: After The Installation

    AFTER THE INSTALLATION Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position. We strongly recommend you remove any snow from the roof immediately.
