TMG -GH2580 Product Manual

Hide thumbs Also See for TMG-GH2580:

Advertisement

Quick Links

Download this manual
W W W . T M G I N D U S T R I A L . C O M
P 0 / 1 5
T o l l
F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMG-GH2580 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TMG TMG-GH2580

Summary of Contents for TMG TMG-GH2580

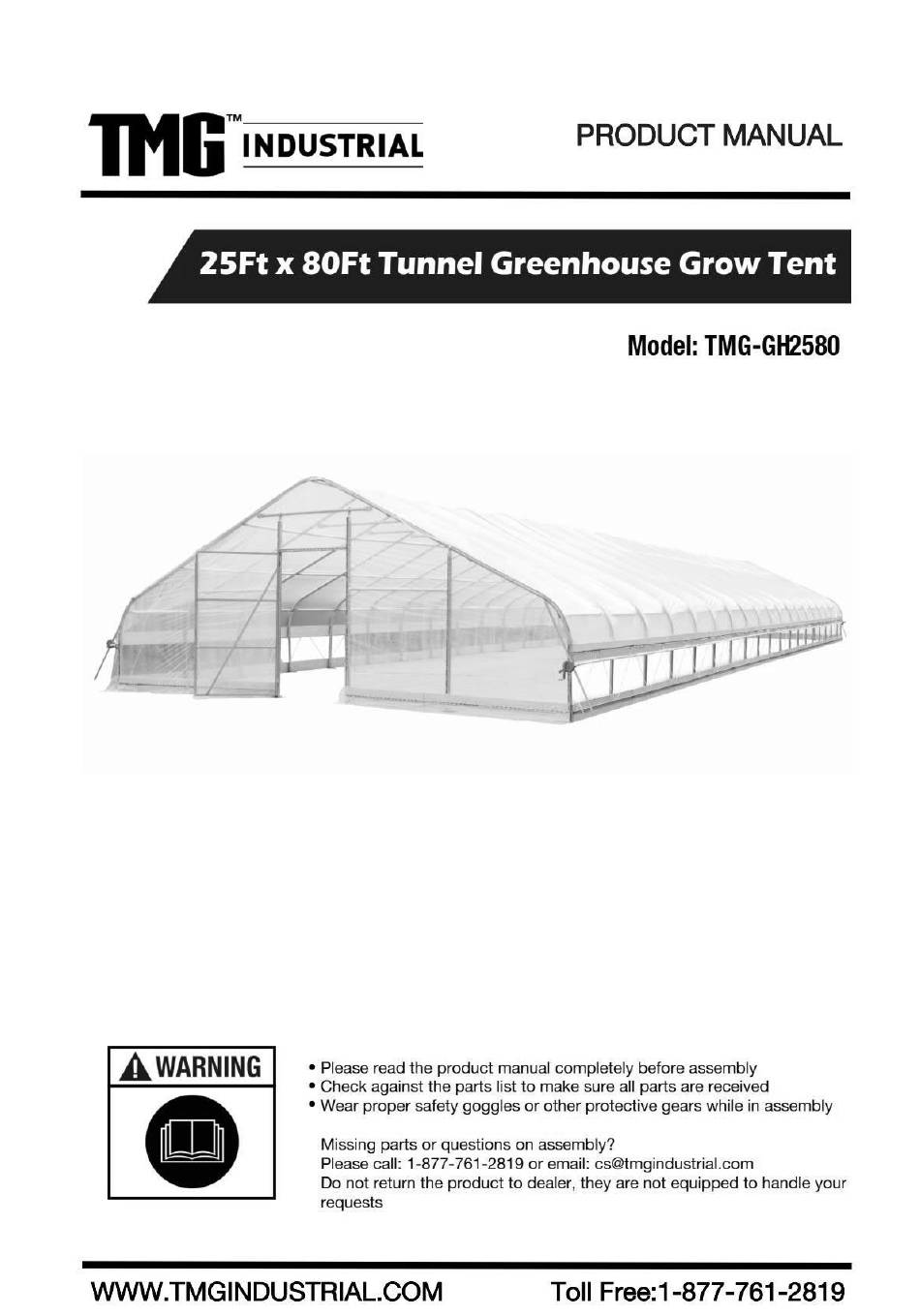

  • Page 1 W W W . T M G I N D U S T R I A L . C O M P 0 / 1 5 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...

  • Page 2: Main Specifications

    Main specifications  Overall assembled size : W7.62 x L24.7 x H3 (m) / W25 x L81 x H10 (ft)  Shoulder height : H1.2 (m) / 4ft  Door : W1.2 x H2 (m) / 4 x 6.6 (ft) Prior to assembly Please read the instructions carefully before installation.
  • Page 3 TMG-GH2580 Part List Parts Graphical Description code Peak arch tube Upper rafter tube Shoulder tube Shoulder tube (front and rear truss) Roof purlin (horizontal tube) Base plate Expansion bolt φ14x100mm Door column base plate Vertical tubes Door left vertical tubes...
  • Page 4 Tube clamp Film rolling machine guide tube Roll film tube Roll film tube Door buckle Film rolling machine Reed groove Clip spring Eight clip spring Pressure film carrier Half round head bolt M6x50 Self locking bolt M10x70mm and nuts Hex bolt M10x70mm and nuts Hex bolt M10x30mm and nuts...
  • Page 5 Self tapping screw #12x25 Self tapping screw #12x35 Square plug Round plug（φ25） 1 bundle Braided rope (80m) Top cover film Front and rear door film Adhesive tape Socket wrench Hex wrench Board 150x15x2000mm (not included) W W W . T M G I N D U S T R I A L . C O M P 4 / 1 5 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 6 Installation steps Step 1 : Review the whole structure and choose the proper installation site.  Mark the ground in the final building location with a line showing the positions of base plates, front doors. All lines should be drawn from center to center of all base plate tubes.
  • Page 7 Step 2 : Assemble all trusses.  The building includes 20 trusses : (2) front and rear truss, and (18) middle trusses.  Install front and rear trusses. Figure 2 Part Part W W W . T M G I N D U S T R I A L . C O M P 6 / 1 5 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 8  Install (18) middle trusses. Figure3 Part Part 1x18 1x18 2x18 8x18 2x18 2x18 W W W . T M G I N D U S T R I A L . C O M P 7 / 1 5 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 9  Lay down all (20) trusses on the ground when the assembly is all completed and before moving to next step, and then wrap (#31) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage.
  • Page 10 Step 3 : Put up all trusses.  Put up the front truss, use hex bolt (#22) to secure the truss to the base plates. Figure 5  Connect all purlins, and then wrap (#31) around the sharp points. Figure 6 Part Part W W W .
  • Page 11 Step 4 : Installation of front and rear trusses. Figure 7 Part Part 16x2 W W W . T M G I N D U S T R I A L . C O M P 1 0 / 1 5 T o l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...
  • Page 12 Step 5 : Install boards (#34) and reed groove (#17).  Fix the board (#34) with self tapping screw (#26).  Fix the reed groove (#17) with the self tapping screw (#25).  Parts used in this step : (88) Reed groove (#17) (440) Self tapping screw (#25) (184) Self tapping screw (#26) (58) Boards (#34)
  • Page 13 Step 6 : Install front and rear film.  Lift the film (#30A) and fix the film with a clip spring (#17A) from top to bottom.  Install door buckle (#15) with self tapping screw (#25).  Cut the door film as shown. Figure 9 Part Part...
  • Page 14 Step 7: Install top cover film.  when you are ready to install the roof cover, unpack the cover and position it parallel to the building frame on one side. the cover must be pulled over the top of the truss frame without being snagged or stressed on any frame members.
  • Page 15 Step 8 : Install roll film system.  Install the roll film tube(#14), add a round plug(#28) at the end. the film (# 30) is wound on a roll film tube , and clamped with a pressure film carrier (# 19). Figure 11 Part Part...
  • Page 16  Install the eight clip spring (# 18) and fasten the braided rope (# 29). Figure 12 Part Part After the Installation Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.
