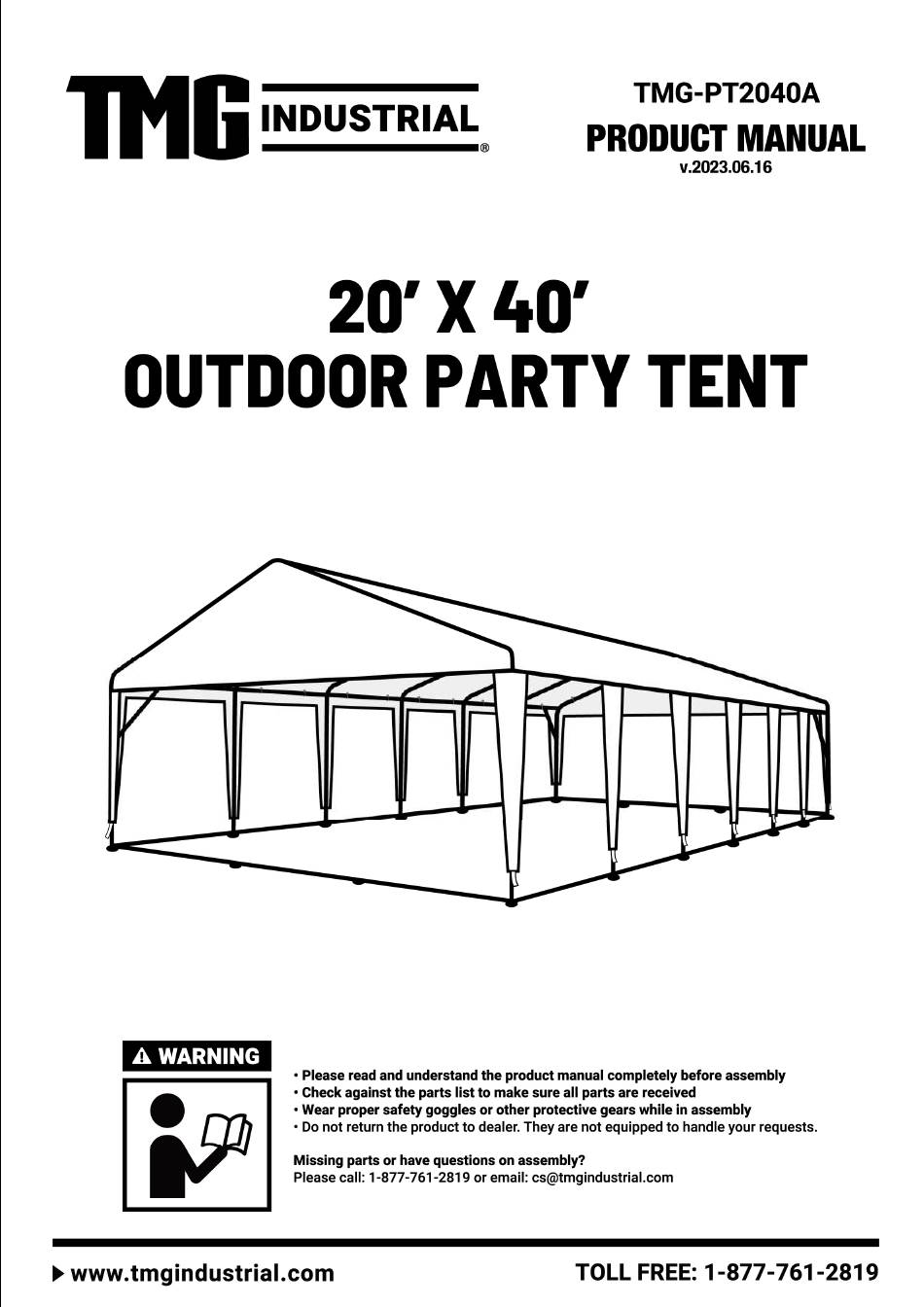

TMG -PT2040A Product Manual

20'x40' outdoor party tent

Advertisement

Quick Links

Main Specifications :
0/18
TOLL FREE:1-877-761-2819
►www.tmgindustrial.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMG-PT2040A and is the answer not in the manual?

Questions and answers

Summary of Contents for TMG TMG-PT2040A

  • Page 1 Main Specifications : 0/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 2: Main Specifications

    MAIN SPECIFICATIONS : - Assembly size : W6 x L12 x H3.1 (m) / 19.7 x 39.4 x10.2 (ft) - Shoulder wall clearance height : 2 m / 6.6 ft PRIOR TO ASSEMBLY Please read the instructions carefully before installation. It is important to follow your local safety regulations and industry standards during installation.
  • Page 3 FRAME STRUCTURE DIAGRAM. 2/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 4 TMG-PT2040A PART LIST PARTS GRAPHICAL DESCRIPTION LENGTH CODE Peak arch tube L480mm Peak arch tube L480mm Rafter tube L1421mm Rafter connection pipe L262mm Rafter connection pipe L276mm Shoulder tube L445mm Shoulder tube L445mm Column tube L1877mm Lower cross tube L2030mm...
  • Page 5 Tube clamp (φ42) Hex bolt and nuts M10x30 M10x30 Hex bolt and nuts M6x60 M6x60 Ground pegs L180mm L180mm Tension hook L45mm L45mm Ground pegs L305mm L305mm Connecting piece L65mm L65mm Ball rope L150mm L150mm Roof cover L12m L12m Braided rope V-spring buckle (φ8) www.tmgindustrial.com...
  • Page 6 STEP 1 :INSTALL V-SPRING BUCKLE PART 5/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 7 STEP 2 : ASSEMBLE FRONT AND REAR TRUSSES. PART PART 1×2 2×2 4×2 1×2 2×2 4×2 2×2 6/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 8 STEP 3 : ASSEMBLE MIDDLE TRUSSES. PART PART 1×5 2×5 4×5 1×5 2×5 4×5 2×5 7/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 9 STEP 4 : CONNECT THE FRONT TRUSS AND THE 2ND TRUSS THROUGH PURLINS (#7). PART 8/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 10 STEP 5 : REPEAT ABOVE STEP TO PUT UP ALL OTHE TRUSSES (FROM 3RD TO 7TH TRUSS), AND CONNECT ALL PURLINS (#7). PART 9/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 11 STEP 6 : INSTALL ROOF COVER (#21). PART 10/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 12 STEP 7 : ASSEMBLE PART (#5). Note: 6-8 people are required to lift or use the crane is a better choice. PART 11/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 13 STEP 8 : INSTALL THE DIAGONAL BRACING BARS (#10). : INSTALL THE DIAGONAL BRACING BARS (#10). PART PART www.tmgindustrial.com 12/18 TOLL FREE:1 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 14 STEP 9 : TENSION THE ROOF COVER. PART 13/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 15 STEP 10 : ASSEMBLE PART (#6). PART 14/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 16 STEP11 : ASSEMBLE PART (#7, #11, #12). PART PART 15/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 17 STEP 12 : FIXED BASEPLATE. PART 16/18 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 18 STEP 13 : FIXED FOUR CORNERS. PART PART www.tmgindustrial.com 17/18 TOLL FREE:1 TOLL FREE:1-877-761-2819 ►www.tmgindustrial.com...
  • Page 19: After The Installation

    AFTER THE INSTALLATION Walk around and inspect the shelter periodically to make sure all components are still firmly secured and the whole shelter is well supported. Check all bolts and nuts as well as all connection points to make sure they are all in good position.
