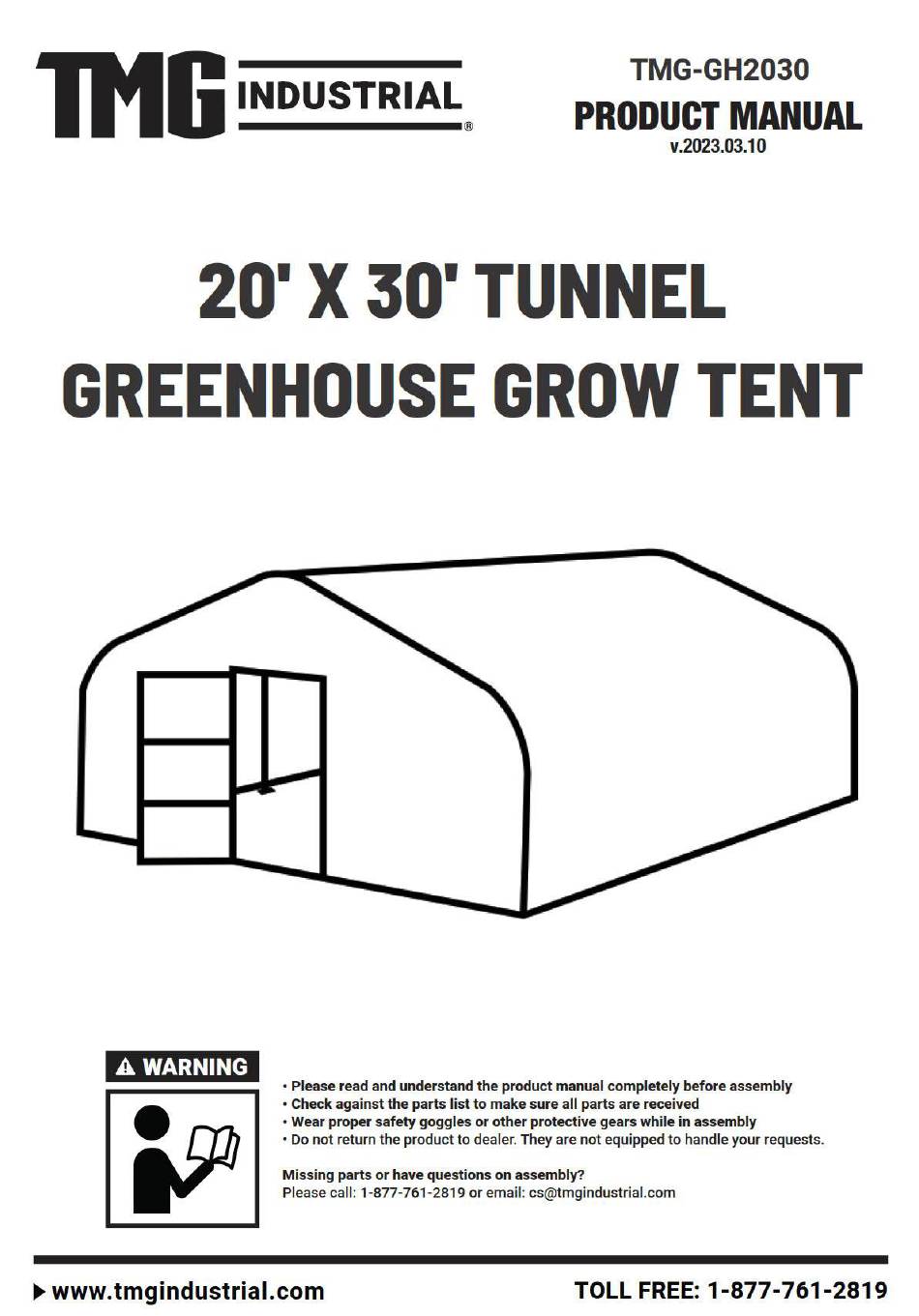

- Page 1 0/22 Toll Free:1-877-761-2819 ►www.tmgindustrial.com...
-
Page 2: Main Specifications
MAIN SPECIFICATIONS : - Assembly size : W6 x L9 x H3 (m) / W19.7 x L29.5 x H9.8(ft) - Shoulder wall clearance height : 1.25 m / 4.1ft - Front roll up door : W1.1 x H2 (m) / W3.6 x H6.6 (ft) PRIOR TO ASSEMBLY Please read the instructions carefully before installation. - Page 3 TMG-GH2030 PART LIST PARTS GRAPHICAL DESCRIPTION LENGTH CODE Peak arch tube φ48x1154mm Upper rafter tube φ48x1980mm (middle and rear truss) Upper rafter tube φ48x1980mm (front truss) Shoulder tube φ48x1335mm (middle truss) Lower rafter tube φ48x1139mm (front and rear truss) Roof purlin φ25x1448mm...
- Page 4 Ratchet Tensioning tube φ32x1993mm Tensioning tube φ32x1360mm Door frame lower tube φ32x1922mm (front truss) Door frame lower tube φ32x1157mm Door frame lower tube φ32x1922mm (front truss) Door frame lower tube φ32x1265mm (front truss) Door frame upper tube φ32x886mm (front truss) Door frame upper tube φ32x1429mm (rear truss)
- Page 5 Bottom tension bar φ25x1925mm (rear cover) Diagonal bracing bar φ25x1910mm (1st and last span) Tube clamp φ48mm Tube clamp φ32mm Door frame column tube 30x30x1925mm Door frame column tube 30x30x1925mm Door horizontal tube 30x30x996mm Expansion bolt M12/φ14x100mm (head diameter Hex bolt M10x60mm Self locking bolt M6x40mm...
- Page 6 Water plug φ32mm Water plug 30x30mm Water plug φ25mm Top cover W90400xL10520mm Front cover panel W3220xL59520mm Rear cover panel W3220xL59520mm Braided rope φ8x100m Ratchet straps W38xL800mm Allen key Scratch resistant tape 5/22 Toll Free:1-877-761-2819 ►www.tmgindustrial.com...
- Page 7 STEP 2 : BASE PLATES INSTLLAION. Mark the ground in the final building location with a line showing the positions of base plates, front, and rear doors. All lines should be drawn from center to center of all baseplate tubes. Diagonal line X must be equal to Y. Base plates: all base plates must be installed firmly with expansion bolts (#16) on this step.
- Page 8 STEP 3 : ASSEMBLE ALL TRUSSES. The building includes 7 trusses: (1) front truss, (1) rear truss, and (5) middle trusses. The front and the rear truss are to install with the fabric panel (#23 and #23A). FRONT TRUSS PART PART 7/22...
- Page 9 REAR TRUSS PART PART 8/22 Toll Free:1-877-761-2819 ►www.tmgindustrial.com...
- Page 10 MIDDLE TRUSSES PART PART 12x5 9/22 Toll Free:1-877-761-2819 ►www.tmgindustrial.com...
- Page 11 Lay down all (7) trusses on the ground as when the assembly is all completed and before moving to next step. PART 10/22 Toll Free:1-877-761-2819 ►www.tmgindustrial.com...
- Page 12 STEP 4 : PUT UP THE FRONT (1ST) TRUSS. Use of a crane or forklift is recommended, otherwise a team can use ropes to lift the trusses, but you have to make sure it is safe, and have enough manpower. We recommend 3 to 5 people to pull the truss up from different directions.
- Page 13 Refer to Step 4 to put up the rest trusses, connect all purlins (#5) and (#5A) with bolt (#18) and bolt (#19) secure all bolts firmly on each span before going to next truss. PART 12/22 Toll Free:1-877-761-2819 ►www.tmgindustrial.com...
- Page 14 STEP 5 : INSTALL THE DIAGONAL BRACING BARS (#13). Connect diagonal bracing bar (#13) on the first and last span between the shoulder tube and lower rafter tube (#3 and #4) with tube clamp (#13A), use bolt (#19). PART 13/22 Toll Free:1-877-761-2819 ►www.tmgindustrial.com...
- Page 15 STEP 6 : INSTALL THE REMAINING PARTS ON THE FRONT TRUSS. PART PART 14/22 Toll Free:1-877-761-2819 ►www.tmgindustrial.com...
- Page 16 STEP 7 : INSTALL THE REMAINING PARTS ON THE REAR TRUSS. PART PART 15/22 Toll Free:1-877-761-2819 ►www.tmgindustrial.com...
- Page 17 STEP 8 : INSTALL FRONT COVER PANEL, WHAT YOU SEE IN THIS PICTURE IS THE INSIDE. Lift the fabric panel (#23), starting from the center point (the highest ridge point) of the frame, tie the panel firmly to the truss with a rope (A) through the grommet, and then tie one end of (A) to the truss. The woven fabric at the posts (#8) and (#8A) of the door frame is tension with velcro.
- Page 18 Assemble the sliding door. Fix the door column (#14) and (#14A) on the cross pull tube (#15) with bolts (#18A). PART PART 17/22 Toll Free:1-877-761-2819 ►www.tmgindustrial.com...
- Page 19 Sliding door installation. The assembled door cover cloth (#20) of the sliding door cover is fixed on the door frame of the front truss through the hinge. 18/22 Toll Free:1-877-761-2819 ►www.tmgindustrial.com...
- Page 20 STEP 9 : INSTALL REAR COVER PANEL, WHAT YOU SEE IN THIS PICTURE IS THE INSIDE. Use rope (#24) to lift up the rear cover (#23A) from the center grommet and tie it firmly to the truss tube and spread toward both sides through each grommet along the tube.
- Page 21 STEP 10 : INSTALL THE TOP COVER (#22) STRETCH AND TIGHTEN TOP COVER DO NOT INSTALL THE COVER DURING WINDY WEATHER! Stretch and adjust the cover from back and forth, to make sure it is square and centered. Unpack the top cover and place it along one of the long sides of the structure. ...
- Page 22 STEP 11 : STRETCH AND TIGHTEN TOP COVER. The roof cover must be stretched and tied to the front and rear truss by rope going through the flap grommets on the cover. Start from the top center and go toward both side on each end. Add or cut the rope as needed.
-
Page 23: After The Installation
AFTER THE INSTALLATION. Inspect the building periodically to make sure the parts are firmly fixed and the whole building is well supported. Check all bolts and hardware connectors to make sure they are in place and tightened. Check the base plates, adjust the ropes if necessary and clean the cover regularly.
