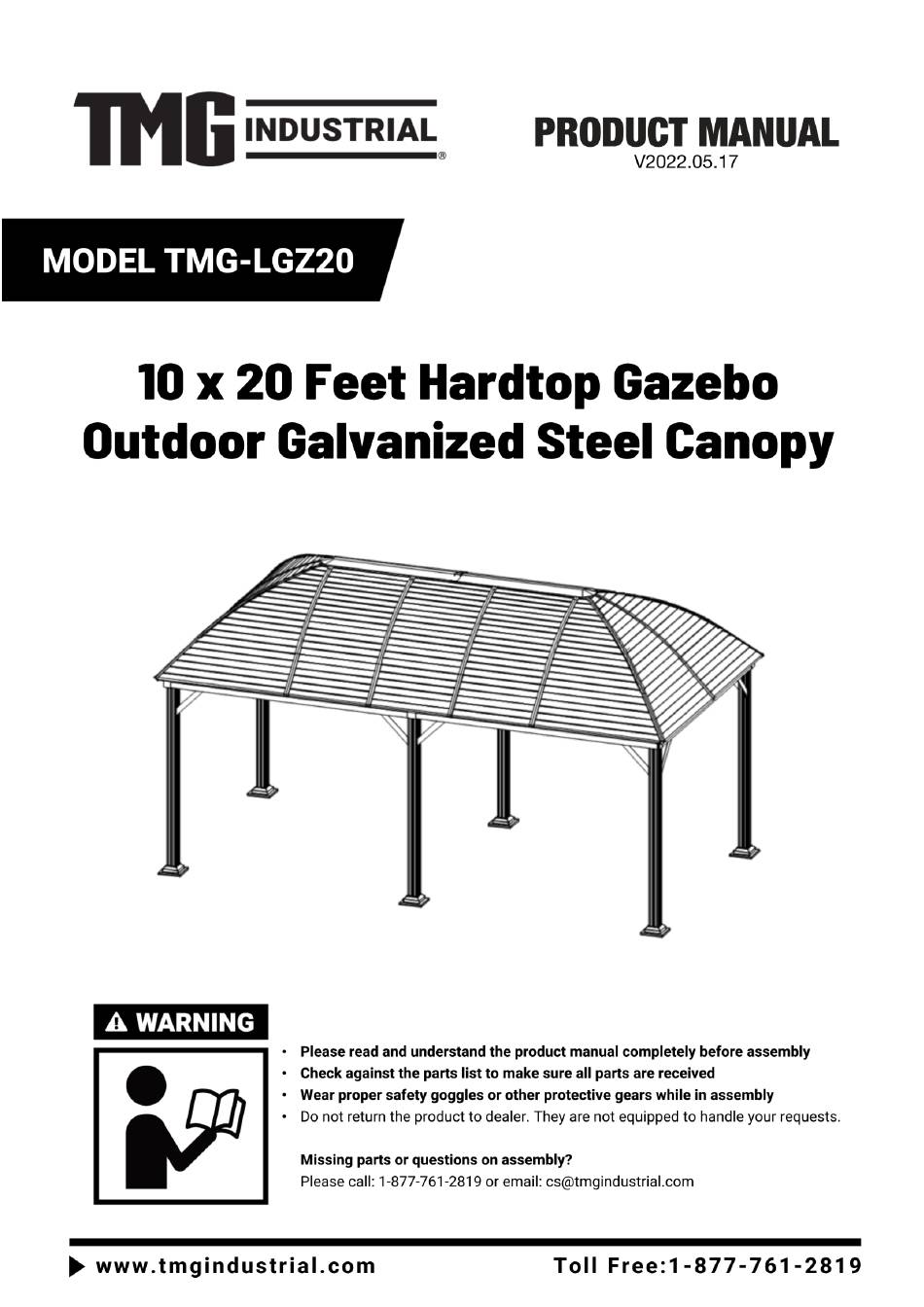

- Page 1 ► www.tmgindustrial.com P0 / 15 Toll Free: 1-877-761-2819...
- Page 2 Main Specifications: 6.0x H3.2 (m) / 10ft x 19.68ft x 10.3ft Inside size: W2.64x L5.86x H3.15 (m) urtain/Net: W4.45 x H2.1 (m) urtain: 180G polyester Prior to assembly: Please go through the whole instruction manual completely. It is very important to follow your local safety regulations and industry standards during installation.
- Page 3 TMG-LGZ20 Part List Parts Graphical Description Length code Post 100x100mm Middle post 100x100mm Cross beam 28x140mm Left cross beam 28x140mm Right cross beam 28x140mm Left support 1.2x60mm Right support 1.2x60mm Steel corner 20x20mm Post cover 100x140mm Middle post cover 100x100mm...
- Page 4 Middle galvanized sheet (down) Long beam 37x48mm Short beam 32x48mm Short beam 1.2x60mm connection Top cover 1.2*200mm Left big top 20x100mm Right big top 20x100mm Short support 25x25mm Long support 25x25mm Connection for support Connection for support Middle edge strip 25x28mm Left edge strip 25x28mm...
- Page 5 Curtain M6x16 M6x45 Hook M4x10 M4x4 gas ket M4.2x20 M6x80 ► www.tmgindustrial.com P4 / 15 Toll Free: 1-877-761-2819...
- Page 6 Step 1: Install Post A Install decorative cover R on all post A/A1, use screw a to fix steel corner E on the post and tighten the screw. Parts Parts Graphical Graphical code code ► www.tmgindustrial.com P5 / 15 Toll Free: 1-877-761-2819...
- Page 7 Step 2: Install Cross Beam B/ left beamC1/ right beamC2/ middle beam W Take out the cross beam B /C1 /C2 /W and post cover F Connect the cross beam B /left C1 /right C2 and post cover F to Post A/A1 with screws b .
- Page 8 Step 3: Install Left support D1 & right support D2 Take out the D1 and D2 , Connect Left & Right support D1&D2 to the cross beams B/C1/C2 and post A /A1with screws a. Parts Graphical code ► www.tmgindustrial.com P7 / 15 Toll Free: 1-877-761-2819...
- Page 9 Step 4: Install Big top / Top cover / short beam Take out Left L1 and Right L2,Connect them with screw a Connect Top cover L with screw e, gasket h and nut g Connect 1piece short beam K1 and 1piece connection K2 with screw a, then Install the rest of 9 pieces K1&K2 in the same way.
- Page 10 Step 5: Install long beam J and short beam K1 Take out J , Connect long beam J to Post cover F, L1 and L2 respectively with screw Take out the installed K1 of Step 4 , Connect K1 and L1/L2 with screw a, Connect K2 and beam B , C1 , C2 with screws a.
- Page 11 Step 6: Install support M1 and M2 on the top Take out M1, M2 , N1 and N2,Connect N1& G1 , N2& K1 with screw a Then connect M1and M2 , N1/N2 with screw a Parts Parts Graphical Graphical code code...
- Page 12 Step 7: Connect the galvanized sheet G1 &H1 , G2 &H2, I1 & I2 Connect Left side G1 and H1 with screw f, gasket h and nut g Connect Right side G2 and H2 with screw f, gasket h and nut g ...
- Page 13 Step 8: Install the galvanized sheet top on Left /Right side Take out the installed galvanized sheet G1 and G2 of Step 7 As shown the diagram, insert the galvanized sheet G1& G2 into Left /Right side, and fix the edge strip O1(left )&...
- Page 14 Step 9: Install the Top cover L Take out the Installed top cover L of Step4 , use hook d to Connect L and L1/L2 Parts code Graphical ► www.tmgindustrial.com P13 / 15 Toll Free: 1-877-761-2819...
- Page 15 Step 10: Install the galvanized sheet I2 Take out the Installed galvanized sheet I2 of Step 7 As shown the diagram, insert the galvanized sheet I2 into the middle position , and fix the edge strip O and flat cover Q2 on the sheet with screw a Parts Graphical Parts code...
- Page 16 Step 11: Install CurtainX1 and Net X2 Hang the curtain X1 and the net X2 above on the hook of beam B. (Note: Inside net /outside curtain) Parts code Graphical ► www.tmgindustrial.com P15 / 15 Toll Free: 1-877-761-2819...
