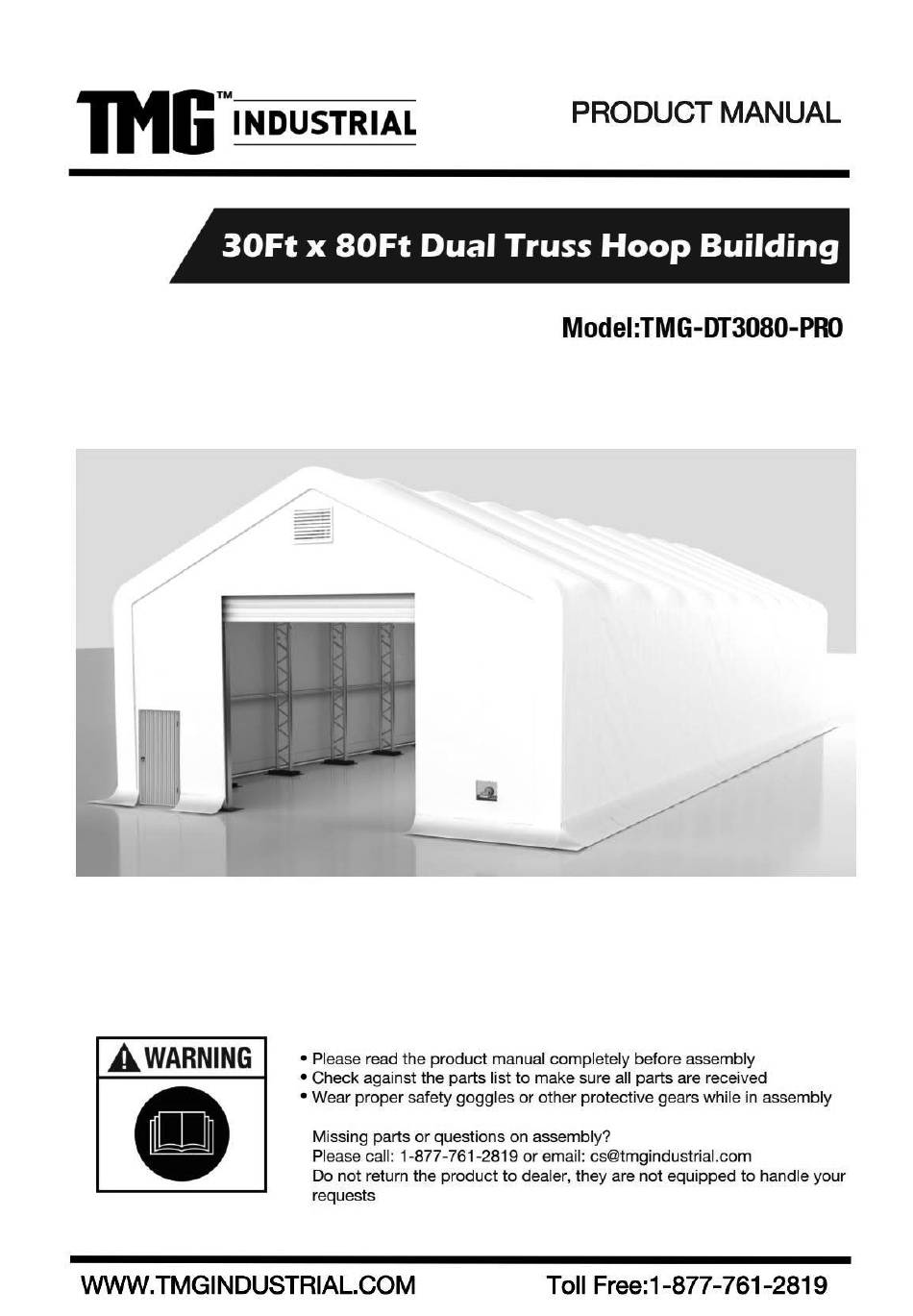

TMG -DT3080-PRO Product Manual

30ft x 80ft dual truss hoop building
Hide thumbs

Advertisement

Quick Links

Download this manual
W W W . T M G I N D U S T R I A L . C O M
P 0 / 1 7
To l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the TMG-DT3080-PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TMG TMG-DT3080-PRO

Summary of Contents for TMG TMG-DT3080-PRO

  • Page 1 W W W . T M G I N D U S T R I A L . C O M P 0 / 1 7 To l l F r e e : 1 - 8 7 7 - 7 6 1 - 2 8 1 9...

  • Page 2: Main Specifications

    Main Specifications :  Assembly size : W9.15 x L24 x H6 (m) / 30 x 80 x 20 (ft)  Ridge height : 6m / 20 ft  Peak clearance : 5.4m / 18 ft  Front and back door : 4.27 x 3.96 (m) / 14 x 13 (ft) ...
  • Page 3 TMG-DT3080-PRO Part List Parts Graphical Description Quantity Code Peak arch tube (for 9 middle trusses ) Peak arch tube (for front and rear truss) Upper rafter tube (for middle trusses) Upper rafter tube (for front and rear truss) Shoulder tube...
  • Page 4 Right baseplate of front and rear door frame Baseplates for middle truss Ratchets Expansion bolts φ16 Ceiling cross bar (front and rear truss) Ceiling cross bar (front and rear truss) Front and rear vertical door rail (left side upper part) Front and rear vertical door rail (right side upper part) Side door left tube...
  • Page 5 Side door upper tube Bottom tension bar (front and rear truss) Bottom tension bar Front and rear door hand winch crossing tube Top cover tension tube 2 groups (for both bottom sides) Front roll up door dropping tubes (to connect #16) Front roll up door dropping tubes (to connect #15)...
  • Page 6 Front and rear vertical door rail end plate (floatable to keep door rail straight) Tension tube end water plug Tube clamps (φ48) Hex bolt M10x30mm and nuts Self locking bolt M10x70mm and nuts Strengthened bolt M12x30mm and nuts Hex bolt M10x50mm and nuts Hex bolt M10x70mm and nuts...
  • Page 7 Installation steps Step 1 : Review the whole structure and choose the proper installation site Choose a solid level ground area to set up the building. Do not install in an area where the floor is soft, a wetland, can not take the weight, or keep the building steady. We strongly recommend to install the building on a concrete foundation with all expansion bolts to secure all baseplates.
  • Page 8 Step 2 : Assemble all trusses  The building includes 11 trusses : (1) front truss, (1) rear truss, and (9) middle trusses. The front and rear truss installed with the fabric panel (#34) and roll up door (#35).  Parts used to install the front truss and rear truss in this step.
  • Page 9 Figure 3 Lay down all (11) trusses on the ground when the assembly is all completed  and before moving to next step, and then wrap (#38) around the sharp points of the joint to avoid friction between the fabric and the interface, resulting in fabric damage.
  • Page 10 Figure 5 Step 4 : Put up the rest trusses  Refer to step 3 to put up the rest trusses, connect all purlins (#5) with bolt (#28) and secure all bolts firmly on each span before going to next truss. ...
  • Page 11  Repeat above step to put up all other trusses (from 3rd to 11th truss), and connect all purlins. Now the whole structure is completely up. (refer to figure 7)  Parts used in this step. (81) Roof purlin (#5) (81) Self locking bolt (#28) (72) Strengthened bolt (#29) Figure 7...
  • Page 12 Figure 8  The whole structure inspection: check all components and trusses to make sure the whole structure is squared to the base line drawn at the step 1. All trusses must be set up righted at 90 degree. All purlins must be straight inline. If any purlins are not inline with they will need to be corrected before moving to the next step.
  • Page 13 (3x2) Door frame horizontal tube (#11) (1x2) Side door upper tube (#11C) (1x2) Bottom tension bar (#12) (1x2) Bottom tension bar (#12B) (1x2) Front and rear door hand winch crossing tube (#13) (2x2) Front and rear truss left and right steel cables (#20) (1x2) Right pulley system for front and rear doors (#23B) (1x2) Left pulley system for front and rear doors (#23C) (2x2) Front and rear vertical door rail connection plate (#24)
  • Page 14 Figure 10  Install the front door pressing plate. Trim the side door tarp. (the front and rear mounting methods are the same) .(refer to figure 11) (6x2) Pressing plate (#22A) (1x2) Pressing plate (#22B) (52x2) Tapping screw (#39) Figure 11 W W W .
  • Page 15 Step 7 : Install mechanical roll up doors  Front and rear door installation - when you look at figure 12, please look at the door from inside.  Components include: one hand winch (#23) and steel cables (#23A). The hand winch comes with a shorter cable, we call it cable (#B).
  • Page 16 Figure 12 Step 8 : Install roof cover (#33)  NOTE: The cover must be installed on a windless day. DO NOT attempt to install the cover during windy conditions.  As shown on figure 13, when you are ready to install the roof cover, unpack the cover and position it parallel to the building frame on one side.
  • Page 17 Figure 13 Step 9 : Tension the cover on the frame from side to side (figure 14)  After the cover is installed on the roof, insert the plastic pipe (#37) slowly into the grooves on two ends of the cover (not two sides), and then insert tension tubes (#14) in the groove on both sides of the cover bottom, Add the water plug (#25) on the 1st tube (#14) to protect the fabric while the tube is going through and add the water plug on the last tube also to keep water away.
  • Page 18 Figure 14 Step 10 : Tighten roof cover on front and rear truss frames  Pull and stretch the cover enough only to take wrinkles out. Repeat for the rear truss. Do not over stretch to rip off the grommets. ...
