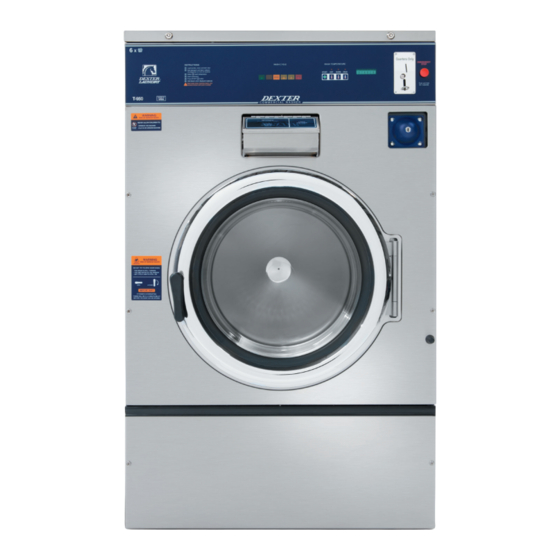

C-Series Vended Washers
WC_ _00XA-12EC_X
WC0900XA-12EC_X
Before Serial # W1.19212.025
WC1200XA-12EC_X
Before Serial # W1.19217.001
Non-Express (100G)
8533-081-001 7/21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WC 00XA-12EC X Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dexter Laundry WC 00XA-12EC X Series

Summary of Contents for Dexter Laundry WC 00XA-12EC X Series

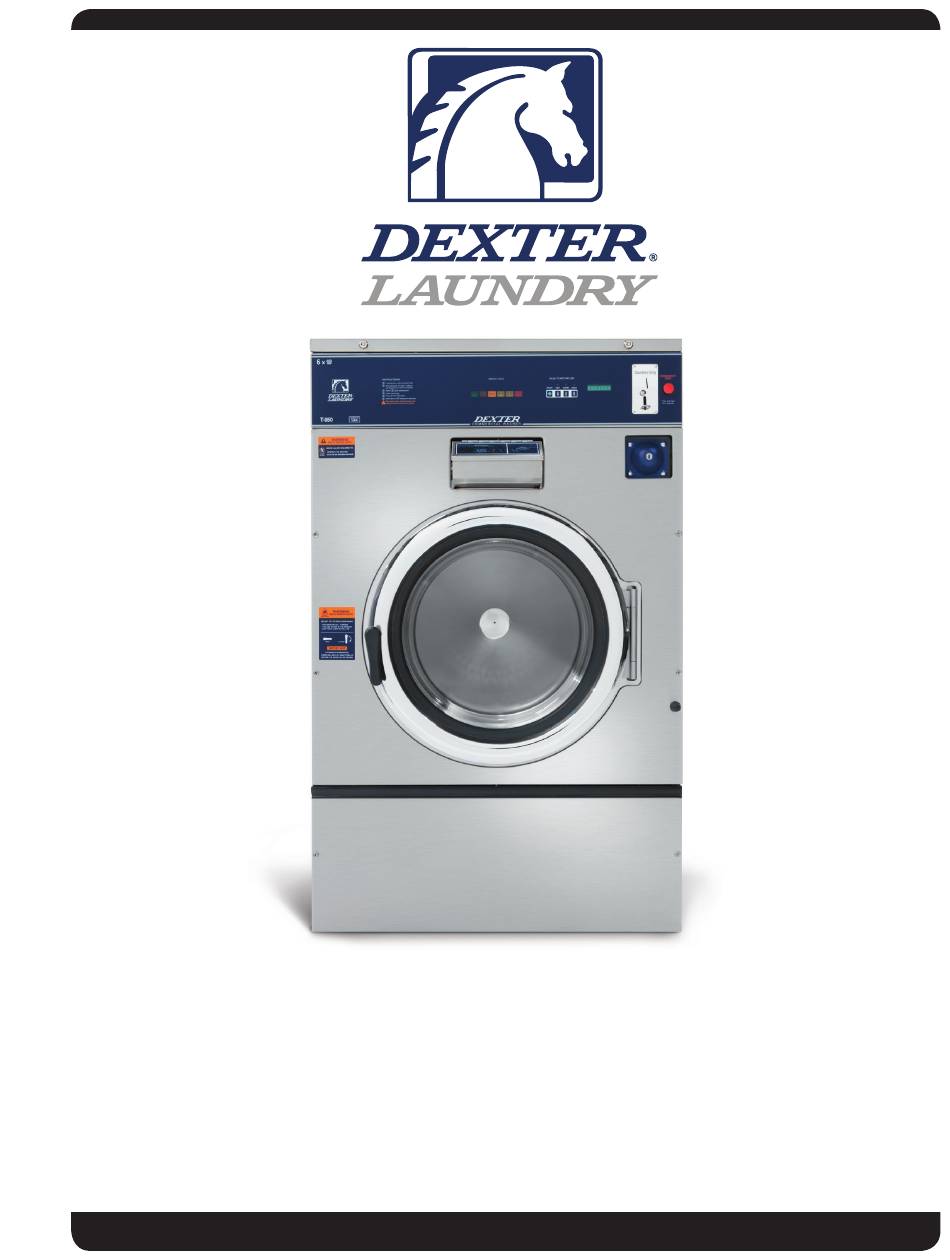

  • Page 1 C-Series Vended Washers WC_ _00XA-12EC_X WC0900XA-12EC_X Before Serial # W1.19212.025 WC1200XA-12EC_X Before Serial # W1.19217.001 Non-Express (100G) 8533-081-001 7/21...
  • Page 2 Equipment Safety Warnings Symbols and Terminology Used in this Equipment Indicates an imminently hazardous situation, which if not avoided, will result in death or serious injury. Indicates a potentially hazardous situation, which if not avoided could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
  • Page 3 Equipment Safety Warnings Symbols and Terminology Used in this Equipment Warning! Do not operate equipment if door glass is damaged in any way. Warning! Keep clear of rotating parts. Prohibited! Do not enter this equipment or space. Prohibited! Do not step or stand on this equipment. Prohibited! Do not operate without all guards and covers in place.
  • Page 4 Indicates an imminently hazardous situation, which if not avoided, will result in death or seri- ous injury. Indicates a potentially hazardous situation, which if not avoided could result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
  • Page 5 WARNING • All washers must be installed in accordance to all applicable electrical, plumbing and all other local codes. • These installation and operation instructions are for use by qualified personnel only. To avoid injury and electrical shock, do not perform any servicing other than that contained in the installation and op- eration instructions, unless qualified.
  • Page 6 WARNING Children should be supervised to ensure they do not operate or play in or around equipment. Keep all panels in place to protect against electrical shock and injury and add rigidity to washer. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a...
  • Page 7 Warning! Do not operate equipment if door glass is damaged in any way. Warning! Keep clear of rotating parts. Prohibited! Do not enter this equipment or space. Prohibited! Do not step or stand on this equip- ment. Prohibited! Do not operate without all guards and covers in place.
  • Page 8 Prohibited! Do not attempt to open, touch, or pro- ceed before referring to the manual or unless quali- fied. Mandatory! Read all supporting documentation be- fore operating or maintaining equipment. Mandatory! Disconnect power before servicing equipment. Mandatory! Lock out and tag out before servicing this equipment.
  • Page 9 Notes Part # 8533-081-001 7/21...

  • Page 10: Table Of Contents

    Dexter Safety Table of Contents Guidelines Section 1: Machine Mounting & Installation WARNING T-900 ............14 T-1200 ............14 T-900 Installation ...........16 T-1200 Installation..........17 These washers are equipped with devices and features relating to their safe operation. To avoid injury or electrical shock, do not perform Section 2: and service, unless qualified to do so.
  • Page 11 Section 7: Door Lock Assembly Operation .......71 Adjustment for the Door Lock Machine Electrical & Wiring Schematics Assembly ........71 & 72 Start Circuit ...........90 Adjusting the Loading Door ......73 Fill Circuit ............90 Loading Door Removal ........73 Wash Circuit ..........91 Loading Door Hinge Removal ......73 Drain, Rinse 1 &...
  • Page 12 Section 10: 50 Hz Models -39 Parts............142-144 50HZ Diagrams & Schematics.....146-149 Section 11: Maintenance Preventative Maintenance ......152 Part # 8533-081-001 7/21...
  • Page 13 Section 1: Machine Mounting Part # 8533-081-001 7/21...
  • Page 14 Specifications for below models are outlined in this book: WC0900-XA12ECX 208-240 volts 60hz. Single Phase or Three Phase WC1200-XA12ECX 208-240 volts 60hz Single Phase or Three Phase        T-900 Machine Dimensions    ...
  • Page 15 Notes Part # 8533-081-001 7/21...
  • Page 16 T-900 Mounting Pad Dimensions CONCRETE PEDESTAL MOUNTING FLOOR OUTLINE Figure 1-1 Figure 1-2 Part # 8533-081-001 7/21...
  • Page 17 T-1200 Mounting Pad Dimensions CONCRETE PEDESTAL MOUNTING FLOOR OUTLINE Figure 1-1 Figure 1-2 Part # 8533-081-001 7/21...

  • Page 18: Machine Mounting & Installation

    Notes Part # 8533-081-001 7/21...

  • Page 19: Machine Installation & Operating Instructions

    Section 2: Machine Installation & Operating Instructions Part # 8533-081-001 7/21...

  • Page 20: Installation

    Installation & Operation All washers must be installed in accordance with all local, state and national building, electrical, and plumbing codes in effect in the area. Foundation Requirements The washer must be securely bolted to a substantial concrete floor, or mounted upon a suitable base which is in turn securely bolted to a substantial concrete floor.

  • Page 21: T-1200 Installation

    Disconnect all power to the washer. Remove screw and lift out the cover located in the upper left corner of the machine (as viewed from the back). • If power is 208-240-3PH-60Hz, connect L1, L2, L3 and ground. If there is a high leg it must be connected to L3.
  • Page 22 Emergency Stop / Safety Door Lock This machine is equipped with a Safety Door Lock that locks the door closed from when the cycle is started until the cycle is complete. The door lock prevents opening the door for up to 3 minutes if the power is interrupted during the cycle.
  • Page 23 D. Insert coins, tokens or activate card reader to meet Detergent Measurements displayed vending price. The washer will start, the By Washer Model display will read PUSH and the green “on” led will glow. The green start pushbutton must be pushed to start cycle time countdown and machine starting to run.

  • Page 24: Basic Installation

    TRANSIENT VOLTAGE SURGE SUPPRESSORS Like most electrical equipment your new machine can be damaged or have its life shortened by voltage surges due to lightning strikes which are not covered by factory warranty. Local power distribution problems also can be detrimental to the life of electrical components. We recommend the installation of transient voltage surge suppressors for your new equipment.
  • Page 25 Notes Part # 8533-081-001 7/21...

  • Page 26: Electrical Connections & Fusing Requirements .21 Emergency Stop Button

    Notes Part # 8533-081-001 7/21...

  • Page 27: Detergent Measurements By Model

    Section 3: Machine Programming Instructions Part # 8533-081-001 7/21...
  • Page 28 DexterLive The new DexterLive controls were created for you to be able to interface easier with your equipment and create variable pricing cycles to increase your profitibility in the same floor 'H[WHU /LYH 3DJH  RI  space. First, log into DexterLive, create your location and equipment list and then create your cycle and pricing information by the particular type of washer and dryer at the location.

  • Page 29: Dexter Live Programing

    First Time Creating an Account at Dexter Live Log into DexterLive At the bottom, select “Create your DexterLive account.” DexterLive gives an owner the ability to manage multiple locations. At the “Create a DexterLive Account” screen. First time users must create an account. An account must be created to use...
  • Page 30 Fill in the required fields and click on “Create My Account”. When creating a new user account make sure to fill in all fields marked with asterisks and check the “Terms of Service” box. After selecting to “Create My Account”, you will see the log in screen advising you to go to your e-mail and activate your account.
  • Page 31 Open the e-mail sent from Dexterlive and select “CONFIRM MY ACCOUNT” Selecting the “Confirm My Account” hyperlink will take you back to the DexterLive log in page. At the “Log into DexterLive” screen, enter your e-mail/user name and password to access DexterLive.
  • Page 32 Programming To configure your settings with DexterLive.com: Add or select a location to program. DexterLive gives an owner the ability to manage multiple locations and machines. On the left side of the screen, select the “Programming” tab. Follow instructions in programming tab.
  • Page 33 Edit the “General Settings” (Equipment Tab) Adjust setting and offset time to match your location. (Time is set for Central Standard Time) Next select the “+Add Equipment” (Equipment Tab), located in the upper right hand corner. Name of the machine. (Example: Dryer 1) Enter serial...
  • Page 34 When all of the equipment has been added, select “Edit” on the machine type you wish to modify, and then select “Pricing”. (Equipment Tab and Machine Settings Tab) Program the price of the machine and the extra pricing adders. Cycle changes can be made by selecting the “Cycles” tab. Adjust cycle programming set the length...
  • Page 35 IF desired, you may create and edit optional store promotions from the “Promotions” Tab. Select “Save Promotion” once your changes have been made. Create and download the Programming File. Once all preferred prices, cycles and promotions have been modified and saved, select “DOWNLOAD PROGRAMMING FILE”.
  • Page 36 Based on your internet browser the file needs to be saved as “AllUser.xml”. Depending on your Internet browser you may need to retrieve the file from your “Downloads” folder, which is located under “Computer”.. Note: The newly created programing file may have changed from the proper “AllUser.xml. Machine programming will not occur using a different file name than “AllUser.xml”.
  • Page 37 The machine will scroll “TO INSTALL – PRESS START”. At this prompt, press the green “Start” again. Once the program is uploaded successfully the control will scroll “DONE REMOVE USB”. The USB drive can be safely removed at this point. Note: All Dexter equipment (washers and dryers) featuring DexterLive controls can be programmed using this file once the equipment has been configured.
  • Page 38 PROGRAMMING INSTRUCTIONS: The washer control can be programmed to prompt the user for alternate vend prices, change washer cycle times, temperatures and many other options. This can be accomplished in two ways: 1. Manual programming utilizing the “Start”, “Hot”, “Warm” and “Cold” buttons 2.
  • Page 39 Programing Selection: These alternate functions allow the user to move through a menu of options to choose various program- mable settings. Figure 2, shown below, shows the top level menu. Choosing an option from the top level menu will then display the next level of options (the sub menu). Figure 2 OPTIONAL_CYCLES ERROR_CODES...
  • Page 40 Optional Cycles Option: This option allows the user to select the different test and short-cycle options. Figure 3 QUICK_TEST OPTIONAL_ RAPID_ADVANCE CYCLES FINAL_RINSE_ AND_SPIN Quick Test Option: When the Quick Test Option is chosen, the washer will begin a shortened wash cycle without the displayed vend price being met.
  • Page 41 Final Rinse and Spin Option: “Final Rinse and Spin” will begin only the Final Rinse Bath and Final Spin portions of the cycle without the displayed vend price being met. The configured temperature, cycle times, and spin speed for the Final Rinse Bath and Final Spin settings will be used when this option is selected.
  • Page 42 Prices Option: This option allows the user to set values for coin acceptor inputs and to set the vend price. It also allows the user to return the values to factory defaults. “RIGHT COIN” and “LEFT COIN” are the two possible inputs from coin acceptors.
  • Page 43 Temp Pricing Option: The Temperature Pricing option allows for the user to prompt the customer for varying vend prices based on the water temperature the customer selects. If a value other then 0 is programmed for either the “WARM ADDER” or “HOT ADDER”, the feature becomes active. The programmed value is added to the base vend price when that particular water temperature is chosen.
  • Page 44 Cycles Option: This option allows the user to set the bath time and spin time for the “Wash” bath. It also allows the user to set bath time, water temperature and spin time for “Rinse” and “Final rinse” baths. (Water temperature for the “Wash”...
  • Page 45 Final Spin: The washer “Final Spin” is the spin that occurs after all selected baths & intermediate spins have been completed. It is a higher spin speed then previously occurring intermediate spins. The benefit of this higher spin speed is that more water is extracted from the wash load, which minimizes the drying time needed. However, in some cases, if the Dexter installation guidelines are not followed properly, it may be necessary to reduce the spin speed of the “Final Spin”.
  • Page 46 Plus Cycle Options: The Plus Cycle options allow for the user to prompt the customer for varying vend prices based on addi- tional wash baths chosen. In general, the user can program the additional wash baths in a similar manner to what was described in the “Cycles”...
  • Page 47 Pre-Wash: If the user programs a “CYCLE TIME” for Pre-Wash other then 0 (“NO CYCLE”), the feature becomes active. However, the customer will not be prompted to pay an additional vend price for Pre-Wash unless the user programs the Price to a value other then 0 (“FREE”). With the Pre-Wash feature active, an additional bath and, optionally, an additional spin, will occur before the standard Wash bath described in the Cycles Options section.
  • Page 48 Settings Options: The Settings options allow for the user to make various programming changes to change how the control operation affects the customer. See below for detailed information on each next level option. It also allows the user to return the programmable values to the factory default setting. To reset all values in the Settings options to factory default, press “Enter”...
  • Page 49 Language: The control uses English for the default language of the customer prompts. Alternatively, the user can choose Spanish or French for the customer display prompts. However, all other prompts, such as Manual Programming, USB Programming and any Error Codes will still display in English. Shift Hours: The control uses a Real Time Clock (RTC) to internally track the time and date.
  • Page 50 Usage Menu: The Usage menu allows for the user to track data about machine usage. See below for detailed information on each sub menu option. Figure 8, shown below, shows the sub menu options for Usage: Coin Audit: The coin audit field shows the accumulation of coin pulses that were sent to the control over each of the left and right coin inputs.
  • Page 51 Motor Hours: The motor hours field shows the accumulated hours of operation for the motor. In many cases, it will match the cycle hours of the machine. However, separate fields are provided in the event that a motor is replaced on a machine.
  • Page 52 Control Menu: The Control menu allows for the user to observe important technical information for the control and Vari- able Frequency Drive system. No changes can be made at this menu. See below for detailed information on each sub menu. Figure 9, shown below, shows the sub menu options for Control: Serial Number: The serial number is the control serial number.
  • Page 53 USB Menu: The USB menu allows for the user to move programming files back and forth from a common USB memory stick. Part # 8533-081-001 7/21...
  • Page 54 Part # 8533-081-001 7/21...
  • Page 55 Part # 8533-081-001 7/21...
  • Page 56 Notes Part # 8533-081-001 7/21...

  • Page 57: Trouble Shooting

    Section 4: Trouble Shooting Part # 8533-081-001 7/21...

  • Page 58: Common Troubleshooting Solutions

    Common Troubleshooting Solutions Symptom Probable Cause Suggested Remedy Machine Power Supply Check these areas: Circuit breakers, Voltage, Power leads, does not Power connections. Is front display LED showing a dollar start amount. Door Switch Check for continuity through door switch when door is closed.
  • Page 59 Common Troubleshooting Solutions Symptom Probable Cause Suggested Remedy Door will Door Rod Check to see that door rod from solenoid to lock ass’y is not open long enough to allow lock ass’y to disengage. If not, adjust rod. Gear Motor Check the door lock motor.
  • Page 60 Common Troubleshooting Solutions Symptom Probable Cause Suggested Remedy Water level Pressure Switch Check for blockage in pressure switch hose. Check for too high pressure switch opening circuit across terminals . Replace switch if contacts do not open. Water Drain System Check hoses and drain valve for blockage.

  • Page 61: Troubleshooting Machine Fault Errors

    Troubleshooting Machine Fault Errors Displayed on front of washer The following pages are a description of fault codes that will appear on the front of the washer. There is a chart format that shows what fault code that will be displayed at washer front.
  • Page 62 Fault Description Customer Action COMM I2C Bus Error Condition Washer controller communication error on the I2C ERROR 1 bus. Both the main slave micro and the master micro can be in this error state. The slave micro error is recoverable at any time, if I2C communication resumes.
  • Page 63 Fault Description Customer Action COMM VFD Non Condition This error is when the washer controller cannot ERROR 4 Existent or communicate with the drive. communication Delay Delay time is 2 seconds fault Action Stop the machine and clear the cycle. Keep the door locked until the machine has stopped moving and then unlock the door.
  • Page 64 Fault Description Customer Action COMM Communication Condition If a state-of-health message reply is not seen by the ERROR 7 Bus Error master microprocessor from the UC3 microprocessor after 10 minutes, the master will reset the UC3 and restart the 10 minute timer. Again, after 10 minutes, if a state-of-health message is not received by the master, it will reset the UC3 a second time.
  • Page 65 Fault Description Customer Action SLOW Drain Error Condition This error is when an empty water level is not DRAIN reach within 7 minutes. ERROR Delay Immediate Action The washer cycle will continue. Do not spin the tumbler with out reaching an empty water level.
  • Page 66 Fault Description Customer Action DRIVE VFD Over-current Condition This error is an over-current on the VF drive Fault Delay Delay time is 35 seconds Action Stop the machine and clear the cycle. Keep the door locked until the machine has stopped moving and then unlock the door.
  • Page 67 Fault Description Customer Action DRIVE Condition This error is over-heating on the VF drive Overheat Delay Occurs following the “DELAY” error (see Fault corresponding detail) Stop the machine and clear the cycle. Keep Action the door locked until the machine has stopped moving and then unlock the door.
  • Page 68 Fault Description Customer Action INVALID Drive is not the Condition The error indicates the VF drive is not a Dexter DRIVE correct Dexter version of the Delta E-drive. version of the Delay Immediate (after the Dexter indication value is Delta E-drive read from drive).
  • Page 69 Fault Description Customer Action CRC ERROR Firmware Condition This error occurs the washer control firmware corrupted fails a CRC check. Delay None Action When detected, the dryer control shall not be operational. Solution The error is fatal. The control must be replaced. Part # 8533-081-001 7/21...

  • Page 70: Motor Resistance Chart

    Vended Drive Motor Inverter Type Motor-Winding Resistance Chart T900 C-Series Washer (208-240 only) Resistance Motor Winding Wire # Minimum Maximum T900 1ph or 3ph 60hz Main (wash & spin) T1 & T2 Dexter #9376-308-001 T2 & T3 Marathon # T1 & T3 T1200 C-Series Washer Resistance Motor...

  • Page 71: Machine Service Procedures

    Section 5: Machine Service Procedures Part # 8533-081-001 7/21...

  • Page 72: Top Panel Removal

    Top Panel Removal Step 1: Remove 4 screws that hold detergent dispenser to top panel. (T750 with top soapdish) if front soap dish go to step 2 Step 2: Unlock top panel lock with the 6324 key. Step 3: Raise top panel, slide to the rear to release from back clips and lift off.

  • Page 73: Detergent Dispenser

    Detergent Dispenser (top) Remove top panel to access dispenser. (see Removing Top Panel) Detergent is flushed from the front of the compartment and fabric softener is flushed from the back. There will be a small amount of water left in the fabric softener compartment after each use. Front Soap Box removal Step 1: Remove front Panel...

  • Page 74: Air Gap

    Vacuum Breaker (also called an air gap) In the left rear of the cabinet is the vacuum breaker. It guides the water to the tub and dispenser and prevents a back flow of water. Water Valves Remove top panel to access water valves. (see Removing Top Panel) The two dual outlet water valves are mounted to the water valve mounting plate that is fastened to the rear channel.

  • Page 75: Door Lock Assembly Operation

    Door Lock Assembly Operation After loading the clothing, the door should be closed and latched. The locking cam on the door contacts the latching switch actuator which closes the latching switch. The specified number of coins should now be added to start the washer. The solenoid pulls up on the locking pawl by use of a linkage rod. The locking pawl has two jobs.
  • Page 76 Door cam Flat blade screw on check position door switch latching Step 3: With switch actuator bracket adjusted you Step 4: Check for switch actuation at partial will now need to adjust single switch by turn of cam as in operation above. Door loosening 2 flat brade screws and allowing handle goes from horizontal to six o’clock swivel of switch.

  • Page 77: Assembly

    Adjusting the Loading Door The door can be adjusted by changing the number of shims behind the door hinge and the door lock assembly. The vertical fit of the door to the tub can be altered by loosening the door hinge bolts and raising or lowering the door before retightening.

  • Page 78: Loading Door Disassembly

    Loading Door Disassembly Step 1: Remove the loading Step 2: While holding down on Step 3: Work all the way around door as outlined above. the door glass, lift up the gasket and the glass Lay the door on a flat on the door ring and roll is out.

  • Page 79: Outer Cabinet Removal

    Outer Cabinet Removal T-300, T350, T-400, T450, T-600 Removal of Cabinet T750, T-900, T-950, T-1200, T-1450 Step 1: The power supply, water hoses, and drain connection must all be disconnected before proceeding with the disassembly. Step 2: Now remove the lower service panel and the top panel assembly. Step 3: Remove the left and right lower front panel screws that retain the panel to the chassis.

  • Page 80: Door Locking Gear Motor

    Door Locking Gear Motor Assembly The door locking gear motor is rotated shut with control voltage to lock the door and releases when voltage is removed. It is located in the left front corner of the washer. (Original l ocking solenoid models can be converted to the new assembly) Thermoactuators Door Lock Gear Motor...

  • Page 81: Tub Back, Bearing And Cylinder Assembly

    Cylinder (basket) Step 1: Remove the top panel as described previously. Step 2: Remove lower service panel as described previously. Step 3: Remove front panel as described previously. Step 4: Remove masking ring as described previously. Step 5: Remove door lock assembly. (Leave wires & pull rod in place) Step 6: Remove clothes door.

  • Page 82: Basket Pulley, Bearing Housing, Water Seals & Tub Back

    Water Seals Replacement Step 1: Remove cylinder from washer (see Cylinder (basket) removal). Step 2: Remove water seals from the seal mounting plate on Guard Ring & Mating Ring the cylinder shaft. These are removed with your fingers. Step 3: The primary and secondary seals that mount on the sealing ring may be slid over the shaft and seated on the metal sealing ring with your fingers.
  • Page 83 Reassembly of the Cylinder Step 1: Use the hub of the drive pulley, a stack of 5/8” flat washers and a 3” long 5/8” bolt to pull the cylinder shaft through the bearings. After the 3” bolt a 2” long bolt will be required to finish pulling the cylinder shaft through.

  • Page 84: Bolt Torque Chart

    T-900, T-950 & T-1200 Bolt Torque Chart Bolt Size Where Used Torque 7/16” Stainless Cap Screw Outer Tub to Bearing Housing 60-80 ft/lbs 3/4” Bolt Bearing Housing to Frame 200-300 ft/lbs 1/2” Bolt Outer Tub Clamping Band to Frame 70-110 ft/lbs 1/2”...
  • Page 85 Section 6: Service Electrical Components Part # 8533-081-001 7/21...

  • Page 86: Control Mounting Trough

    Control Mounting Trough Remove top panel to access control trough. (see Removing Top Panel) It sets on the right side of the machine and holds the control PCB’s, transformers,and pressure switch. Main Data Communication Cable Goes between front PCB board and Variable Frequency Drive unit mounted center rear of machine. It has telephone type connectors at each end and is inserted at Controller PCB and the Variable Frequency Drive.

  • Page 87: Power Connection Terminal Block

    Emergency Stop Button Switch Assembly The stop button is mounted on right side of machine. Remove the top and access the rear of button. Remove the plastic retainer by unthreading CCW. The switch assembly will have to be removed by pressing down on the plastic clip while pulling the switch body away from the stop button.

  • Page 88: Pressure Switch

    Pressure Switch Caution (Not recommended by Factory!) Changing Factory preset adjustment voids all factory water usage specifications. The pressure switch sets the water level in the washer. As the water level rises, it compresses the air in the pressure switch hose. When the washer reaches the desired water level, the compressed air in the pressure switch hose opens the contacts in the switch, shutting off the water.
  • Page 89 Pressure Sensor Electronic The Electronic Pressure Sensor comes standard on all models Starting Septembet, 1st 2015. Machines r Level Chart manufactured before this date can be upgraded with Kit 9732-213-001. The Pressure sensor is adjustable. The Factory settings chart will let you know the starting values for each machine and by following the Switch position chart you can adjust the water levels in 1/4 inch increments from that starting value.
  • Page 90 Water Level Cha                                      ...

  • Page 91: Delta Vfd Dynamic Braking Resistors

    Delta VFD Motor Leads: The wires from the motor are connected to terminals T1, T2, and T3. Since this drive uses pulse width modulation, an accurate current or voltage reading is not possible. Although an accurate current reading is not possible, a balanced current reading should be present while the motor is running. Delta VFD Dynamic Braking Resistors: Two, 160 Ohm or 200 Ohm braking resistors (Please check your washer model parts requirements and quantities), are connected in parallel and attached to the drive at terminals B1 and B2.
  • Page 92 Notes Part # 8533-081-001 7/21...
  • Page 93 Section 7: Electrical Wiring Diagrams & Schematics Part # 8533-081-001 7/21...

  • Page 94: Start Circuit

    Electrical Path Circuit Schematics Start Circuit Power travels into the machine on L1 & L2 & (L3, if 3 phase used). L1 and L2 provide 208- 240VAC to the controls transformer which steps the voltage down to 120VAC for the controls. (The L1 connec- tion at the controls transformer must be checked at start-up to coincide with machine operating voltage) The 120VAC travels out from the transformer on either [X-1 red wire directly to the 1.5 amp fuse] or [X-1...

  • Page 95: Wash Circuit

    The prewash or wash LED will illuminate at this time, powered through the white wires from the P-3 con- nection of the main control PCB to the LED printed circuit board. Using the factory preset cycle as an example: The washer fills the tub through the back of the machine with either one or both the C1 cold and H1 hot water valves.

  • Page 96: Thermoactuator And Shake Out Circuit

    Unlock Thermoactuator and Shake Out Circuit 70 seconds before the end of the cycle the main control PCB signals the relay PCB to remove 120VAC from the orange/blue wire at the P-17 connector on the lock thermoactuator. This allows the lock thermo- actuator time to cool and retract by the end of the cycle.
  • Page 97 Notes Part # 8533-081-001 7/21...

  • Page 98: Diagrams & Schematics

    Non-Express or Express: 208-240V Schematic Part # 8533-081-001 7/21...
  • Page 99 Non-Express or Express: 208-240 Volt Wiring Diagram Part # 8533-081-001 7/21...
  • Page 100 Notes Part # 8533-081-001 7/21...

  • Page 101: Parts Data

    Section 8: Parts Data C-Series Vended Large Chassis WC0900XA-12EC_X Before Serial # W1.19212.025 WC1200XA-12EC_X Before Serial # W1.19217.001 Part # 8533-081-001 7/21...

  • Page 102: A-Series Accessories

    C-Series Accessories WC0900-XA12ECX 208-240 volts 60hz. Single Phase or Three Phase WC01200-XA12ECX 208-240 volts 60hz Single Phase or Three Phase Description T900 T1200 Hose, Water Supply 3/8” I.D. x 48” Hose, Water Supply 5/8” I.D. x 48” 9990-027-013 Hose, Water Supply 5/8” I.D. x 48” 9990-027-013 Washer, Inlet Hose (furnished) 8641-242-000...

  • Page 103: Wiring Harness Part # By Model

    Wiring Harness Part # by Model Description T-900 T-1200 Wiring Harness, Door Lock 9627-791-005 9627-791-005 Wiring Harness,CoinDrop Mech 9627-792-001 9627-792-001 Wiring Harness, Drain,Thermo,DoorSol 9627-796-002 9627-796-002 Data Cable 9806-015-001 9806-015-003 Wiring Harness P20/P21 9627-793-001 9627-793-001 Wiring Harness P8/P16 9627-794-001 9627-794-001 Wiring Harness WaterValve/P19 9627-795-004 9627-795-004 Wiring Harness LED PCB...

  • Page 104: Cabinet And Front Panel Group Part # By Model

    Cabinet and Front Panel Group Part # by Model Description T900 T1200 Panel, Side (Left or Right) - stainless 9732-359-002 9732-359-003 Strap Assembly (side panel) 9966-012-001 9966-012-002 Shim (side panel) 9552-039-001 9552-042-001 Nut, Hex 1/4-20 UNC 8640-414-006 8640-414-006 Bracket, Side Panel under front panel 9046-085-001 9046-085-001 •...
  • Page 105 11, 12 7, 8 18, 19 11, 12 7, 8 18, 19 Description T900 T1200 Handle (bumper guard) 9244-086-003 9244-086-003 Rivet Blind 3/16” Alum 9491-009-003 9491-009-003 Screw 9545-045-010 9545-045-010 Screw Mtg., Flat Head 10Bx1 3/4 9545-008-014 9545-008-014 Washer, Finish 8641-585-001 8641-585-001 Nut, Spring 8640-399-008...

  • Page 106: Soap Dish

    Cabinet and Front Panel Group Part # by Model Front Soap Dish 12 11 Gasket and Soap Tub Front Here Dish Here Part # 8533-081-001 7/21...
  • Page 107 Description T900 T1200 Washer Flat 5/16 8641-581-008 8641-581-008 Screw, Locator 9545-008-023 9545-008-023 Plastic Sleeve, Locator 9355-001-001 9355-001-001 Catch, Top Panel 9086-017-001 9086-017-001 Lock, Top (w/Key) 8650-012-003 8650-012-003 Front Mount Detergent Dispenser Key Description T900 T1200 Bolt,#10-32 x 1 1/4”SS 9545-012-026 9545-012-026 Special Washer, Rubber 8641-222-000...

  • Page 108: Rear View Access Part # By Model

    Rear View Access Part # by Model Description T900 T1200 Drive Motor, 3 Phase 9376-308-001 9376-329-001 Rod, Motor Mtg 9497-222-004 9497-222-004 Motor-Bushing, Support 9053-082-001 9053-082-001 Clamp for motor bushing 8654-117-019 8654-117-019 Pulley, Motor 9453-175-002 9453-175-002 Split TaperBushing (motor pulley) 9053-077-001 Screw taper bushing 1/4-20x1 9545-018-024 Bolt, Eye (1/4”-20x1/2”)
  • Page 109 50 Lb. Pulley 14, 15 10, 11, 12 3, 4 3, 4 Description T900 T1200 Panel Assy., Back 9989-526-001 Panel Assy., Back, Upper 9454-905-001 Panel Assy., Back, Lower 9989-904-001 Screw Panel Mtg.#10Bx1/2” 9545-008-026 Screw Panel Mtg.#10Bx1/2” 9545-008-026 Nut, Spring 8640-399-008 8640-399-008 Screw, To Base-1/4”...

  • Page 110: Cylinder, Seals & Bearings Part # By Model

    Cylinder, Seals & Bearings Part # by Model Description T900 T1200 Bearings and Seal Kit 9732-219-007 9732-219-007 Housing, Bearing- Assembly (items #2-#6) 9803-187-001 9803-187-001 Housing, Bearing 9241-181-004 9241-181-004 Bearing, Front (Small) 9036-159-006 9036-159-006 Bearing, Rear (Large) 9036-159-005 9036-159-005 Spacer, Bearing 9538-170-001 9538-170-001 Ring, Bearing Retainer...
  • Page 111 11 G 22,23,24 14,15,16,17 Part # 8533-081-001 7/21...

  • Page 112: Door Lock Part # By Model

    Door Lock Assembly (All Models) Key Description All Models Key Description All Models Lock Assy, Complete (#1-22) 9885-024-001 Ring, Retaining 9487-200-005 (includes #1 thru #22) Washer 8641-581-031 Plate Assy, Door Lock 9982-346-001 Switch, Latching Sensing 9539-461-008 Washer, Flat (SS or Brass) 8641-581-030 Shield, Switch 9550-169-003...
  • Page 113 Gear Motor Door Lock Assembly Description T900 T1200 Actuator Assembly (Includes 1-10, Rod NOT 9892-015-001 9892-015-001 included) Bracket Assy, Slide Lock Actuator 9985-190-001 9985-190-001 Bracket Assy, Slide - Unlock 9985-189-001 9985-189-001 Bracket Slide Lock 9029-204-001 9029-204-001 Spacer, Plastic 9538-157-021 9538-157-021 Arm - Door Lock 9001-063-001 9001-063-001...

  • Page 114: Loading Door Part # By Model

    Large Door & Hinge Group Description T900 T1200 Door Hinge Assembly (mounts to tub front) 9955-031-001 9955-031-001 Door Assembly Complete 9960-310-001 9960-310-001 Door Ring 180 degree large hnge 9487-275-001 9487-275-001 Door Gasket 9206-431-001 9206-431-001 Door Glass Window 9635-020-001 9635-020-001 Red Wire (Door Close Switch) 8220-063-028 8220-063-028 Black Wire (Door Close Switch)
  • Page 115 Description T-900 T-1200 Shaft Assembly-Loading Door (11-14) 99134-003 9913-134-003 Shaft, Door Locking 9537-195-002 9537-195-002 Cam, Locking 9095-040-002 9095-040-002 Pin, Groove (1 1/4) 9451-181-005 9451-181-005 Pin, Groove (3/4) 9451-181-004 9451-181-004 Spring, Lock Cam 9534-360-002 9534-360-002 Handle, Door 9244-091-001 9244-091-001 Pin, Door Handle (groove) 9451-181-005 9451-181-005 Trim, Edge...

  • Page 116: Water Inlet Part # By Model

    Water Inlet & Rear Channel Key Description T900 T1200 Channel Assembly, Rear 9497-028-001 9497-028-001 Screw, #10B x 1/2 9545-008-026 9545-008-026 Clip, Spring 8640-399-004 8640-399-004 Mounting Plate Water Valves 9452-814-001 9452-814-001 Nut-Elastic stop, #10-32 8640-413-002 8640-413-002 Valve, Water Inlet (dual outlet) (see Water Inlet Valve 9379-183-010 9379-183-010 Breakdown for individual parts)
  • Page 117 15 14 24 23 28, 29 Description T900 T1200 Braking resistors (200 ohm) 9483-004-003 9483-004-003 Screw-#10Bx1/2 9545-008-026 9545-008-026 Wire Assy, Jumper 8220-117-002 8220-117-002 Screw, #6-32x5/16 9545-044-006 9545-044-006 Nut, #6-32 8640-411-003 8640-411-003 Cover Controls 9074-267-001 9074-267-001 Screw-#10Bx1/2 9545-008-026 9545-008-026 Label-Warning, Notice 8502-761-001 8502-761-001 Part # 8533-081-001 7/21...

  • Page 118: Water Hose Routing

              Part # 8533-081-001 7/21...
  • Page 119       2, 4  2, 4 2, 4  6, 8 3, 5, 7     Description T900 T1200 9242-453-006 Hose-water,20” 1/2 I.D. 9242-453-009 Hose-water,23” 1/2 I.D 9242-453-018 Hose-water,29” 1/2 I.D 9242-453-020 Hose-water,18” 1/2 I.D 9242-453-021 Hose-water,31”...

  • Page 120: Water Inlet Valve Breakdown L

    Water Inlet Valve Breakdown Part # by Model Key Description T900 T1200 Valve, Water Inlet (includes 1 thru 6) - Inven- 9379-183-012 9379-183-012 Screen, Inlet end of valve 9555-056-001 9555-056-001 Coil Assy., 120 V Invensys 9089-017-001 9089-017-001 Diaphragm Invensys (EPDM) 9118-049-001 9118-049-001 Diaphragm Invensys (Viton)
  • Page 121 Key Description T1200 Single Coil Water Valve Mueller 9379-194-001 Valve Water Body Complete 9379-194-002 (no coil) Diaphragm Mueller 9118-055-001 Filter Mueller 9183-046-001 Coil Mueller 9089-051-001 Part # 8533-081-001 7/21...

  • Page 122: Drain Valve Group Part # By Model

    Drain Valve Group Part # by Model Key Description Part Number Valve, Drain (includes #2 thru #11 9379-202-001 Body, Valve (w/ball) 9064-072-001 Motor & Gear Train (complete) 9914-137-023 Plate, Motor Mtg 9452-538-001 Screw 8639-994-001 Spring, Drive 9534-339-001 Screw 9545-054-001 Screw 9545-054-002 Seal, V Packer 9532-134-001...
  • Page 123 Notes Part # 8533-081-001 7/21...

  • Page 124: Chassis And Drain Part # By Model

    Chassis and Drain Part # by Model Description T-900 T-1200 Base Assy,Frame 9945-128-002 9945-125-002 Outer Tub Assy 9930-156-001 9930-149-001 Tub & Cylinder Assy 9869-027-001 9869-022-002 Tub Front 9974-011-002 9974-011-002 Gasket, Tub Front 9206-421-002 9206-421-002 Ring Assy, Tub Mtg-Front Clamp 9950-055-001 9950-055-001 Bolt, Top Front Ring 3/8”-16 x 3”...
  • Page 125 7, 8, 9 8, 9 7, 9 5, 6 Part # 8533-081-001 7/21...
  • Page 126 Description T900 T1200 Trough Assy,Controls 208-240 volt (all parts below #2-#43 9857-206-001 9857-207-001 & trough) Trough only 9839-018-001 9839-018-001 Screw, Trough Sides 9545-008-026 9545-008-026 Lockwasher #10 8641-582-006 8641-582-006 Spreader-Chanel, Trough 9081-136-001 9081-136-001 Screw, Mtg #10Bx1/2” 9545-008-026 9545-008-026 Transformer, Control (Secondary Voltage to 115 volts) 8711-004-001 8711-004-001 Screw, Mtg #10Bx1/2”...

  • Page 127: Electrical Components - Top Compartment

    Electrical Components - Top Compartment 4, 5, 6 Part # 8533-081-001 7/21...

  • Page 128: Control Panel Part # By Model

    Control Panel Part # by Model Description T900 T1200 Panel Control Assembly(panel only) 9989-560-001 9989-560-001 Screw, to Side Panels 5/16, Hxwshrhdundct #10Bx 9545-008-026 9545-008-026 1/2” Plate-Latch, Top 9452-625-001 9452-625-001 Nut, #8-32 8640-412-005 8640-412-005 Locator Panel 9355-001-001 9355-001-001 Screw FillHDCR 10Bx1/2” Guide 9545-008-023 9545-008-023 Spacer Pushbutton (Micro)
  • Page 129 4, 5 Part # 8533-081-001 7/21...
  • Page 130 Labels and Diagrams Description T-900 T-1200 Wiring Diagram and Schematic, Coin 9506-535-001 9506-539-001 Transient Voltage Surge Suppressor Infomational 8507-330-001 8507-330-001 Label High Voltage Warning 8502-614-004 8502-614-004 Label Fusing & Installation 8502-619-003 8502-619-003 Label Quality 8511-001-002 8511-001-002 Label Warning Door Opening (Blue) 8502-757-002 8502-757-002 Label Warning Door Opening (Black)

  • Page 131: Coin Handling

    Section 9: Coin Handling Parts: Wiring Diagrams & Schematics & maintenance Procedures Part # 8533-081-001 7/21...

  • Page 132: Optical Switch

    Optical Coin Acceptor Starting after serial# 515483 Description T900 T1200 Optical Coin Acceptor 9021-041-001 9021-041-001 Replacement Optical Sensor 9801-099-001 9801-099-001 Screw, Highth Bar, 3mm 9545-039-002 9545-039-002 Part # 8533-081-001 7/21...

  • Page 133: Imonex

    Kit - Electronic Acceptor Conversion for WCAD (USA and Canada) Description T900 T1200 KIT - Electronic Acceptor Conversion for WCAD (USA 9732-285-007 9732-285-007 and Canada) Contact the Dexter Factory for Other Countries Electronic Coin Acceptor (USA and Canada) 9021-028-001 9021-028-001 Harness for Electronic Coin Acceptor 9627-845-001 9627-845-001...

  • Page 134: Munzpurfer Electronic + Troubleshooting

    Electronic Acceptor Coin Drop Setting the electronic coin acceptor switches Some washer models come equipped with an electronic coin acceptor. Follow the instructions below for setting the switches for the desired country and currencies. 1. The electronic coin acceptor has switch settings depending on the coins and country. See the table below for available values of the left and right coin inputs for the available countries.
  • Page 135     Part # 8533-081-001 7/21...
  • Page 136     Part # 8533-081-001 7/21...
  • Page 137    Part # 8533-081-001 7/21 ...

  • Page 138: Labels And Diagrams All Wcad Models

    Maintenance Instructions Electronic Acceptor Cleaning the electronic coin selector The EMP 500 v5 is an extraordinarily robust coin selector and operates relatively maintenance free. However, it should be cleaned at regular intervals (minimum once a year) especially if it is operating in an environment with high levels of dust, smoke or nicotine.
  • Page 139 Notes Part # 8533-081-001 7/21...
  • Page 140 T900 Non-Express Vended Schematic Part # 8533-081-001 7/21...
  • Page 141 T900 Non-Express Vended Diagram Part # 8533-081-001 7/21...
  • Page 142 T1200 Non-Express Vended Schematic Part # 8533-081-001 7/21...
  • Page 143 T1200 Non-Express Vended Diagram Part # 8533-081-001 7/21...
  • Page 144 Notes Part # 8533-081-001 7/21...
  • Page 145 Section :10 Parts 50Hz Models: Parts in this section used only in these models. All other parts are same as standard 60 Hz pages. Wiring Diagrams & Schematics Part # 8533-081-001 7/21...
  • Page 146 Transformer, Electrical -39 models WC0900-XA39ECX 230 volts 50hz. Single Phase WC01200-XA39ECX 230 volts 50hz Single Phase Key Component T900 T1200 Circuit Breaker 5198-211-002 5198-211-002 Instructions, Transformer Connect 8507-449-002 8507-449-002 Controls Transformer, 200/250-24V 50Hz. 8711-004-003 8711-004-003 Water Valve 9379-183-013 9379-183-013 Diaphragm Invensys (EPDM) 9118-049-001 9118-049-001 Diaphragm Invensys (Viton)
  • Page 147 Drain Valve Group 50 HZ Key Description Part Number Valve, Drain (includes #2 thru #11 9379-202-002 Body, Valve (w/ball) 9064-072-001 Motor & Gear Train (complete) 9914-137-022 Plate, Motor Mtg 9452-538-001 Screw 8639-994-001 Spring, Drive 9534-339-001 Screw 9545-054-001 Screw 9545-054-002 Seal, V Packer 9532-134-001 Washer 8641-584-001...
  • Page 148 Door Lock Motor Assy # by Model 50Hz. Description T900 T1200 Actuator Assembly (Includes 1-10, Rod NOT in- 9892-015-002 9892-015-002 cluded) Bracket Assy, Slide Lock Actuator 9985-190-001 9985-190-001 Bracket Assy, Slide - Unlock 9985-189-001 9985-189-001 Bracket Slide Lock 9029-204-001 9029-204-001 Spacer, Plastic 9538-157-021 9538-157-021...
  • Page 149 Notes Part # 8533-081-001 7/21...
  • Page 150 T900 230/50/1 Voltage Schematic Part # 8533-081-001 7/21...
  • Page 151 T900 230/50/1 Voltage Diagram Part # 8533-081-001 7/21...
  • Page 152 T1200 230/50/1 Voltage Schematic Part # 8533-081-001 7/21...
  • Page 153 T1200 230/50/1 Voltage Diagram Part # 8533-081-001 7/21...
  • Page 154 Notes Part # 8533-081-001 7/21...
  • Page 155 Section :11 Maintenance Part # 8533-081-001 7/21...
  • Page 156 Preventative Maintenance Daily Step 1: Check that the loading door remains securely locked and cannot be opened during an entire cycle. Step 2: Clean the top, front, and sides of the cabinet to remove residue. Step 3: Clean the soap dispenser and lid and check that all dispenser mounting screws are in-place and tight.
  • Page 157 Notes Part # 8533-081-001 7/21...
  • Page 158 Notes Part # 8533-081-001 7/21...
