- Page 2 P/N 8514-070-001 MODEL 400 EXPRESS 25LB CAPACITY COMPUTER CONTROL COIN-OP WASHER DEXTER COMPANY OWNER'S BOOKLET INSTALLATION & OPERATION INSTRUCTIONS Please read this information and retain for reference. WARNING - THIS WASHER IS EQUIPPED WITH DEVICES AND FEATURES RELATING TO ITS SAFE OPERATION.
-
Page 3: Installation Instructions

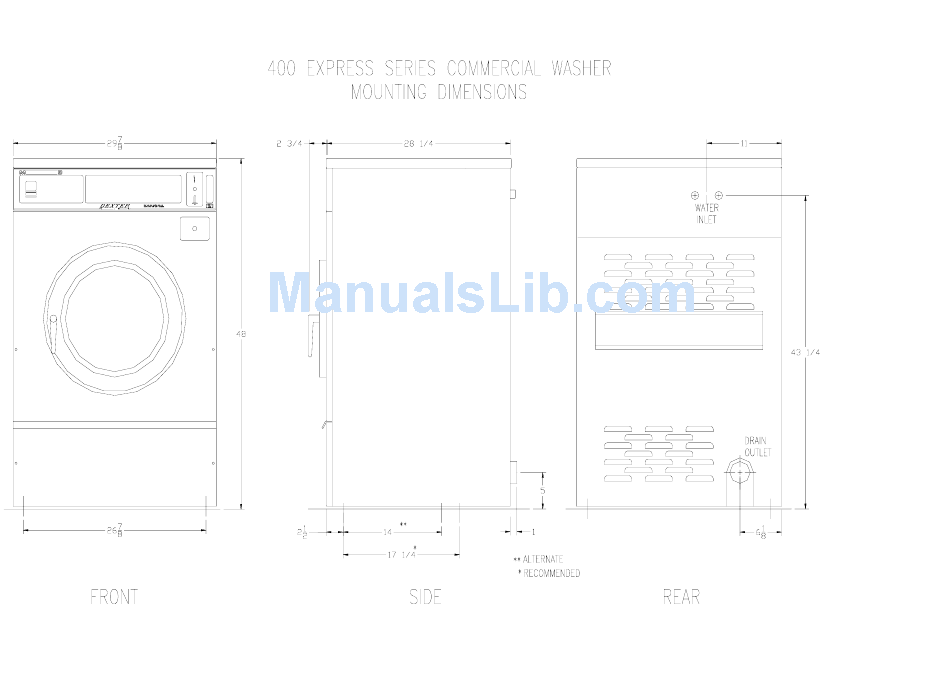

MODEL 400 WASHER DEXTER COMPANY INSTALLATION INSTRUCTIONS All washers must be installed in accordance with all local, state and national building, electrical, plumbing and other codes in effect in the area. WARNING - THESE INSTALLATION AND SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED PERSONNEL ONLY. TO AVOID INJURY... - Page 5 WARNING SHUT OFF POWER AND WATER BEFORE OPENING ANY SERVICE PANELS. The Dexter 400 single-/three-phase 208-240VAC 60 Hz washing machines are intended to be permanently installed appliances. No power cord is provided. The machine should be connected to an individual branch circuit not shared by lighting or other equipment. The connection should be sheathed in liquid tight flexible conduit, or equivalent, with conductors of the proper size and insulation.
-
Page 6: Specifications
CHECKOUT After all mounting, plumbing and electrical work is completed, the washer should be run through a cycle and checked for water leaks and proper functioning. SPECIFICATIONS MODEL 25LB EXPRESS WASHER CAPACITY 25LBS/3.8 CUBIC FT. (11.3 kg/108 L) CYLINDER SIZE 25”... -
Page 7: Starting The Washer
STARTING THE WASHER A. Load the clothes into the cylinder and latch the door securely. Be sure clothing does not get caught between the door gasket and tub front when closing the door. Do not overload the washer. B. Select the appropriate cycle temperatures for the load being washed. C. -
Page 8: Programming Instructions
Programming can be accomplished manually using the machine controls or by connecting to the machine control using a PDA (personal digital assistant). For instructions on using a PDA with this washer control, please contact your local Dexter distributor. Please read below for manual programming instructions. - Page 9 Coin/Price programming mode, push the Cold temperature button for 5 seconds. WATER TEMPERATURE PRICING The washer can be set for different levels of pricing for Cold, Warm and Hot water. The Cold water setting is considered as the base price, which is the normal washer cycle price. Stage 4: Warm Water Price –...
- Page 10 To change a feature of the wash cycle, push and hold the Hot temperature button and then push the programming pushbutton on the controller. The Washer mush be in the Idle mode to enter the Wash Cycle Programming mode. When entering the cycle programming mode the Bleach LED will start to blink and continue to blink as long as you are in the Cycle Programming mode.
- Page 11 The selected bath LED begins to blink. The display shows the letters “ct” in the left two digits and the bath cycle time in the right two digits. Again the up/down buttons change this value. The range is shown below. If zero time is entered, then the bath will be skipped and the program will return to the bath selection.
- Page 12 Delay Fill “dF” The selections are “d” for delay the bath time until water level is reached or “t” for decrement bath time during the fill. Spin Time “S” 0 to 10 minutes for Prewash, Wash, Rinse1 and Rinse2 1 to 10 minutes for Final Spin. “IS”...
- Page 13 Hose, Water Supply 8641-242-000 Washer, Inlet Hose 9565-003-001 Strainer, Inlet Hose INSTALLATION: (Available through Dexter Distributor): 9242-417-003 3” (76 mm) Flex Drain Hose, 10 ft. length (3 meters) Contact your distributor or The Dexter Company if a steel-mounting base is required.
