Negative Multiplexed Locks
All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle's lock / unlock
switch.
Verification: This wire will show variable ground when the switch is activated.
Please consult the wire and location chart for specific resistor values for
your vehicle.

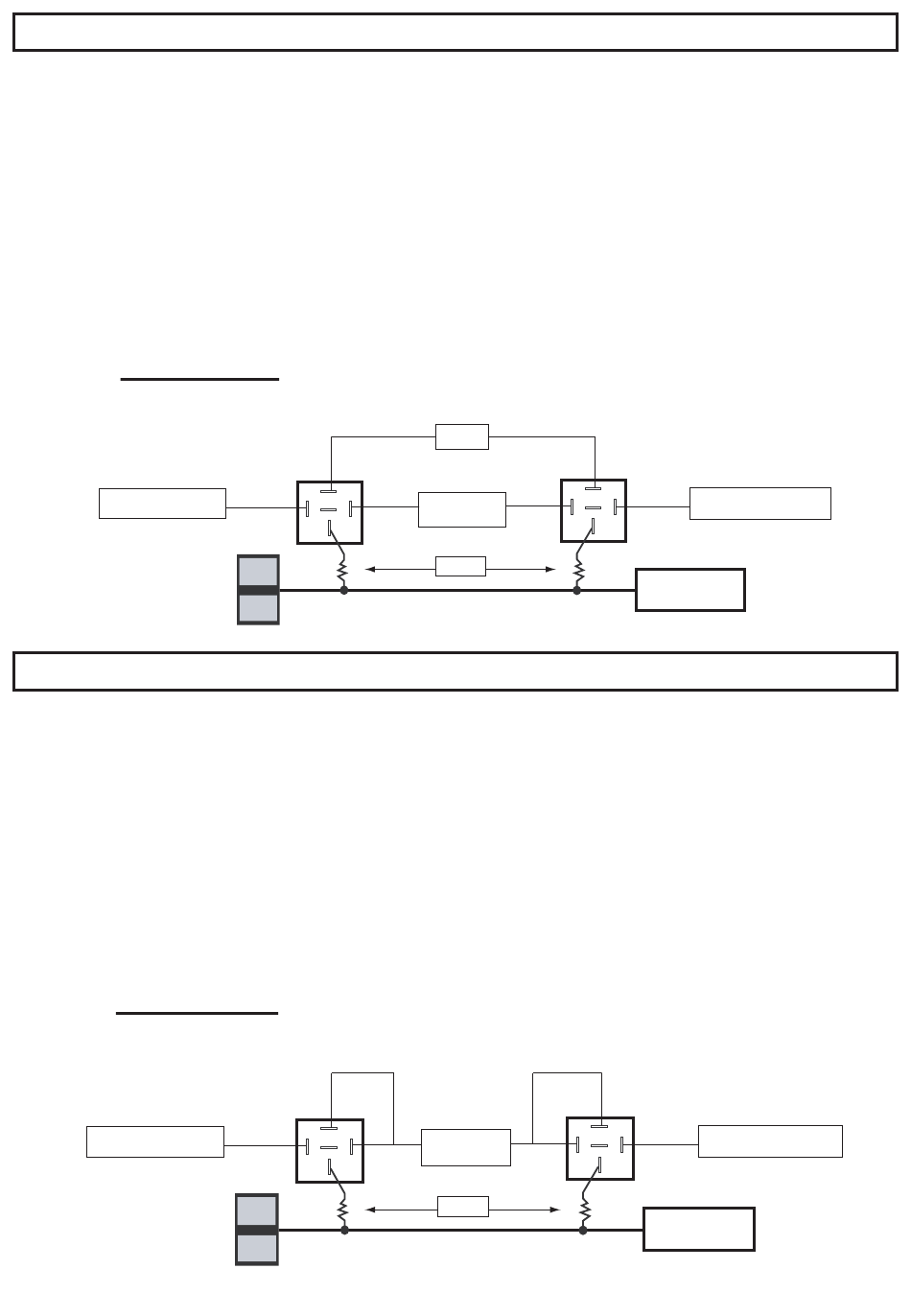

Connect the GREEN and BLUE or BLUE/GREEN wires shown in the diagram below
using (2) SPDT relays (not supplied).
Multiplex Locks:
GREEN ( - ) Lock Output
Positive Multiplexed Locks
All Door Lock and Unlock: Locate the lock / unlock wire at the vehicle's lock / unlock
switch.
Verification: This wire will show variable positive voltage when the switch is
activated. Please consult the wire and location chart for specific resistor
values for your vehicle.
Connect the GREEN and BLUE or BLUE/GREEN wires shown in the diagram below
using (2) SPDT relays (not supplied).
Multiplex Locks:
GREEN ( - ) Lock Output
