Code Alarm PROFESSIONAL Series Installation Quick Reference Manual

Programming Note:
P
The default wire function settings are listed next
to the wire color. Wires shown with can be
P
programmed to perform different functions.
Refer to the Feature Programming section to
change the default setting.
Replacement Part
STARTER INTERUPT RELAY & HARNESS
Replacement Part
#1024405
ORANGE 86 - ARMED OUTPUT ( - )
87
RED 85 - IGNITION ( + )
87a
BLACK 87A - STARTER OUTPUT - MOTOR SIDE
86 85
WHITE / BLACK 30 - STARTER INPUT - KEY SIDE
30
OPEN 87 - OPEN
BROWN
RED
BLACK
Power / Notification
BROWN/BLACK
Harness
(12-Pin) VIOLET/BLACK
VIOLET
GREEN/BLACK
Replacement Part
WHITE
WHITE/RED
WHITE
WHITE/BLACK
BLUE/BLACK
SHOCK SENSOR PORT
LED
(2-Pin)
LED PORT
Replacement Part
PURPLE
Input / Output GREEN/BLACK
OPEN
Harness
(10-Pin)
GREEN
Replacement Part
ORANGE
BROWN/BLACK
VIOLET/BLACK
GRAY
YELLOW
Valet Harness
(2-Pin) RED/WHITE
Replacement Part
PROGRAMMING / VALET PORT
DBI PORT
SIREN OUTPUT ( + )
BATTERY 12V ( + )
GROUND
UNLOCK SWITCH ( 87A )
UNLOCK POLARITY ( 87 )
LOCK POLARITY ( 87 )
LOCK MOTOR ( 30 )
P
PARKING LIGHT OUTPUT
P
PARKING LIGHT INPUT
PARKING LIGHT OUTPUT
P
LOCK SWITCH ( 87A )
UNLOCK MOTOR ( 30 )
P
DOOR TRIGGER INPUT ( + )
FACTORY DISARM OUTPUT ( - )
P
DOOR TRIGGER INPUT ( - )
ARMED OUTPUT ( - )
P
HORN OUTPUT ( - )
AUX 1 OUTPUT ( - )
P
HOOD PIN INPUT ( - )
IGNITION INPUT ( + )
TRUNK RELEASE OUTPUT ( - )
P
SHOCK SENSOR & HARNESS
Replacement Part
#4700023
RED BATTERY 12V ( + )
BLACK GROUND WHEN ARMED ( - )
BLUE FULL TRIGGER ( - )
GREEN WARN AWAY TRIGGER ( - )
Adjusting the Shock Sensor
1. Increase sensitivity by turning the adjustment dial clockwise.
2. Decrease sensitivity by turning the adjustment dial counter clockwise.
Testing the Shock Sensor
Arm the system and wait 6 seconds for the zone to stabilize, then firmly strike the
vehicles bumper.
Security Trigger Zones
If the security system has been triggered the LED will flash one of the patterns below
indicating the zone.
LED FLASHES TRIGGER ZONE
2 Flashes Hood / Trunk Input
3 Flashes Door Input
4 Flashes Shock Sensor
5 Flashes Ignition Input
PROFESSIONAL
SERIES
Security and Keyless Entry
Installation Quick Reference
Guide
for model:

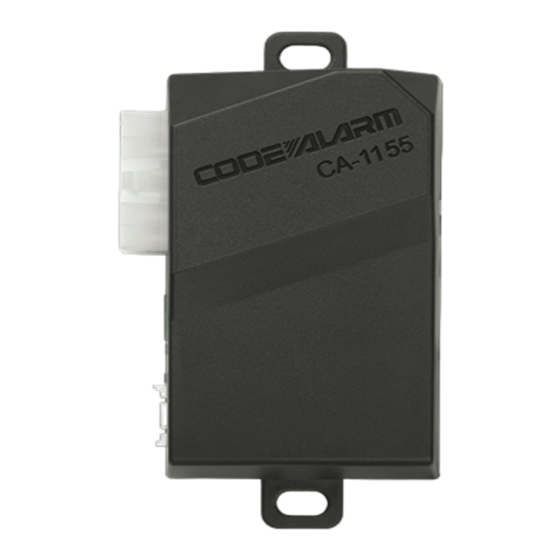

ca1155
**This guide is a reference for module firmware version 5.0 or higher**
Complete guides also available at
www.voxxuniversity.com
2 0 2 0 V o x x E l e c t r o n i c s C o r p o r a t i o n . A l l r i g h t s r e s e r v e d .
ca1155 Quick Ref. rev C
