Forging Mount HY9190 Installation Instructions

www.forgingmount.com

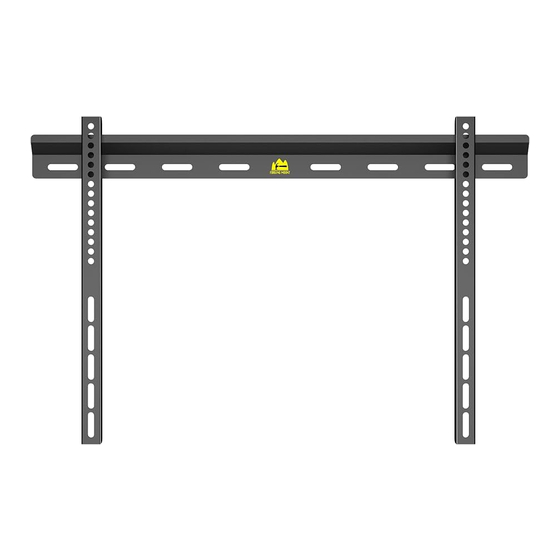

Slim Fixed Wall Mount
Model: HY9190
VESA: 600mmx400mm (Max)
Getting Started
Please read throuth these instructions completely to be sure you're comfortable with this install process. Also check your TV
owner's manual to see if there are any special requirements for mounting your TV.If you do not understand these instructions
or have doubts about the safety of the installation,assembly or use of this product,please contact US via: forgingmount888@163.com
UNPACKING INSTRUCTIONS
Carefully open the carton, remove contents and lay out on cardboard or other protective surface to avoid damage.
Check package contents against the Supplied Parts List in the next page to assure that all components were received
undamaged. Do not use damaged or defective parts.
Carefully read all instructions before attempting installation.
IMPORTANT SAFETY INFORMATION
Install and operate this device with care. Please read this instruction before beginning the installation, and carefully follow all
instructions contained herein. Use proper safety equipment during installation.
Please call a quali ed installation contractor for help if you:
If you don't understand these directions or have any doubts about the safety of the installation.
If you are uncertain about the nature of your wall, consult a quali ed installation contractor.
Do not use this product for any purpose or in any con guration not explicitly speci ed in this instruction. We hereby disclaim
any and all liability for injury or damage arising from incorrect assembly, incorrect mounting, or incorrect use of this product.
!
WARNING
Tools Required
Note:
The mounting components and hardware supplied in this package are not designed for installations to walls with steel studs or to cinder
block walls. If the hardware you need for your installation is not included, please consult your local hardware store for proper mounting
hardware for the application.
60kg
MAX
This TV mount must be securely attached to the vertical wall. If the mount is not
properly installed it may fall, resulting in possible injury and/or damage.
4mm Drill Bit
Phillips Screwdriver
Installation Instruction
CAUTION!
10mm Masonry Bit
Stud Finder
1
English
Wrench or Socket Set
Carpenter's Level
