Front Panel; Rear Panel - Intellinet IMC-MMSCG Instructions Manual

Instructions

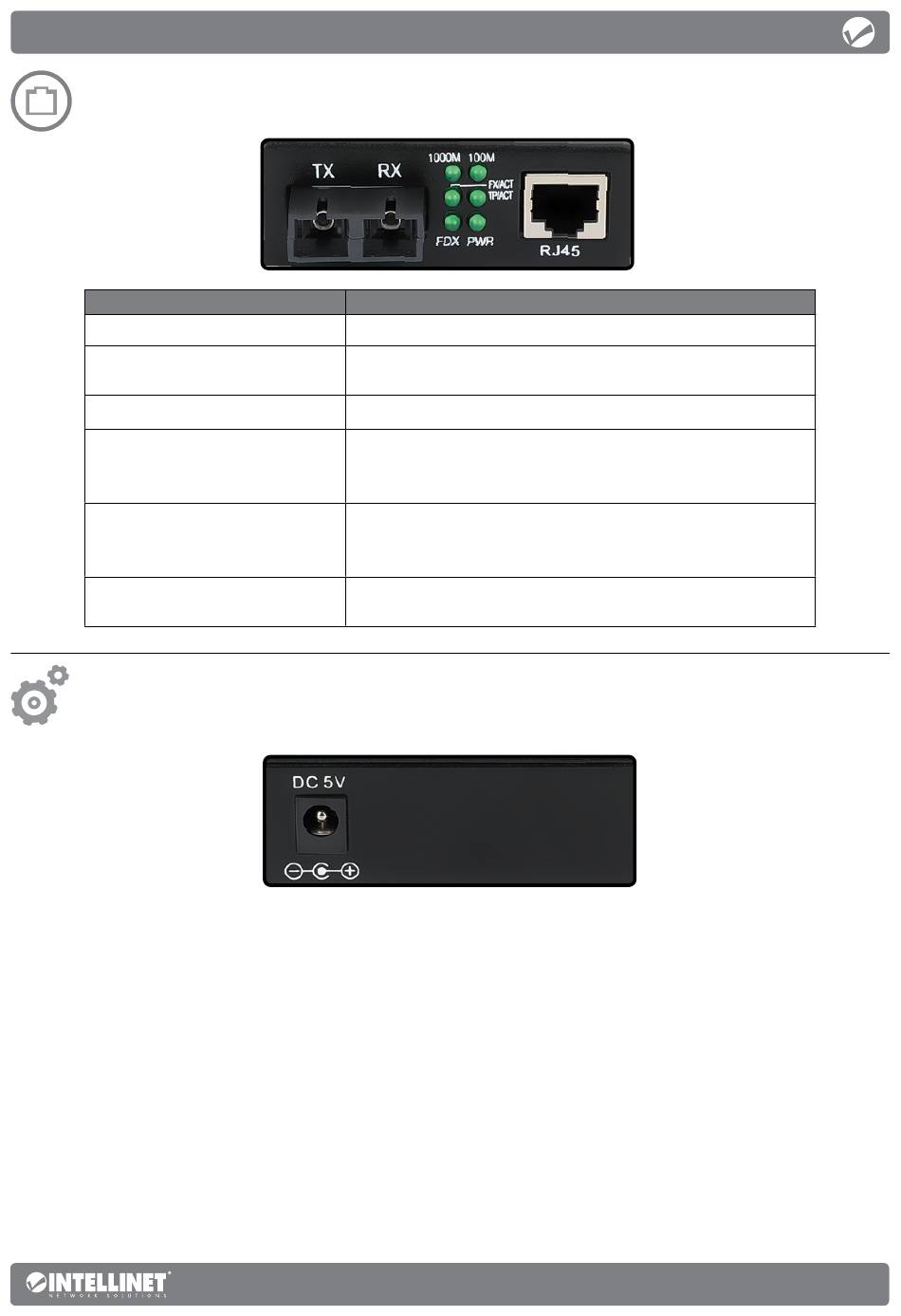

Front panel

PWR
1000M
100M
LINK/ACT
(TP = RJ45; FX = FIBER)
FDX/COL (FOR TP/RJ45)
SD (FOR FX/FIBER)

Rear Panel

Power
Plug the power adapter into the 5 V DC input jack on the media converter,
then connect it to a regular power outlet. Only use the included power
adapter or one with matching specifications (output of 5 V DC, at least 1 A).
LED
The power adapter is connected when lit.
1000 Mbps link on the twisted
pair connection when lit.
100 Mbps link on the twisted pair connection when lit.
– Active link when lit;
– Data traffic when flashing;
– No active network link when unlit.
– Full duplex connection when lit;
– Data collisions when flashing;
– Half duplex when unlit.
– Fiber optic signal is detected when lit;
– No signal when unlit.
Description
