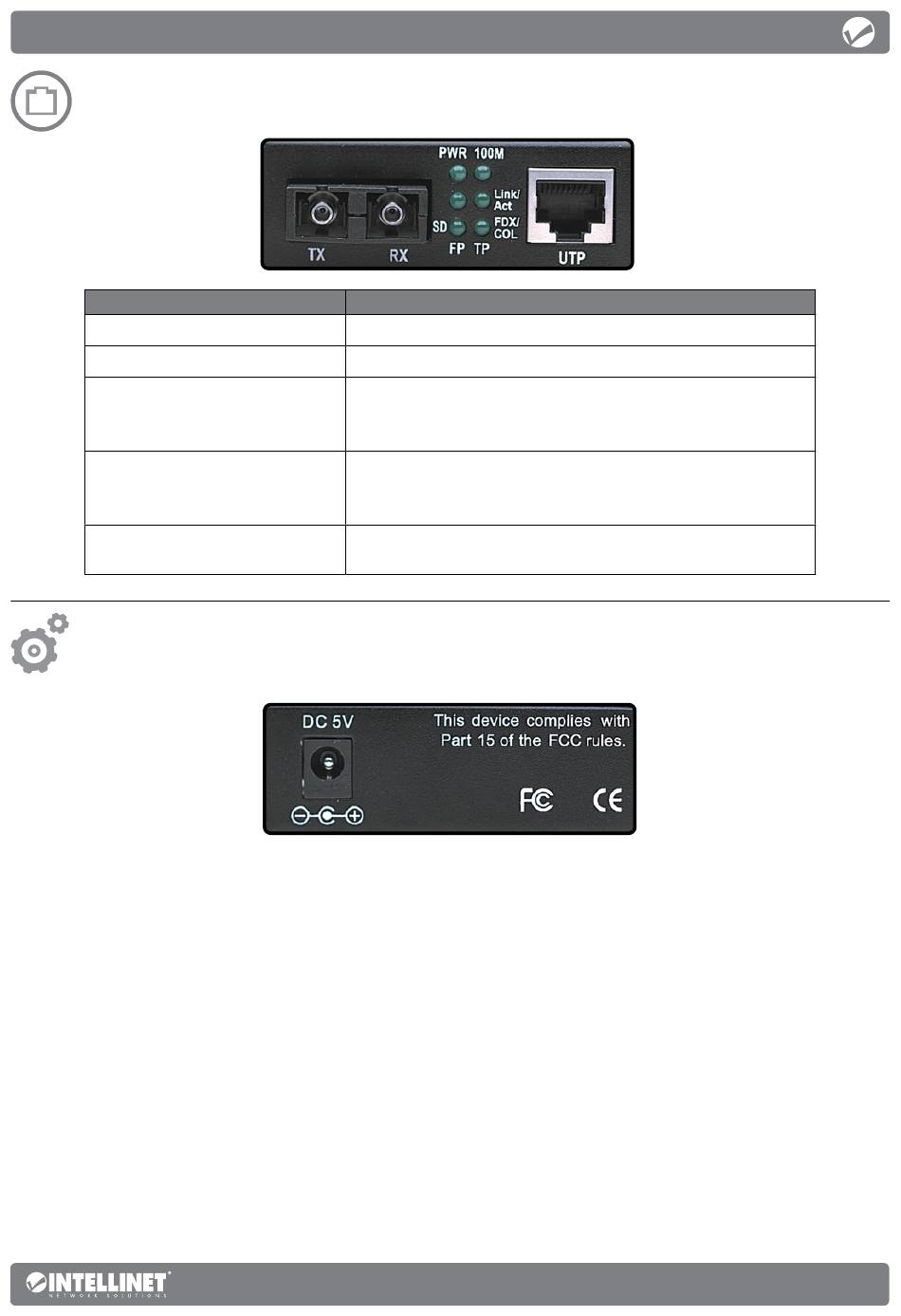

Front panel

Link/Act
(TP = RJ45; FP = Fiber)
FDX/COL (for TP/RJ45)
SD (for FP/Fiber)

Rear Panel

Power
Plug the power adapter into the 5 V DC input jack on the media converter,
then connect it to a regular power outlet. Only use the included power
adapter or one with matching specifications (output of 5 V DC, at least 1 A).
LED
PWR The power adapter is connected when lit.
100M 100 Mbps link on the twisted pair connection when lit.
– Active link when lit;
– Data traffic when flashing;
– No active network link when unlit.
– Full duplex connection when lit;
– Data collisions when flashing;
– Half duplex when unlit.
– Fiber optic signal is detected when lit;
– No signal when unlit.
Description
