Fiber Optic - Intellinet IMC-MMSCG Instructions Manual

For specifications, visit intellinet-network.com. To register your
product warranty, go to the weblink or scan the QR code for your
model, which you can find on the cover of this manual.
Models
• 506533: 1000Base-T to 1000Base-SX (SC) Multi-Mode,
Wavelength 850 nm, 550 m (1800 ft.)
• 507349: 10/100/1000Base-T to 1000Base-LX (SC) Single-
Mode, Wavelength 1310 nm, 20 km (12.4 mi)
Connections
MEDIA CONVERTER 1
ETHERNET 1
TWISTED PAIR
Twisted Pair – RJ45
Connect the UTP port of the media converter to an RJ45 port on the network
(e.g., to an Ethernet switch). Cat5e or better cabling is recommended.

Fiber Optic

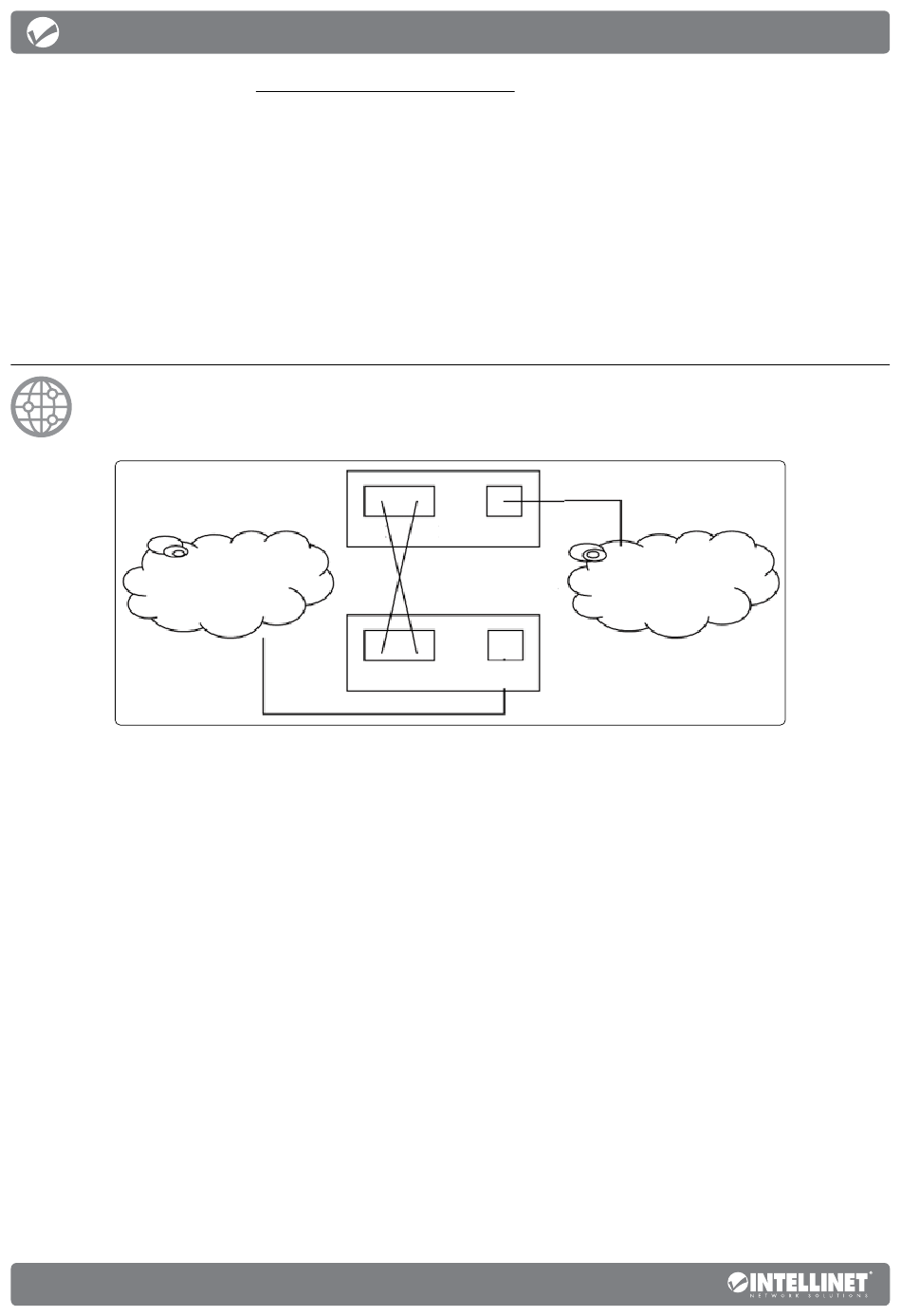

As shown above, two fiber optic cables need to be connected
between two ideally identical media converters. Make a connection
from Media Converter 1 TX to Media Converter 2 RX, and from
Media Converter 1 RX to Media Converter 2 TX. Maximum length
and fiber cable specification depend on the model. (See Models.)
2 English
TX RX RJ45
OPTICAL FIBER
RX
TX RJ45
TWISTED PAIR
ETHERNET 2
MEDIA CONVERTER 2
Instructions
