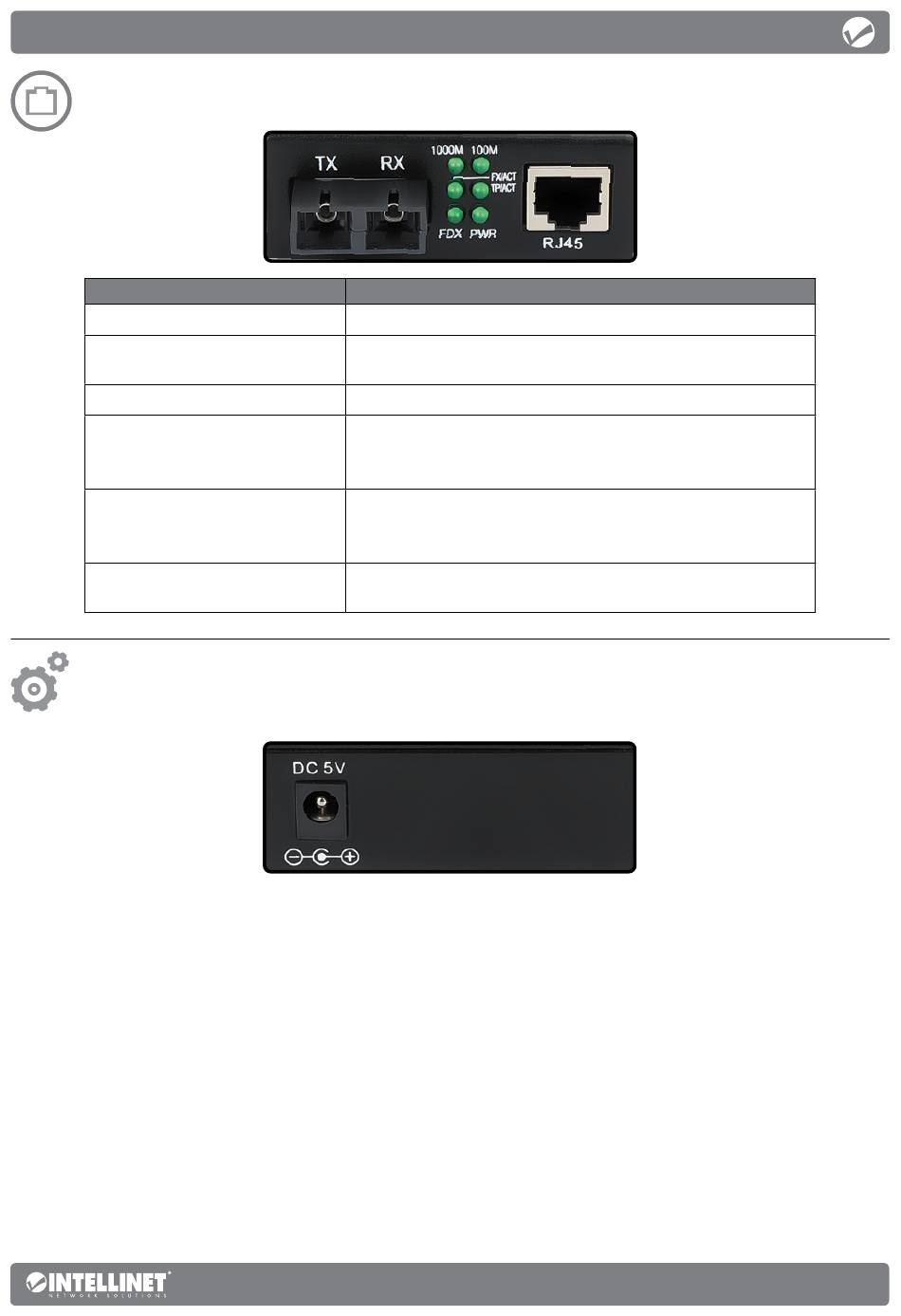

Front panel

Link/Act (TP = RJ45;
FX = Fiber)
FDX/COL (for TP/RJ45)
SD (for FP/Fiber)

Rear Panel

Power
Plug the power adapter into the 5 V DC input jack on the media converter,
then connect it to a regular power outlet. Only use the included power
adapter or one with matching specifications (output of 5 V DC, at least 1 A).
LED
PWR
The power adapter is connected when lit.
1000 Mbps link on the twisted
1000M
pair connection when lit.
100M
100 Mbps link on the twisted pair connection when lit.
– Active link when lit;
– Data traffic when flashing;
– No active network link when unlit.
– Full duplex connection when lit;
– Data collisions when flashing;
– Half duplex when unlit.
– Fiber optic signal is detected when lit;
– No signal when unlit.
