Depstech DS520 - Industrial Endoscope Manual

Product Features

• DEPSTECH is a booming technology company, specialized in creating various endoscopes and committed to make you feel more secure.

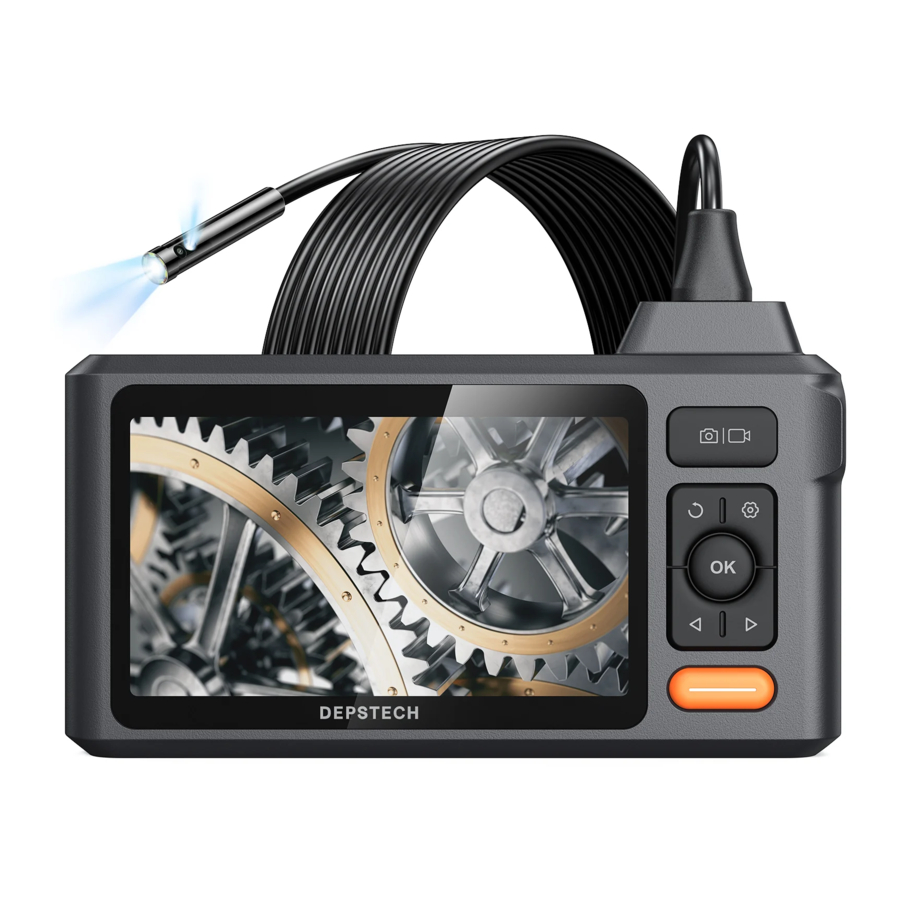

• DS520 is a high-performance industrial endoscope, equipped with 5 inch IPS high-definition display, has the camera and video functions and saves into TF memory card (Micro-SD card). Such camera uses high-performance CMOS chip that supports the record-high frame rate to get clear images with Bluart 3.0 technology, widely used in industrial maintenance, appliance maintenance, mechanical maintenance and design and other fields.

Special Warning and Notice

• This product is a camera of industrial endoscope, not applicable to medical or physical examination!
• In order to lengthen the battery life, it is recommended that you should charge the device once every 3 months whether it is used.
• Do not try to replace internal battery by yourself, because unprofessional operation may lead to risks of personal injury due to battery overheating, etc.

Safety and Protection

• Probe of camera is an electronic device of high precision, so please do not hit the probe of camera or pull the cables, which may lead to failure of the device.
• With IP67 waterproof layer, the probe shall be used with extra care and protected from scratches!
• Camera probe is made from materials that are not high temperature resistant, so make sure the internal temperature of any internal combustion engine or other equipment whose internal temperature is higher has been cooled when they are examined, otherwise the device will be directly damaged!
• In case of device damaged, please do not dismantle it by yourself, but contact the seller or the supplier for more professional maintenance services.
• Children may not use this device independently without the guidance of adults.

Operating and Storage Environments

• The device should be operated at an ambient temperature of 32~113℉ (0~45℃).
• The device should be stored in a dry, clean, oil-free and waterless place without any chemical liquid.

Product Introduction

Front

		Hold this button for 2s to power on/off the endoscope
		Single press to take a photo or end the video record Hold this button for 2s to start a video record
		Click to increase the LED lights brightness of the camera Move the cursor down(When in the menu)
		Click to dim the LED lights of the camera Move the cursor up(In the menu)
		Click to rotate the real-time image 180° Hold this button for 2s to switch main/side camera (Only applicable to dual-lens products)
		Hold this button for 2s to enter/exit the album Click to confirm the selections (When in the menu)
		Click to enter the menu
	USB Port	Hard wired USB port socket

Bottom

	TF Card Slot Support up to 32G TF card Please format it on first use
	Type-C Charging Port For charging (Type-C cable connected to the adapter) For data transmission (Type-C cable connected to PC client)
	Reset Button Short click the reset button with the reset pin, the device will be shut down and reseted.
	Charging Status LED Indicator Red LED indicator flashes: Charging Red LED indicator stays on: Charging finished

UI Introduction

Tips:
Dual Lens:

1. Main Lens
2. Side Lens

Triple Lens:

1. Main Lens
2. Side Lens(B)
3. Side Lens(C)

Language Setting

Default language of the device is English; If other language is required, please follow the steps below:

1. Click the button to enter menu interface, select Language by pressing the arrow button and then press the button, enter the language setting interface.

2. Click button to select the language you need, and then press button to switch the language.
3. Click the button to return the Main Interface.

Photo/Video

1. Take photos by pressing button.

2. Long press to start a video recording, single press to the end video recording.

View Photo/Video

1. Long press in preview mode to enter the photo album.
2. Press to view photos, Click to play videos.
3. Long press to exit the photo album.

Delete Photo/Video

1. When viewing photos/videos, press to enter the photo/video detail page.

2. Press to choose to delete the current file or all files.

Lens Switching

(Only available for dual and triple lens products)
When the product is turned on, it opens the main lens by default, long press the button 2s can switch the lens (Main Lens - Side Lens - Split Screen - Main Lens)

TF Card Formatting

1. On the preview interface, press the button to enter the menu;
2. Press to select "Format" options;
3. Press to enter the option interface, Select "OK";
4. Wait for the formatting to complete.

Copy Photo And Video Files To Computer

1. Use a TF card reader to copy data directly.

2. Use a Type-C cable to connect to computer for copying Setting path.
   1. Please connect the product to your computer.

   2. Press the button to enter the menu.
   3. Select "Data transmission".
   4. Press the button to start copying to computer.

If the device is not connected with computer, click "Data transmission" on the setup interface, then USB icon shows up on the display; Please press the button to exit.
It is normal for "No Signal" to appear on the screen when you press the button to exit data transmission.

Charging Instructions

1. Connect the device to the DC 5V adapter for charging;
2. The red indicator light flashes when the device is charging, and is always on when fully charged.

Guide For Accessories Installation

Installation method:

Turn counterclockwise-remove protect cap

Turn clockwise-tighten accessories

Specifications

Packing List
