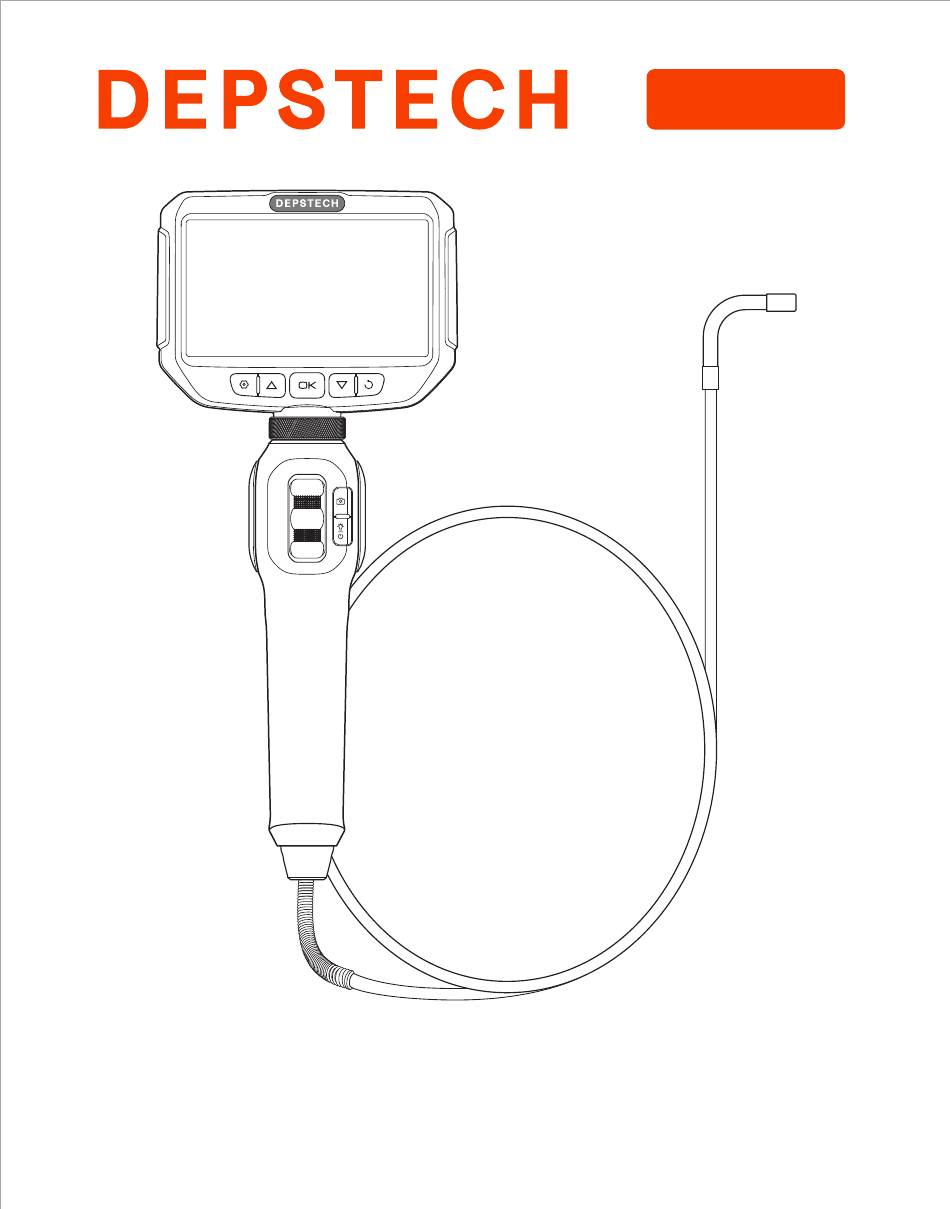

  • Page 1 DS630 User Manual...

  • Page 2: Product Features

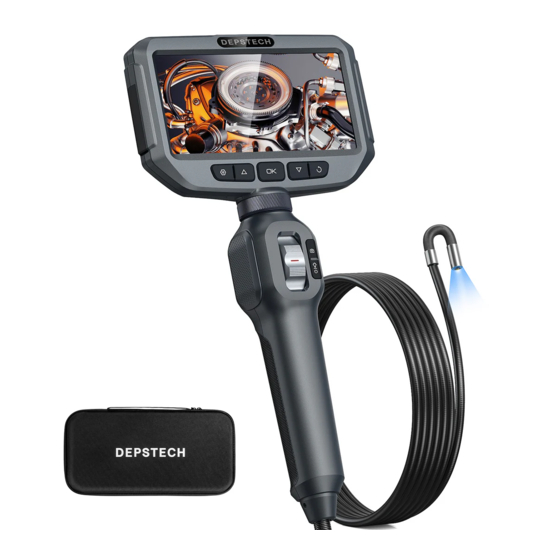

    DS630 is a high-performance steerable industrial endoscope with a 5-inch IPS HD display, equipped with a camera to record video, a probe that can be turned 210°, and photos and videos that can be saved to a TF memory card (Micro-SD card).

  • Page 3: Product Introduction

    Product Introduction Power button / Lens light adjustment button Front view of the product (composite button) Press and hold for 2s to turn on/off the endoscope (click to adjust the lens light after powering on). Photo/Video a. Click to take a photo. b.

  • Page 4: Preview Interface

    Introduction to UI Icons Preview interface Photo Shoot/ Probe Video Record temperature Battery level TF Card Status Screen Rotation 180° Timestamp Attention: Either the camera probe operating temperature or ambient temperature reaches 80℃, the device will automatically shut down due to high temperature protection. And only the camera probe part is waterproof.

  • Page 5: Language Settings

    Language Settings The default language of this device is English. To switch to another language, please follow these steps. 1. Click the ( ) button to enter the menu interface, select the language setting by the ) button, then press the ( button to select desired language.
  • Page 6 Delete photos/videos 1. When viewing photos/videos, press ( ) button to access the photo/video details interface. 2. Click ( ) button to delete the current file or all files. 3. Click ( ) button to confirm 1920*1080 delete. 4. Click ( ) button to return to the previous level or the preview interface.
  • Page 7 Copy photos and videos to your computer 1. Copy files directly using a TF card. Card Reader Card 2. Use Type-C data cable to connect a computer and transfer data. (1) Connect the product to your computer with a Type-C cable. (2) Select data transfer mode and press ( ) button to confirm, then you can copy photos and videos to your computer for saving.

  • Page 8: Specification

    Specification Camera diameter 6.2MM 8.5MM Snake tube length 1.5M 1.5M Snake tube material Flexible Metal Hose Elastomeric metal fixing tube Camera perspective 78° 120° Camera Best focal length Sensor 1/9 CMOS 1/9 CMOS Rotation angle 210° 210° Screen size 5 inches 5 inches Battery Capacity 3350mAH...
  • Page 9 ※ FCC Requirement: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause...

  • Page 10: Customer Services

    Please contact us if you have any questions, we love to hear from you www.depstech.com support@depstech.com Facebook Official Page: @DEPSTECH. FANS Shenzhen Deepsea Innovation Technology Co., Ltd. Room 1901-1902, Jinqizhigu Building, No.1 Tangling Road, Nanshan District, 518055, Shenzhen, CN Made in China...
