- Page 1 Industrial Endoscope DS550 Multi-Language User Manual...
-
Page 2: Product Features

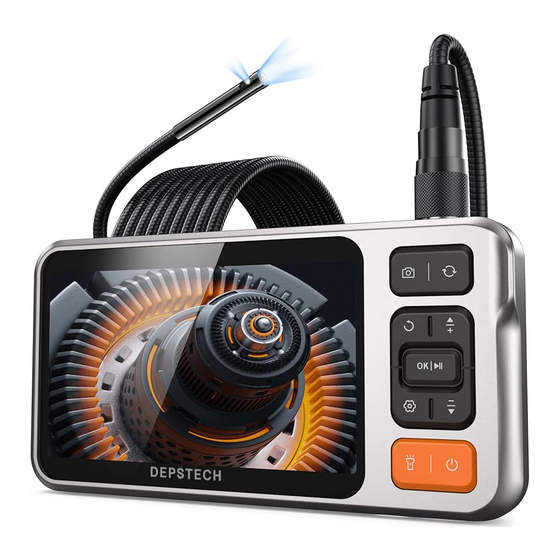

• DEPSTECH is a booming technology company, specialized in creating various endoscopes and committed to make you feel more secure. • DS550 is a high-performance industrial endoscope, equipped withb 5" IPS LCD Screen, has the camera and video functions and saves into TF memory card (Micro-SD card). -
Page 3: Product Introduction
Product Introduction • Hold this button for 2s to power on/off the endoscope • Single press to take a photo • Hold this button to start video record, and single press to end the video record • Single press to switch lenses •... - Page 4 Charging Status LED indicator • Red LED indicator flash: Charging status • Red LED indicator stay on: Charging finished TF Card Slot • Support up to 32G TF card • Please format it for the first time of usage Type-C Charging Port •...
-
Page 5: Language Setting
Language Setting Default language of the device is English; If other language is required, please follow the steps below: 1. Click the button to enter menu interface, select Language by pressing the arrow button and then press the button, Enter the language setting interface. - Page 6 View photo/video 1. Long press in preview mode to enter the photo album. 2. Press to view photos, Click to play videos. 3. Press to exit the photo album. Delete photos/videos 1. When viewing photos/videos, press to enter the photo/video detail page. 2.
- Page 7 Lens Switching When the product is turned on the default open the main lens, press to switch the lens. TF Card Formatting 1. On the preview interface, press the button to enter the menu. to select “Format” options. 2. Press 3.
-
Page 8: Charging Instructions
Copy photo and video files to computer 1. Use a TF card reader to copy data directly. Card Reader Card 2. Use a Type-C cable to connect to computer for copying Setting path. 1. Please connect the product to your computer 2. -
Page 9: Specifications
Specifications Dual Lens Dual Lens Model Three Lens (5MP+1080P) (5MP+5MP) 1cm-∞(0.39in-∞) A Camera 3-8cm 1.18-3.15 in 4-11cm 1.57-4.33in Focal 2-6cm(0.79-2.36in) 2-5cm(0.79-1.97in) B Camera 2-6cm 0.79-2.36in Range 2-5cm(0.79-1.97in) C Camera 88° 86° 120° A Camera Camera B Camera 88° 86° 78° View C Camera 78°... - Page 10 ※ FCC Requirement: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
-
Page 11: Customer Services
Please contact us if you have any questions, we love to hear from you www.depstech.com support@depstech.com Facebook Official Page: @DEPSTECH. FANS Shenzhen Deepsea Innovation Technology Co., Ltd. Room 1901-1902, Jinqizhigu Building, No.1 Tangling Road, Nanshan District, 518055, Shenzhen, CN Made in China...
